VSDISPLAY 12.6 inch 1920x515 NV126B5M-N41 IPS LCD Screen and Controller Board VS-RTD2556HM-V1

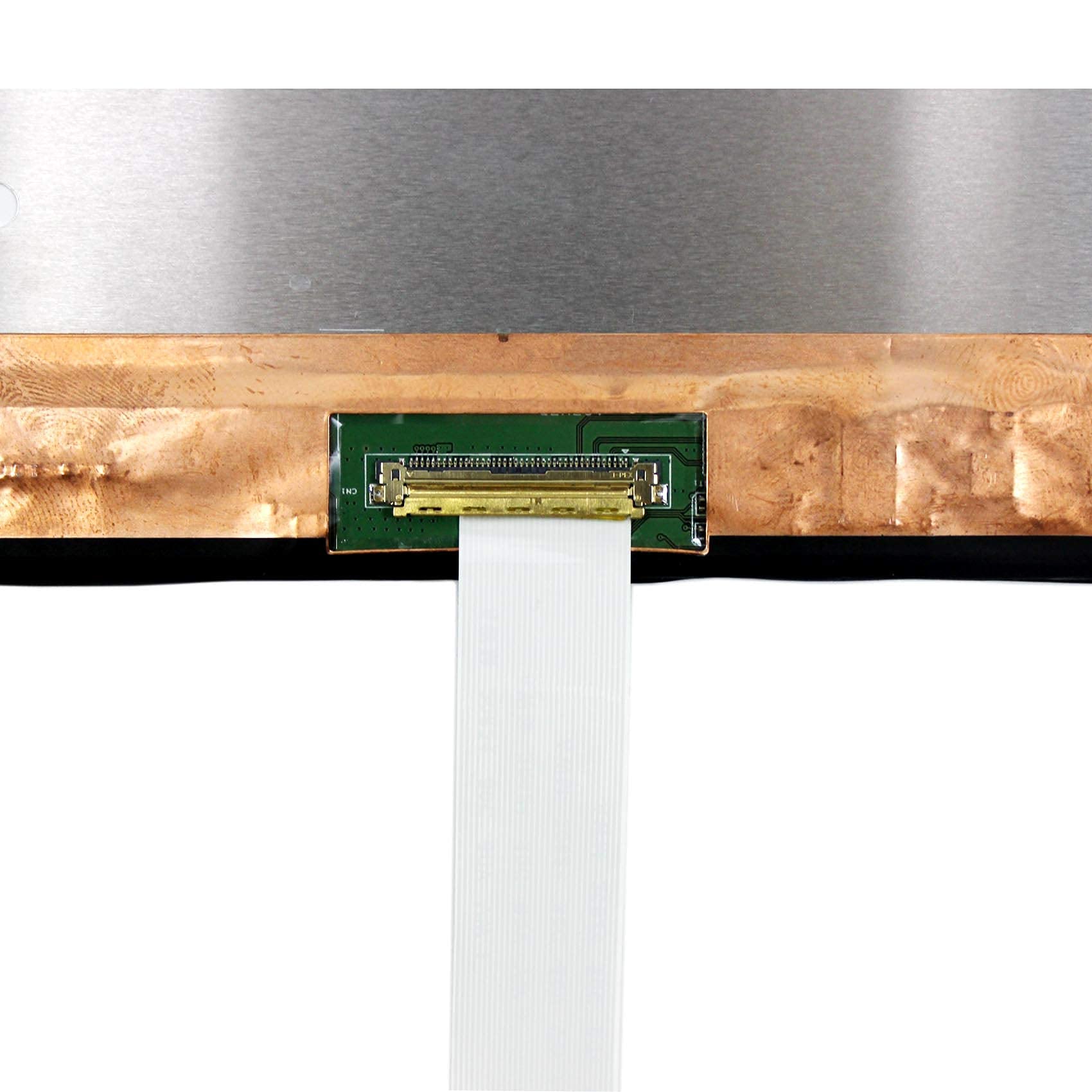

• 【Ultra thin Screen】12.6" wide EDP IPS screen delivers 178° full view angle,display area 309.31×82.97 (H×V)mm,special resolution 1920x515,Contrast Ratio 1200:1, 60HZ refresh rate.
• 【LCD Driver Board】Audio Output: Earphone (8ohm 2W PH1.25 connector ),Please use in an insulated environment.
• 【Input Power 】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
• 【Attention】Pls ensure that the voltage of the power supply is operated within the specified data range. If the voltage is unstable or exceeds the specified voltage range, it may cause the board to emit smoke. In addition, Pls ensure that the board is used in an insulated environment to avoid short circuits.

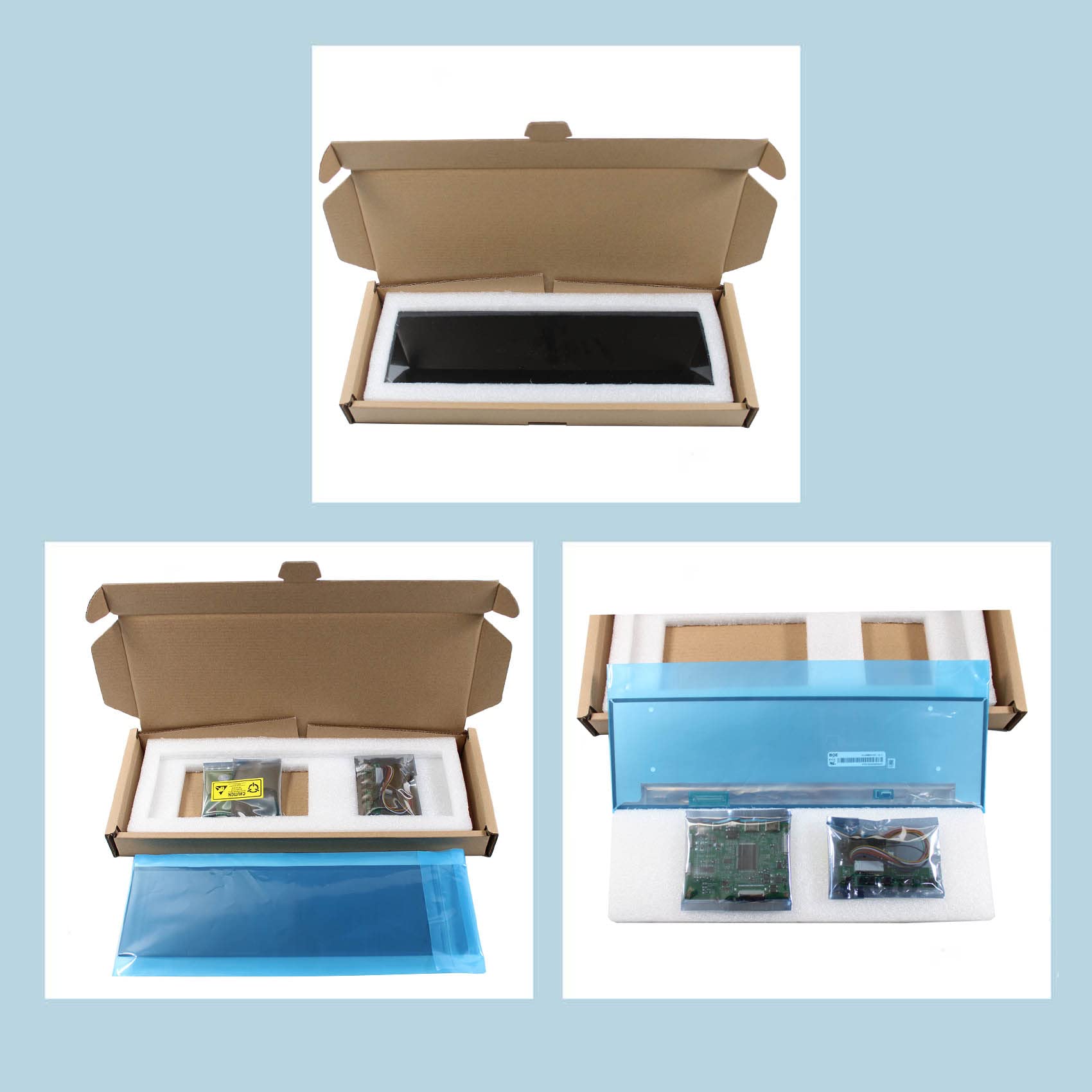

• 【Packing lists】1× LCD Controller VS-RTD2556HM-V1,1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen,1× eDP Cable,1× Keyboard With Cable

LCD Controller Board: Board Work for 30Pin EDP LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <0.3W Audio Output: Earphone OSD: Brightness Contrast VOL+ VOL- Language And So On Language: English French German Spanish Italian And So On Board Size: 82mm x 60mm x 5mm 12.6" NV126B5M-N41 1920X515 LCD Screen: Display New Mode ADS, Normally Black, Transmissive Resolution 1920RGB)×515 Outline Size 315.61×94.02×5.3(H×V×D) Display Area 309.31×82.97 (H×V) Brightness 250 cd/m² (Typ.) Contrast Ratio 1200:1 (Typ.) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface eDP (2 Lanes), Connector, 40pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× LCD Controller VS-RTD2556HM-V1 1× 12.6inch NV126B5M-N41 1920X515 IPS LCD Screen 1× eDP Cable 1× Keyboard With Cable When use DC Connector as input. Power Supply Input Voltage 5Vdc- 12Vdc. Micro USB output 5Vdc 500mA. When use Micro USB as input. Power Supply Input Voltage 5Vdc. When use 5Vdc as input. Power Supply Input current more than 2A. When use 12Vdc as input. Power Supply Input current more than 1A.
