VSDISPLAY 12.1" 12.1 inch 1024x768 4:3 VS121T-001A TFT LCD Screen and VGA 2AV LCD Controller Board,for DIY Monitor Displaying

• 12.1" VS121T-001A 1024x768 LCD Screen:Display Area 246 × 184.5mm,Brightness 350 cd/m²,Contrast Ratio 400:1, Viewing Angle 45/45/15/45
• Interface LVDS (1 ch, 6-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V
• VGA 2AV LCD Board Work for LVDS Interface LCD Screen，Video Input: VGA AV1 AV2

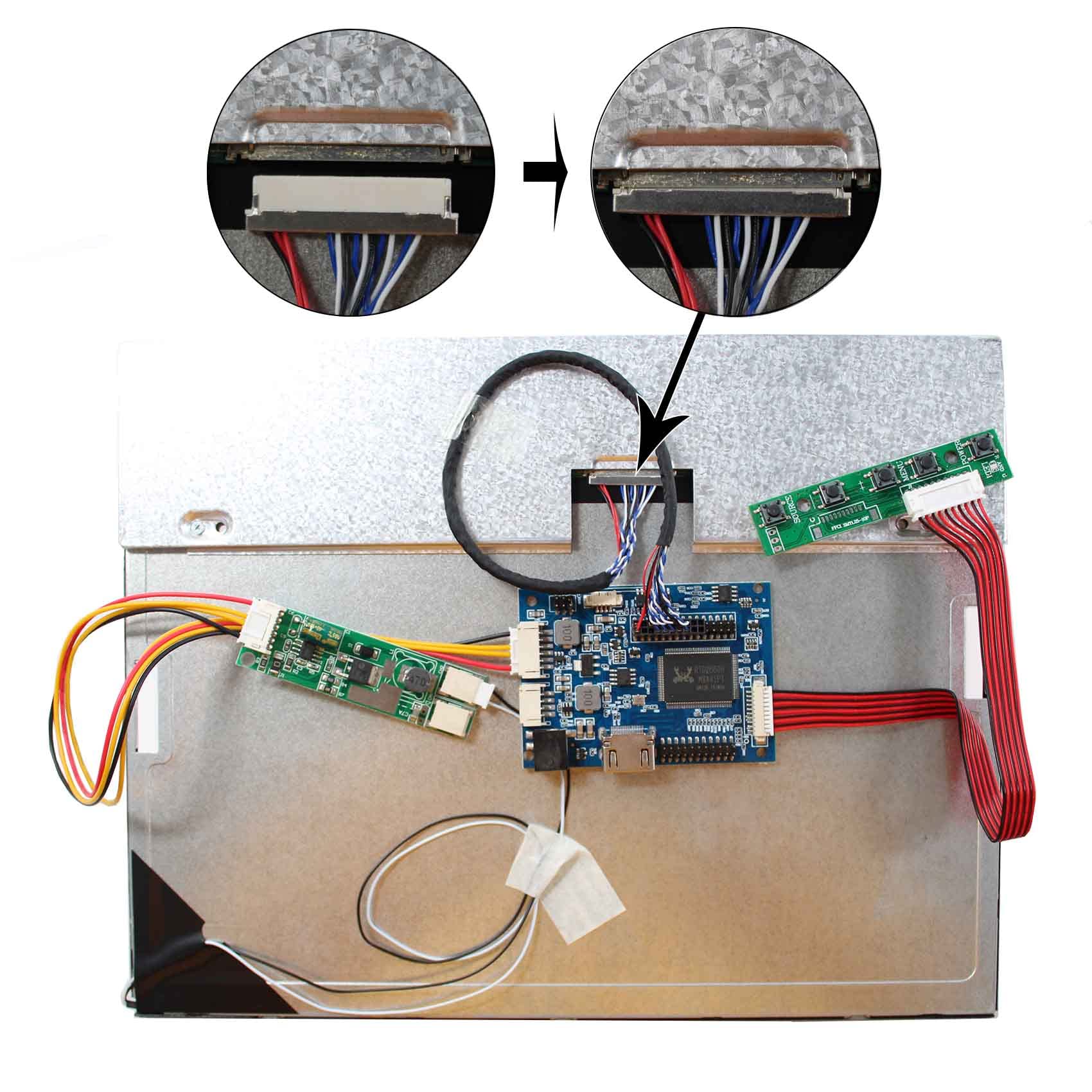

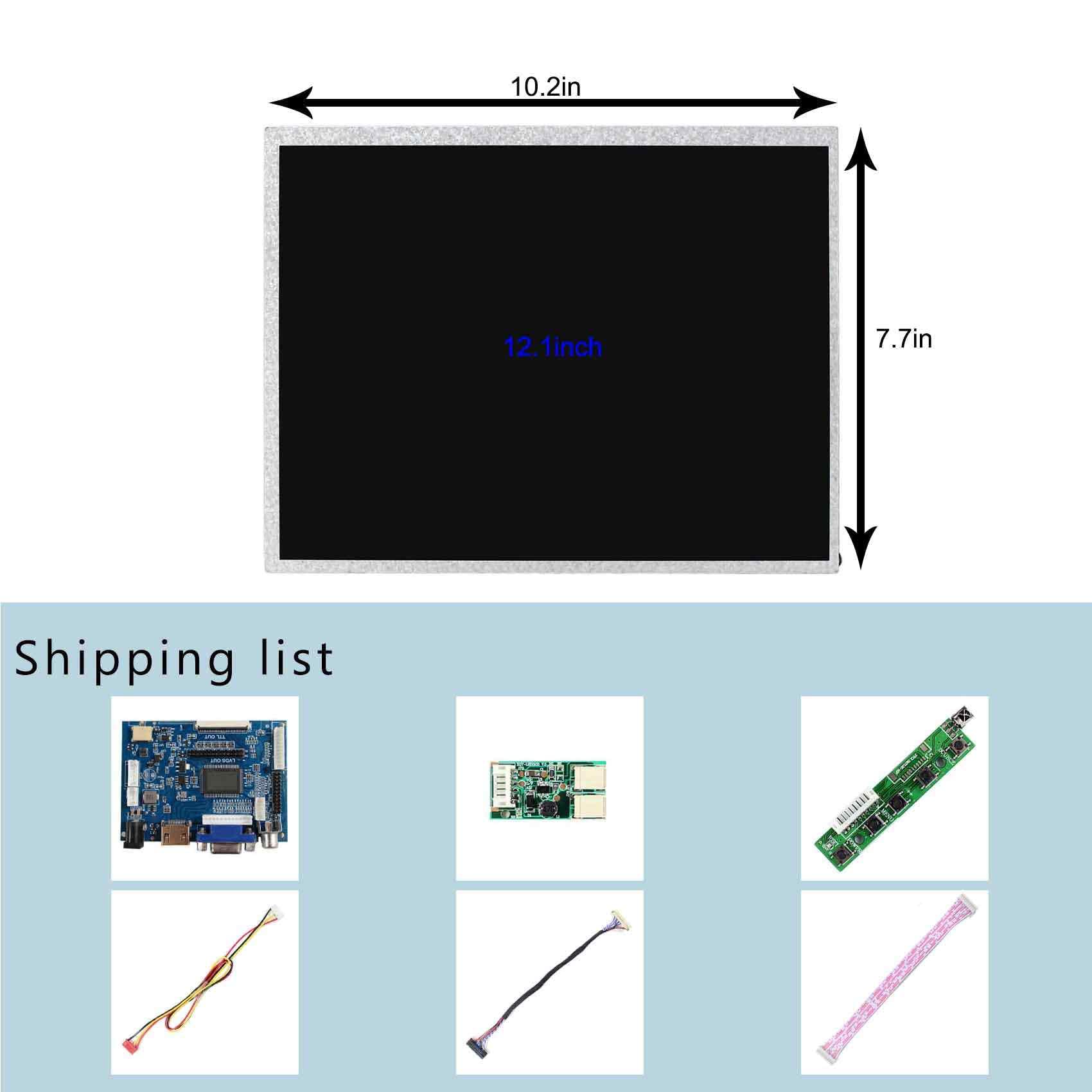

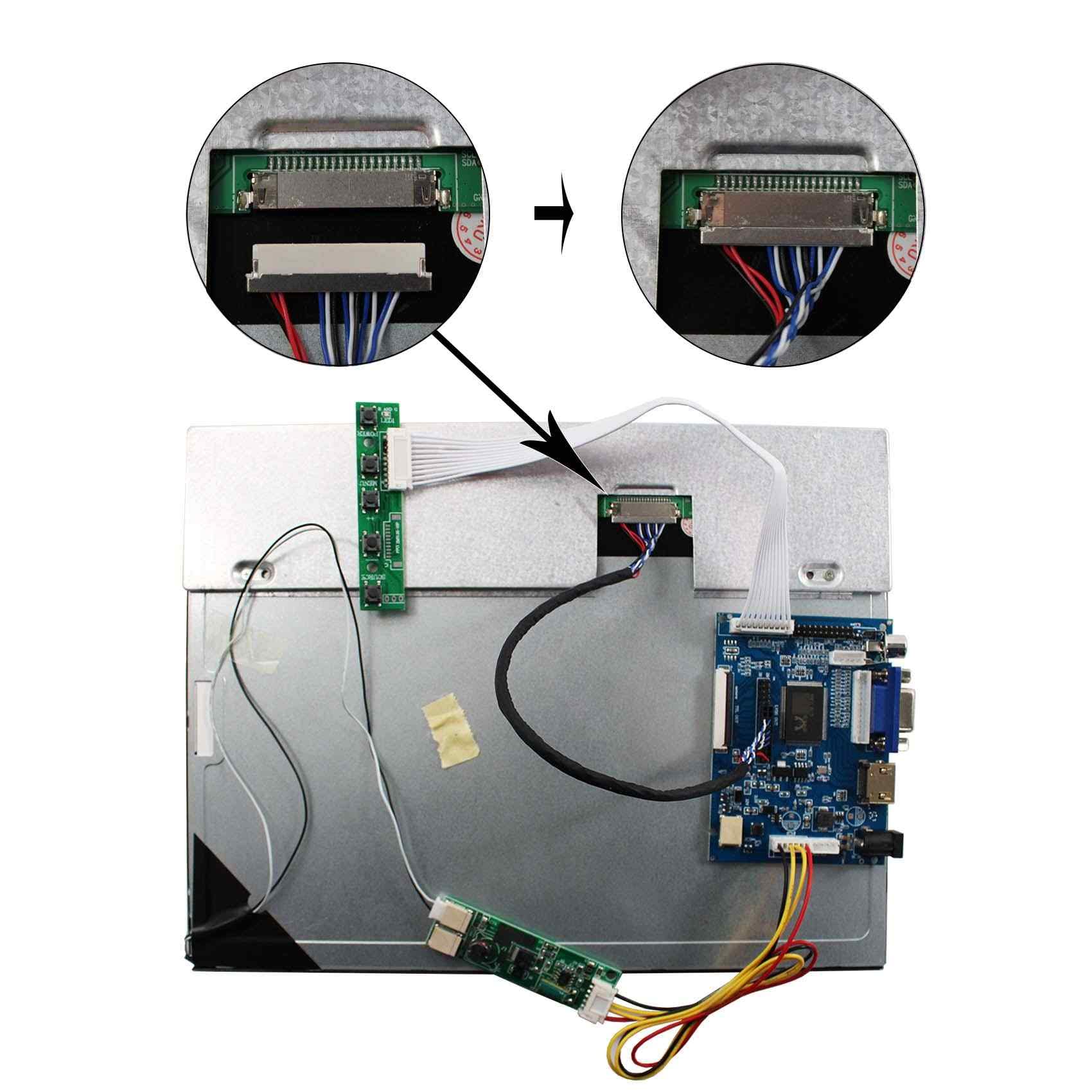

• Packing list : 1×LCD Controller Board VS-TY2662-V1 1× 12.1inch VS121T-001A 1024x768 LCD Screen 1× LVDS Cable 1× Inverter Board 1× Keyboard With Cable
• Any question just keep us informed , we will check and give you solution within 12 hours

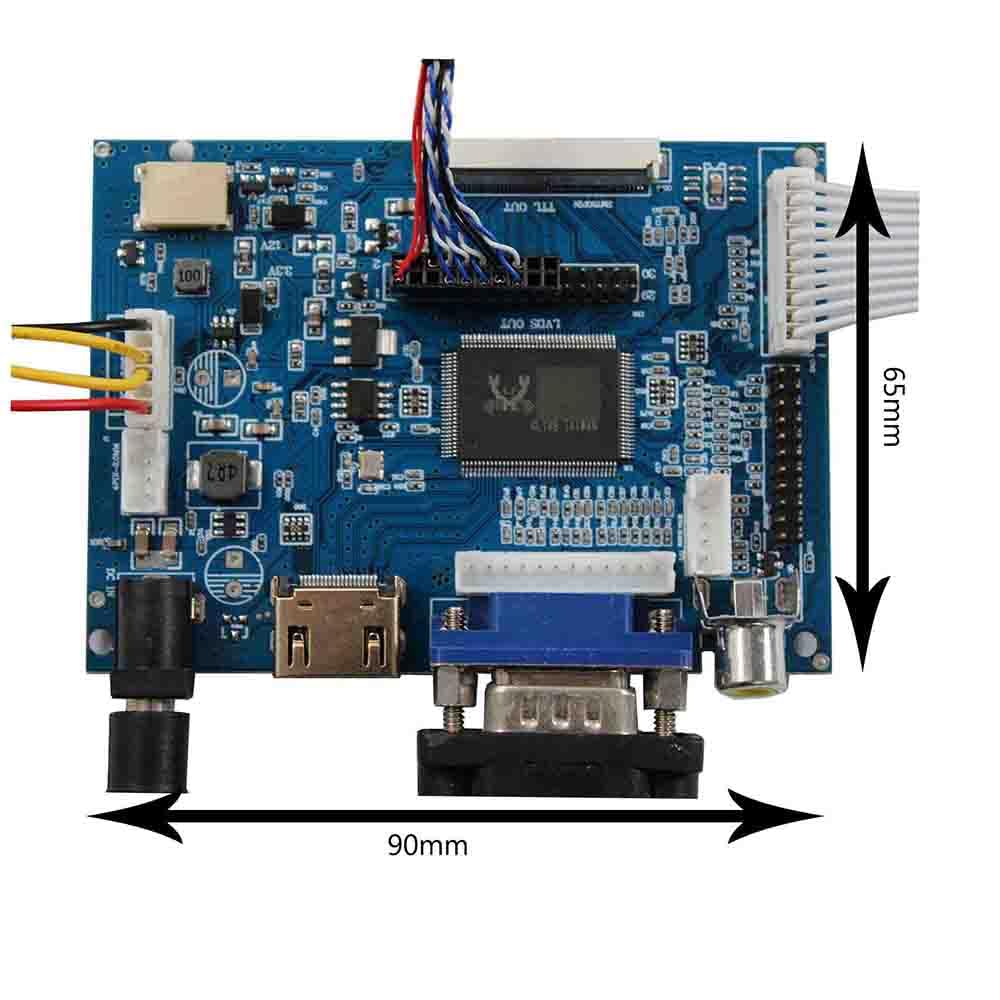

VGA 2AV Controller Board: VGA 2AV LCD Board Work for LVDS Interface LCD Screen 50Pin TTL Connector for 7inch~10.1inch LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: VGA AV1 AV2 Reversing: Support Automatically Switch To AV2 When Connector ACC to 12V OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 91mm x 66mm x 12mm 12.1" VS121T-001A 1024X768 LCD Screen: Display Mode TN, Normally White, Transmissive Resolution 1024RGB)×768 Outline Size 261× 198×5 (H×V×D) Display Area 246 × 184.5 (H×V) Brightness 350 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) Viewing Angle 45/45/15/45 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (1 ch, 6-bit) , 20 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.)
