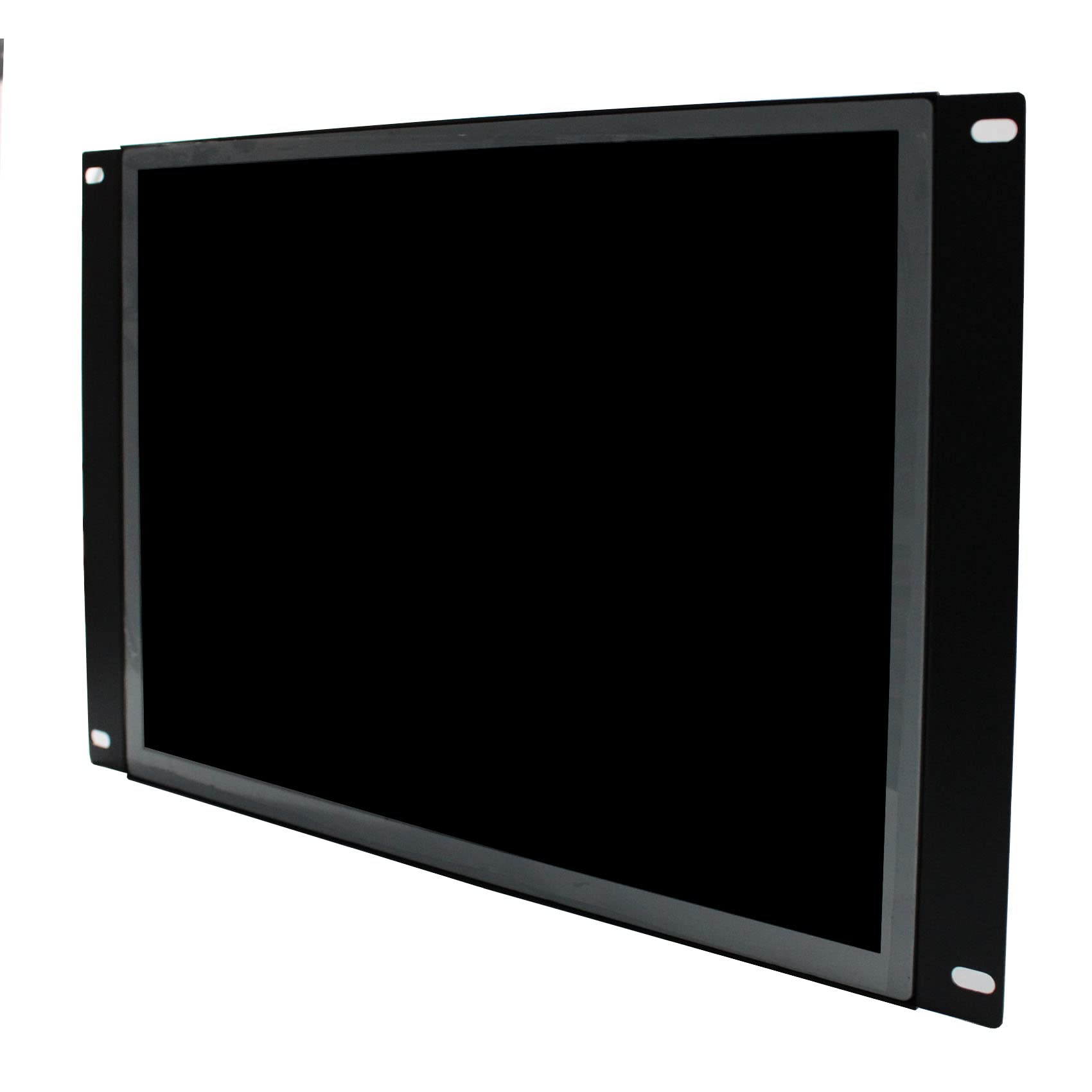

VSDISPLAY 12.1" 800x600 4:3 LQ121S1LG75 TFT Outdoor LCD Monitor,with DVI VGA Auido port,Wall-Mounted,Work for Industrial Machine

• 【4:3 aspect ratio screen 】800x600 resolution, metal shell is sturdy with convenient mounting brackets,just required power on ,enter into ,it can work well with you.

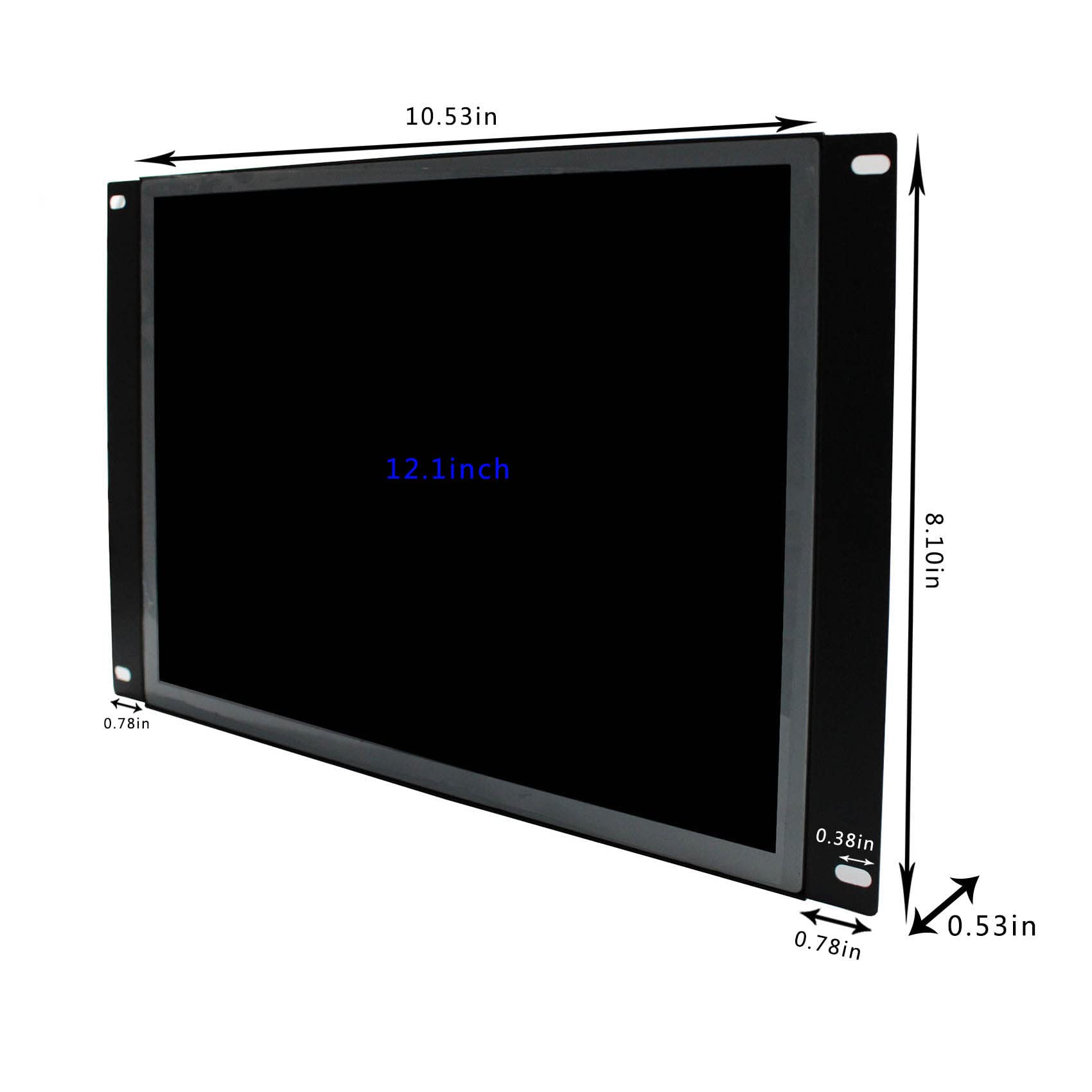

• 【Parameters】Outline Size 265× 205×10 (H×V×D)mm,Display Area 246 × 184.5 (H×V)mm,Screen Contrast: 500:1,View Angle: 80/80/60/80, LVDs 30 pin interface connector.

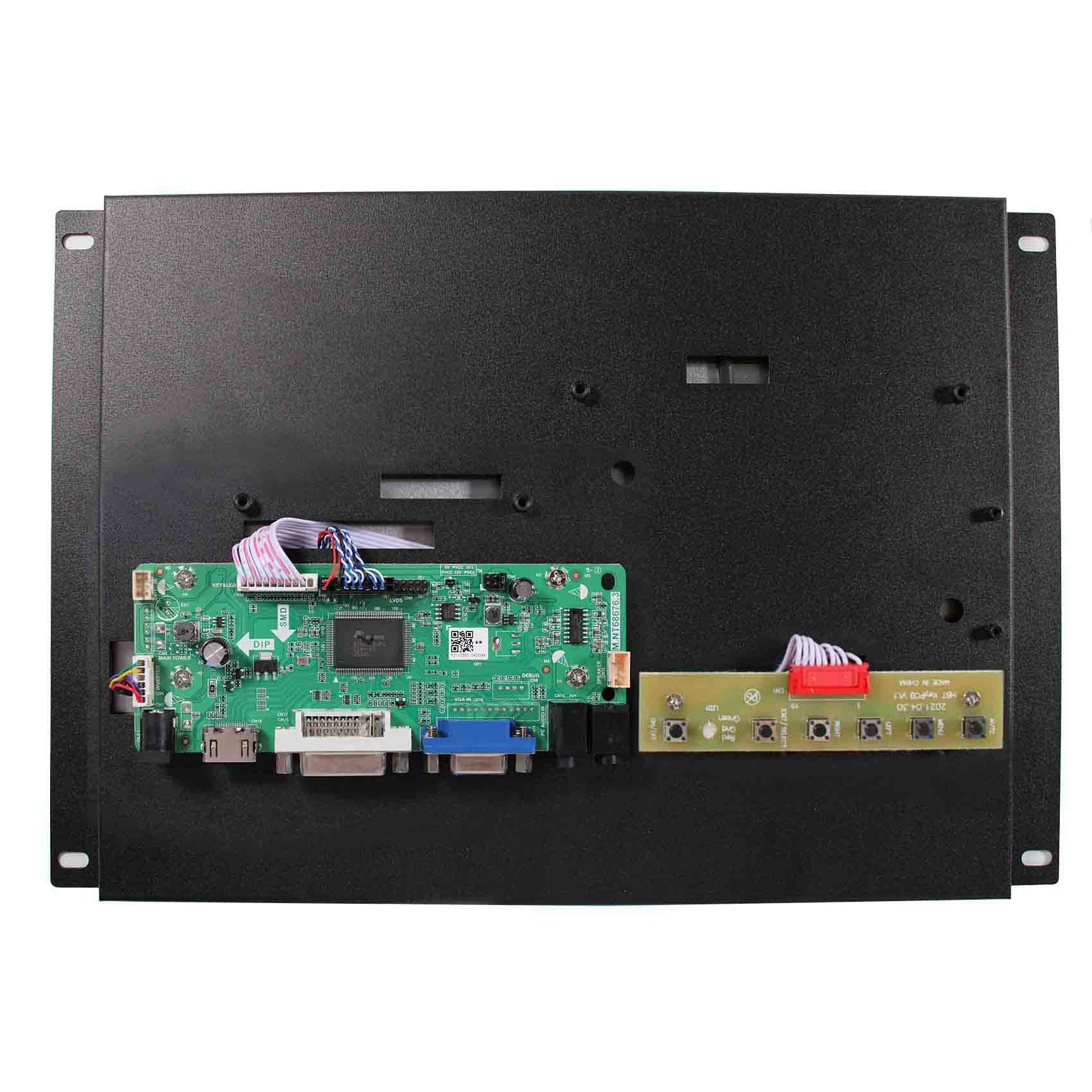

• 【LCD driver board】Video Input: DVI VGA,Audio Output: Speaker Connector (support 8ohm 2W/ 4ohm 2W),the board has been installed back of the shell .
• 【Usage】Widely used to working on industrial automation, monitoring system,Commercial Screen Display,etc..
• 【Energy consumption 】 Stand-by current<0.03A,Full load current<0.66A,Standby power consumption<0.36W,Full load power consumption<7.92W.

LCD Controller Board: DVI VGA AUDIO LCD Board Work for LVDS Interface LCD Screen Input Power Adapter:12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model <1W Video Input: DVI VGA Audio Input: Audio Output: Speaker Connector OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size:125mm x 53mm x 17mm 12.1" LQ121S1L75 800X600 LCD Screen: Display Mode TN, Normally White, Transmissive Resolution 800（RGB)×600 Outline Size 265× 205×10 (H×V×D) Display Area 246 × 184.5 (H×V) Brightness 330 cd/m² (Typ.) Contrast Ratio 800:1 (Typ.) Viewing Angle 80/80/60/80 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (1 ch, 8-bit) , 30 pins , Connector Backlight WLED Input Voltage 3.3V (Typ.) Packing list : 1× 12.1" 800x600 LCD Screen With DVI VGA LCD Controller Board
