VSDISPLAY 10.4 inch VS140T-003A 1024x768 4:3 500nit IPS LCD Screen and Audio Controller Board

• 【Screen Advantage】10.4" 500nit WLED Backlight IPS LCD screen display,4:3 aspect ratio,with high resolution 1024*768 ,full viewing angle, Outline Size 225.8 × 174.3×5.6(H×V×D)mm,Display Area 211.2× 158.48 (H×V)mm.Interface 30pins LVDS.
• 【LCD Controller Board 】 Video input: Audio ,Audio Output: Speaker Connector ,Please use in insulated environment.

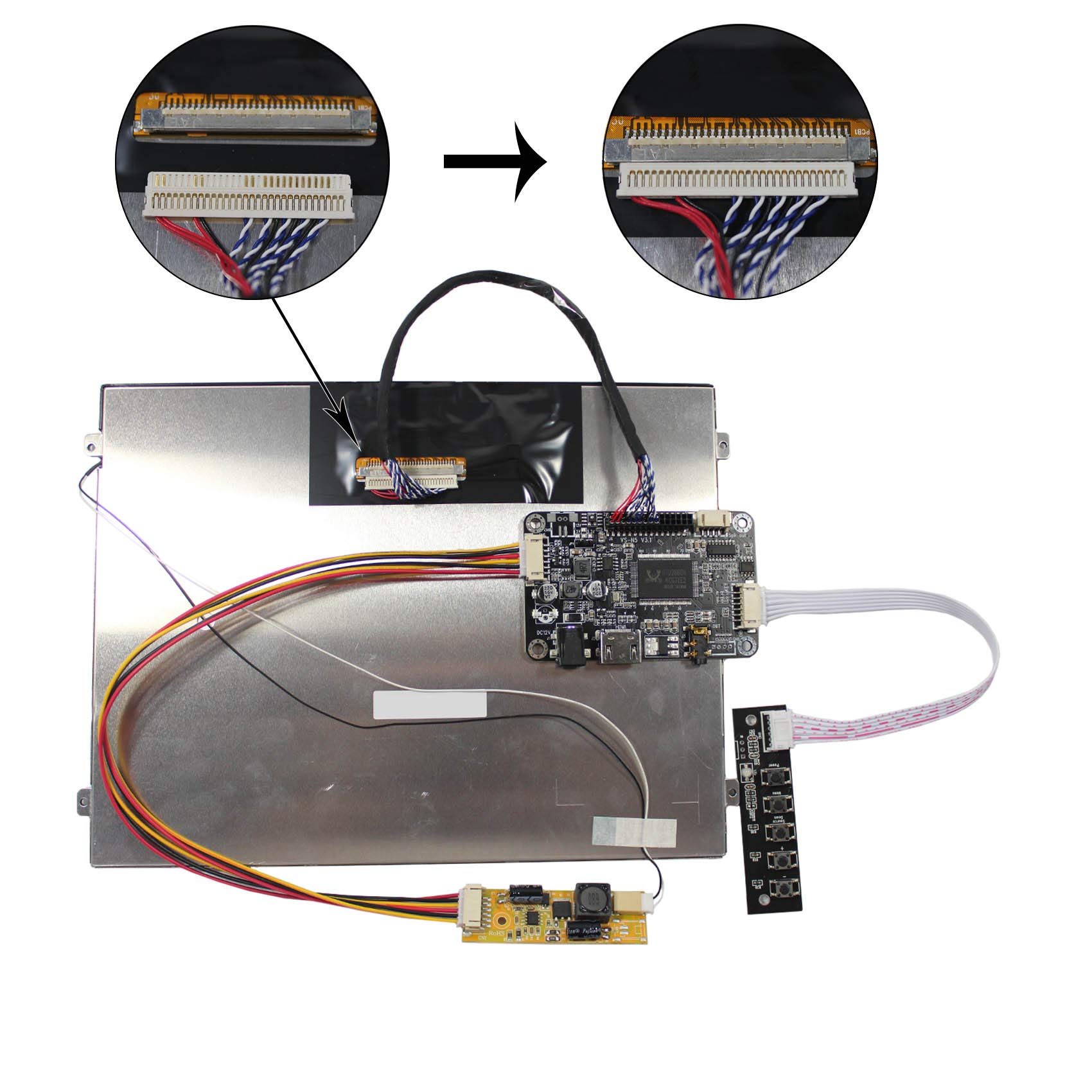

• 【Plug and play】 Directly Connecting cables and ports as picture ,power on ,LED light become green ,then connect cable ,the screen will be lit up .
• Power Supply:12V more than 2A DC (preparing by yourself)

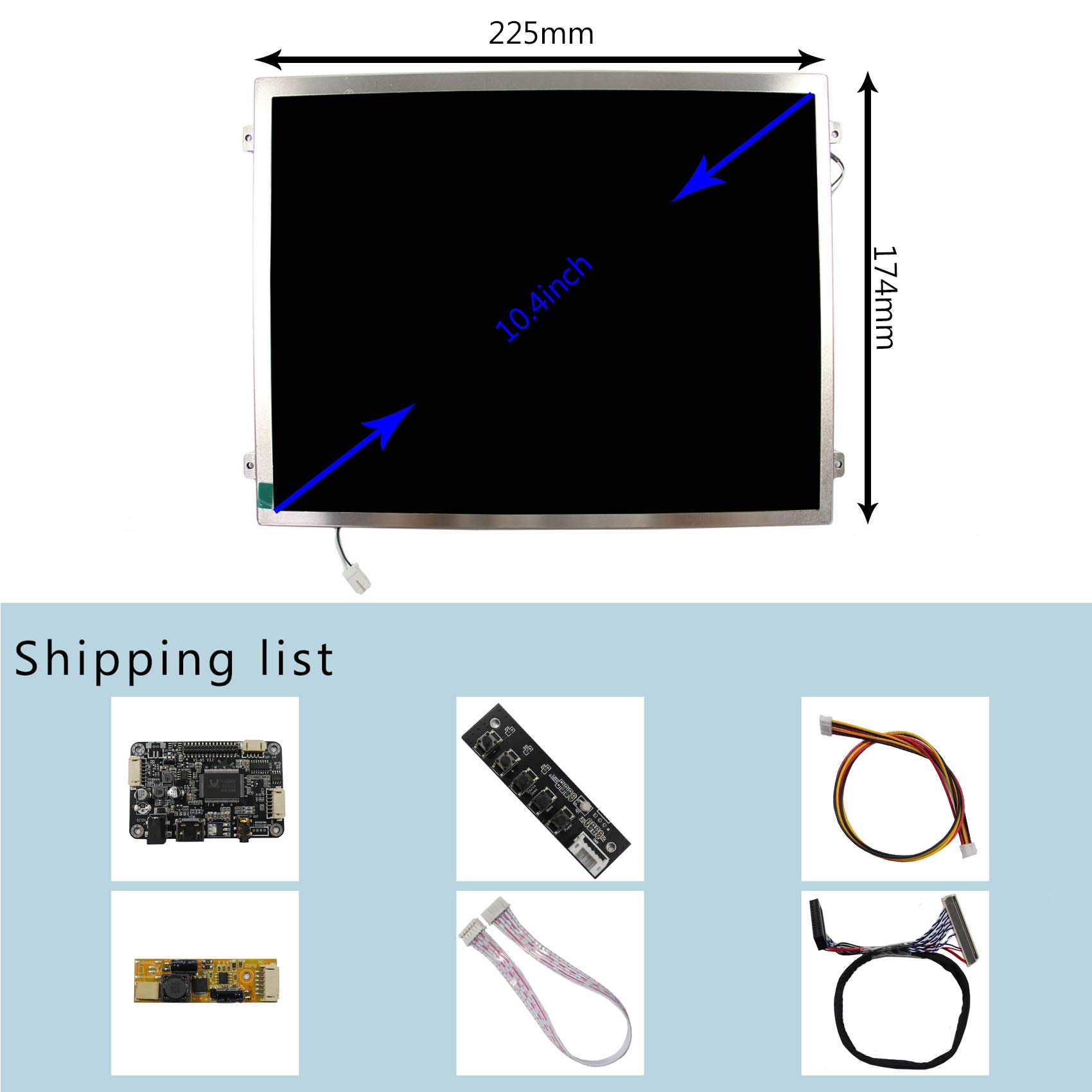

• 【Packing lists】1× Audio LCD Controller Board ,1× 10.4inch VS140T-003A 1024x768 IPS LCD Screen,1× LVDS Cable,1× Inveter Board,1× Keyboard With Cable

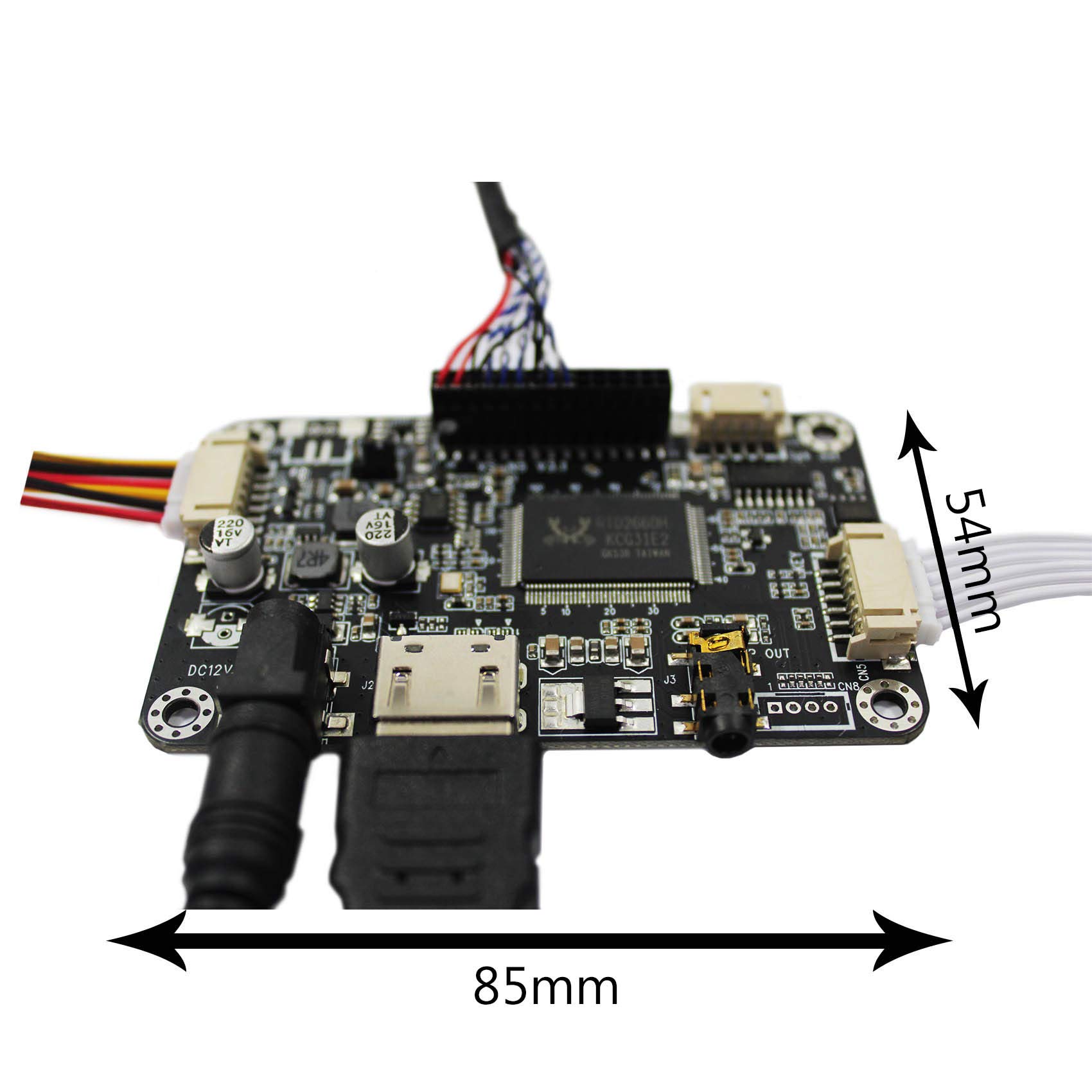

LCD Controller Board: LCD Board Work for LVDS Interface LCD Screen Input Power Adapter: 12Vdc More than 2A. Come In Standby Model When Not Input Signal Standby Model<1W Video Input: Audio Input: Audio Output: Speaker earphone OSD: Brightness Contrast Auto Language And So On Language: English French German Spanish Italian And So On Board Size: 85mm x 54mm x 14mm 10.4" VS104T-003A 1024X768 LCD Screen: Display ModeIPS, Normally Black, Transmissive Resolution 1024RGB)×768 Outline Size 225.8 × 174.3×5.6(H×V×D) Display Area 211.2× 158.48 (H×V) Brightness 500 cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down] Interface LVDS (1 ch, 6/8-bit) , Connector , 30 pins Backlight WLED Input Voltage 3.3V (Typ.) Packing list: 1× Audio LCD Controller Board 1× 10.4inch VS140T-003A 1024x768 IPS LCD Screen 1× LVDS Cable 1× Inveter Board 1× Keyboard With Cable
