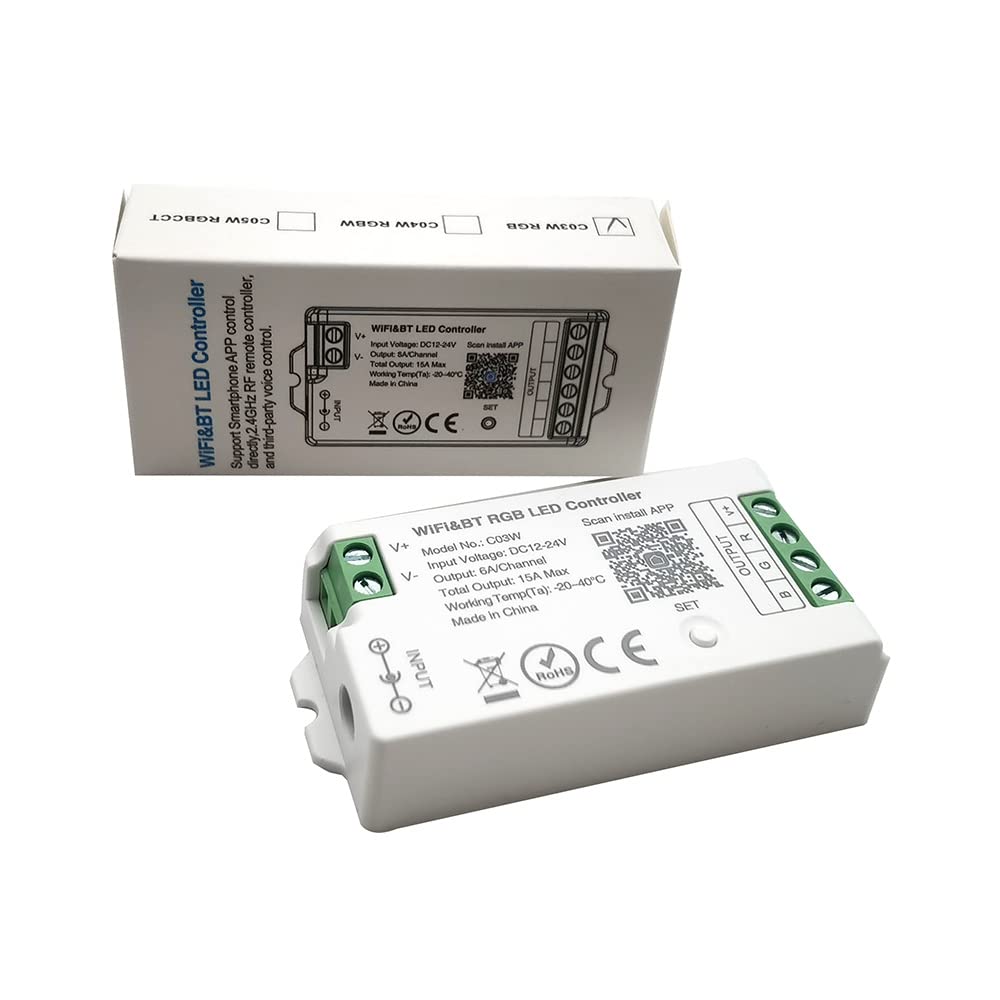

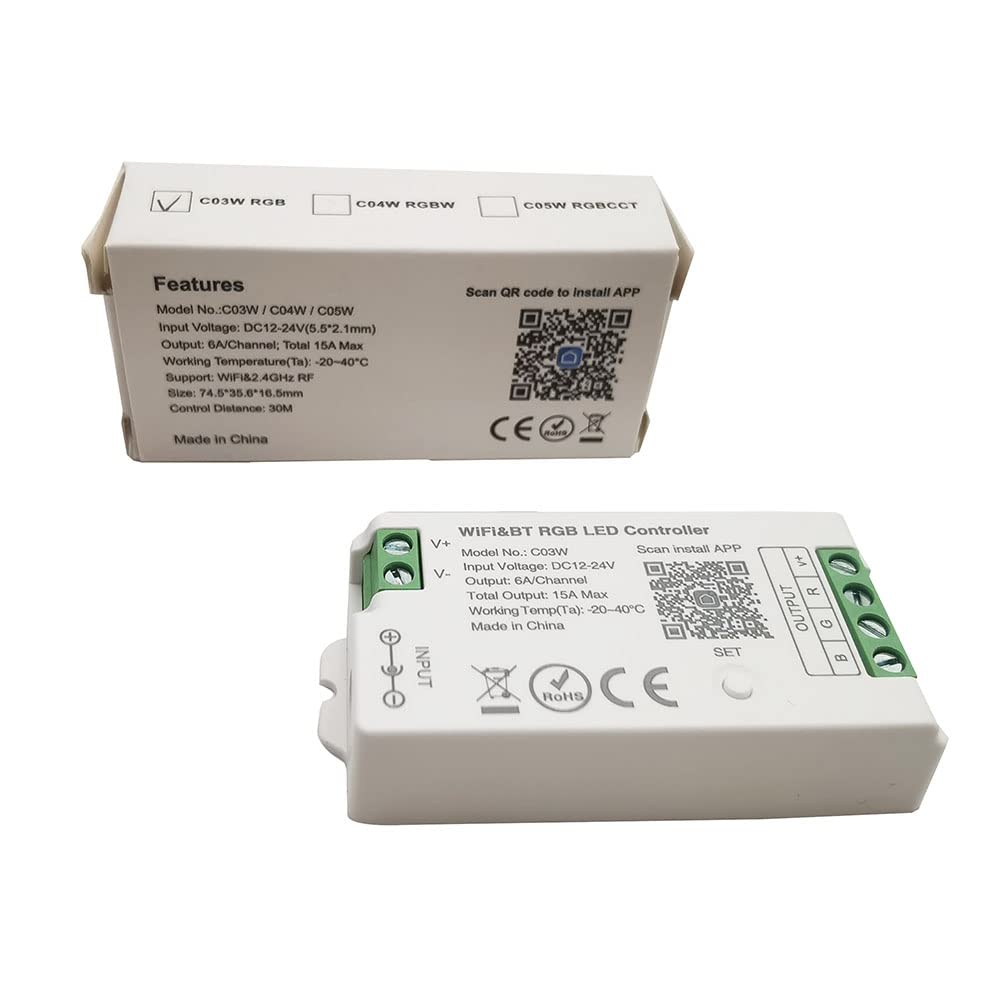

Vrabocry C03W (FUT037W Upgrade) RGB 2.4 GHz WiFi LED Controller Dimmable 16 Million Colours Compatible with Alexa Google Home Smartphone App Control Works with WR01RF Remote Panel

• 3 types of control: 2.4 GHz RF remote control, app control and Alexa, Google Home Assistant. Compatible 2.4GHz RF remote control: LM007 WR02RF Mi-boxer/Mi-light B2,S1-B,S1-W,S1-G,FUT007,T2. App control, support Tuya Smart/Smart Life app control, use the app and enjoy the control. Alexa, Google Home Assistant, support for third-party voice control. All three options can be used at the same time.
• 【Support LED Types】Control CCT LED strip LED string LED bulbs such as FCOB CCT Dual White (Warm White to Cold White) etc. No IC chip V+ CW WW 3-wire LED strip power: 6A/channel total power max. 15 A, DC12 V, 180 W max. DC 24 V max. 360 W.
• Automatic synchronisation of modes: different controls that are activated at different times and controlled by the same remote control can be synchronised in the same dynamic mode at the same speed. If you want to control the LED strips in the same mode, you can use the app for this, so you do not need many other superfluous operations such as switching on the corresponding strip controller again.
• Automatic transmission of the signal: the controller has a transmission range of 30 m. As long as a controller is within a radius of 30 m, the remote control can automatically transmit the control signal over an infinite distance. If you want to control many LED strips of 30 m or more, place the controller at each 30 m and you can control all strips. By the function, it is widely used for controlling hotel and home lighting.
• Multi-function: colour temperature 2700K-6500K. Dim brightness/saturation. Group control. Multi zone control. Voice control.Timer setting.Countdown on/off.Biorhythm. Tap-to-run and automation. Secene Adjustment Sleep/Wake-up plan Please do not disturb mode. Device release. Selection of different usage scenarios.

WB5= C01W+C02W+C03W+C04W+C05W. C01W=Monochrome,C02W=CCT,C03W=RGB,C04W=RGBW, C05W=RGBCCT C01W controls all PWM -V +V 2-pin LED strips, string, neon light, etc. There is no IC chip on the LED strip to adjust the brightness of the light strip. C02W controls all PWM +V CW WW 3 pin CCT LED strips, strings, Neon lights, etc. There is no IC chip on the LED strip. places adjust the colour temperature and brightness of the light strip. C03W control all PWM +V R G B 4 pin RGB LED strip, string, Neon light, etc. There is no IC chip on the LED strip. Set 16 million colours of the light strip. C04W controls all PWM +V R G B W 5-pin RGB LED strips, strings, Neon lights, etc. There is no IC chip on the LED strip. Set 16 million colours of the light strip and pure white light. C05W control all PWM +V R G B CW WW 6-pin RGB LED strips, String, neon light, etc. There is no IC chip on the LED strip. Adjust 16 million colour of the light bar and colour temperature. 2.4g WIfi FCOB COB FOB CCT Tunable RGB GRB RGBW GRBW RGBCCT Product Parameters Model No: C02W Input voltage: DC 12 V 24 V input voltage = output voltage DC12 V LED strip. Please use DC 12 V power supply. Total output: output: 7. 5 A/channel: total 15 A max. Working temperature: -1040C. WiFi standard: IEEE 802.11b/g/n 2.4GHz Match RF remote control: Mi-boxer/Mi-light B2,S1-B,S1-W,S1-G,FUT007,T2 remote control distance: 99FT (30m) Bluetooth protocol: when WiFi router to disconnect, Bluetooth connection. Control is a backup control method 2.4 g WiFi FCOB COB FOB CCT Tunable RGB GRB RGBW GRBW RGBCCT Note Please check the cable and make sure that the circuit is correct before turning it on. When installing, please treat with care to avoid the glass pane
