Vrabocry Bluetooth RGBW IR Remote Control SP614E LED Controller with Music Sync DIY Timer Group Multiple Lighting Mode Work with iOS and Android Smartphone App Control for 5 Pin Light Strip

• Bluetooth app music controller. Support +RGBW 5 pin LED strip. Group control, one group can support 5 devices. You can create many groups. It can light up pure white light.
• 20 dynamic effects + 3 music light effect + 16 million monochrome + DIY effects. Brightness adjustment, speed adjustment, mode adjustment, microphone sensitivity adjustment, automatic loop playback, marking effect. Countless colour effects are waiting for you to develop.
• Multiple Functions Support setting timing function, turn the lights on or off on time every day. Once the controller is turned off, all timing recordings are deleted. Up to 5 timing events can be set. IR remote control, Bluetooth app control, controller box 3 buttons button control.
• DC5V, DC12V, or DC24V. The input voltage depends on your LED strip. Do not use a DC12V or DC24V power supply to power DC5V light strips. If the effect gets stuck, please add voltage to the LED strip in time.
• DIY light effect. You can enter the most accurate colour according to the colour property of RGBW. Marking function. You can mark the light effect you like. You can also set the colour order, if you light up red, the LED strip is green, you can calibrate this. DC5V<60W.DC12V<72W.DC24V<144W. 1.5 A for each colour channel. Total 6 A. Max.

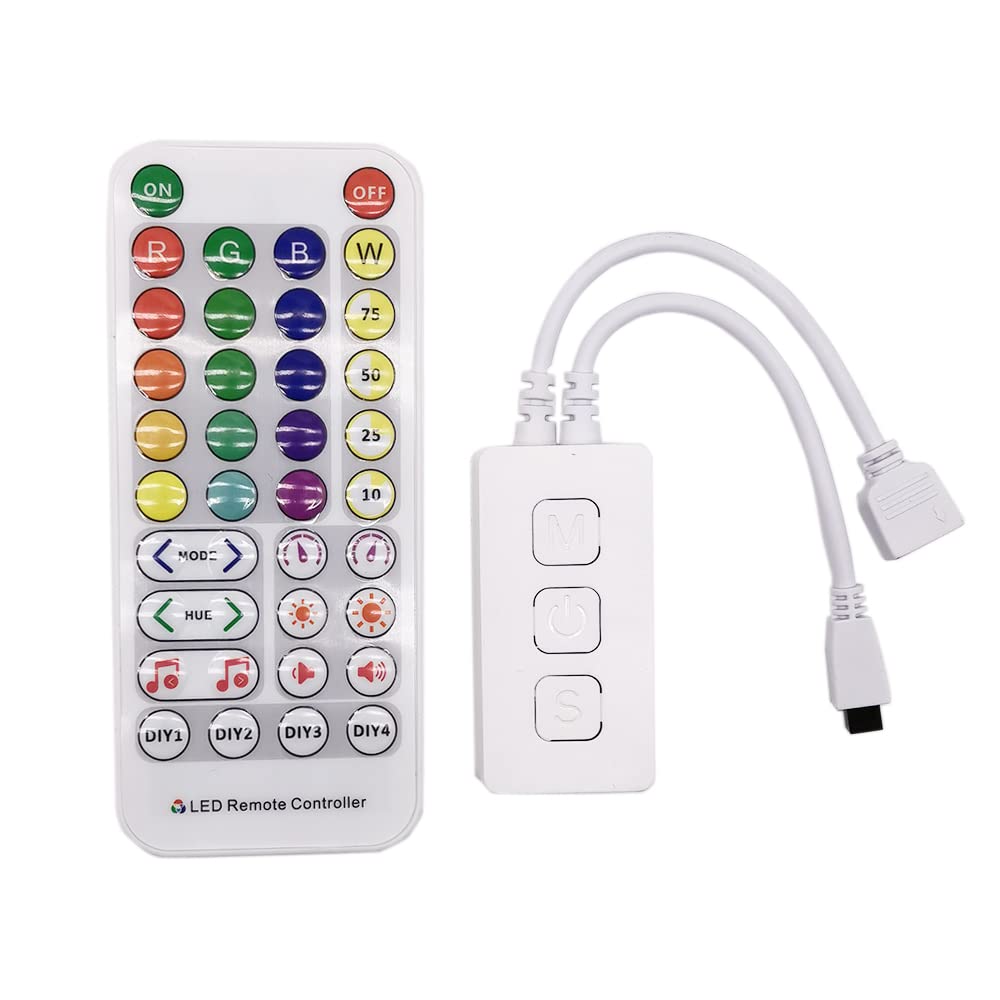

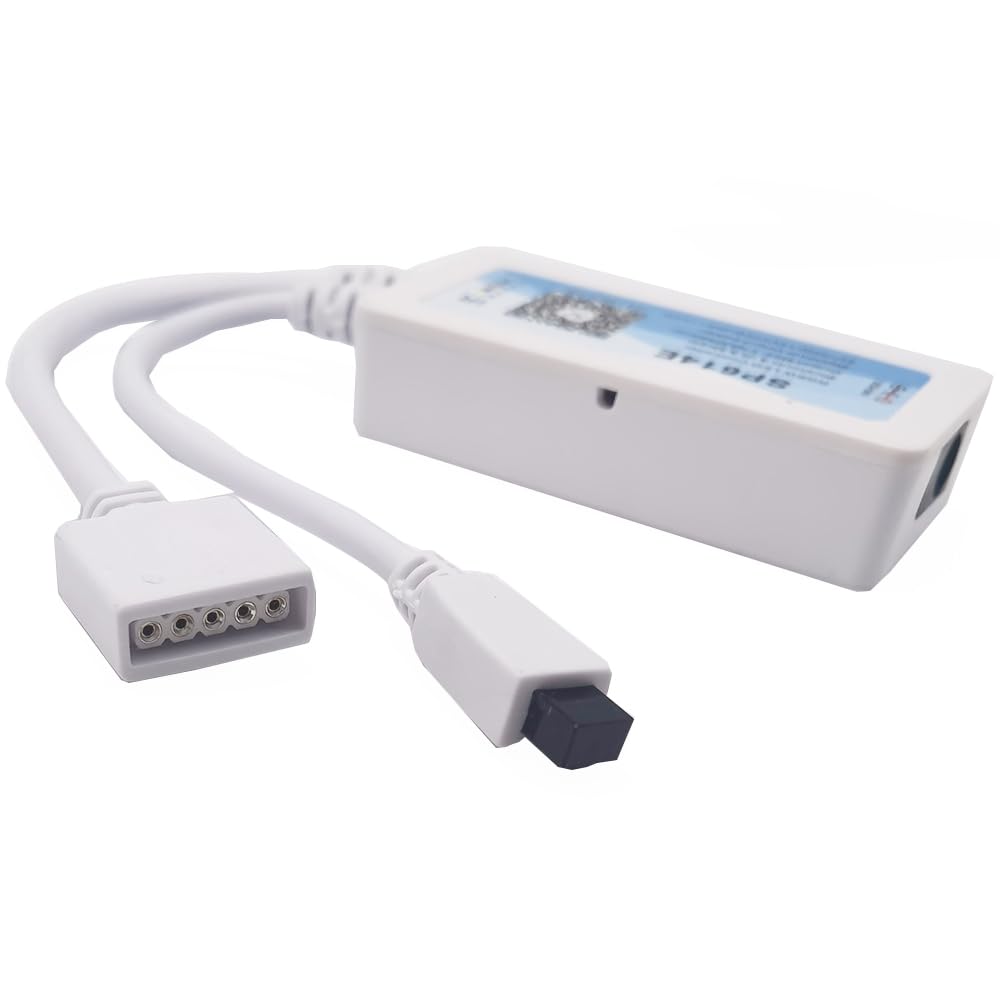

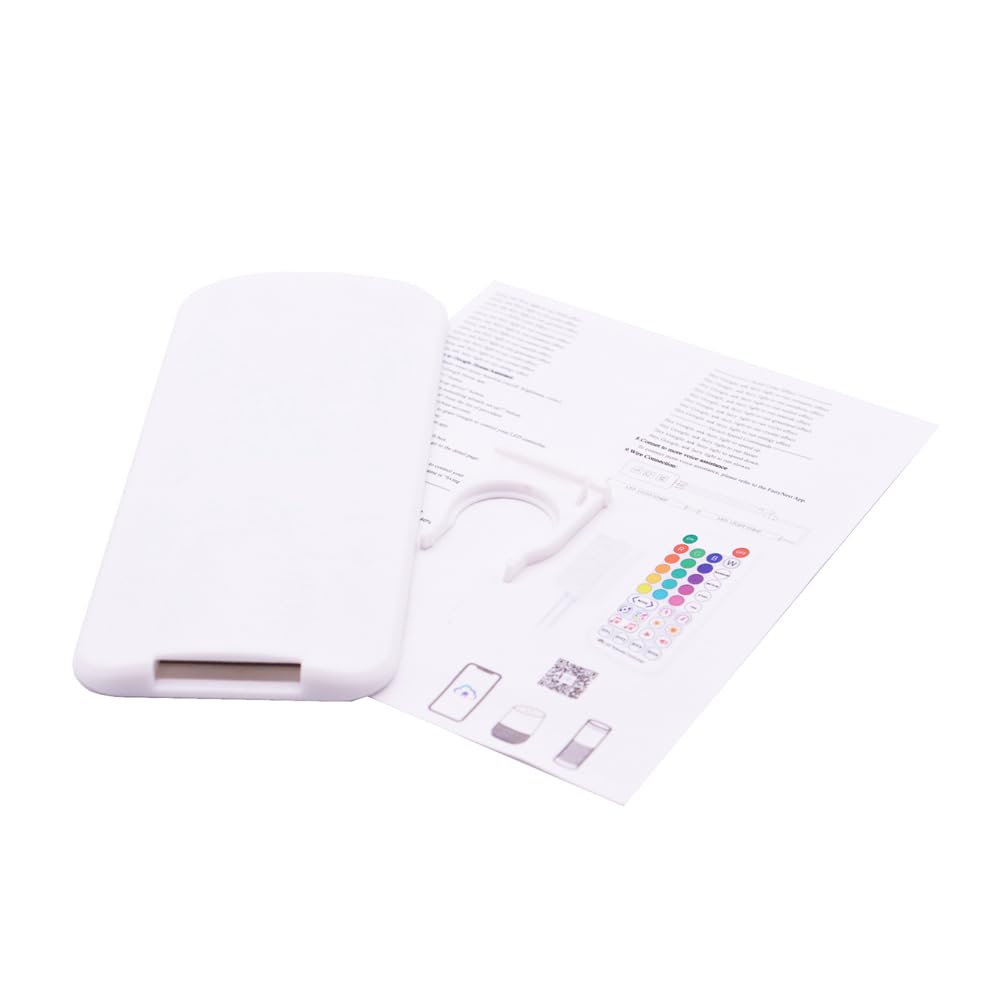

Specification: Product name: SP614E Bluetooth music control. Control mode: APP + IR remote control. Operating temperature: -20 ℃ ~ 60 ℃. Working current: 2mA ~ 14mA. Output channel: RGBW 4 channels. Maximum output current: 1.5 A/channel (RGBW). Maximum output power: 5V; <30W. 12V; <72W. 24 V; <144 W. Input voltage: 5-24V (depends on your LED strip, e.g. your LED strip is 5V, Please use 5 V power supply for power supply). Remote control size: 125 mm x 56 mm x 7.5 mm. Controller size: 60 mm x 30 mm x 14 mm (without cable). Features: Supports both app control and IR remote control; Supports automatic device connection and automatic Reconnect when the app is turned on. Supports grouping control; Multiple methods of recording sound: phone microphone, player streaming, built-in microphone; Support for changing the device name, calibration of RGBW channel sequence and timing functions; Built-in music and non-music effects. Automatic memory function for seeting parameters. Package includes: 1 x 38-button IR LED strip light controller (not including battery).
