VONETS VAP11N-300 Mini 2.4GHz WiFi Repeater Wlan Bridge Ethernet Adapter Wireless Hotspot Extender Signal Booster RJ45 Port DC/USB Powered for Xbox PS3 DVR IP Camera Network Device

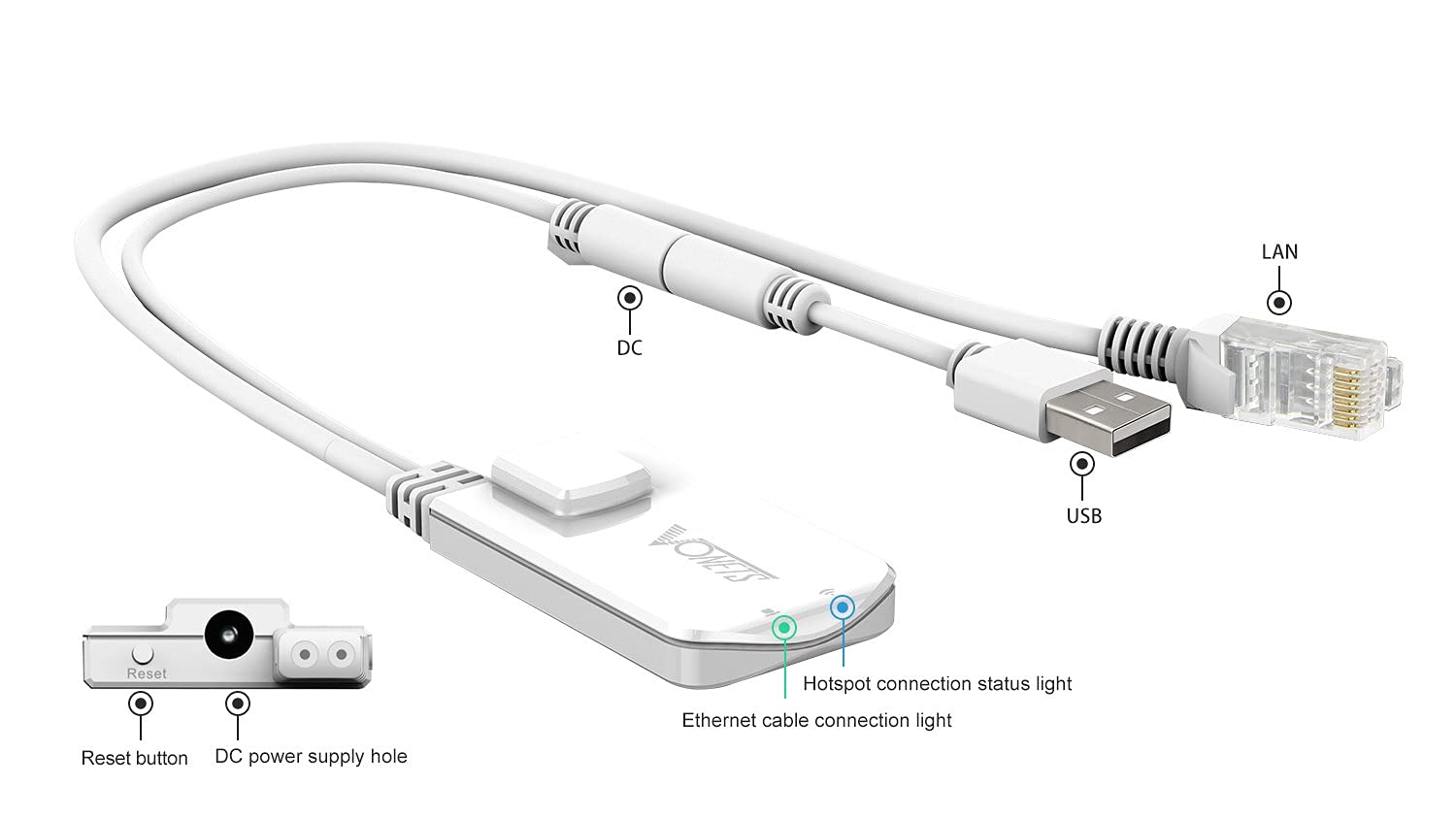

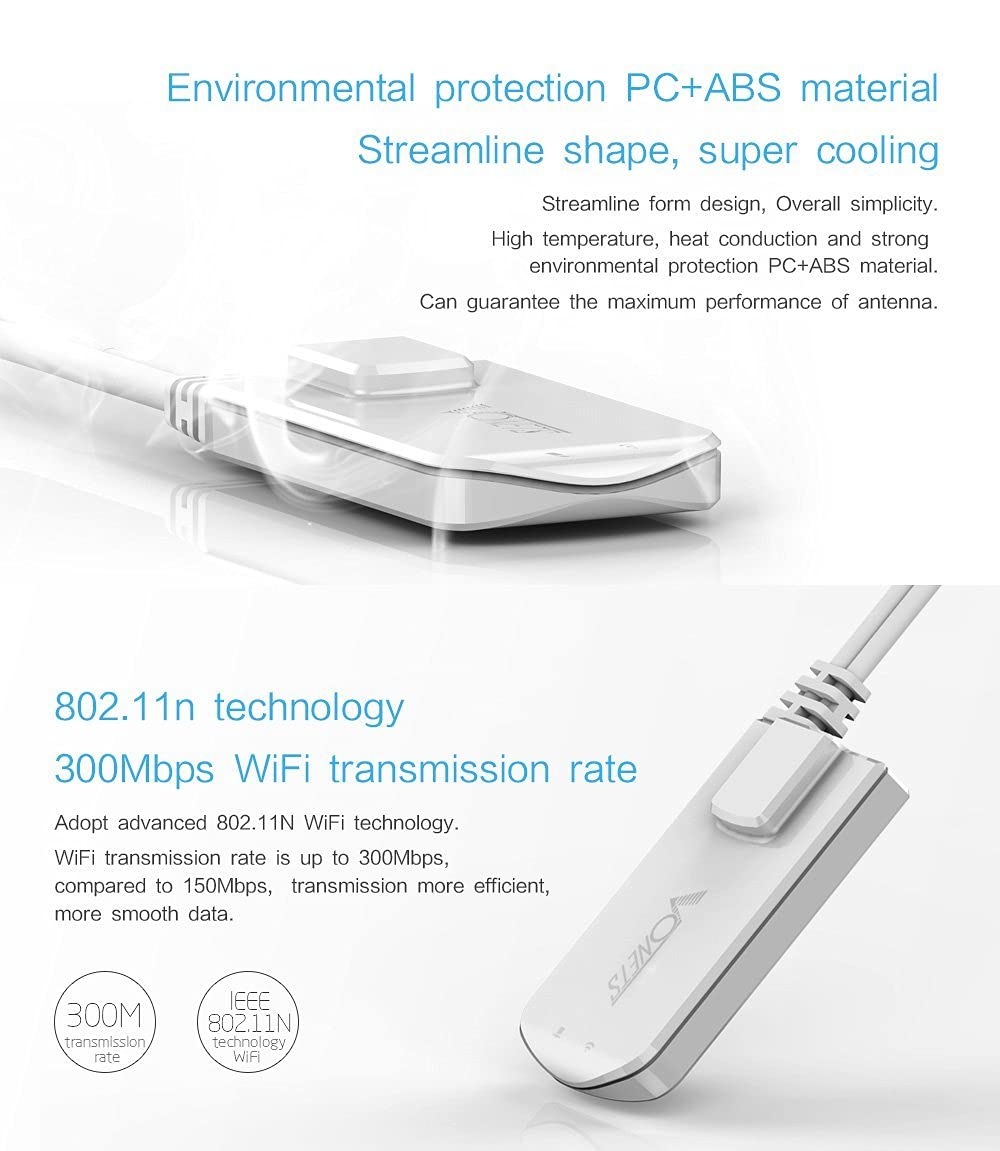

• Industrial Mini 2.4GHz WiFi repeater Wlan bridge (Small size); Can achieve WiFi to Wired or Wired to WiFi function (Ethernet to WiFi,WiFi to Ethernet Adapter) ; Support WiFi 802.11b/g/n, WiFi rate:300Mbps; One 10/100Mbps adaptive Ethernet ports(one 30cm cable with 1 male RJ45 port).

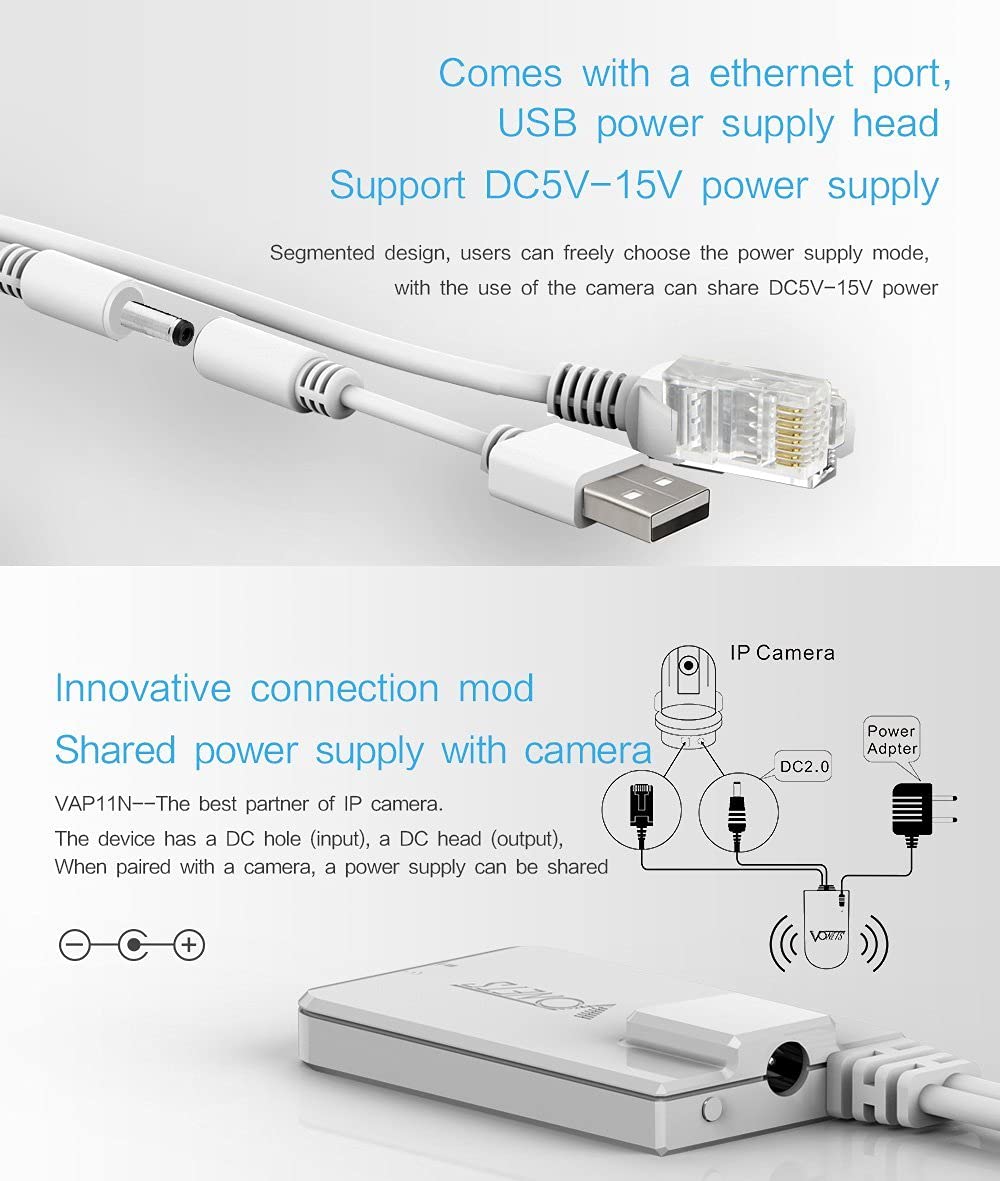

• Support wide voltage DC5V-15V(Typical 5V/1A, ripple less than 100mV); DC/USB optional powered Mode (two types of power supply can’t be used at the same time); one 10/100Mbps adaptive Ethernet cable and one USB/DC power cable(30cm);

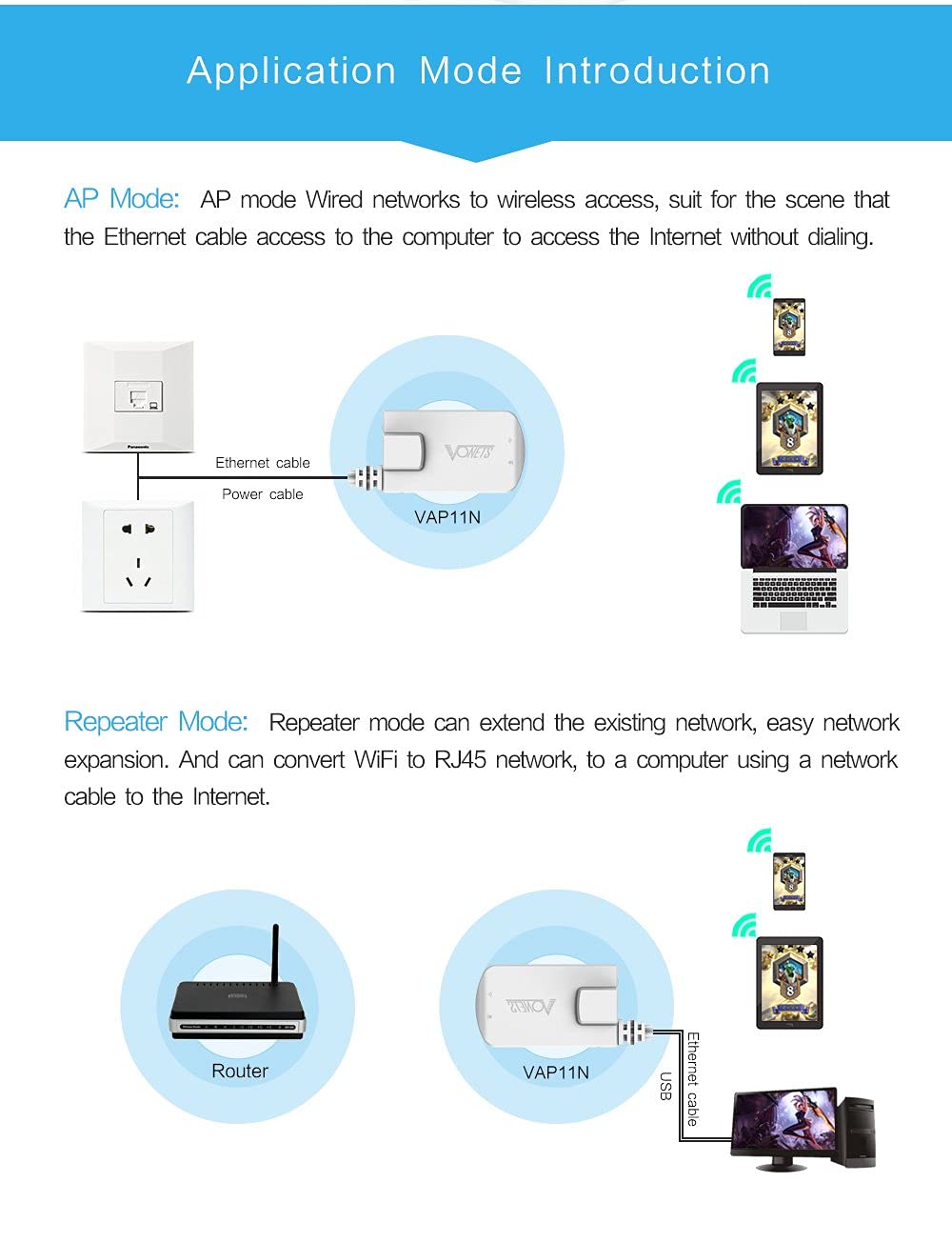

• Support three kinds of application methods: WiFi repeater, WiFi bridge ( IP layer or MAC layer transparent transmission), WiFi AP hotspots.WiFi smart bridge function, WiFi to wired, wired to WiFi, smart exchange.WiFi smart repeater mode, it supports WiFi hotspot scan automatically and WiFi hotspot memory function.

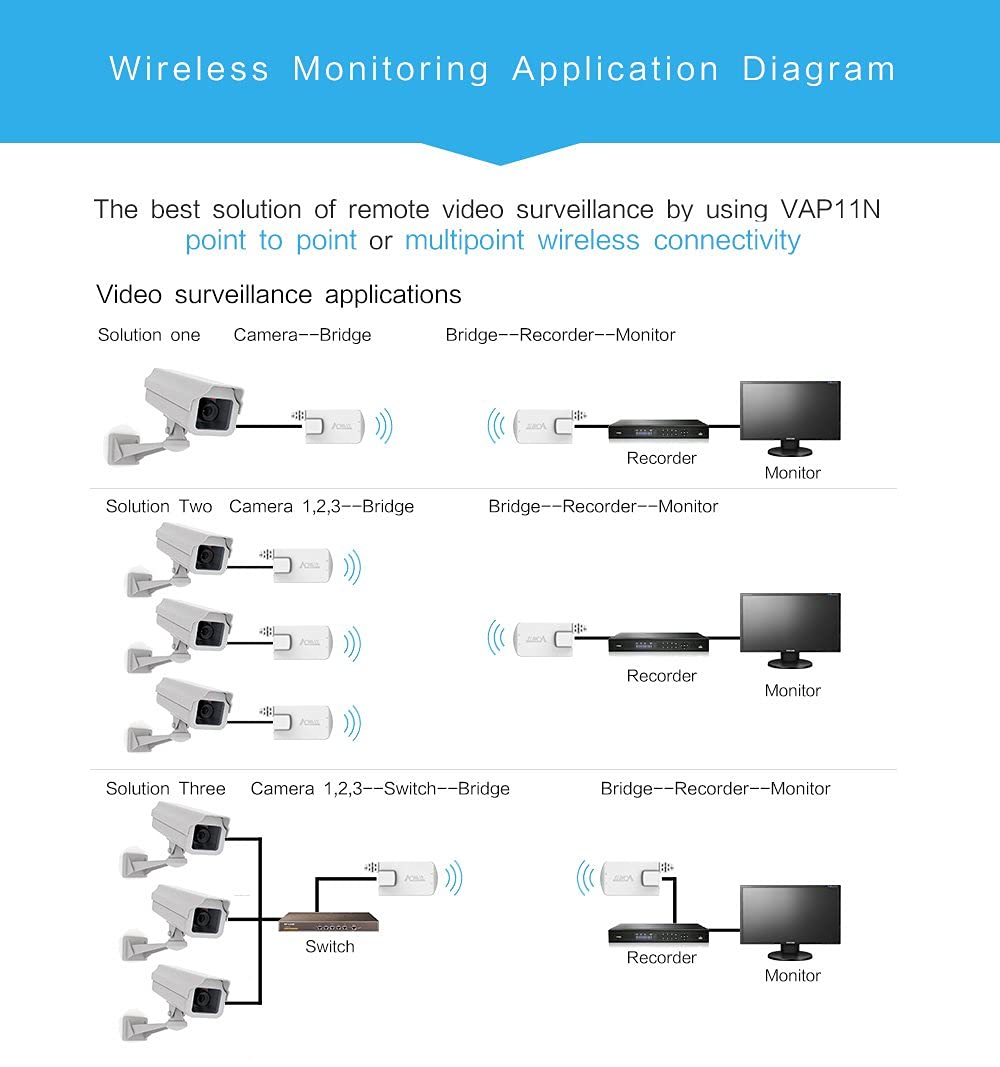

• Point-to-point transmission distance: maximum can be up to 50 meters when without obstacle and small data, then less than 30 meters when used for video transmission; Good Partner for monitoring, electronic scales, DVR, IP camera, medical devices, IoT devices, video transmission,industrial PLC,PS3,network Printer, robot, doll machine and more network application.

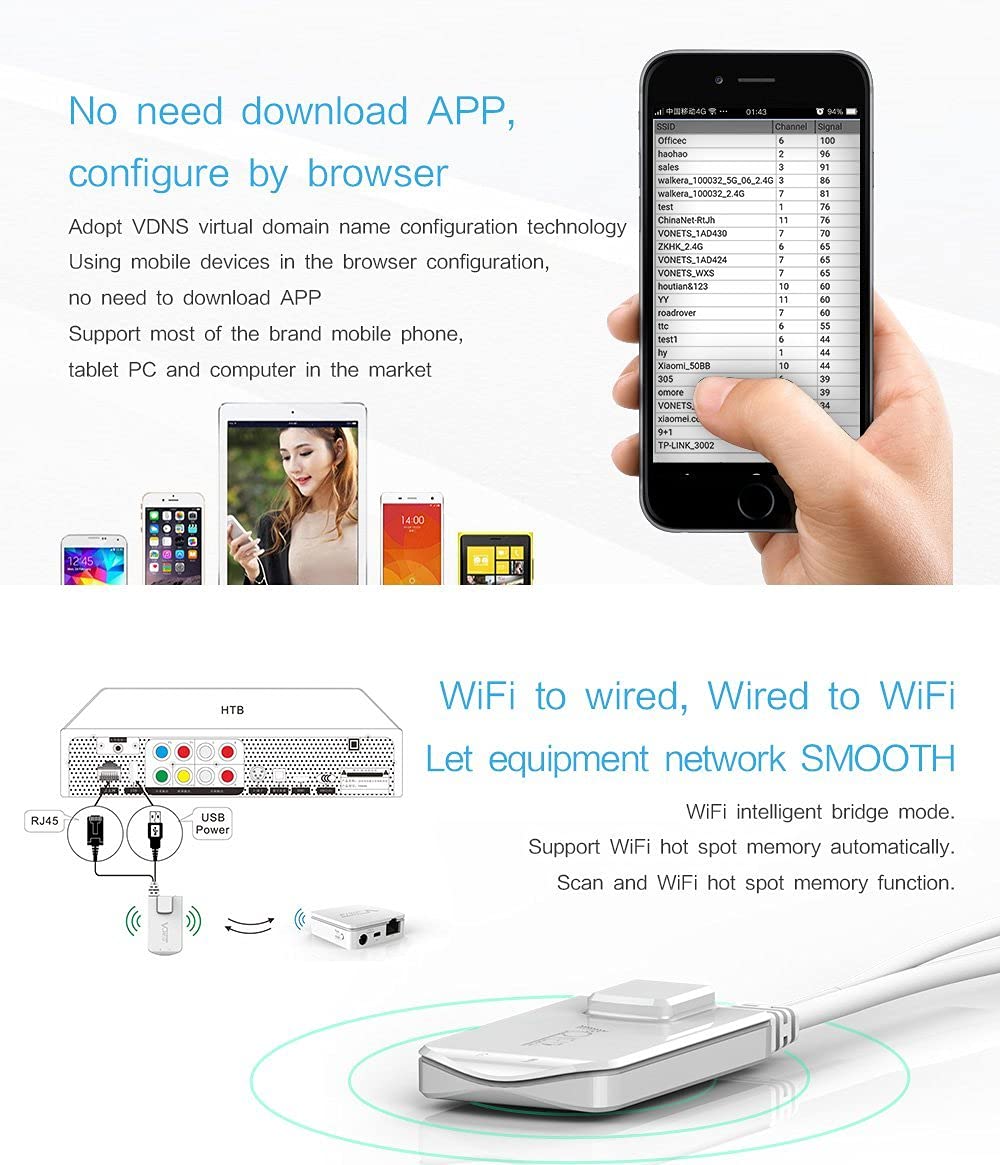

• Support SSA signal strength detection reporting function, motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications.Original creation VDNS virtual domain configuration technology to solve the user's trouble of configuration.

VAP11N-300 is a 2.4GHz 300Mbps WiFi Bridge/WiFi signal Repeater. In WiFi bridge and repeater mode, can double extend the existing WiFi signal range, also can make sure the safey of WiFi signal. The work theory is: on the edge of the original WiFi hotspot signal coverage, put a VAP11N-300 under “WiFi Repeater mode”, VAP11N-300 will extend the weak WiFi signal receive to normal and safe strength and after optimization and error correction processing to reach the double extension of WiFi signal range under the premise security. It is different from traditional WiFi Signal amplifer—it just amplifies the signal and ignore the WiFi security. VAP11N-300 provides three kinds of power supply methods, omits the worries of carrying a lot of power adapters, usage is more flexible; Plug and play, meet the flexible network solutions. VAP11N-300 has practical function, superior performance, is easy for management and provides multiple safe protective measure, can protect the security of user’s WiFi network. 1.WiFi smart bridge mode, it supports WiFi hotspot scan automatically and WiFi hotspot memory function(maximum memory 100 hotspots); 2.WiFi Hotspot (it is suitable for hotel room usage); 3.Support connecting more than 20pcs WiFi terminal at the same time. 4.The best partner of STB, IPTV, Sky Box, X-BOX, IP camera and SLR camera. 5.Three Parallel DC power connector DC power interface (ACPI): DC2.5 power hole, DC2.0 power plug, USB interface ( for electricity use), it is convenient for customer to share power supply with devices. Hardware Specification: Reset button: Long press 5 seconds then release(During operation, the product can not be powered down, otherwise it may cause damage to the product.) LED Status instruction: Ethernet cable status Light (Blue Light) WiFi status Light (Green Light) Package 1*VAP11N-300 1*User Manual 1*Retail box
