VONETS VAP11G-300 WiFi Bridge/Ethernet Wireless Hotspot Repeater/WiFi to Ethernet RJ45 Adapter Convertor for DVR, PS3, IoT Device, Network Printer, Industrial PLC, IP Camera Network Devices

• 【WiFi to Wired or Wired to WiFi convert】2.4GHz Mini WiFi Bridge/Wireless Ethernet Repeater/RJ45 to WiFi Adapter/AP Hotspot; can achieve WiFi to Ethernet or Ethernet to WiFi function; Support WiFi 802.11b/g/n; WiFi rate:300Mbps(theoretical value) ;
• 【Suitable for many network devices and applications】Good partner for DVR, Network Printer, PS3, IP Camera, Video transmission, Industrial PLC, IoT Devices, Medical Devices, Electronic Scales and more network devices and applications with RJ45 network port or WiFi function.

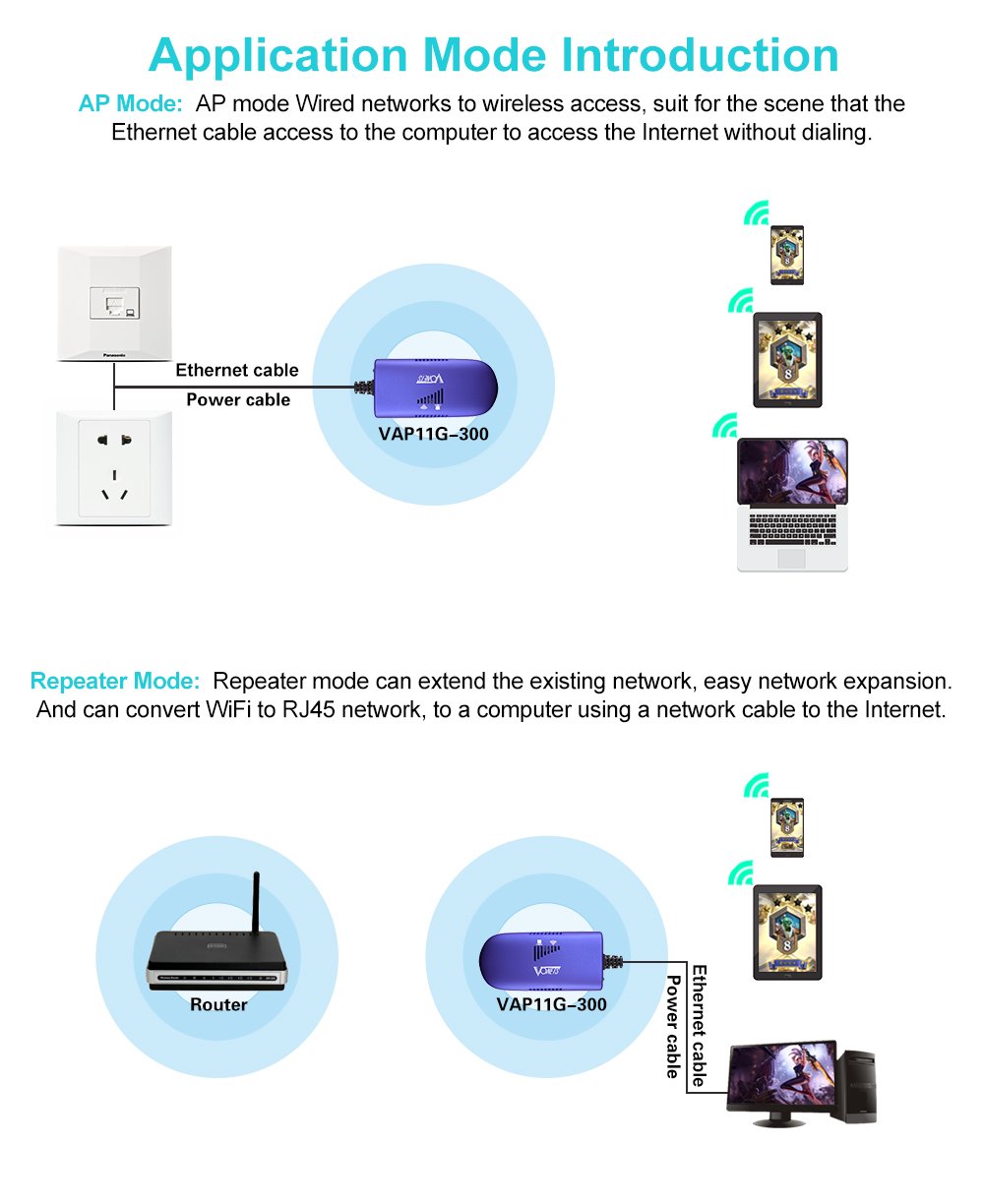

• 【Support Bridge/Repeater and AP Mode】Support three kinds of application methods: WiFi Bridge (WiFi to Wired or Wired to WiFi function, IP layer or MAC layer transparent transmission); WiFi Repeater (WiFi signal repeater), can extend WiFi transmission distance; WiFi access point (AP hotspot);
• 【DC or USB optional powered mode】one 30cm power cable with 1 DC port and 1 USB cable, one female DC port of parallel connection. one 10/100Mbps adaptive Ethernet port ; Support wide voltage DC5V-15V (Typical/independent 5V/2A, ripple less than 100mV)
• 【WiFi Hotspot memory and Automatic matching connection】WiFi hotspot auto reconnect, two hotspot matching methods: full match authentication mode; SSID and password authentication mode, support SSA signal strength detection reporting function, motion detection function and storage hotspot (up to 100) auto match connection function, realize WiFi motion applications.

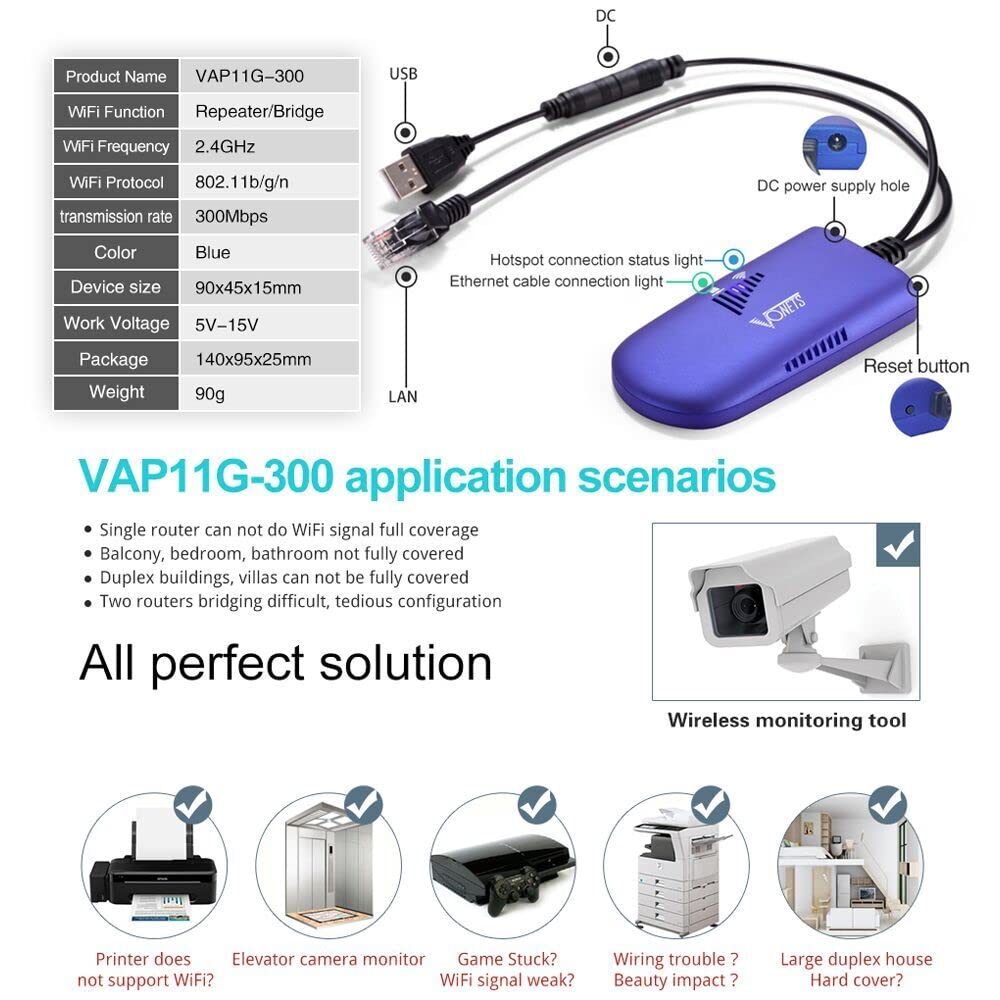

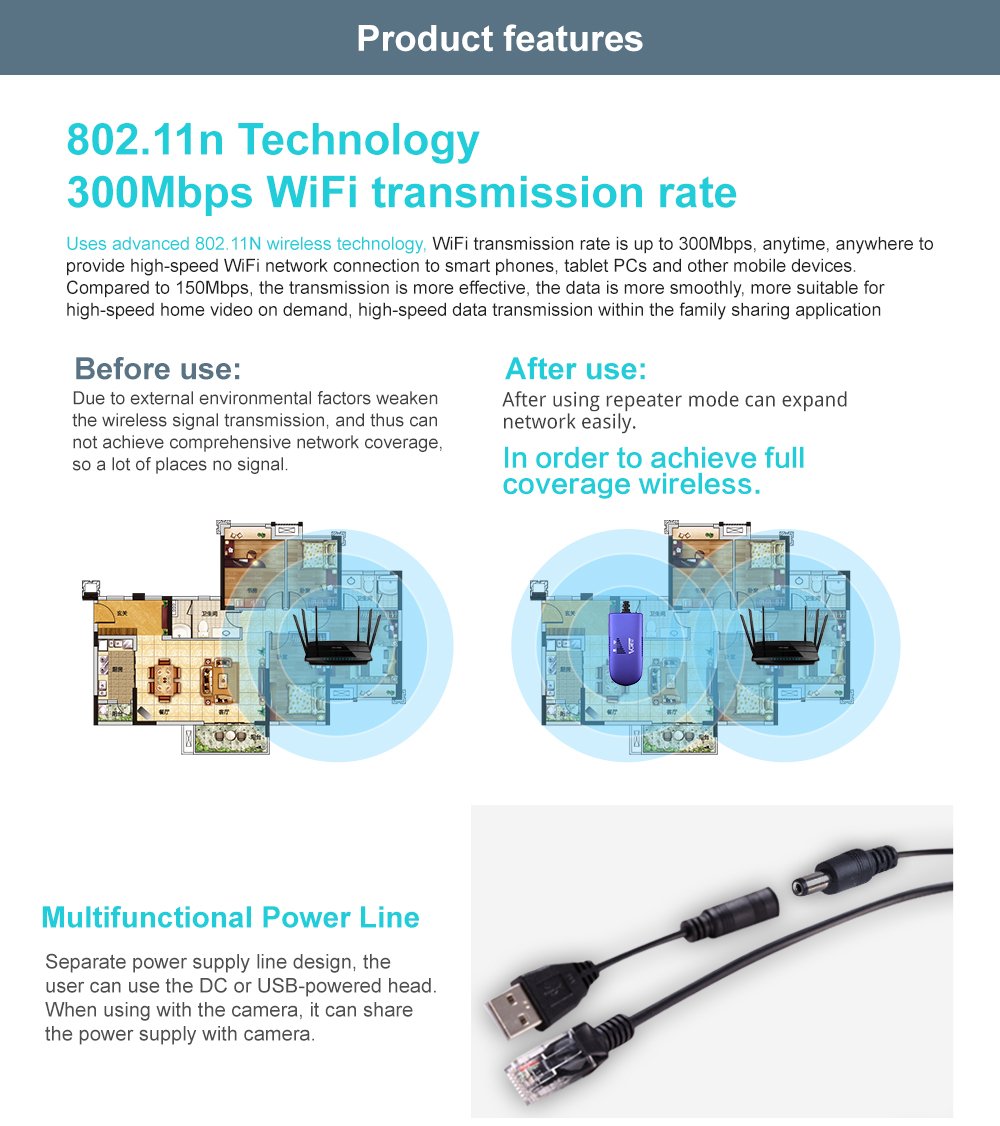

Features: 1.WiFi smart Bridge function, can achieve WiFi to Ethernet or Ethernet to WiFi convert function (Wireless to Wired, Wired to Wireless) smart exchange; 2.WiFi smart Repeater mode, it can extend the distance of WiFi transfer, supports WiFi hotspots scan automatically and WiFi hotspot memory function(up to 100); 3.Support 802.11b/g/n WiFi transmission protocol, 300Mbps rate of transmission (theoretical value). 4.Support connecting more than 20pcs WiFi terminal at the same time. 5.WiFi hotspot memory, up to 100 hotspots. 6.Support turn off the wifi hotspot function; 7.Support WEB remote firmware upgrade, can get the latest firmware free; 8. Adopt the original creation D/A temperature compensated auto frequency control technology (TAFC), make sure the lasting stability to ensure that the WiFi signal is not dropped. 9. Original creation VDNS virtual domain configuration technology to solve the user’s trouble of configuration. Hardware Specifications: Interface:1 DC2.0 power hole; 1 dedicated two in one power supply cable, with a set of power supply and a set of 10/100M adaptive Ethernet cable; LED Status instruction: WiFi state/Hotspot connection state (blue light); Ethernet port state (light green for success); Reset Button: Long press 5 seconds then release (During operation, the product can not be powered down, otherwise it may cause damage to the product.) Note: This device can't be plugged into a USB port and DC power source at the same time ( two types of power supply can 't be used at the same time)！ Packages: 1*VAP11G-300 1*user manual 1*retail box
