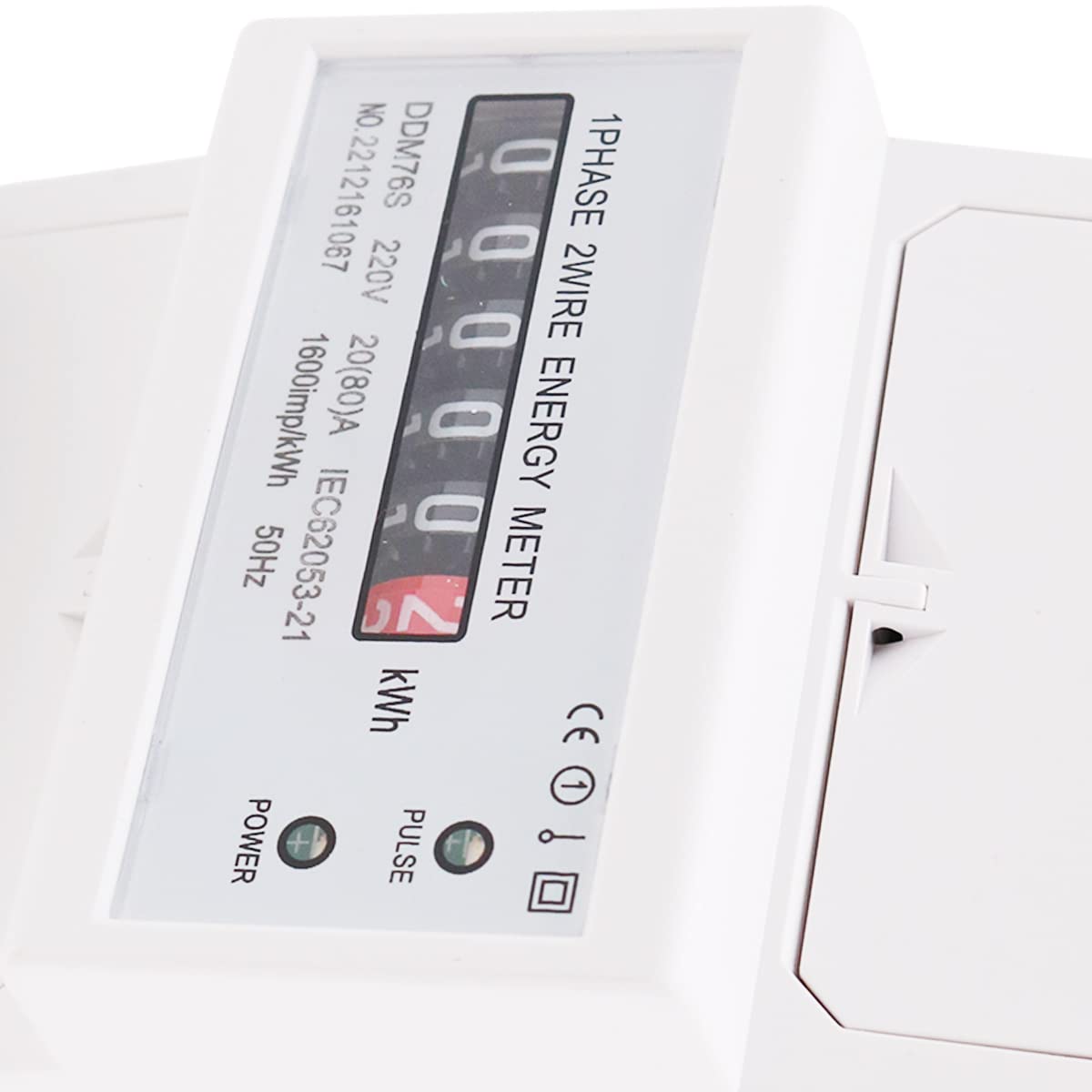

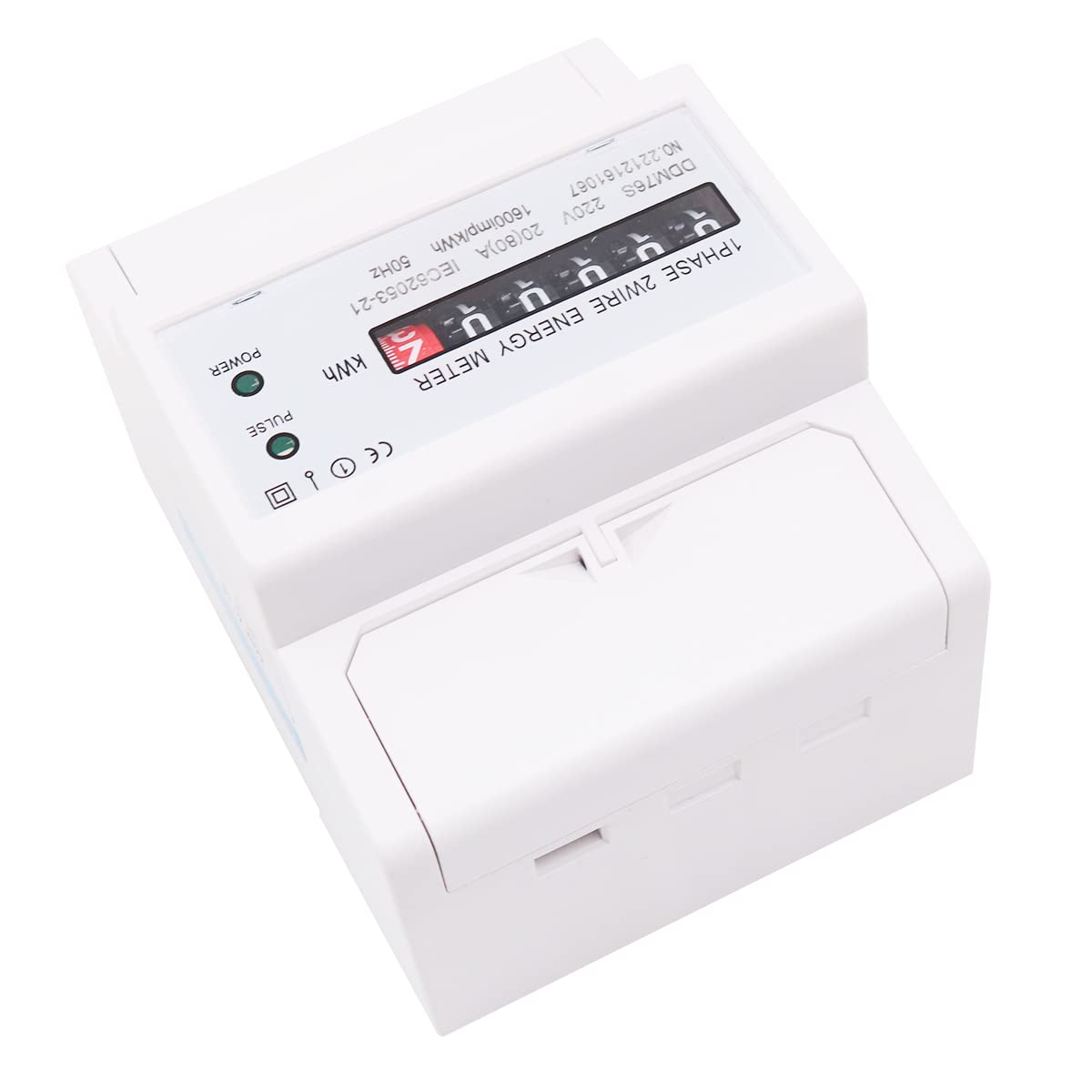

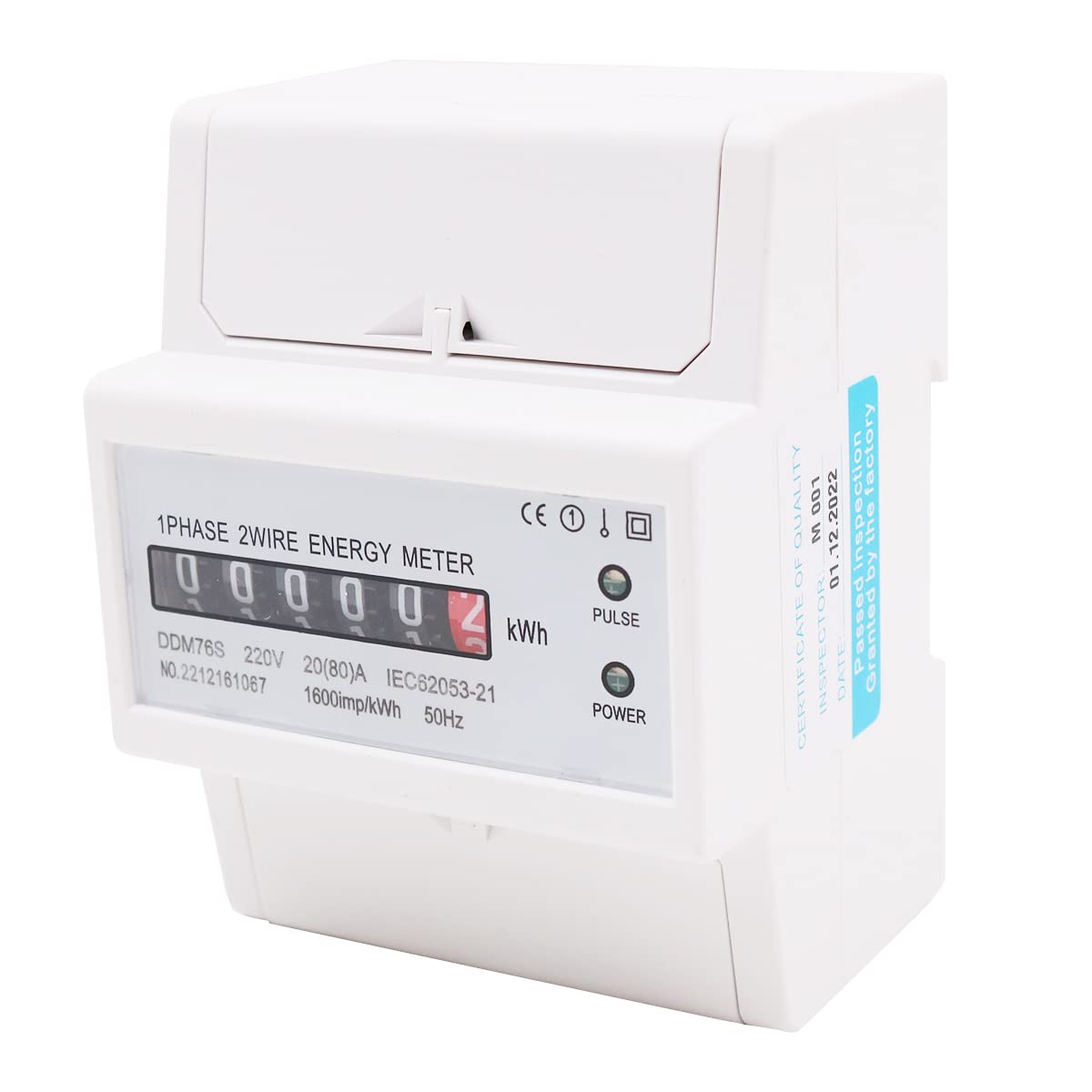

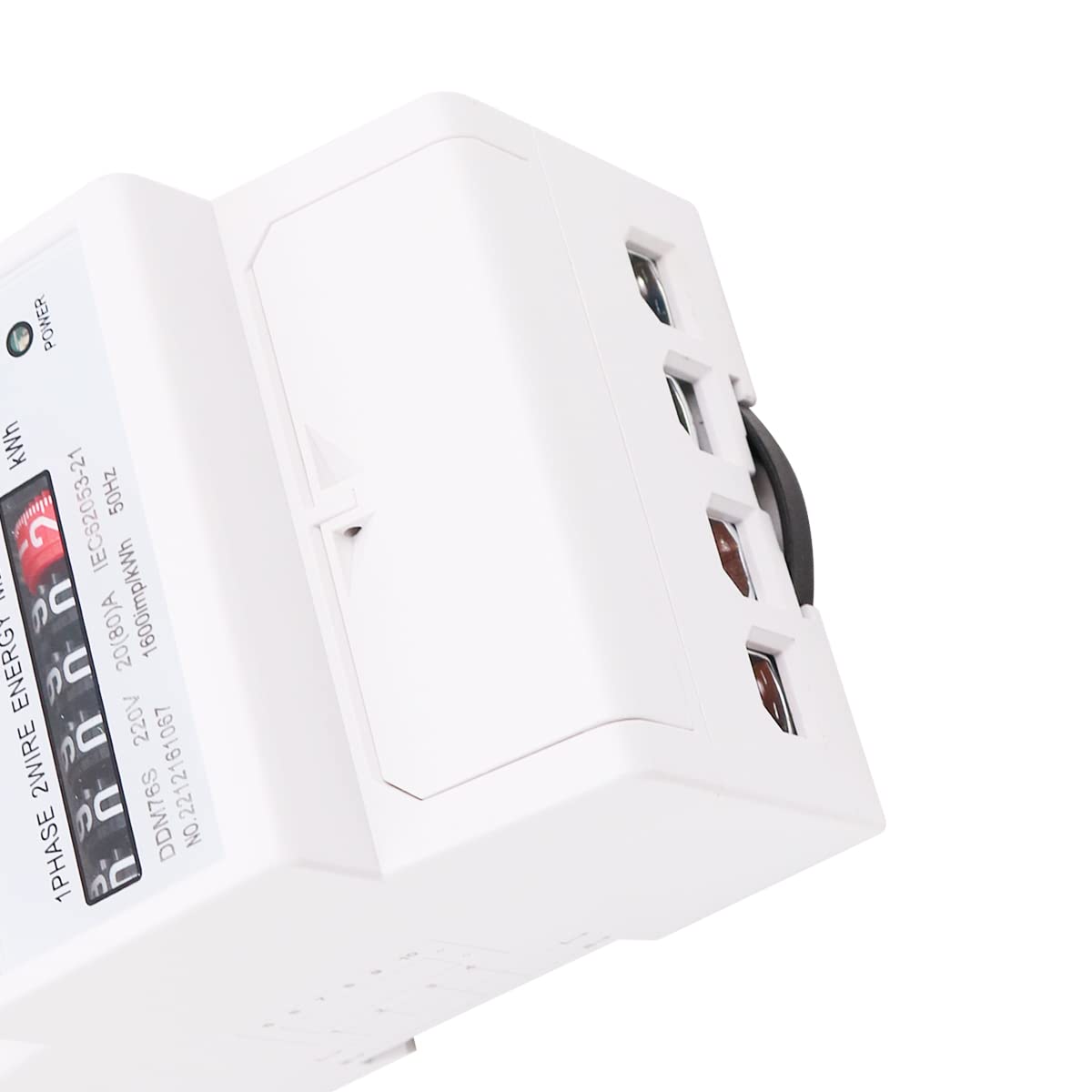

VOANZO Single Phase KWH Meter DIN-Rail Electricity Meter 20-80A AC220V -2 Wire 4P for Home Electricity Consumption Monitoring

• This high quality meter is suitable for a wide range of applications, such as commercial buildings, homes, construction, hotels, schools, etc...

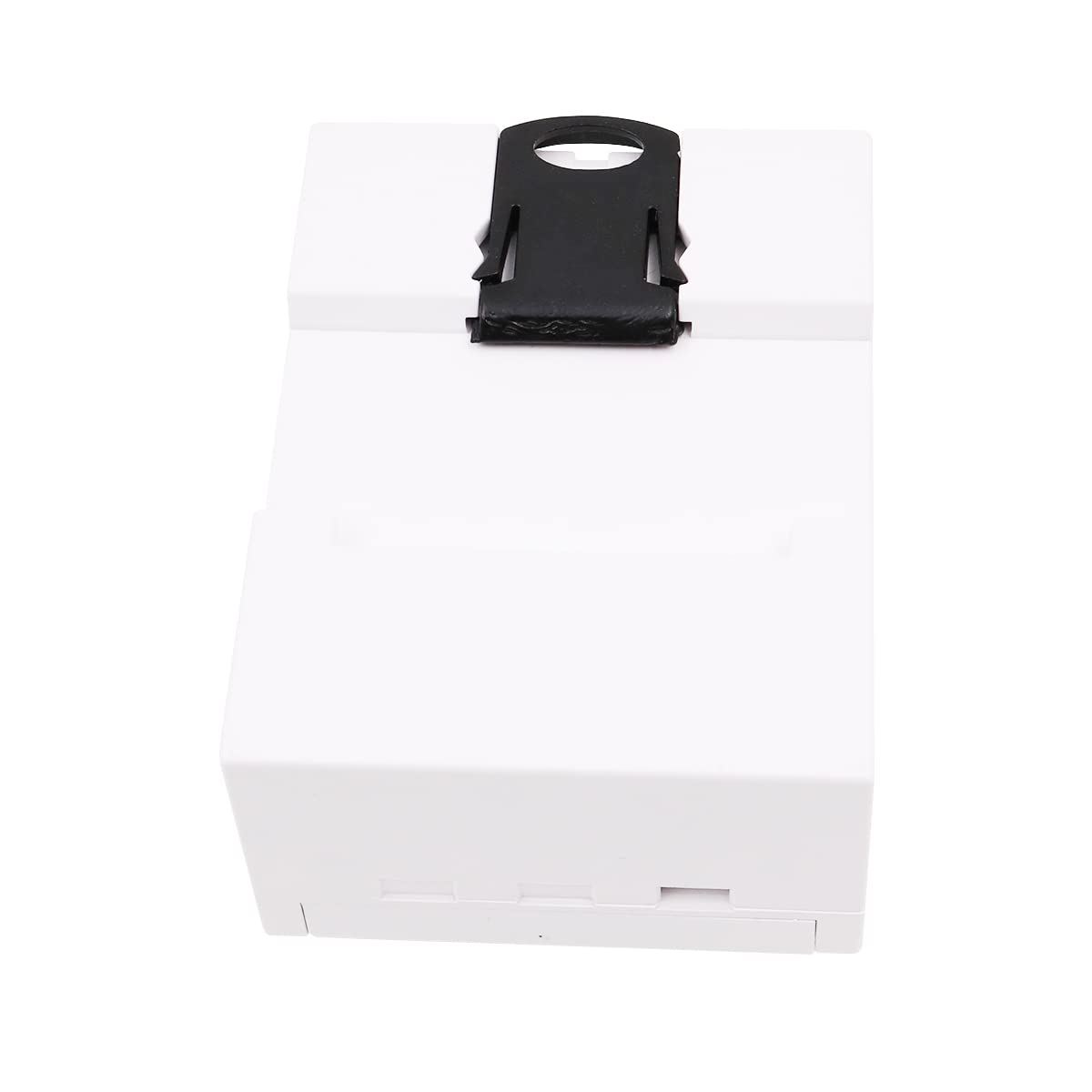

• 35mm standard DIN rail installation, complying with standard DIN EN50022. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993. May select 5+1 reading display (99999.1kWh) (99999.1kWh).
• Standard configuration one port of pulse output passive (polarity), May select increase a distant port of pulse output passive (nonpolarity), complying with standard IEC 62053-31 Standard configuration don't detection direction of the flow of load current.
• May select automatic detection the direction of the flow of load current. And instructions by an individual LED. Single direction measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current.
• Made of high quality flame retardant housing with good heat and low temperature resistance, excellent insulation properties, robust and durable.

Description: This high quality meter is suitable for a wide range of applications, such as commercial buildings, homes, construction, hotels, schools, etc...High precision, small size, stable performance, long life and easy installation. Specification: Nominal current: 20A Maximum current: 80A Accuracy level: 1 Power source: AC Output voltage/rated voltage: 220V AC Phase: single-phase Pulse frequency: 1600imp/kwh Package included: 1 x Electricity meter
