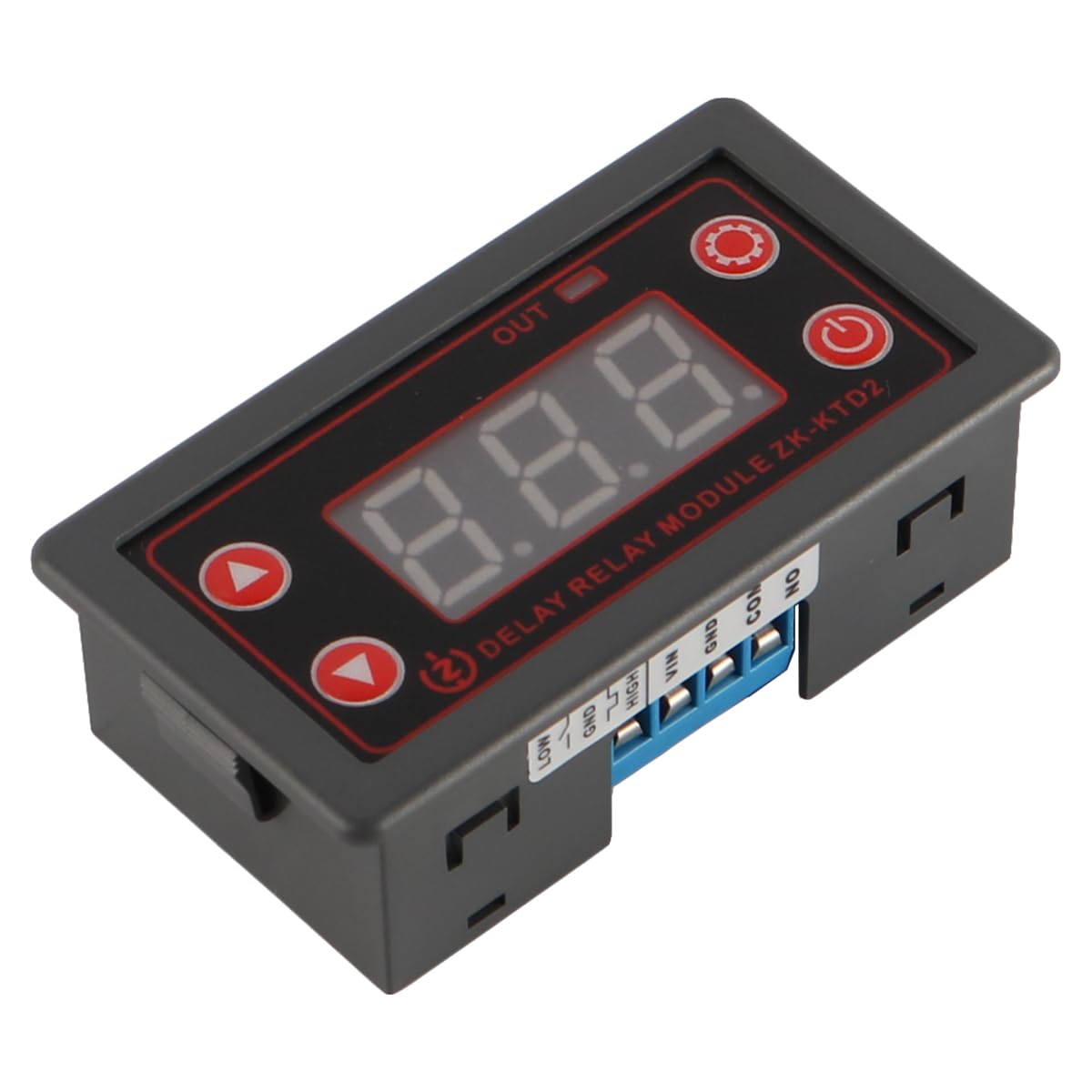

VOANZO Delay Module DC 5V-30V Timer Relay with Digital Display Adjustable Delay Timer 0.1s to 999 Minutes Delay Relay Timer Module for Timing Control

• Adjustable Delay Timer: This delay module allows you to set delay times from 0.1 seconds to 999 minutes, giving you full flexibility in controlling circuits and devices with precise timing requirements.

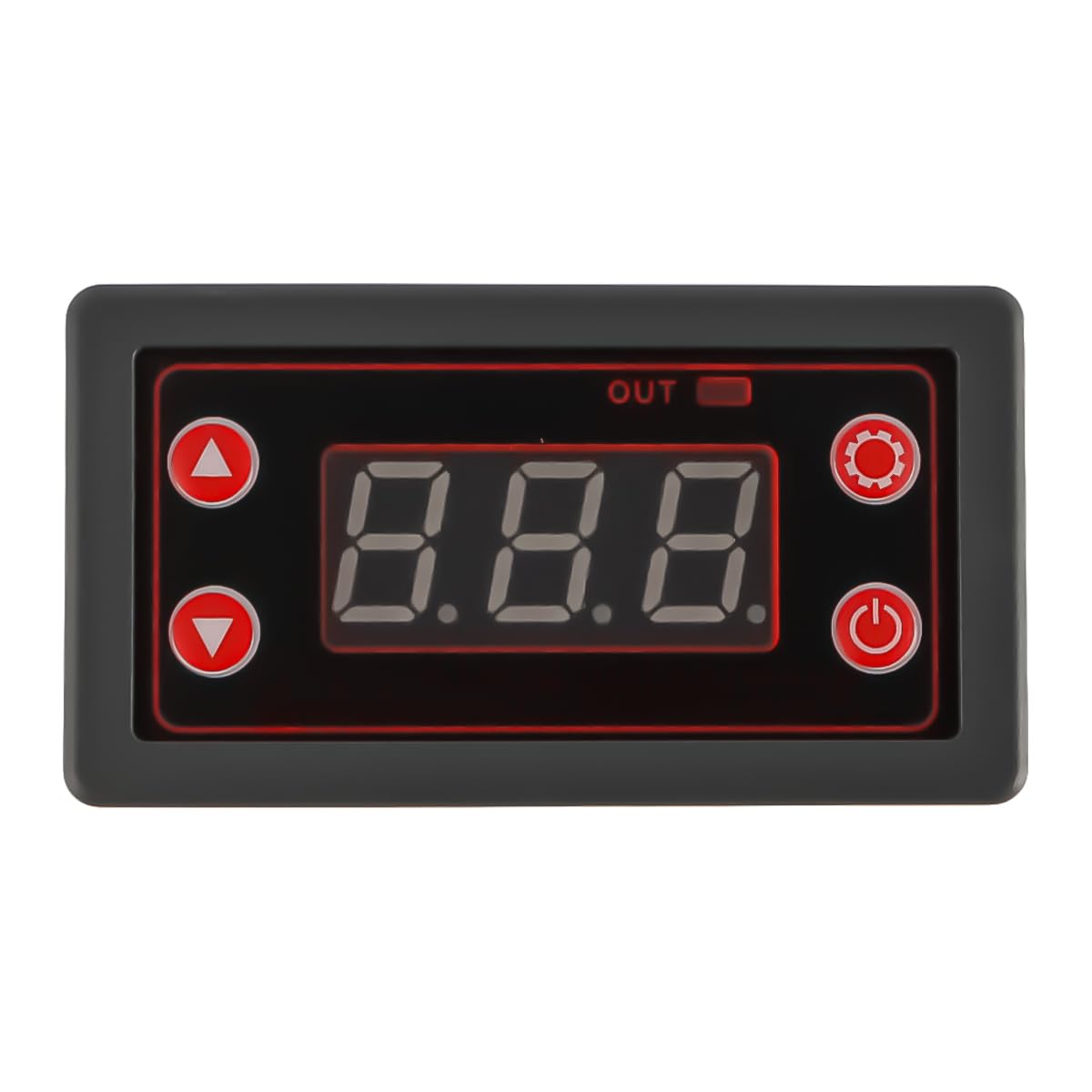

• Digital Display: The built display shows real-time countdown or set delay time, making it easy to monitor and adjust timing intervals with clarity.
• Wide Voltage Range: Compatible with DC 5V to 30V input voltage, this timer relay is suitable for a wide range of applications, from simple hobby circuits to more complex electronic projects.
• Multiple Uses: Ideal for controlling lights, motors, or other devices that require a delayed start or stop. Perfect for automation projects, security systems, and timer-controlled operations.
• Easy to Use: With intuitive controls and simple wiring, this delay relay timer module is easy to set up and use in various applications, from DIY electronics to professional circuit design.

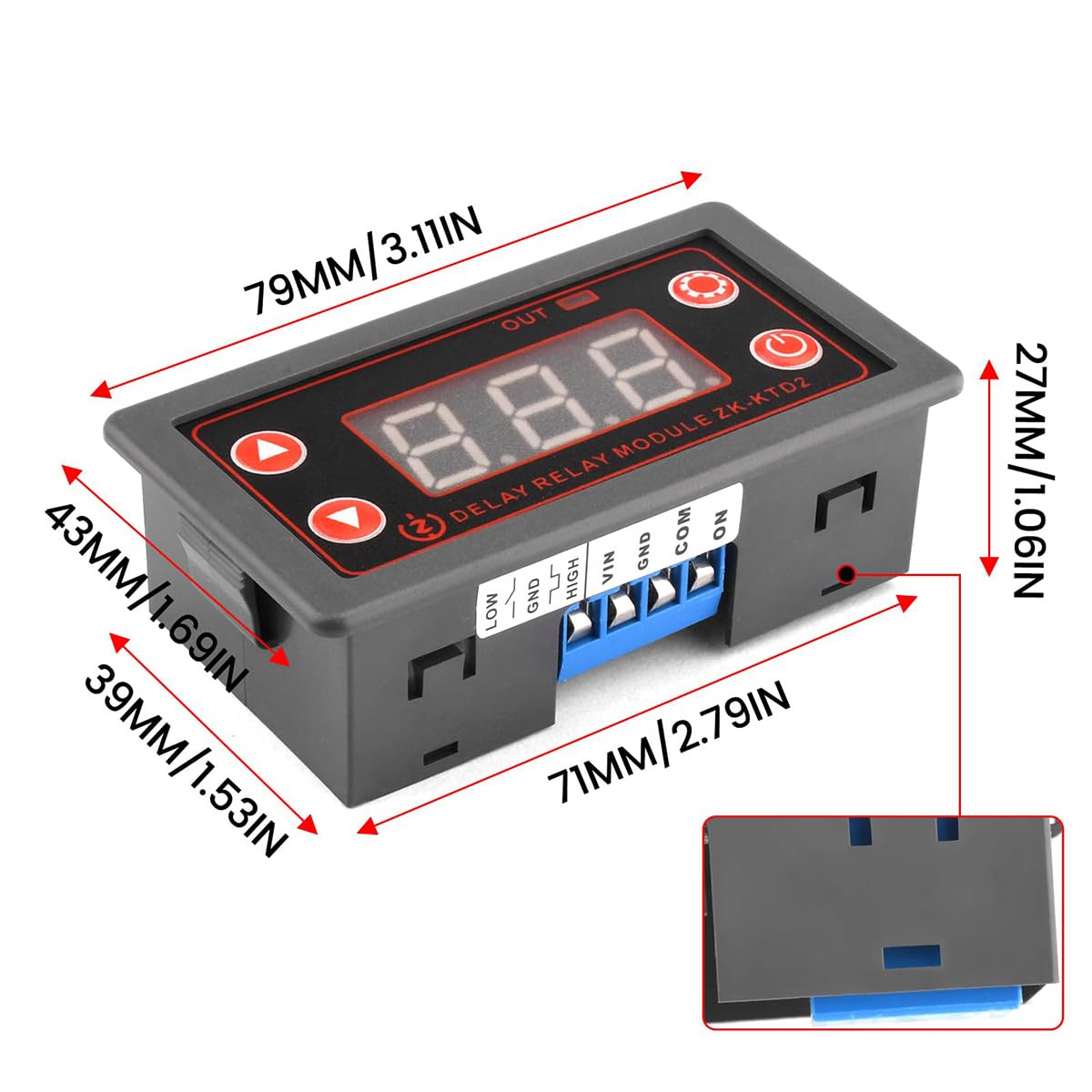

Features: Versatile Input Voltage: Operates on a wide voltage range from DC 5V to 30V, making it compatible with many common power sources in different electronic systems. How to select the timing range: After setting the parameter value in the mode selection interface, press the STOP button to select the timing range XXX. Decimal point in the ones place, timing range: 1 second 99 seconds XX.X decimal point in the tens place, timing range: 0, 1 second 99.9 seconds X.X.X. decimal point is fully lit, timing range: 1 minute 999 minutes For example, if you want to set OP to 3.2 seconds, move the decimal point to the tens place and the digital tube will display 03.2 Product parameters 1. Working voltage: DC5V-30V supports microUSB5V power supply. 2: Trigger signal source: high level trigger (DC3V-24V) Switch trigger serial communication trigger 3. Output capacity: can control devices within DC 30V5A or AC 220V5A 4. Static current: 20mA Working current: 50mA 5: Service life: more than 100,000 times; Working temperature: -40-85℃; Specifications: Delay Module Colour: Gray black size:Length 79mm, width 43 mm, height 27mm PackageIncludes: 1 Pcs Delay Module
