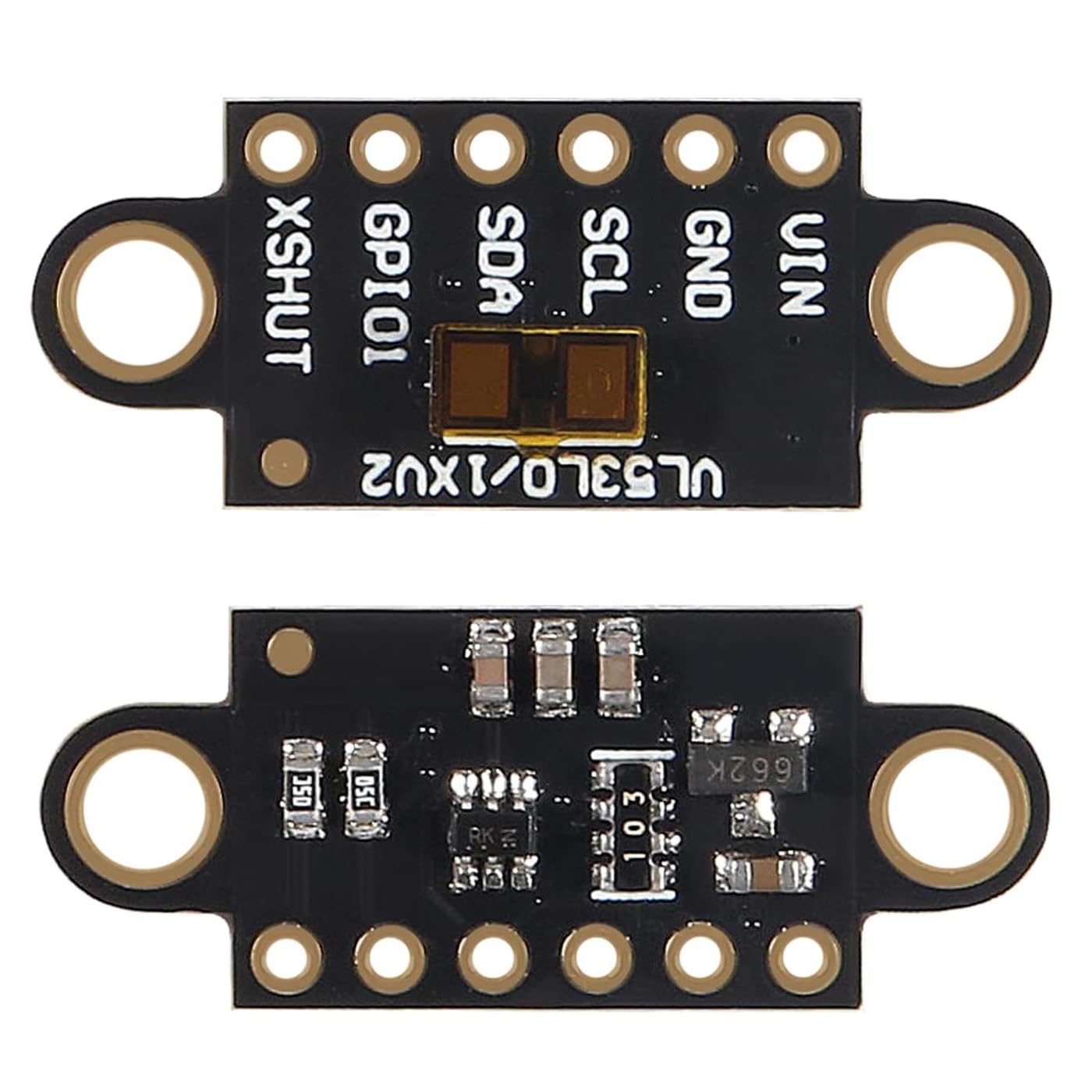

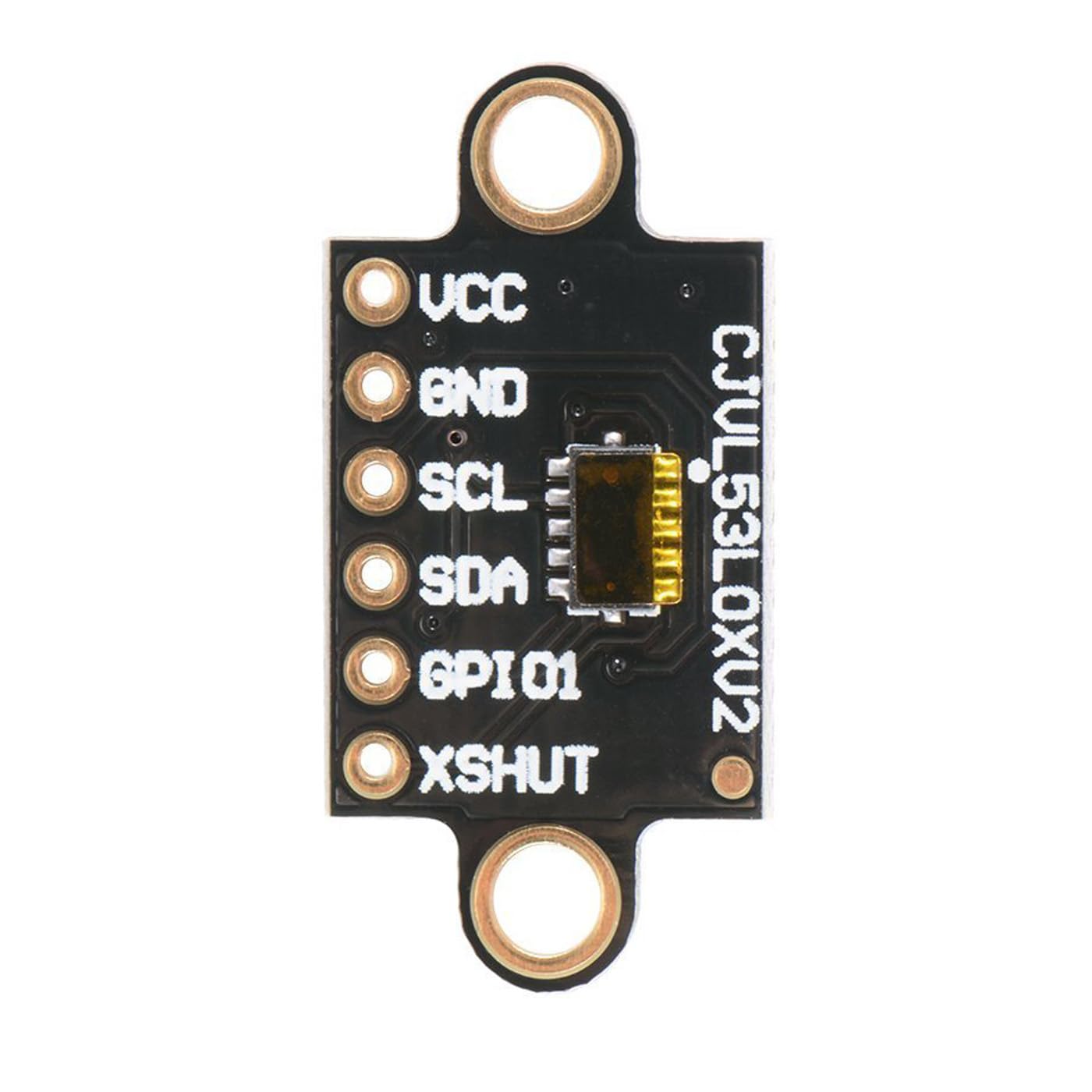

VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout VL53L0X ToF Laser Range Finder

• Advantage: A time-of-flight ranging system integrated into a compact module
• Strong point: A carrier for the VL53L0X
• Accuracy: Range from ±3% at best to over ±10% in less optimal conditions
• Maximum Sensoring Distance: 2m
• Working Voltage: 2.6V - 5.5V

Performance Description: VDD Regulated 2.8 V output. Almost 150 mA is available to power external components. (If you want to bypass the internal regulator, you can instead use this pin as a 2.8 V input with VIN disconnected.) VIN This is the main 2.6 V to 5.5 V power supply connection. The SCL and SDA level shifters pull the I²C lines high to this level. GND The ground (0 V) connection for your power supply. Your I²C control source must also share a common ground with this board. SDA Level-shifted I²C data line: HIGH is VIN, LOW is 0 V SCL Level-shifted I²C clock line: HIGH is VIN, LOW is 0 V XSHUT This pin is an active-low shutdown input; the board pulls it up to VDD to enable the sensor by default. Driving this pin low puts the sensor into hardware standby. This input is not level-shifted. Package Included: 1 x VL53L0X Time-of-Flight Flight Distance Measurement Sensor Breakout
