VISSQH 2pcs DC Knob led dimmer 0/1-10V Mini Controller Rotary Switch PWM Dimming for 0/1-10V Dimmable LED Driver to Control Interior Lighting Growth Lamp

• ♣【Compatibility】This 2 pack 0-10V LED light dimmer button ONLY needs to be connected to the 0-10V/1-10V dimmable LED driver. And it can be compatible with most LED drivers.
• ♣【Has Many Uses】The 0-10V low voltage PWM electronic dimmer is suitable for LED lights that have a separate dimmer circuit.
• ♣【Dimmer adjustment range】5-100%, continuous dimming and no flickering or humming.

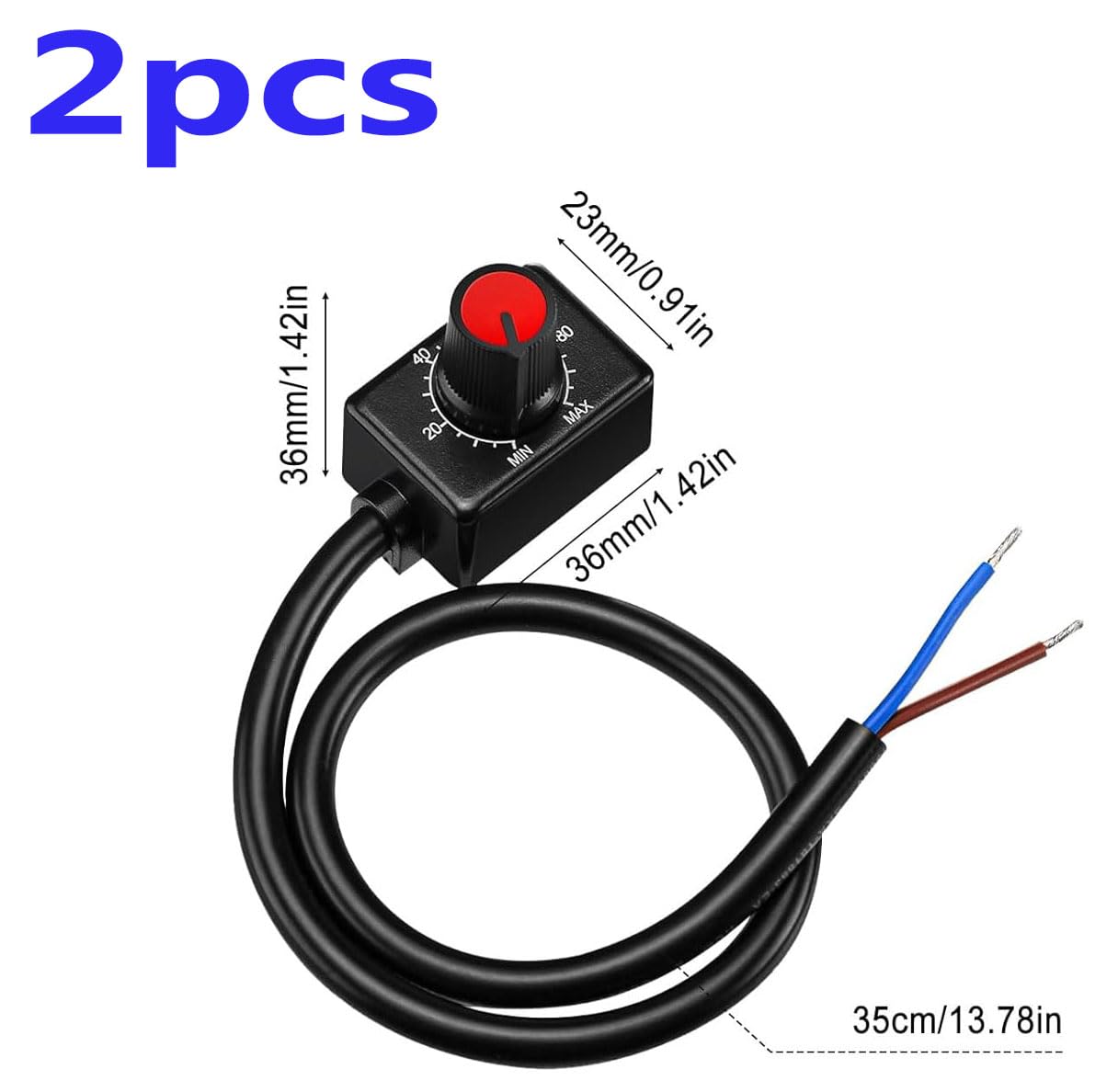

• ♣【Small Size】36 x 23 x 36mm (including key height); Cable length: 35 cm

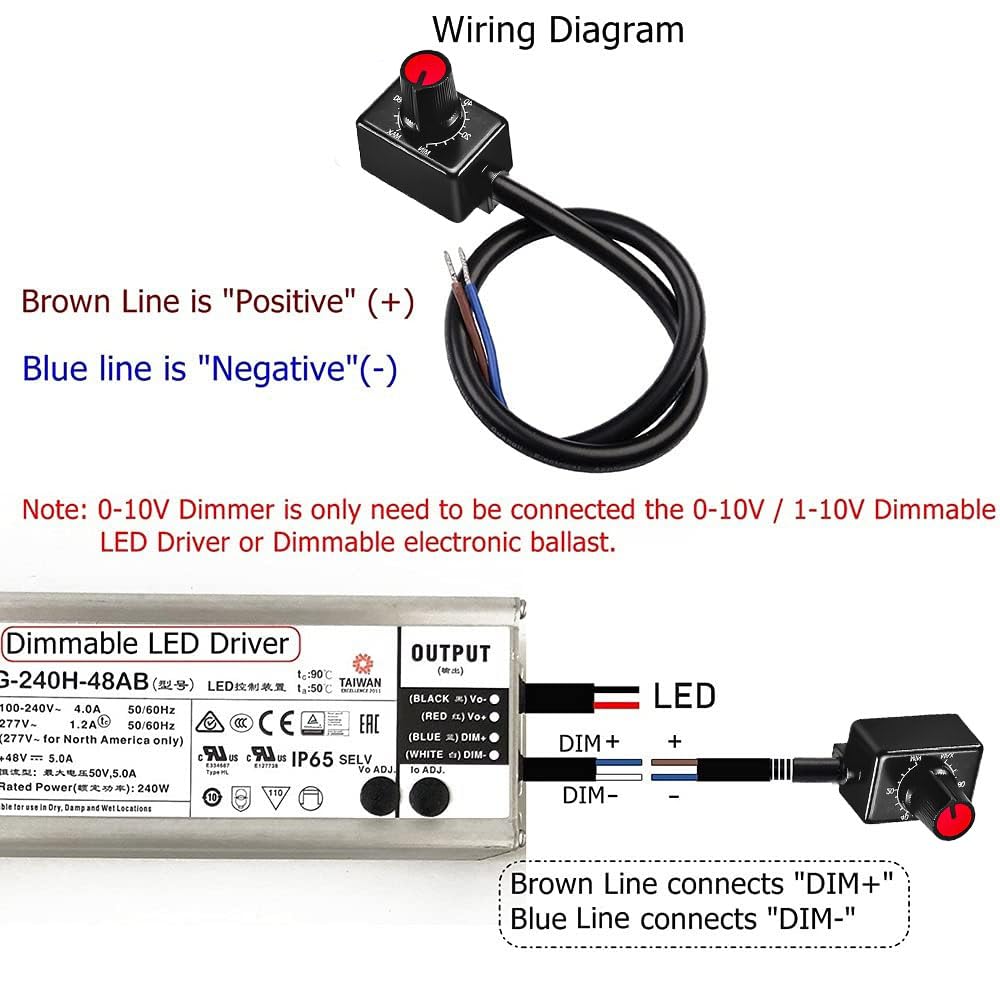

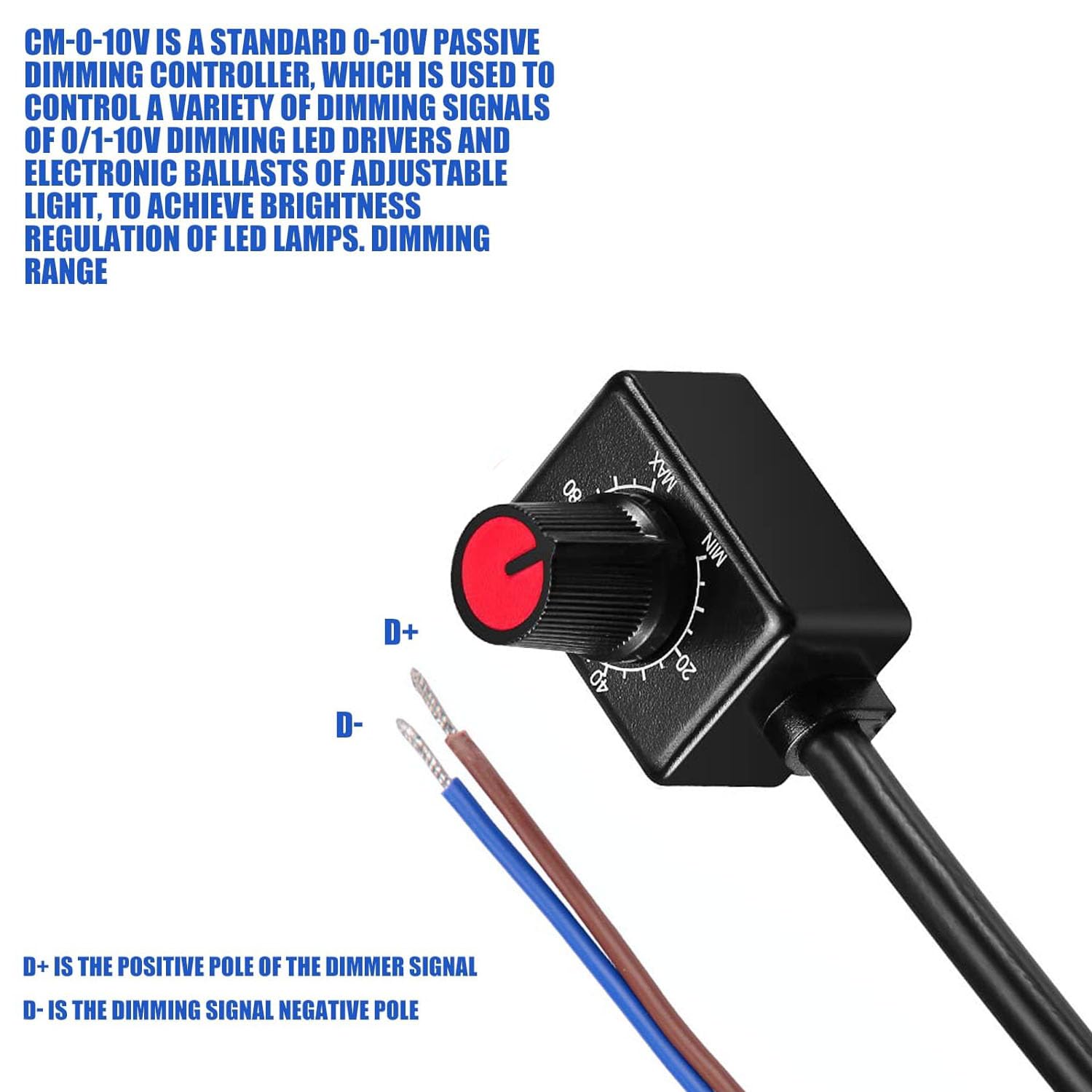

• ♣【Easy to wire】The brown line is “DIM +”, the blue line is “DIM -”. PLEASE NOTE: DO NOT connect it directly to the power supply.

DC0/1-10V Button LED Dimmer All you need to do is connect the dimmable 0-10V/1-10V LED driver or the dimmable electronic ballast to the 0-10V dimmer. 0-100% dimming Box contents: 2 pieces dimmer switches NOTE: Brown line connects “DIM+”, blue line connects “DIM-” Compatible with various 0/1-10V dimming signal drivers DO NOT connect it directly to the power supply Specification Input voltage (max.): 10V DC Input voltage (min.): 0.5V DC Effective dimming signal current (max.): 40 mA Signal voltage: 0-10V Dimmer adjustment range: 0-100% (continuous dimming), no flickering and anti-interference Working temperature: -15 to 50 °C ambient temperature at full load operation Installation: surface mounting or built-in
