VISSQH 240Pcs T Tap Electrical Connectors, Quick Splice Wire Terminals, T Tap Electrical Connectors, with Nylon Fully Insulated Male Spade Quick Disconnects Kit (Yellow, Red and Blue)

• ★ Wide Application: Quick splice T-tap connectors are widely used in the wire connection of automotive, motorcycle and home wiring projects. Different colors allow you easy to identify and choose quickly.
• ★ No Need to Strip Wire: Self-stripping electrical tap connector is suitable to electrically tap into a wire in mid-span without cutting or stripping the wire, connector then mates with a male tab, making a reusable quick-connect wiring termination. Mid span wiretapping has never been easier before.
• ★ Premium Quality: Brass element construction for good conductivity and tin plating for corrosion resistance. Safe structure, prevent short circuit.
• ★ Easy Identification: Color-coded tubing makes it easy to identify the right size of the connector for every application; Wire Range: 22-18AWG(Red) / 18-14AWG(Blue) / 12-10AWG(Yellow).
• ★ Package Included:120 x T-Tap wire terminals + 120 x male spade connector (40 pairs each color), with a plastic storage case for easy organization and store.

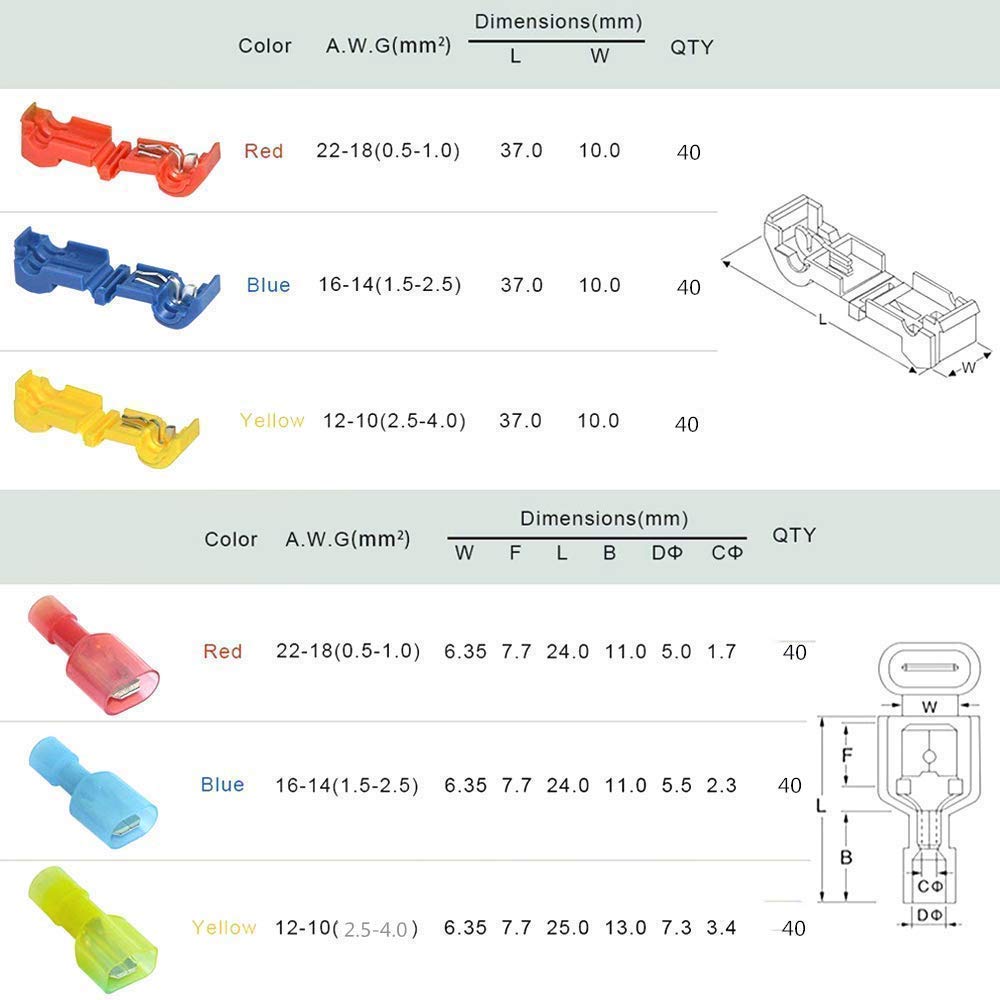

Specification: ● Material: brass + PP ● Color: Red & Blue & Yellow ● Quantity: 240 pieces ● Maximum voltage: 300V ● Temperature range: -40 / + 110 ° C Size: ● Red Electric Thief: 20 x 27mm ● Blue Electric Thief: 20 x 27 mm ● Yellow power thief: 20.5 x 34.5 mm Wiring area: ● Red current thief: 0.5-1.0 mm² AWG: 22-18 Maximum current: 10A ● Blue Power Thief: 0.75-2.5 mm² AWG: 18-14 Maximum Current: 15A ● Yellow Current Thief: 4 mm² AWG: 12 Maximum Current: 20A Package Includes: 120 * T-branch connector 120 * flat plug How to use 1. Insert the wire into the connector and squeeze it with the pliers until it snaps into place. 2. Insert the wire into the cable lug and crimp it to secure the wire. 3. Insert the cable plug directly into the tap.
