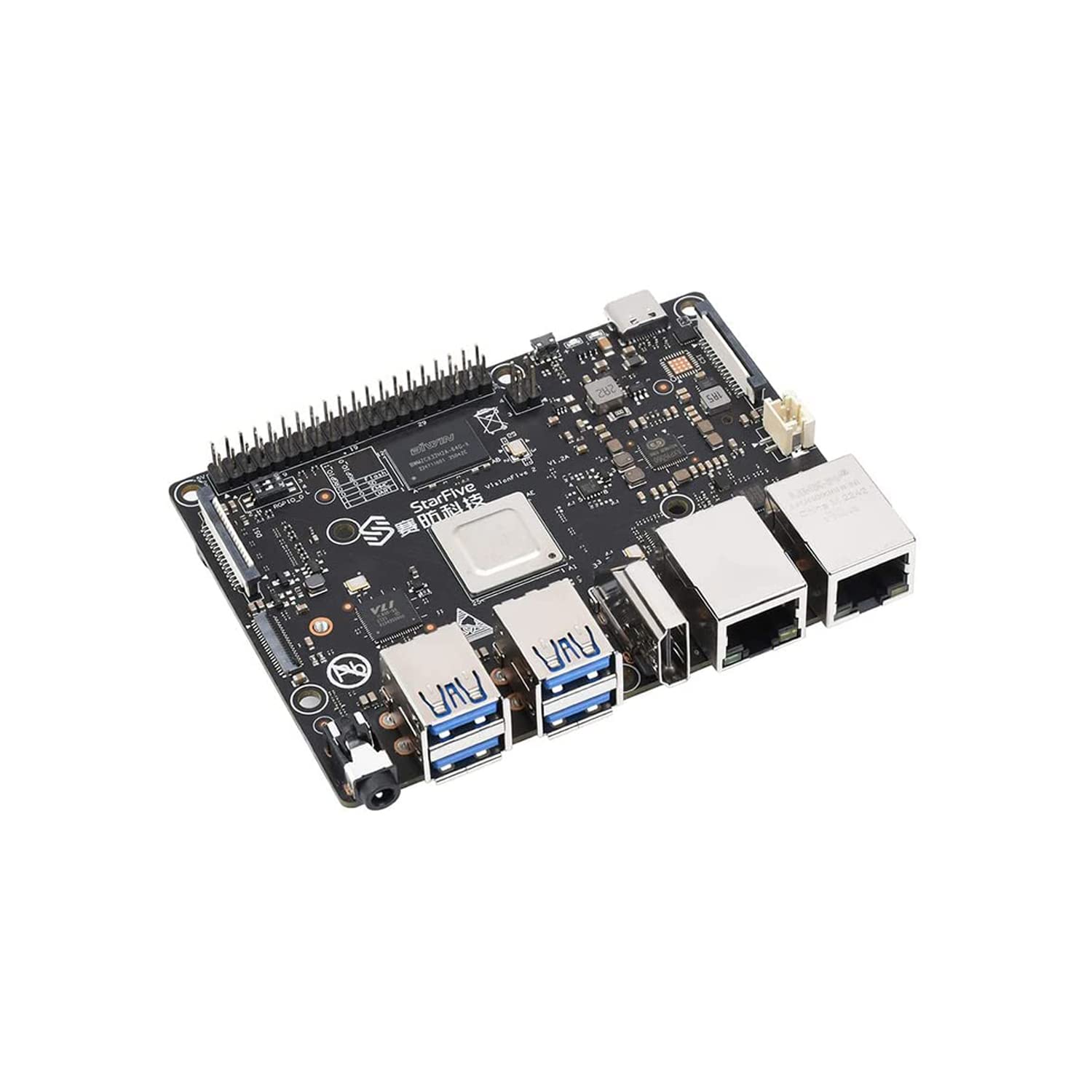

VisionFive2 RISC-V Linux Single Board Computer, Quad-Core StarFive JH7110 64-bit CPU with LPDDR4 8GB RAM 3D GPU, Dual Gigabit Network Port, Support M.2 M-Key 40 Pin GPIO Header (with WiFi 6 Dongle)

• [High Performance] VisionFive2 Mini PC Integrated StarFive JH7110 with RISC-V U74 quad-core CPU, with 2MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz. Paired with IMG BXE-4-32 MC1 3D GPU,work frequency up to 600 MHz (400 MHz by default).Suport with Vision DSP, NVDLA engine, and neural network engine for AI acceleration.

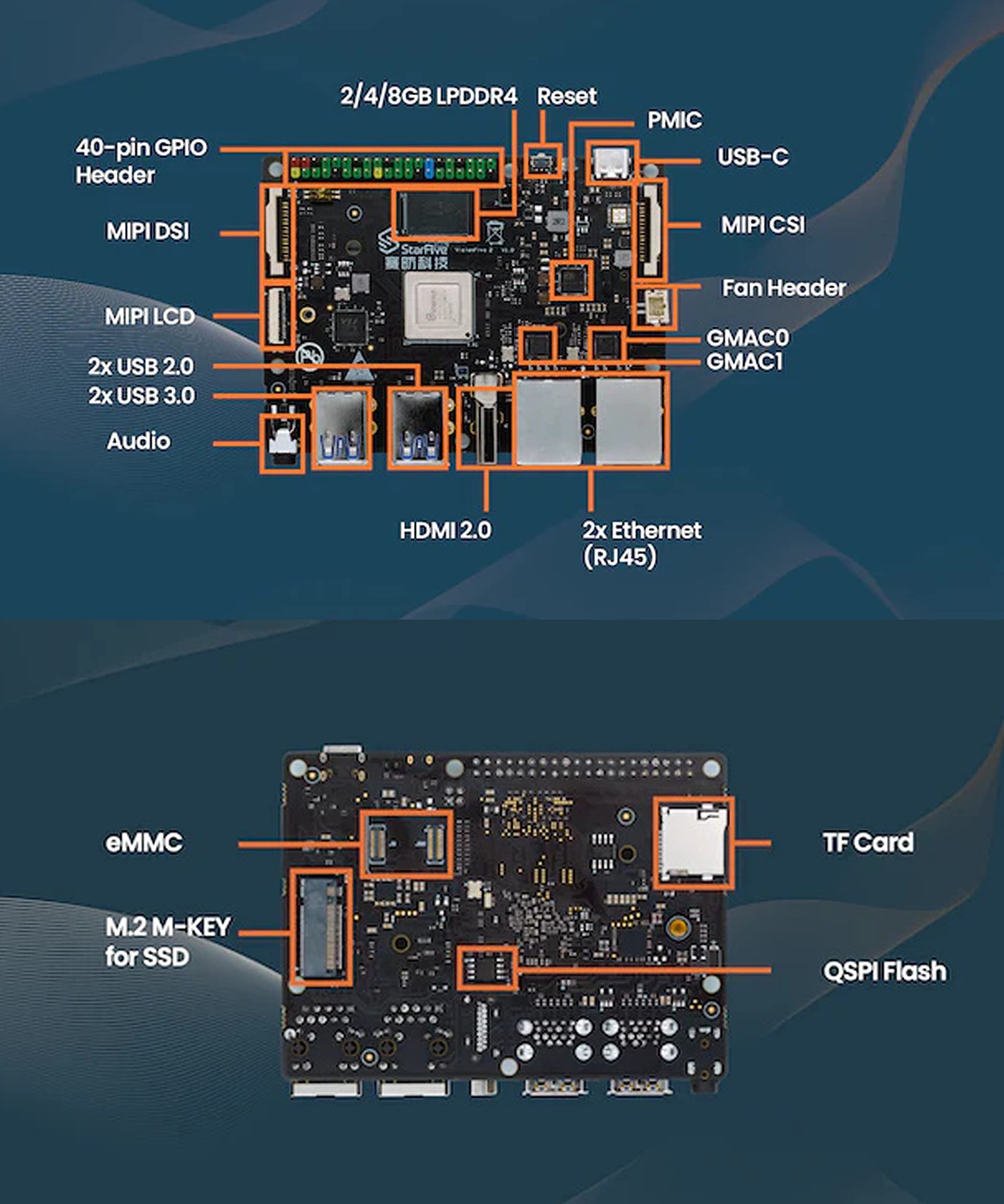

• Rich interface: M.2 connector, eMMC socket, 1000M network port and WiFi slot; 40 pin GPIO header, 2x RJ45 Ethernet connector and Micro-SD card slot; 2 x USB 3.0 ports,2 x USB 2.0 ports,1 x USB Type-C port; TF card slot and Flash etc.
• [Multi-function] Powerful performance, open source application environment, and rich software ecology, more possibilities for VisonFive 2, while compatible with Raspberry Pi series boards.

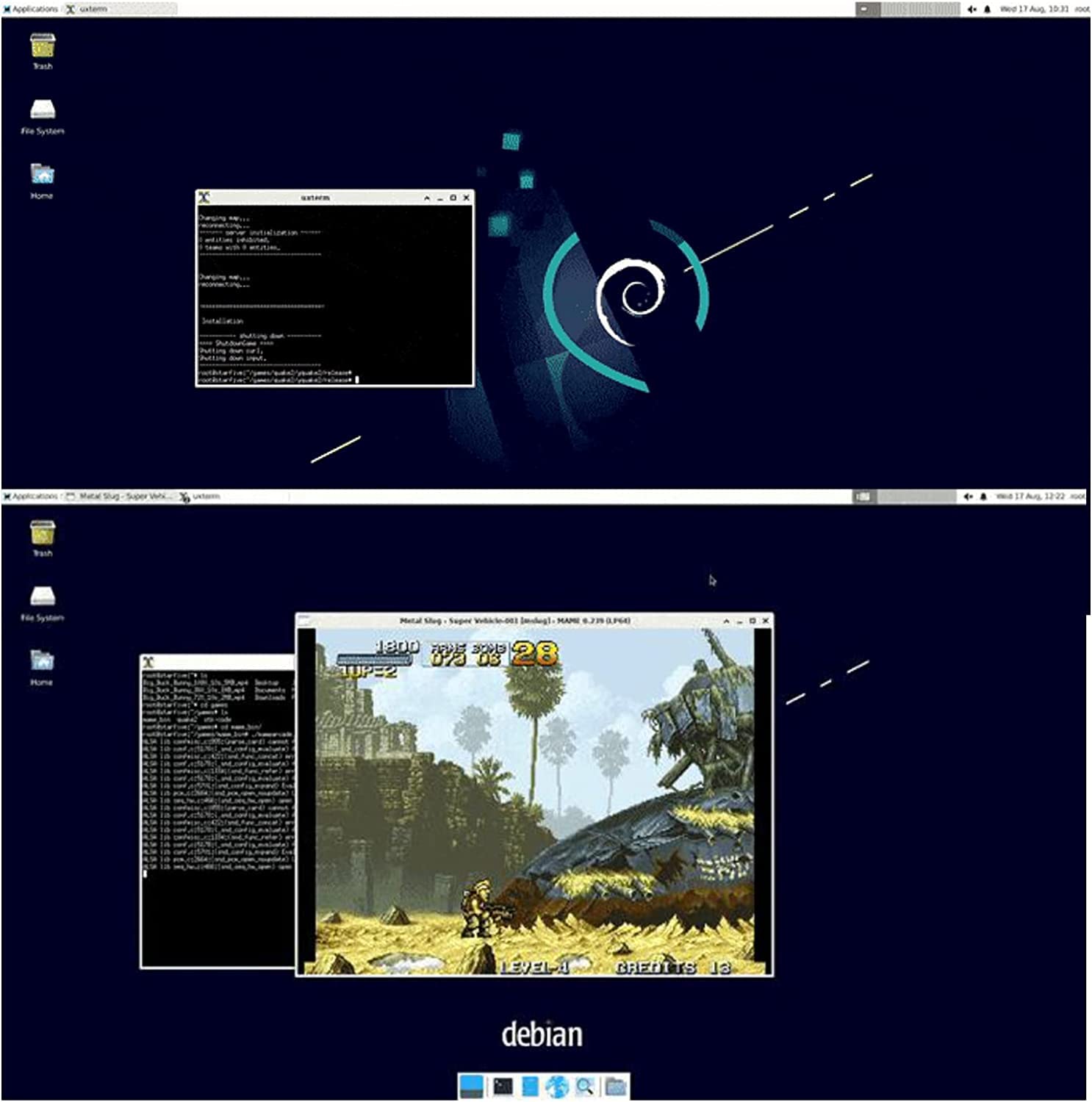

• [Support OpenGL and FFMpeg] VisionFive2 RISC-V single board computer integrated IMG BXE-4-32 MC1 supports OpenCL 3.0, OpenGL ES 3.2 and Vulkan 1.2; supports running OpenGL, Vulkan and FFMpeg demos.
• [Encoder/Decoder] Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265; Video encoder supports up to 1080p@30fps and multi-stream for H265; JPEG encoder/decoder.
• [Document] VisionFive2 OS download: "https://doc-en.rvspace.org/Doc_Center/visionfive_2.html". Any question please click "WayPonDEV" store and ask a question. Or leave the message to "wpd#youyeetoo&com (#--->@,&--->. ).

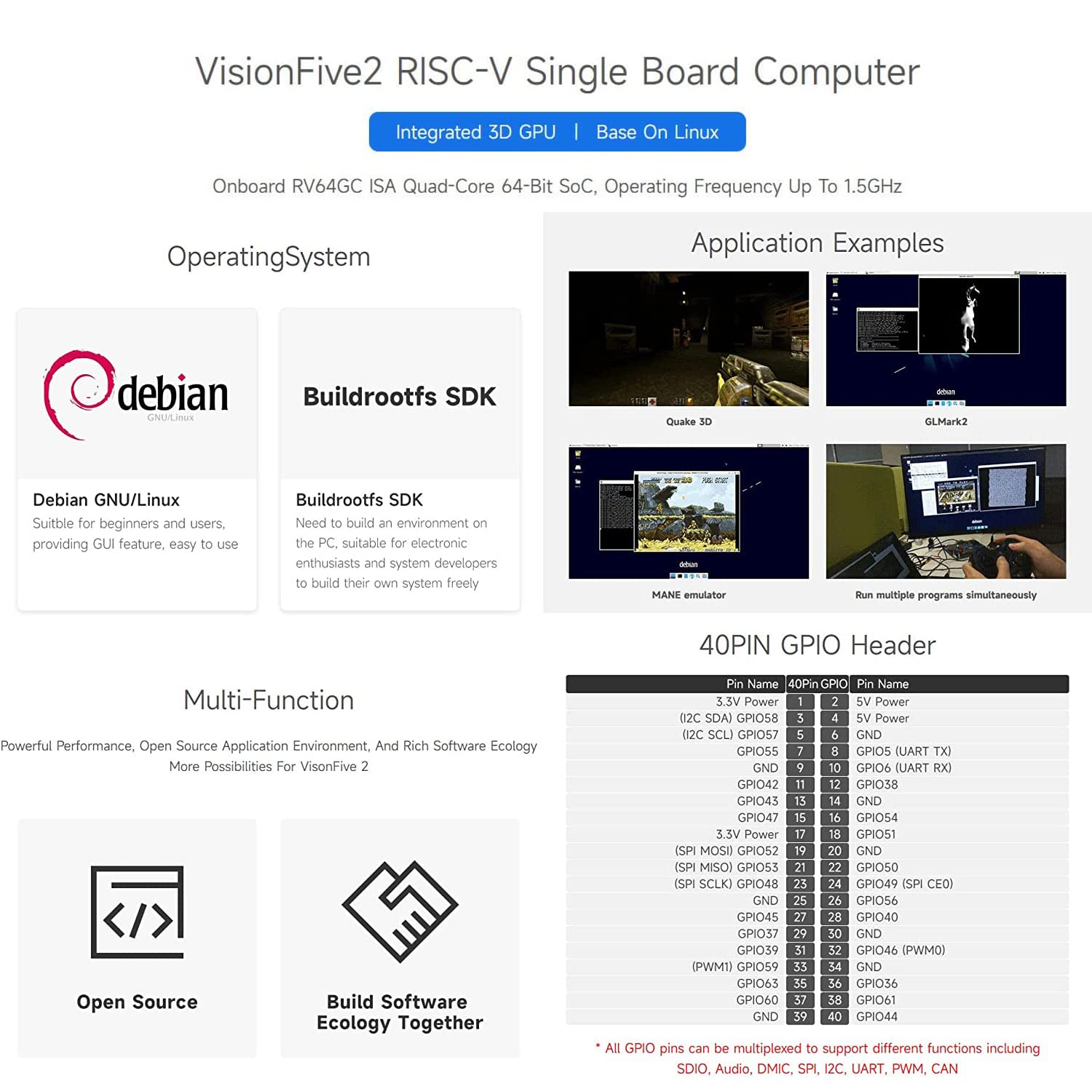

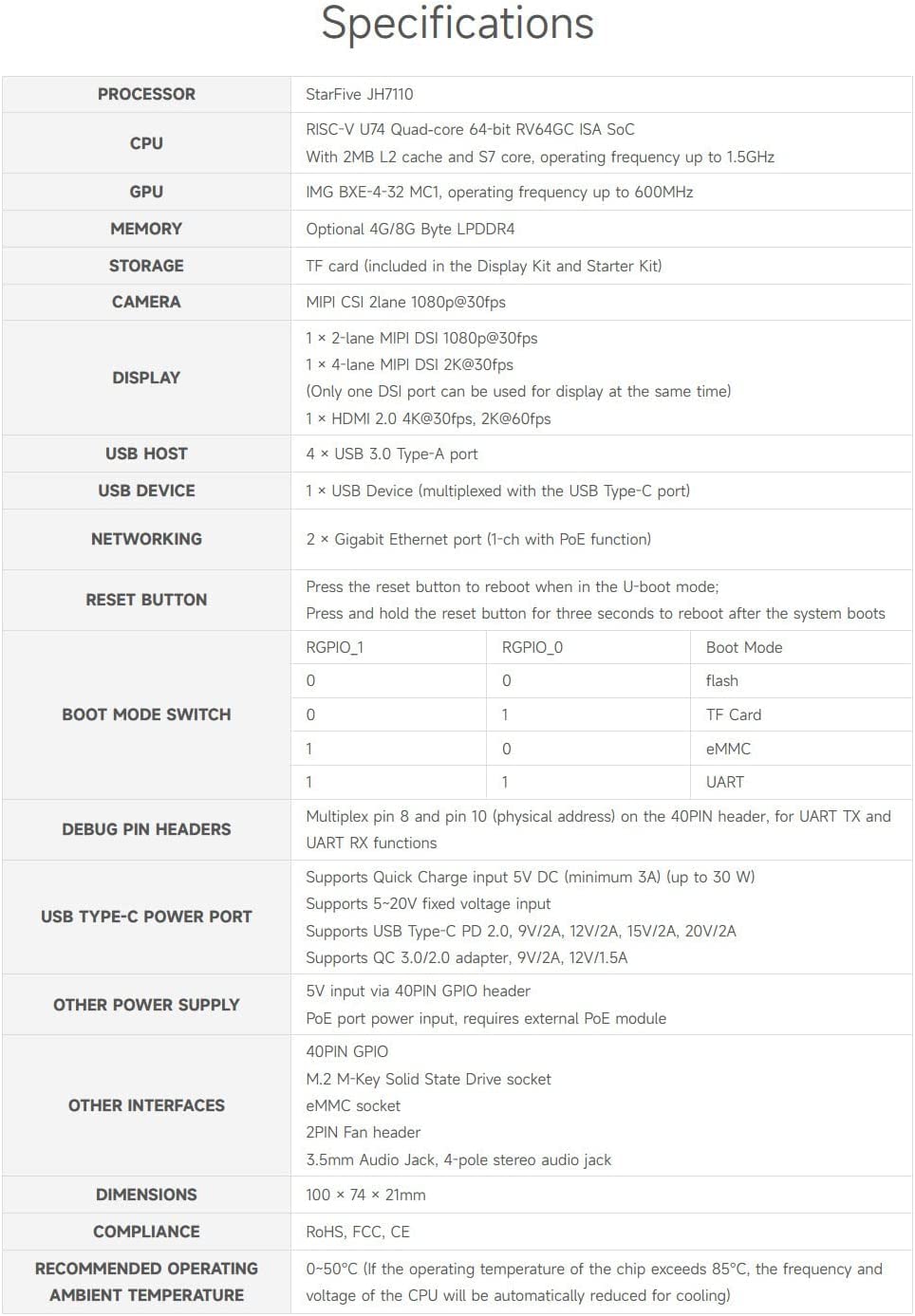

-Specification- Processor: StarFive JH7110 with RISC-V U74 quad-core with 2 MB L2 cache and S7 monitor core, supporting RV64GC ISA, working up to 1.5 GHz IMG BXE-4-32 MC1 with work frequency up to 600 MHz (400 MHz by default) Memory: 8GB LPDDR4 (up to 2800Mbps). Storage: Onboard TF card slot; Flash. - Video output. 1 x 2-lane MIPI DSI display port, supporting up to 1080p@30fps. 1 × 4-lane MIPI DSI display port, supporting up to 2K@30fps in both single display and dual display modes 1 x HDMI 2.0, supporting up to 4K@30fps or 2K@60fps Camera: 1x 2-lane MIPI CSI camera port, supporting up to 4K (3840 x 2160) pixels @30fps - Encoder/Decoder. Video Decoder supports up to 4K@60fps; Support multi stream for H264/H265 Video encoder supports up to 1080p@30fps and multi-stream for H265 JPEG encoder/decoder - Peripheral 2 x USB 3.0 ports; 2 x USB 2.0 ports 40 pin GPIO header (28 x GPIO, I2C, I2S, SPI, UART). 2x RJ45 Ethernet Connector; Not WIFI 3.5 mm audio jack (4-pole stereo audio output). M.2 Connector;eMMC Socket;2 pin fan header Micro-SD card slot for system boot and data storage Power Supply:Power 5V DC with PD, up to 30W Power connector: USB Type-C port or 40-pin GPIO header Dimensions: 100 mm x 72 mm x 10 mm. - Operating Systems. VisionFive 2 supports mainstream Linux distributions Debian, Fedora, Ubuntu, openSUSE -Package content. VisionFive 2 8GB Single Board Computer x 1 Wifi 6 dongle x 1. 20 W PD power x 1, PDFast charging line x 1. Debug Serial Port x 1, Dupont Line x 1 - Technical support. Please click "WayPonDEV" and ask a question. Please leave the message monica#smartfire.cn (f------>@) skype: monica_9122.
