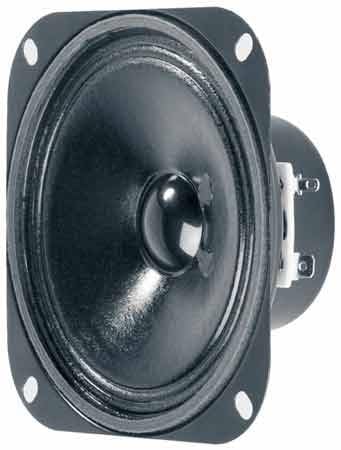

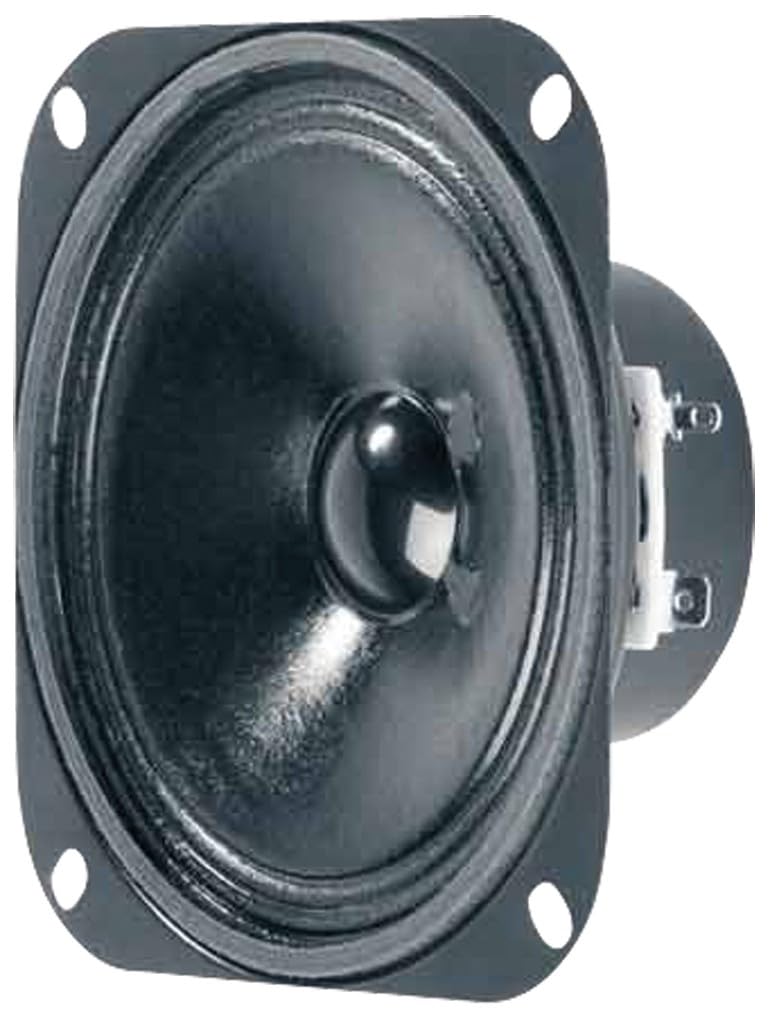

Visaton VS-R10SC/8 – (10.16 cm (4) Speakers, 20 W, 30 W, 100 – 13000 Hz, Black, 10 cm)

• Visaton VS-R10SC/8. Audio output channels: 1.0 channels. RMS rated power: 20 W
• Frequency range: 100 – 13000 Hz
• Impedance: 8 Ω. Product colour: Black

Magnetically shielded 10 cm (4") fullrange speaker with high efficiency, balanced frequency response. Water-repellent cone and rubber gasket. Especially suitable as control speaker in electronic devices and as speaker for public applications and public transport systems. Typical applications: - Video monitoring screens - Control speakers for electronic devices - Ceiling-mounted speakers in railway carriages and bussesRated power: 20 WMaximum power: 30 WNominal impedance Z: 8 OhmFrequency response: 100?13000 HzMean sound pressure level: 90 dB (1 W/1 m)Opening angle (-6 dB): 92°/4000 HzExcursion limit: +/?1.5 mmResonance frequency fs: 150 HzMagnetic induction: 0.95 TMagnetic flux: 135 µWbHeight of front pole-plate: 3 mmVoice coil diameter: 15 mmHeight of winding: 4 mmCutout diameter: 93 mmNet weight: 0.24 kgD.C. resistance Rdc: 3.6 OhmMechanical Q factor Qms: 6.4Electrical Q factor Qes: 1.67Total Q factor Qts: 1.32Equivalent volume Vas: 2.6 lEffective piston area Sd: 56 cm²Dynamically moved mass Mms: 1.9 gForce factor Bxl: 2 T mInductance of the voice coil L: 0.2 mHConnections: 5.2 x 0.5 mm (+) 2.8 x 0.5 mm (?)Protective system: IP 54Temperature range: ?40 ... 70 °CData SheetImpedance: 8 OhmModel: Full Range RMS Power: 20 WMax Power: 30 W
