Vintage Knurled Edge Conta Clip Cable System Kdsclick, black, 28502.4

• Cable entry system KDSClick - easy and safe cable management for assembled and unassembled cables
• Screw frame KDS-SR 8/16 BK - 126 x 70 x 19.6 mm - based on standard breakout for 16-pin heavy connectors
• Material: fibreglass-reinforced polyamide 6.6 with foamed polyurethane based gasket, halogen-free and silicone-free
• Protection class: IP 66
• Colour: black (RAL 9005)

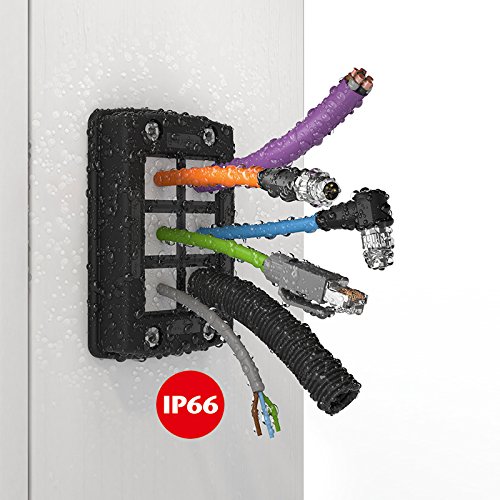

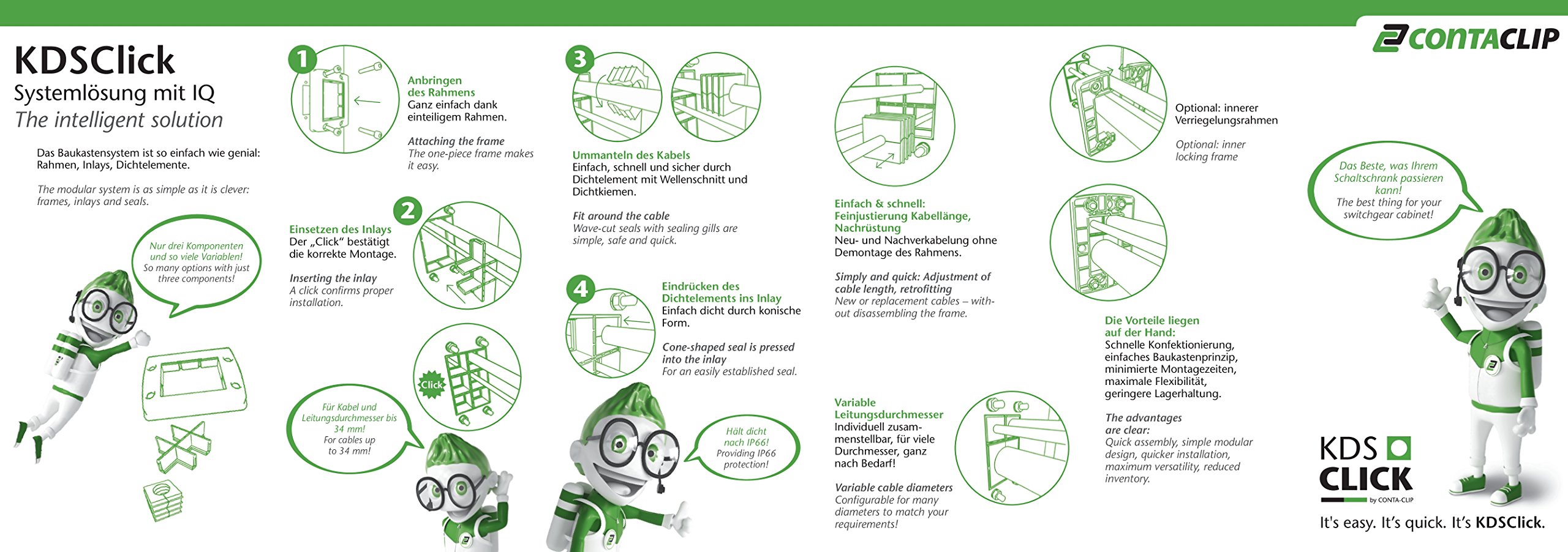

Cable guide system KDSClick The revolution in the field of cable entry systems. Fast. Safe. Very easy. The KDSClick cable entry system offers maximum flexibility and time savings in terms of cable management on control cabinets, enclosures and machines, as well as secure sealing and strain relief of assembled and unassembled cables - with and without connectors. Frame. Made from one cast, the one-piece frame is quick and easy to assemble and is made of dimensionally stable, fibreglass-reinforced plastic. The foamed seal guarantees high tightness according to IP66, even on painted and rough surfaces. Product Features: Length: 126 mm. Width: 70 mm. Height: 19.6 mm. Material: fibreglass reinforced PA 6.6. Flammability class UL 94: V-0. Working temperature: min. : -40 °C. Working temperature: max. : 120 °C. Seal material: polyurethane base. Type of seal: sealing and moulding soft foam. Pollutant information: halogen-free, silicone-free. Protection class: IP 66.
