VIFERR 4 Pole Residual Current Device,Short Circuit Protection Device GYL9 25/40/63A 4P 400VAC RCCB Residual Current Circuit Breaker Electric Leakage Protector DIN Rail Mount (63A)

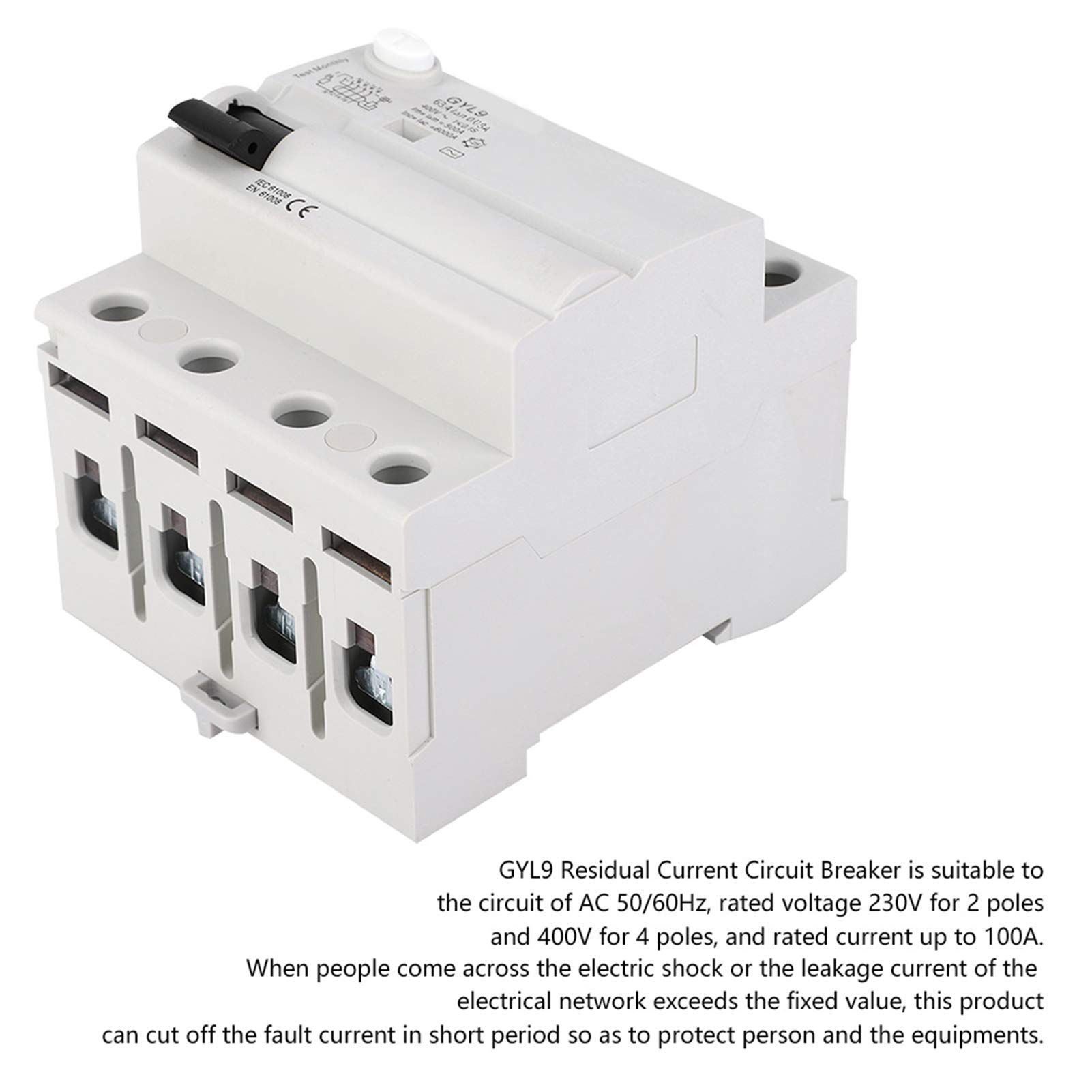

• Application: GYL9 residual current circuit breaker is suitable to the circuit of AC 50/60Hz, rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 100A

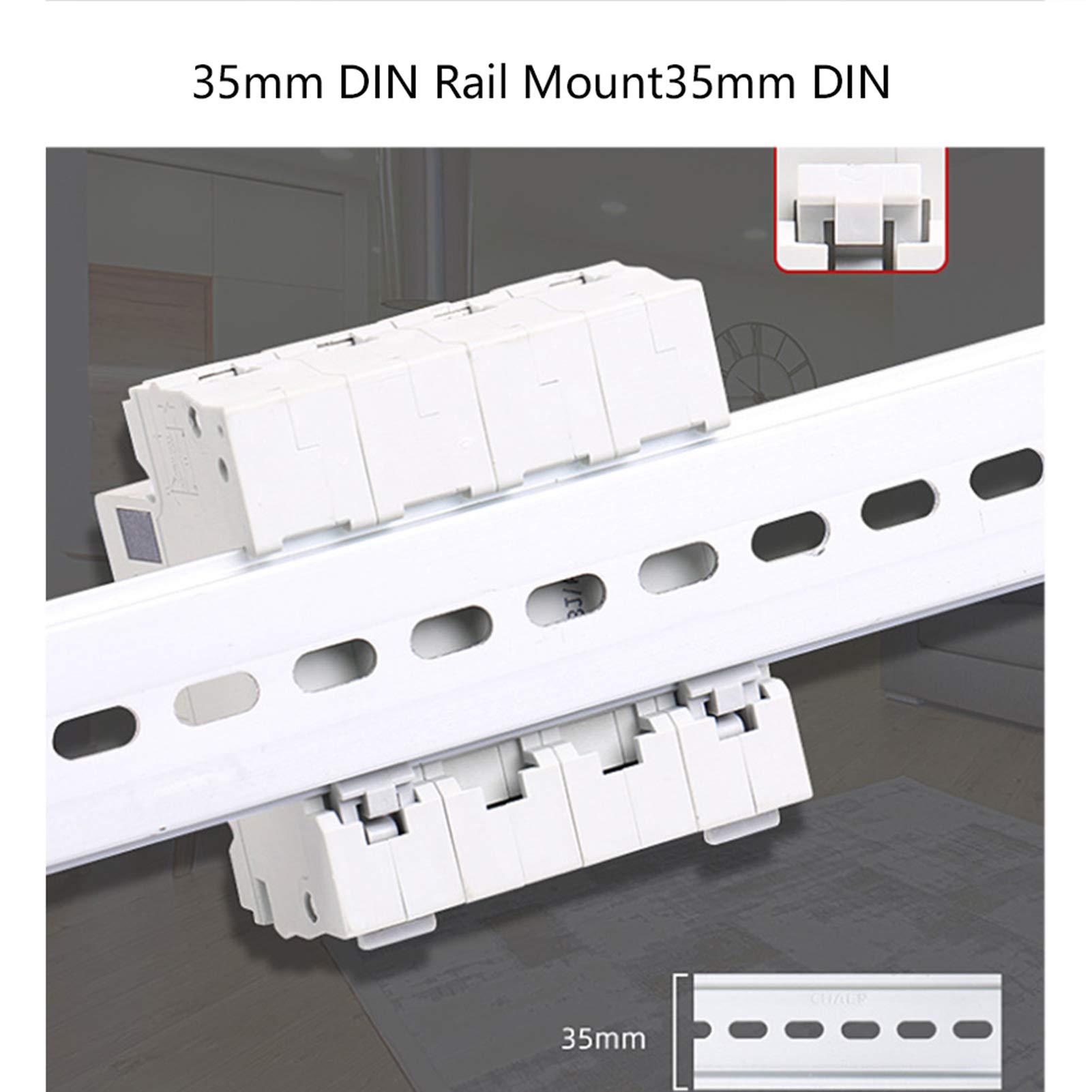

• Wiring Capabilities: Bilateral busbar wiring capabilities to adapt to the wider use of premises. Maximum connecting ability of 35mm2, wiring torque 3.5Nm, residual current circuit breake is applicable to a variety of installing equipments
• Safe Protection: When people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this 4 pole rccb can cut off the fault current in short period so as to protect person and the equipments
• Exquisite Craftsmanship: In compliance with IEC/EN61008.1. Protection rating IP20.Miniature residual leakage circuit breaker has high-performance flame retardant shell, fire retardant and not easy to use

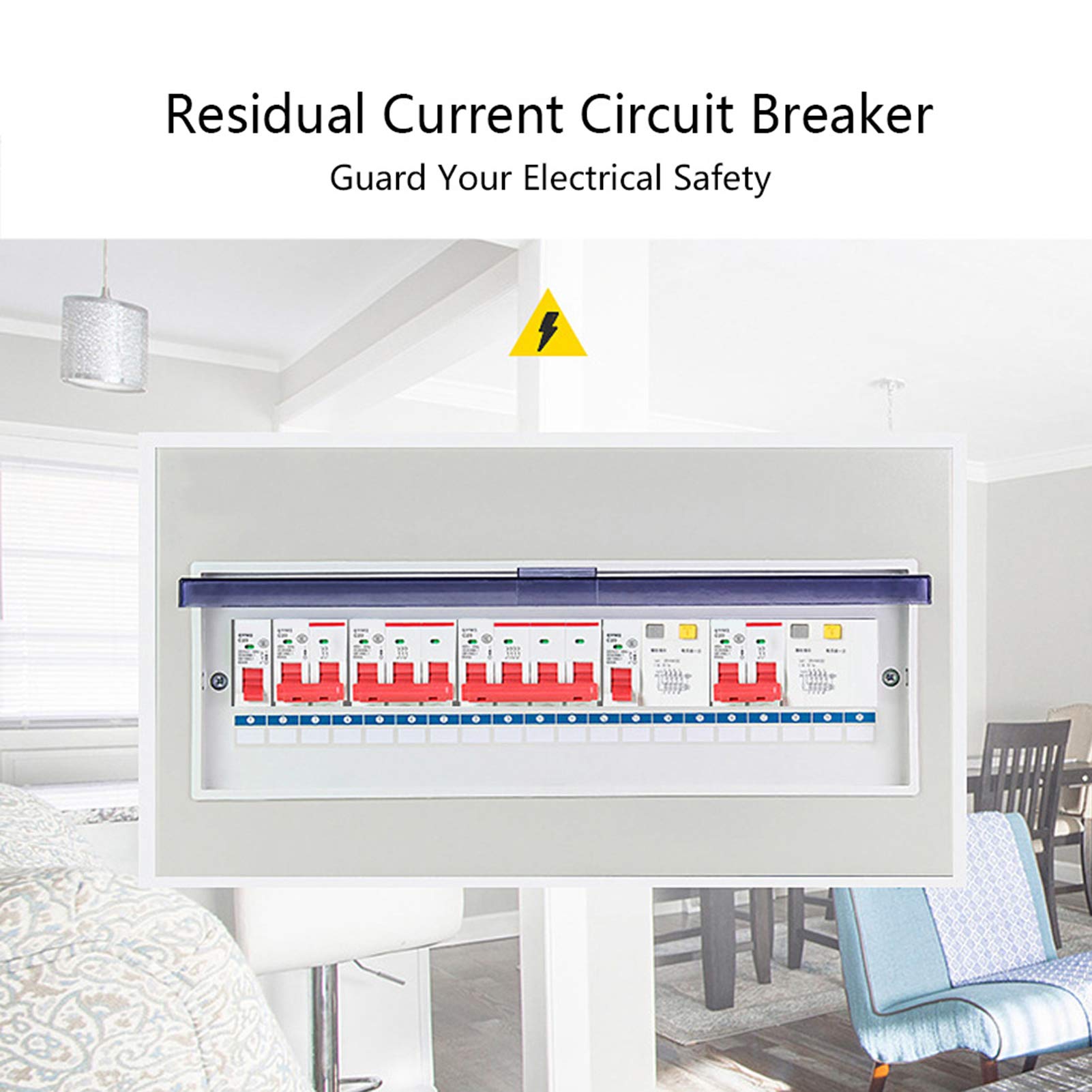

• Wide Uses: The 0.03A RCCB circuit breaker is suitable for industry, commerce, high-rise building, household and other kinds of places. It also can be used in the infrequent starting of the circuit and motors

Specification: Rated Current Input: 25/40/63A (Optional) Pole: 4P Rated Voltage Ue: 400VAC Insulation Voltage Ui: 500V Rated Frequency: 50/60Hz Rated Sensitivity: 0.03A Rated Residual On/Off Capability Im: 500(In=25-40A), 630(In=63A) Short Circuit Current: 10000A Disconnect Time: ≤0.1S Rated Impulse Withstand Voltage(1.2/50) Uimp: 6kV Insulation Test Voltage (within 1 minute): 2.5KV Electrical & Mechanical Life: 4000 Reference Temperature for Setting of Thermal Element: 30℃ Ambient Temperature: (daily average ≤ 35℃) -5~40℃ Storage Temperature: -25~70℃ Package List: 1 x Residual Current Circuit Breaker
