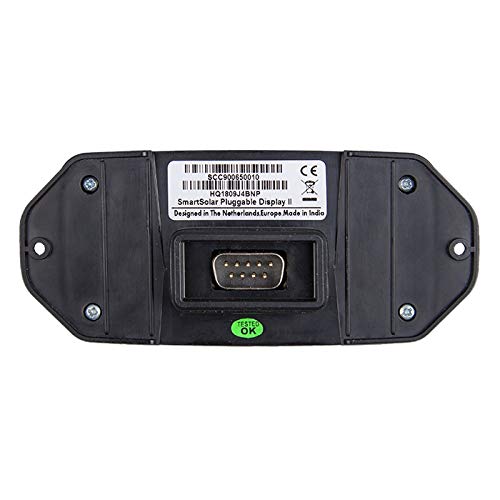

Victron SmartSolar Pluggable LCD Display to monitor and program Victron SmartSolar MPPT solar charge controllers

• Plugs into the face of a Victron MPPT SmartSolar controller to unlock advanced programming and remote monitoring functions of your MPPT solar system.
• Enables access to live data transmission, data logs, the option to set a User-Defined battery charging algorithm, and load configuration.
• Backlit LCD screen for clear, user-friendly operation.
• Compatible with Victron SmartSolar MPPT controllers with a connection area for an optional LCD display
• Comes with a 5 year warranty. Scroll down to Product Description for more information.

Key functions: Simply remove the rubber seal on the face of your SmartSolar controller and plug in this LCD display to access a range of monitoring and programming functions, including: - Live data transmission: Real-time information is displayed including solar panel output, battery voltage and current, load status and current, and charging stage information. - Relay programming: SmartSolar controllers feature relay contacts which can be programmed to set off an alarm when specified high/low battery voltages/ a high solar panel voltage or high/low temperatures are reached. The relay can also be programmed to automatically activate a generator if required. - 30-day data logs: System activity is available to view, either as today's values or as cumulative values for the past 30 days. Daily data displayed includes: energy yield, maximum recorded power and voltage, time spent in each charging stage, maximum battery current, minimum and maximum recorded battery voltages and daily error records. 30 day data includes: total cumulative energy yield, maximum recorded solar panel voltage, minimum and maximum recorded battery voltage, and recent errors. - User-defined battery charging algorithm: Option to set personalised charging parameters, including user-defined absorption voltage, absorption time, float voltage, equalisation voltage and temperature compensation settings. - Load configuration: For controllers with load terminals, choose from one of the pre-set load management programs or create a user-defined load program. - Temperature sensor readings: Temperature values are available to view for both the battery and the solar charge controller, measured via the inbuilt sensor. Specifications: - Size: 10 x 5 x 3 cm - Size (fitted): 10 x 5 x 2 cm - Weight: 64g Please contact Photonic Universe with any questions.
