VictorsHome Magnetic Reed Switch RC-36 NC Recessed Wired Window Door Contact Sensors for Home Security and Burglar Alarm Systems 5pcs

• MATERIAL - The switch housing is made of ABS flame retardant material and reed switch, is resistant to high temperature and deformation.

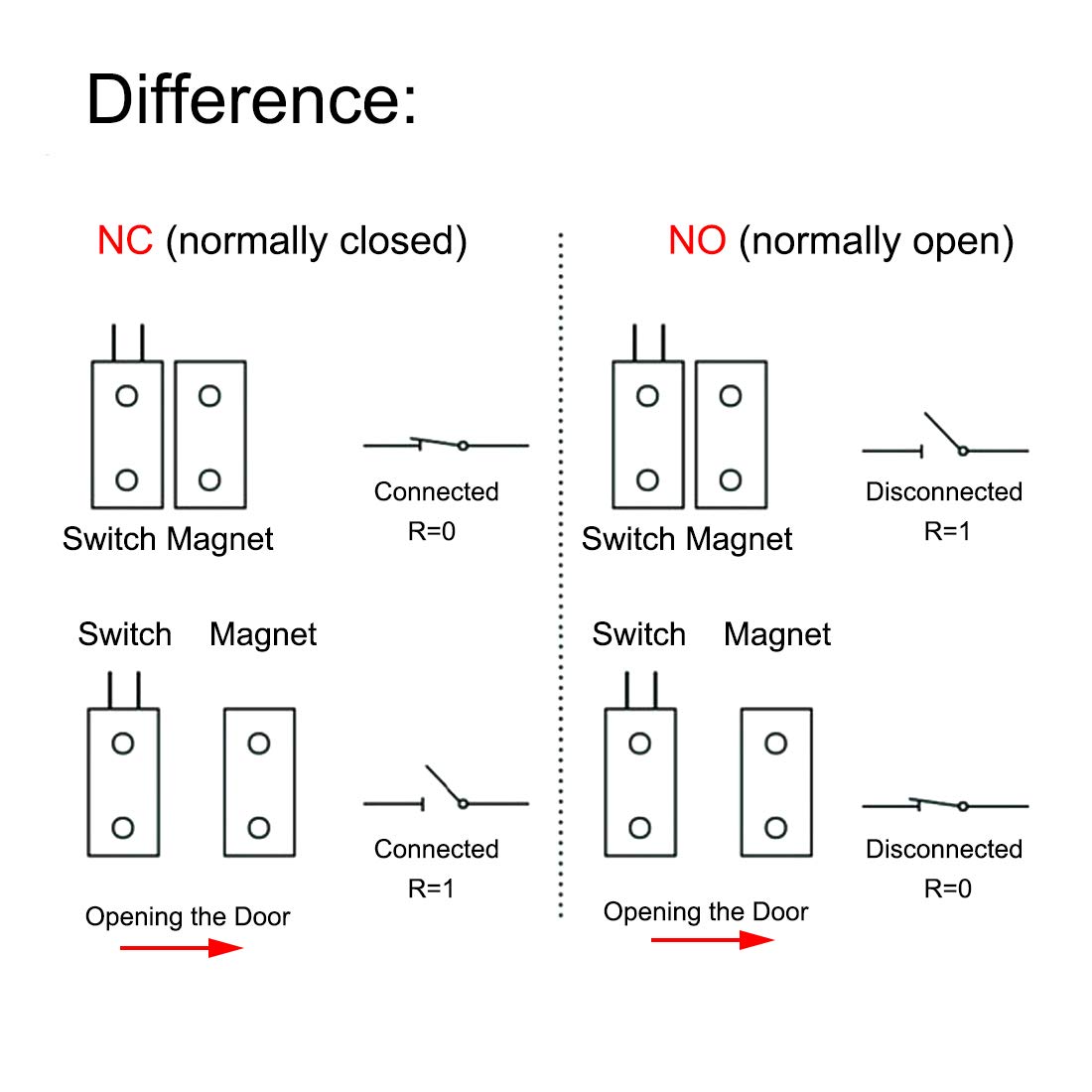

• NORMALLY CLOSED(NC) - When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off).
• ACTUATION DISTANCE - 12mm transmitting distance. The contact has fast reflection and accurate detection.
• WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the supply current cannot exceed 1A. The load current is 120mA.
• WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.

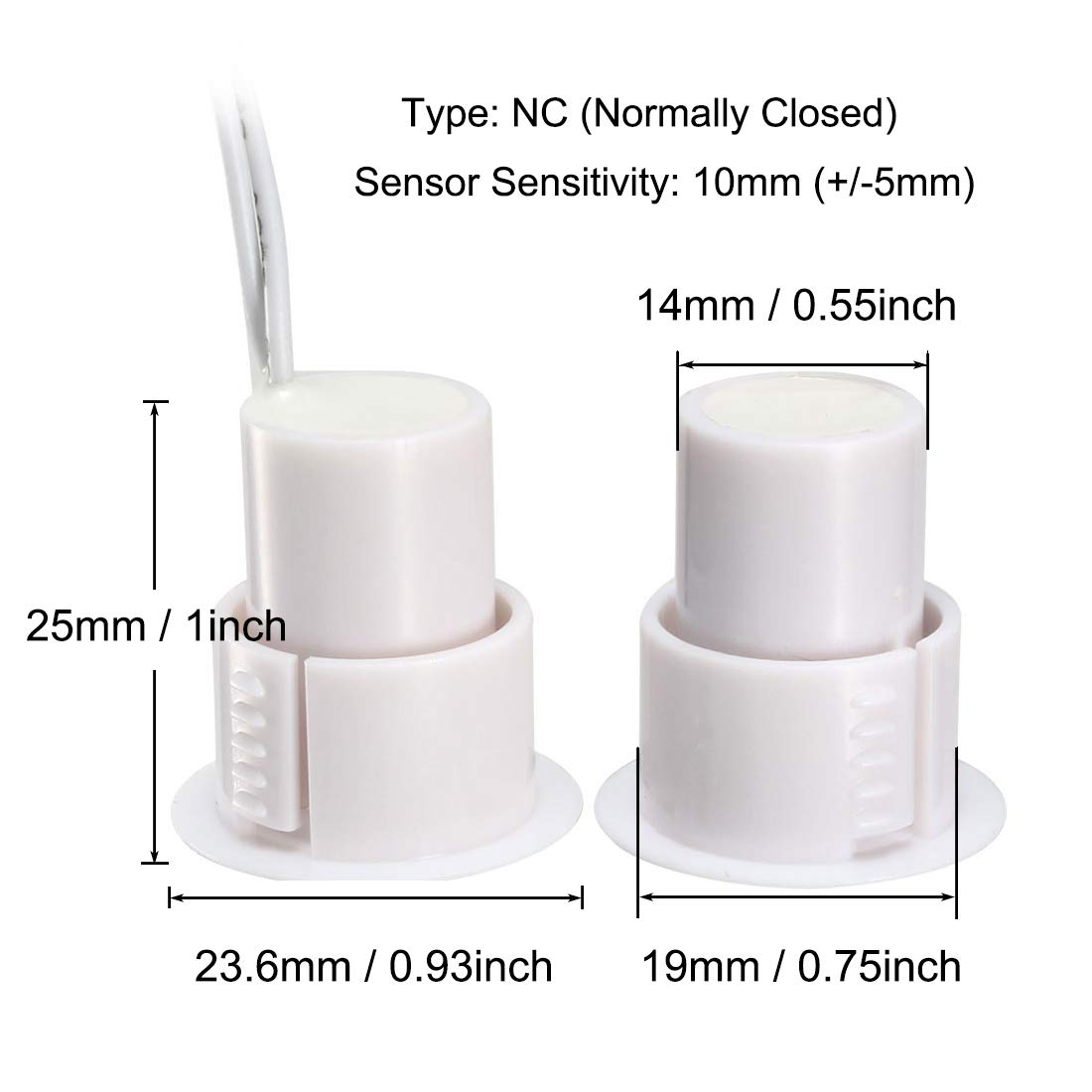

NORMALLY CLOSED When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off). WIDE APPLICATIONS Work with all access control and burglar alarm systems. It can be installed in wooden or aluminum alloy doors and windows. PLEASE NOTE A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply or be directly connected to the lamp. Specifications: Model: RC-36 Contact Type: NC(Normally Closed) Max. Sensor Sensitivity: 10mm±5mm Max. Current: 150mA Max. Voltage: 100V Working Voltage: DC0-24V Max. Contact Power: 10W Size(Approx.): 25 x 23.6mm / 0.98 x 0.93inch (H*D) Cable Length(Each): 30cm / 1.18inch Housing Material: ABS Wire Type: 1007#/24#300mmUL Package Content: 5pcs x Magnetic Door Switch
