VIAPUICE Outdoor Motion Sensor, Infrared PIR Motion Detector - Grey

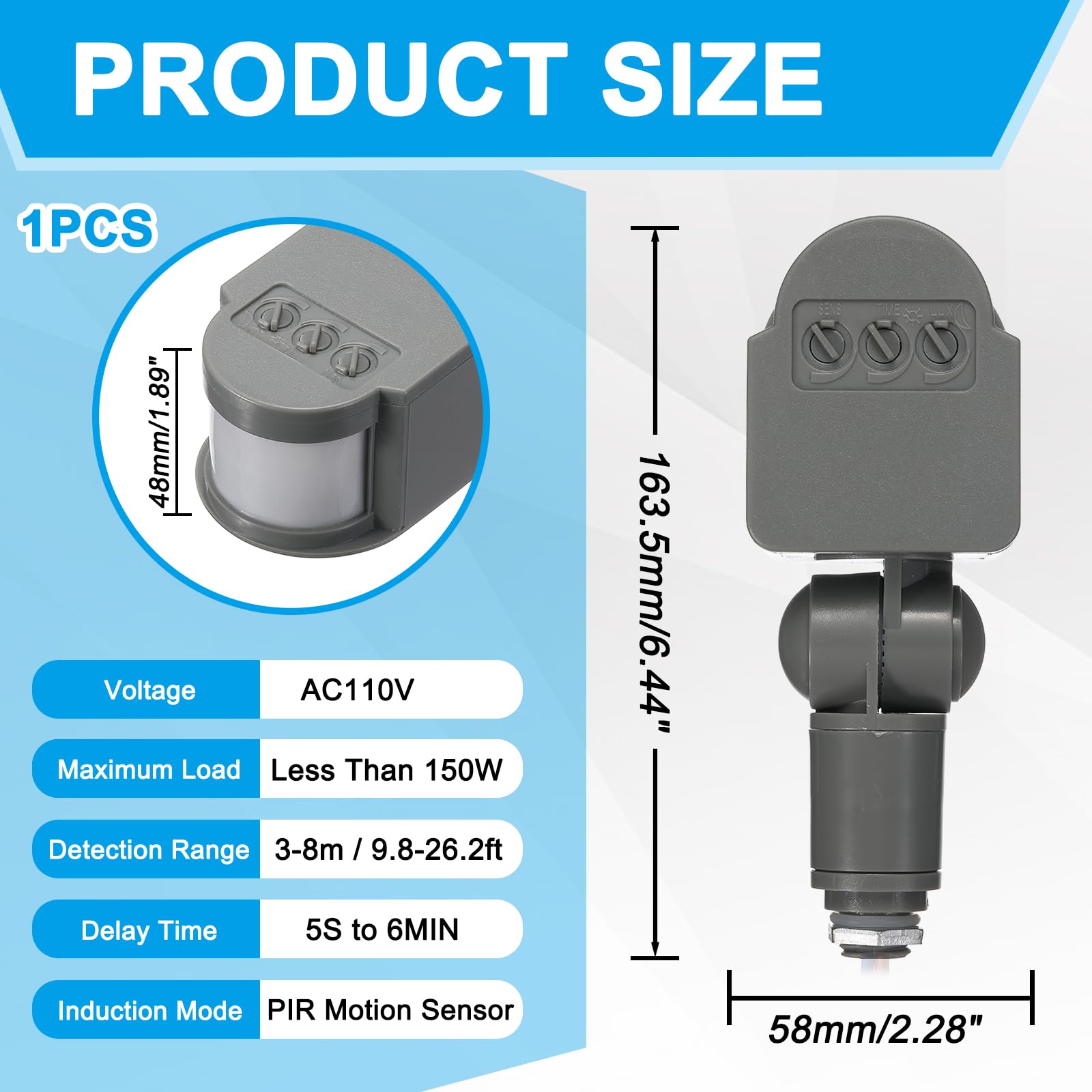

• Specifications: Color: Grey; Material: ABS; Detection Angle: 120°; Hole size: 16mm / 0.63in; Wire Length: 100mm / 3.94in; Head Rotation: 180° Adjustable; Maximum Load: Less Than 150W; Detection Distance: 3-8m / 9.8-26.2ft; Size: 163.5 x 58 x 48mm / 6.44 x 2.28 x 1.89 in; Delay Time: 5 S to 6 Min Adjustable; Passive Infrared Motion Sensor Switch for AC110V lighting systems
• Applications: This AC110V outdoor PIR motion sensor is designed for North American mains-powered lighting. Suitable for flood lights, security lights, wall lights, landscape lighting, pathway lighting, garage lighting, and other lighting systems. Motion-activated operation helps provide automatic illumination when movement is detected within the sensing area

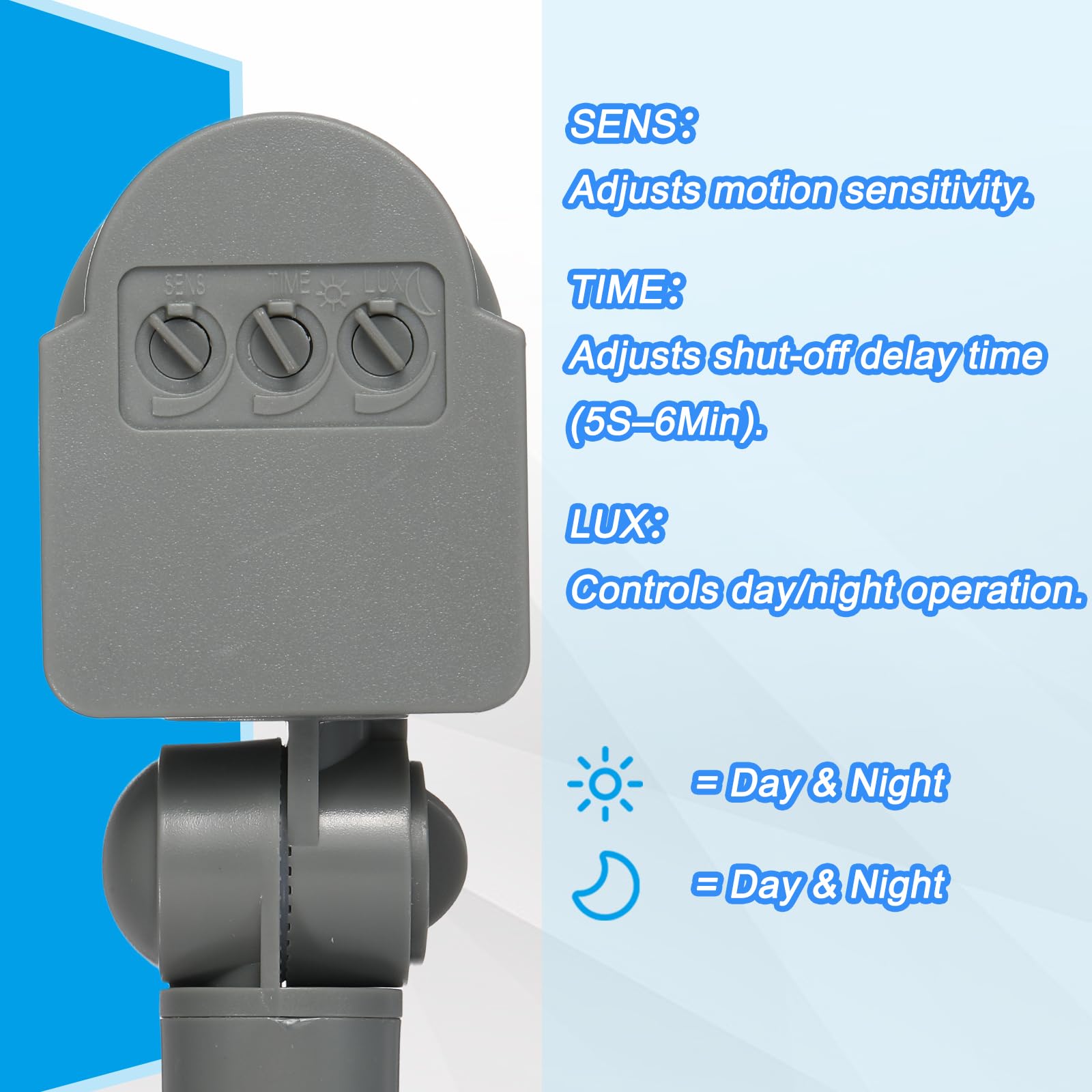

• Usage Guides: Install the motion sensor between the power source and the lighting fixture. Adjust SENS for sensitivity, TIME for shut-off delay, and the light level setting for day/night operation. Set the sensing direction and delay time as needed. Its ABS housing is designed to withstand rain and outdoor conditions

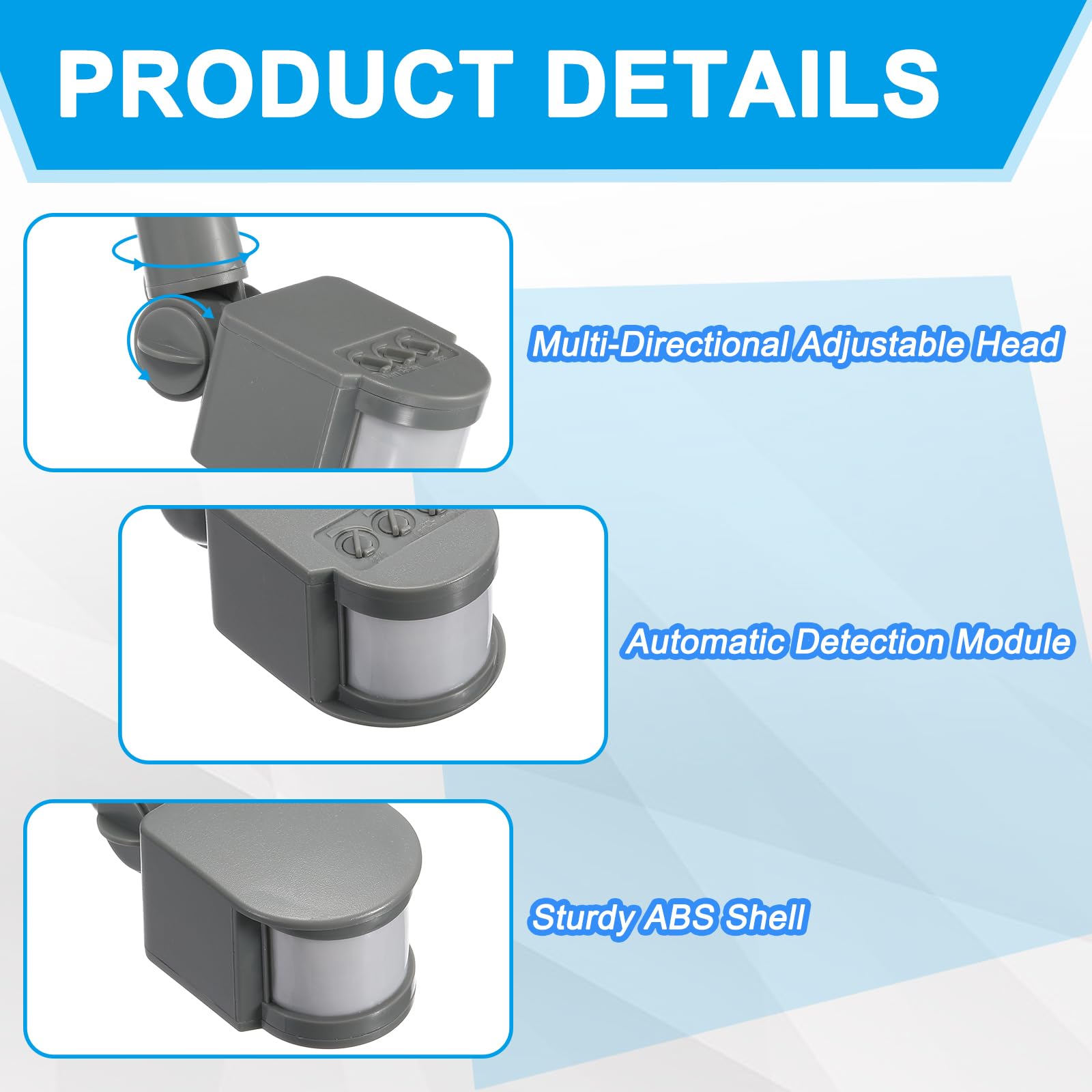

• Key Advantages: The PIR infrared motion sensor adopts heat-sensing technology to avoid false triggers from swaying branches and non-living objects. Its precise bounded sensing range, rotatable adjustable sensing head, and effective structure make it a practical choice for indoor residential auxiliary lighting systems
• Package Contents: Includes 1 x Replacement Motion Detector. Operating voltage, load capacity, sensing distance, and delay range depend on the selected version. Please verify specifications before installation

Specifications: Color: Grey; Material: ABS; Detection Angle: 120°; Hole size: 16mm / 0.63in; Wire Length: 100mm / 3.94in; Head Rotation: 180° Adjustable; Maximum Load: Less Than 150W; Detection Distance: 3-8m / 9.8-26.2ft; Size: 163.5 x 58 x 48mm / 6.44 x 2.28 x 1.89 in; Delay Time: 5 S to 6 Min Adjustable; Passive Infrared Motion Sensor Switch for AC110V lighting systems Applications: This AC110V outdoor PIR motion sensor is designed for North American mains-powered lighting. Suitable for flood lights, security lights, wall lights, landscape lighting, pathway lighting, garage lighting, and other lighting systems. Motion-activated operation helps provide automatic illumination when movement is detected within the sensing area Usage Guides: Install the motion sensor between the power source and the lighting fixture. Adjust SENS for sensitivity, TIME for shut-off delay, and the light level setting for day/night operation. Set the sensing direction and delay time as needed. Its ABS housing is designed to withstand rain and outdoor conditions Key Advantages: The PIR infrared motion sensor adopts heat-sensing technology to avoid false triggers from swaying branches and non-living objects. Its precise bounded sensing range, rotatable adjustable sensing head, and effective structure make it a practical choice for indoor residential auxiliary lighting systems Package Contents: Includes 1 x Replacement Motion Detector. Operating voltage, load capacity, sensing distance, and delay range depend on the selected version. Please verify specifications before installation
