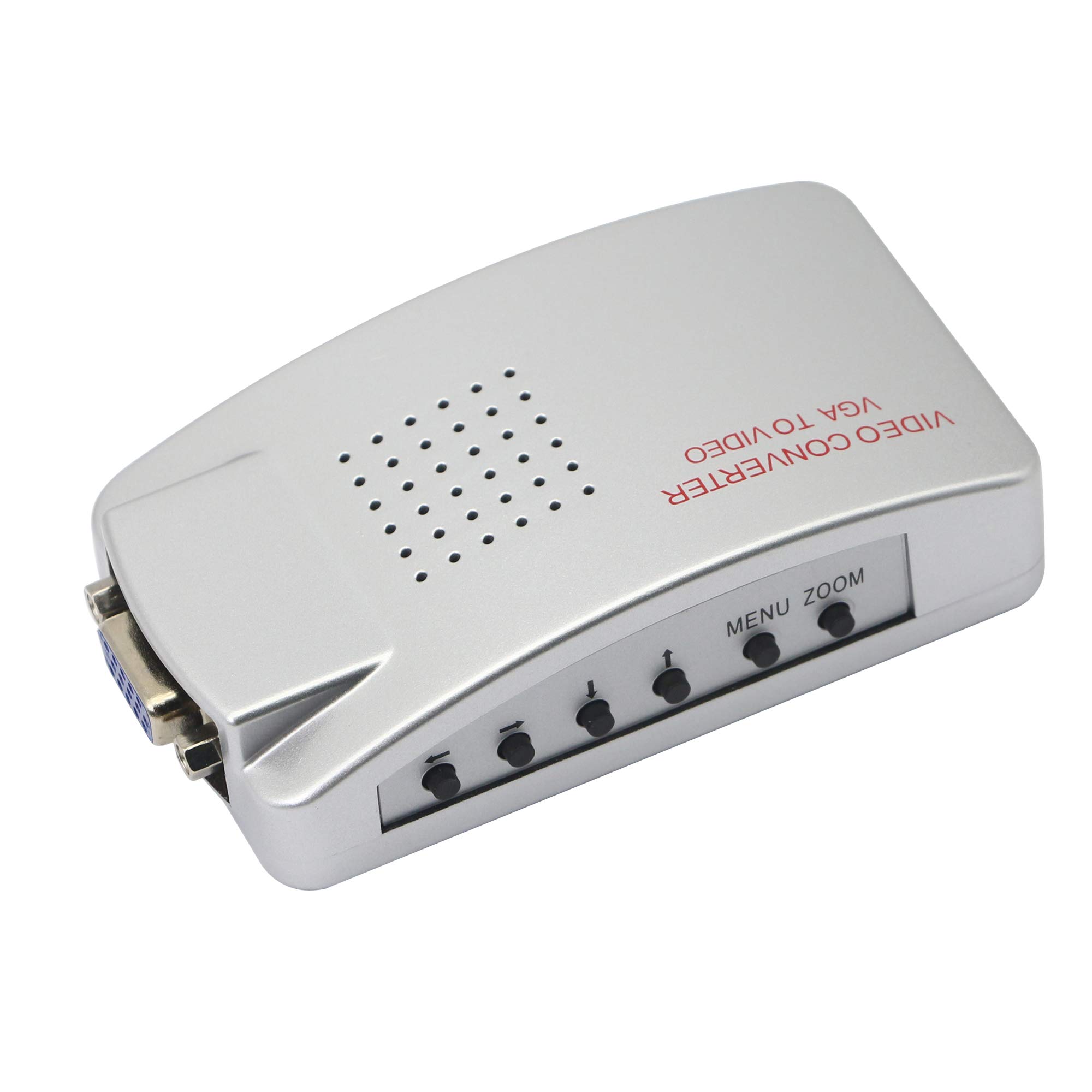

GINTOOYUN VGA to RCA Adapter,Composite AV S-VIDEO to VGA Converter,For HDTV, Monitors, Laptop, Desktop, PC.

• The VGA to RCA adapter is a portable computer to TV converter, suitable for TV standards in all countries/regions in the world. It can convert the signal output by the computer into a signal that the TV can accept. , Features include video conversion, independent horizontal/vertical position adjustment, computer and TV simultaneous display, etc. Support resolution 640x480 up to 2560x1600.
• This converter can easily help you convert VGA signal to Video / S video / AV signal. In this way, the movies you download from the Internet can be completely merged into the home theater, and you can easily experience the theater effect.
• Plug and play, installation only takes a few seconds, plug in and work, easy to use. The standard VGA output can be used with most monitors, projectors, TVs and other display devices. (Note: The converter is mainly used to convert image movies, it cannot output channel signals and no audio passes through)

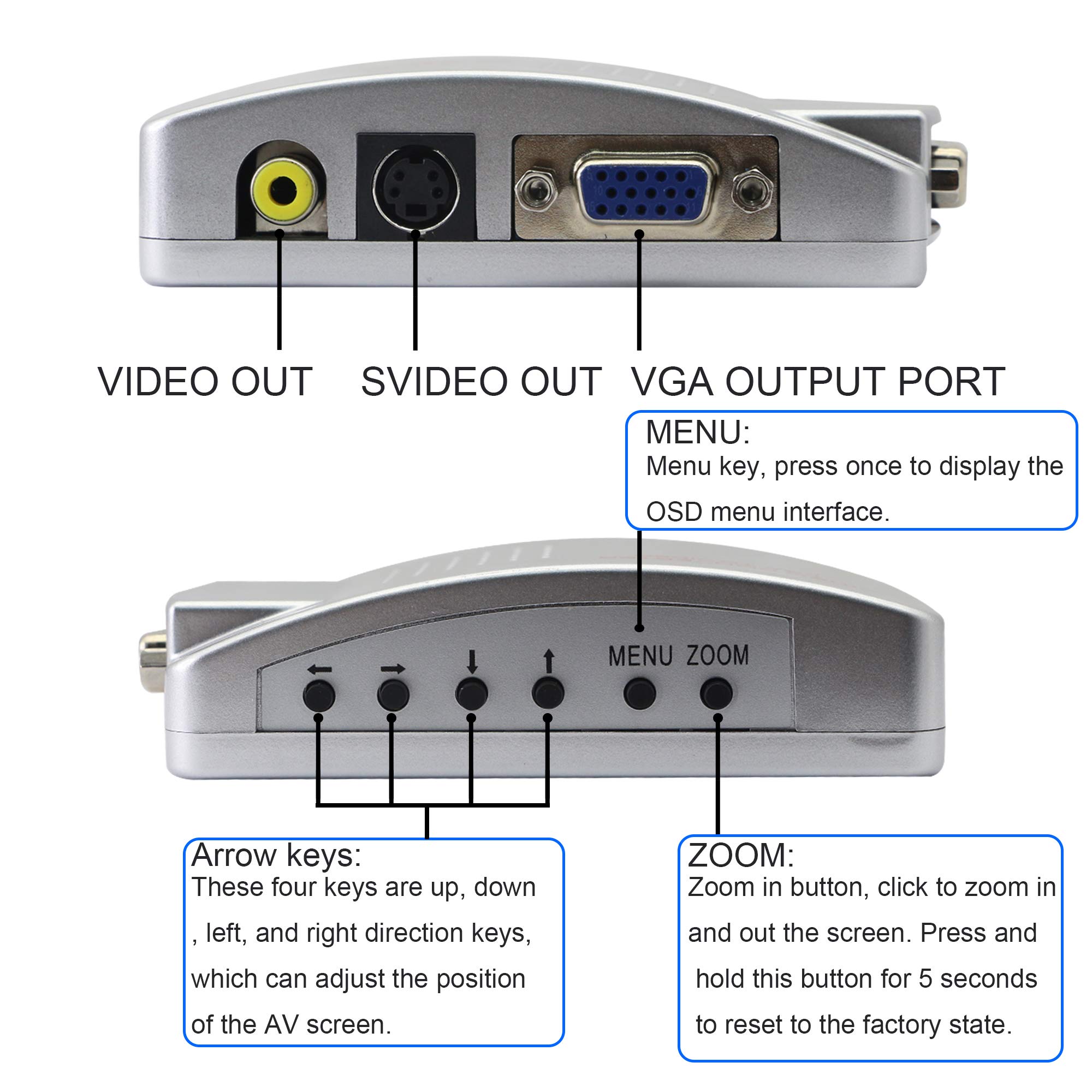

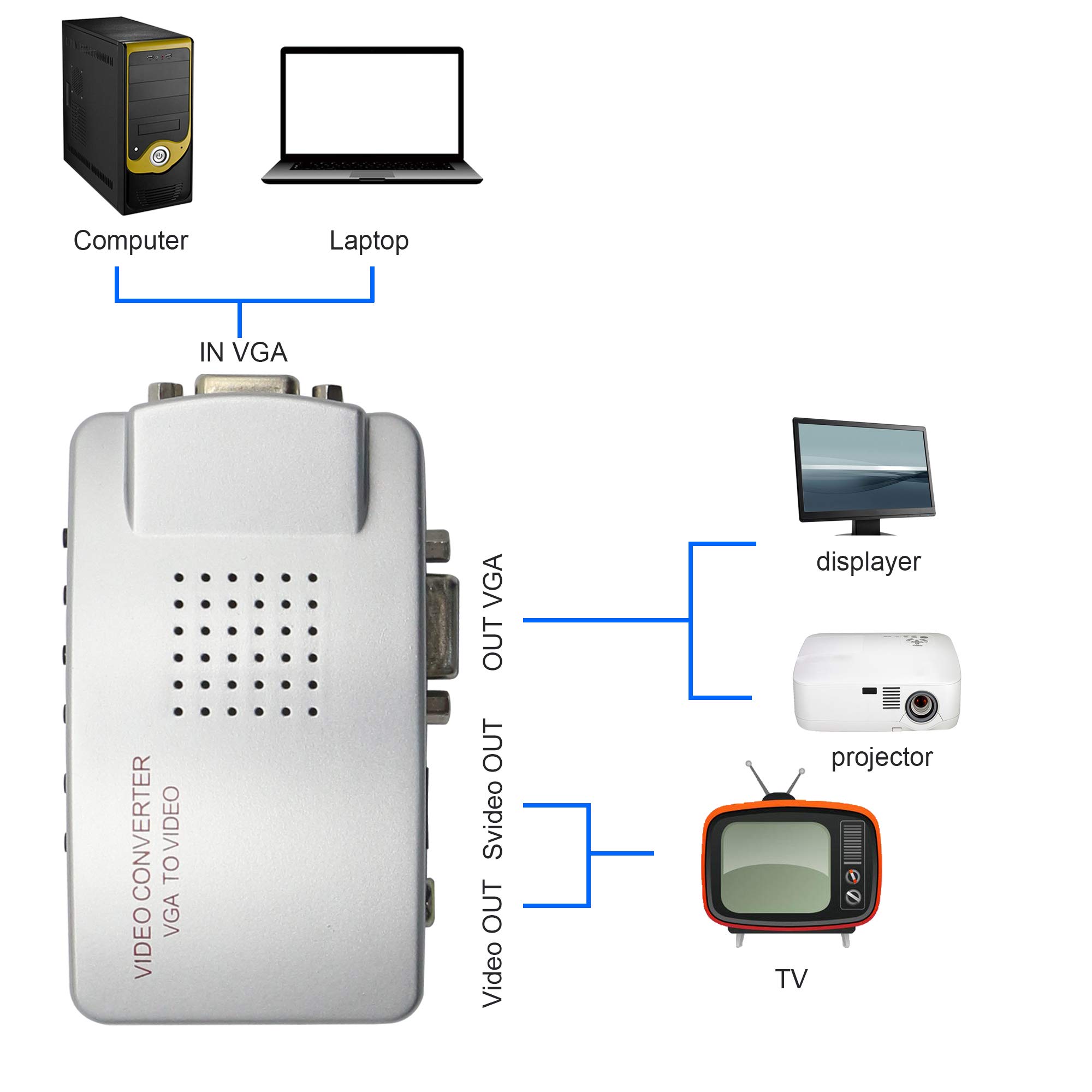

• Adjust and set preferences through screen display and front control panel, support video standards: NTSC / NTSC-EIAJ / PAL / PAL-M / PAL-N, no driver required. Compatible with Windows and Macintosh operating systems. The display mode supports composite video, S-video output, position adjustment, magnification 2 times, and simultaneous display on monitor and TV.

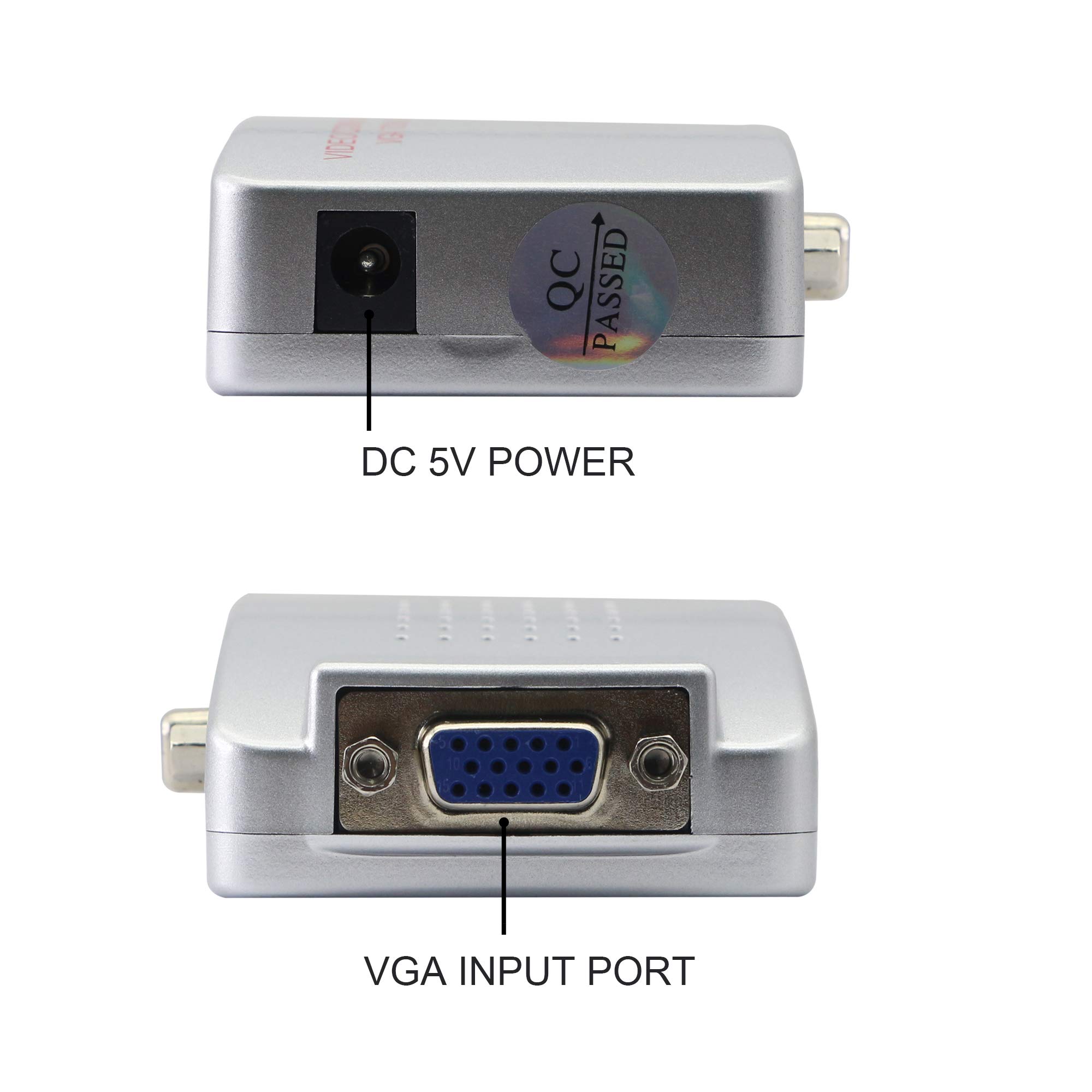

• It uses USB port or keyboard port for power supply (power supply: DC 5V 1A), plug and play installation is simple, compact and simple structure, easy to carry.

Supported VGA input resolutions: 640x480 (up to 85Hz), 800x600 (up to 85Hz), 1024x768 (up to 75Hz), 1280x1024 (up to 60Hz) and 2560 x 1600 (up to 60Hz). Adjustable NTSC, PAL, PAL-M, PAL-N and SECAM formats. Input port: VGA input Output port: Video output Video output VGA output Power port: DC 5V 1A Image control: horizontal and vertical size, brightness, contrast, hue, saturation, resolution No driver is required. Compatible with Windows and Macintosh operating systems Although the VGA to AV converter supports hot swapping, for safety reasons, please disconnect the converter and all power from the connected devices before connecting. Common problems and their solutions (temporary reference): 1: No display: Check whether the connecting wire is correctly connected, whether the output terminal and input terminal are connected in reverse, and whether the power supply is correctly connected. The resolution of the test computer can be set to 800 * 600, and the refresh rate is 60HZ. Please pay special attention to the fact that desktop computers generally have too high resolution, which causes the TV to not support display. 2: Show snowflakes: Usually current interference. The solution can be to plug and unplug the USB power cord again. Or unplug all cables, connect the USB power supply first, and then connect the AV and vga cables. 3: There are still images on the TV, but no dynamic images: The hard drive is incorrect, re-download the hard drive. VGA to VIDEO/SVIDEO/VGA video converter x 1 USB cable x 1 VGA male to male cable x 1 RCA composite video x 1 S video cable x 1
