VFD 220V 2.2KW 3hp Variable Frequency Drive, craftsman168 CNC VFD Motor Variator Inverter Converter for Motor Speed Control Shaft YL Series (2.2KW, 220V)

• IMPORTANT NOTE This VFD is applicable to three-phase motors and is NOT compatible with external resistors. The motor power cannot be higher than the power of the inverter.

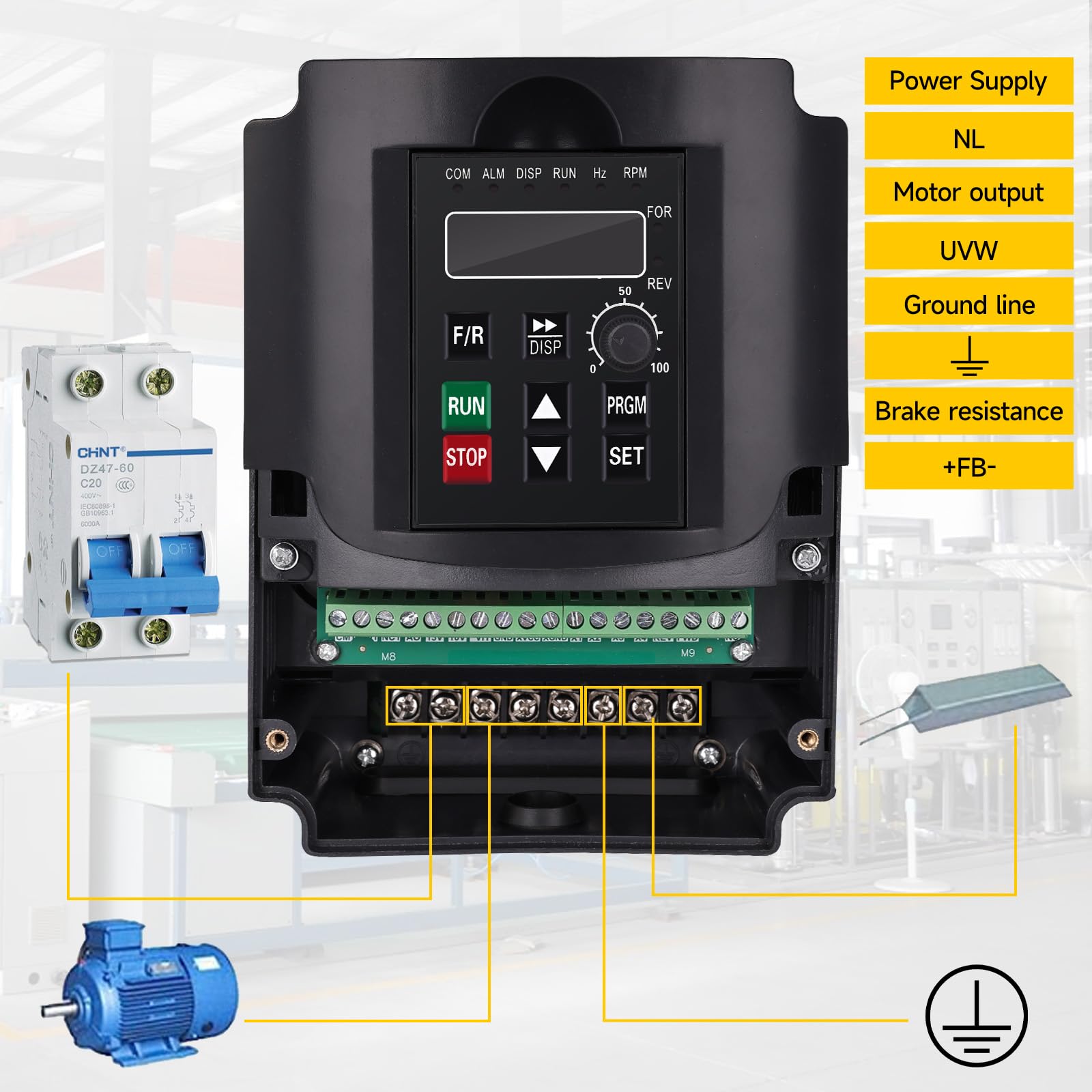

• This drive is very suitable for high-speed rotary motors, such as spindle motor, CNC engraving machine. It can work with a single phase 220V input and a 220V three-phase input. You can simply connect L1 / L2 to either of the two R / S / T VFD inputs.
• This VFD can be used for constant torque loads (such as hard starts: air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc.). Can be used as motor speed control and phase converter. This article uses the PWN sine wave (SPWM) for the control system.
• Quality Assurance: All VFD units are subject to an extensive quality control and test program before shipment. If there are use problems after receiving them, please do not give us negative or natural feedback. Because VFD is a flexibly configurable device, make sure to contact us and we will give you a satisfactory solution.

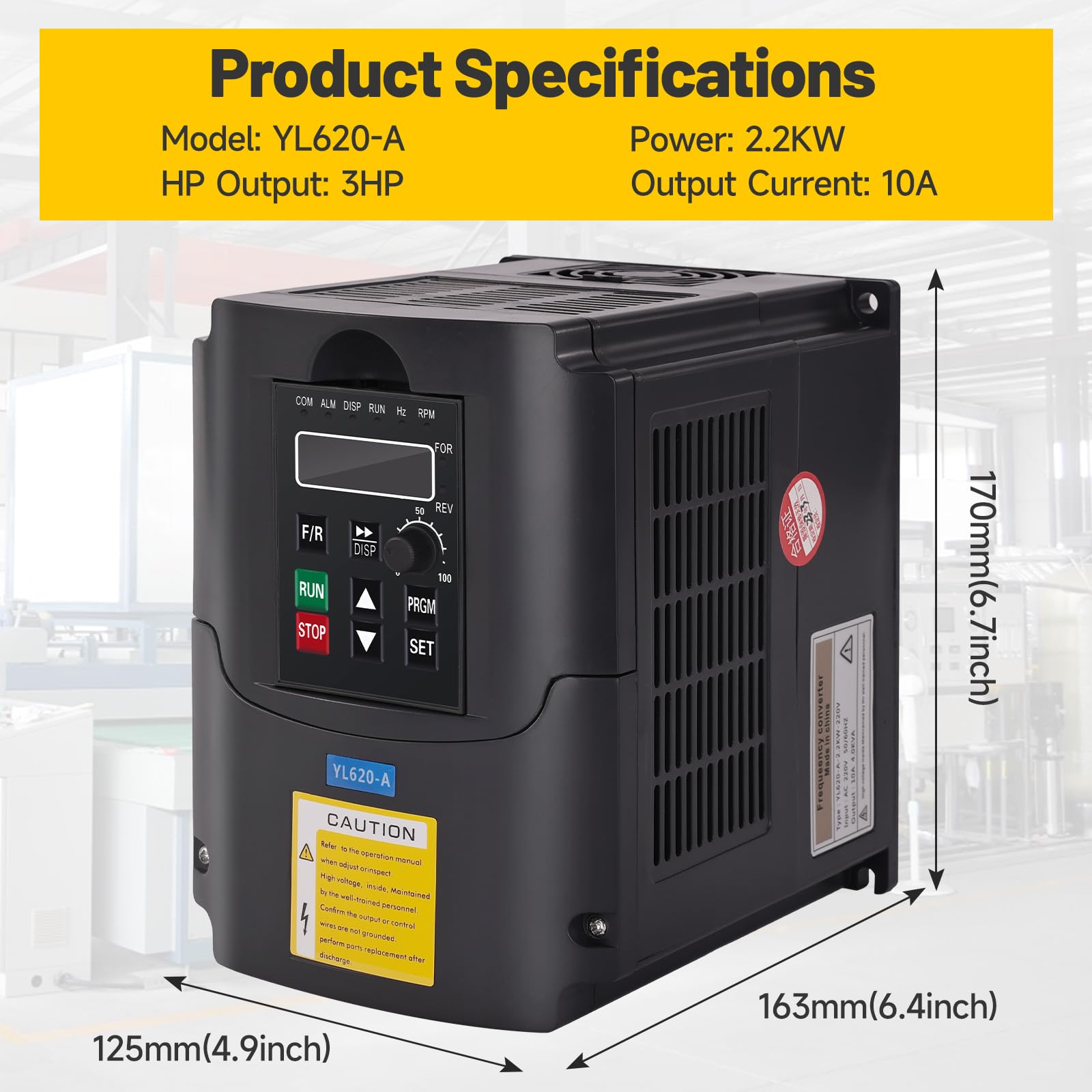

NOTE: The item is not suitable for capacitance motor (single-phase motor) and does not have braking function. Specification : Model: YL620-A Power: 2.2KW Horsepower: 3HP Input voltage: single phase or three-phase 220V + -15% 50Hz / 60Hz Output voltage: 220V three-phase Output frequency: 0-50Hz / 0-400Hz Input frequency: 47-63Hz Output current: 10A Feature: Control mode: V/F, sensorless vector control (SVC), torque control Overload capacity: 60 with 150% of rated current, 10 with 180% of rated current Speed adjustment range: 1:100(SVC) Carrier frequency: 1kHz - 15.0kHz Frequency reference source: keyboard, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID configuration. The combination of multiple modes and switching between different modes can be realized PID control function Simple PLC, multi-step speed control function: 16 speed stages can be set Trip control function Stop the function when it turns off instantly Speed tracking function: gently start the engine running Automatic Voltage Regulation (AVR) Function Automatically keep the output voltage stable when the input voltage fluctuates Fault protections: Protect against over-current, over voltage, under voltage, over temperature, phase failure, over load, etc.
