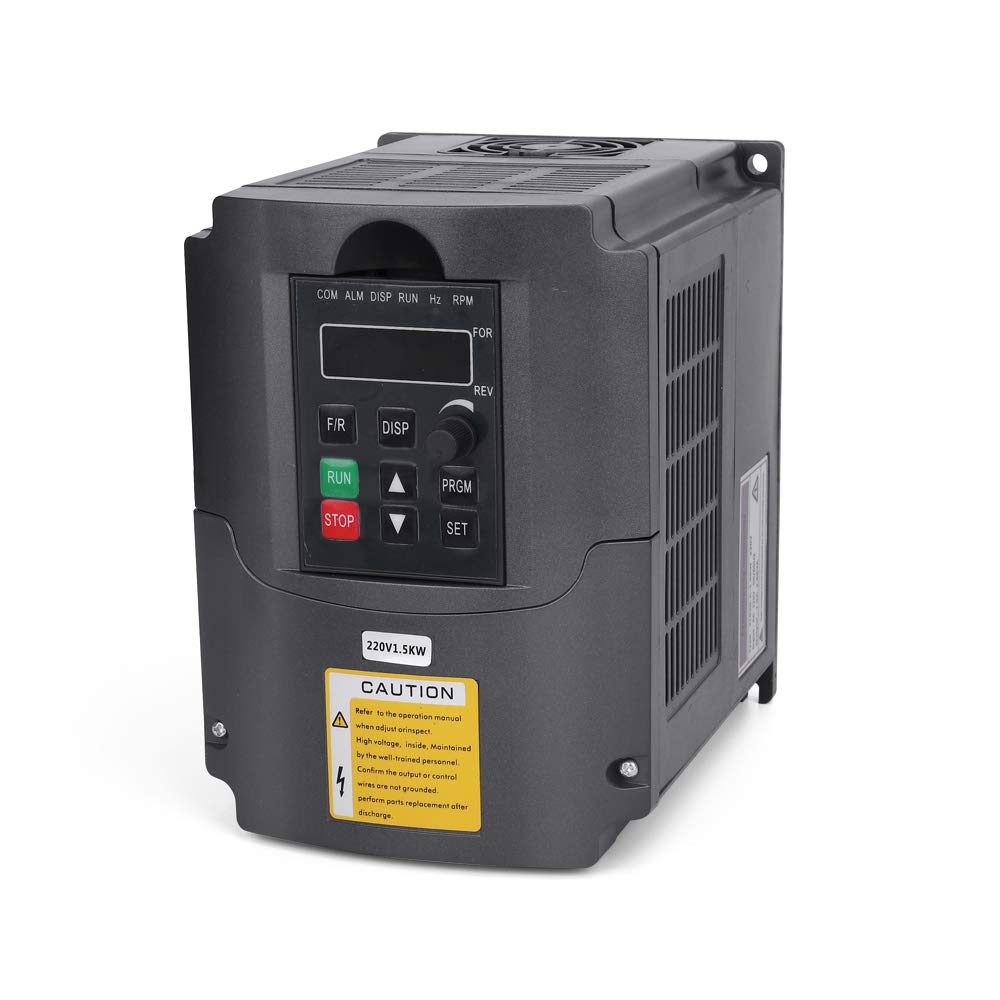

VFD 220V 1.5KW 3hp Variable Frequency Converter Drive, craftsman168 CNC VFD Motor Drive Inverter Converter for Spindle Motor Speed Control YL-Series(1.5KW, 220V)

• Important note - this VFD is applicable to three phase motor and NOT support external resistor. The power of the motor cannot be higher than the power of the inverter.

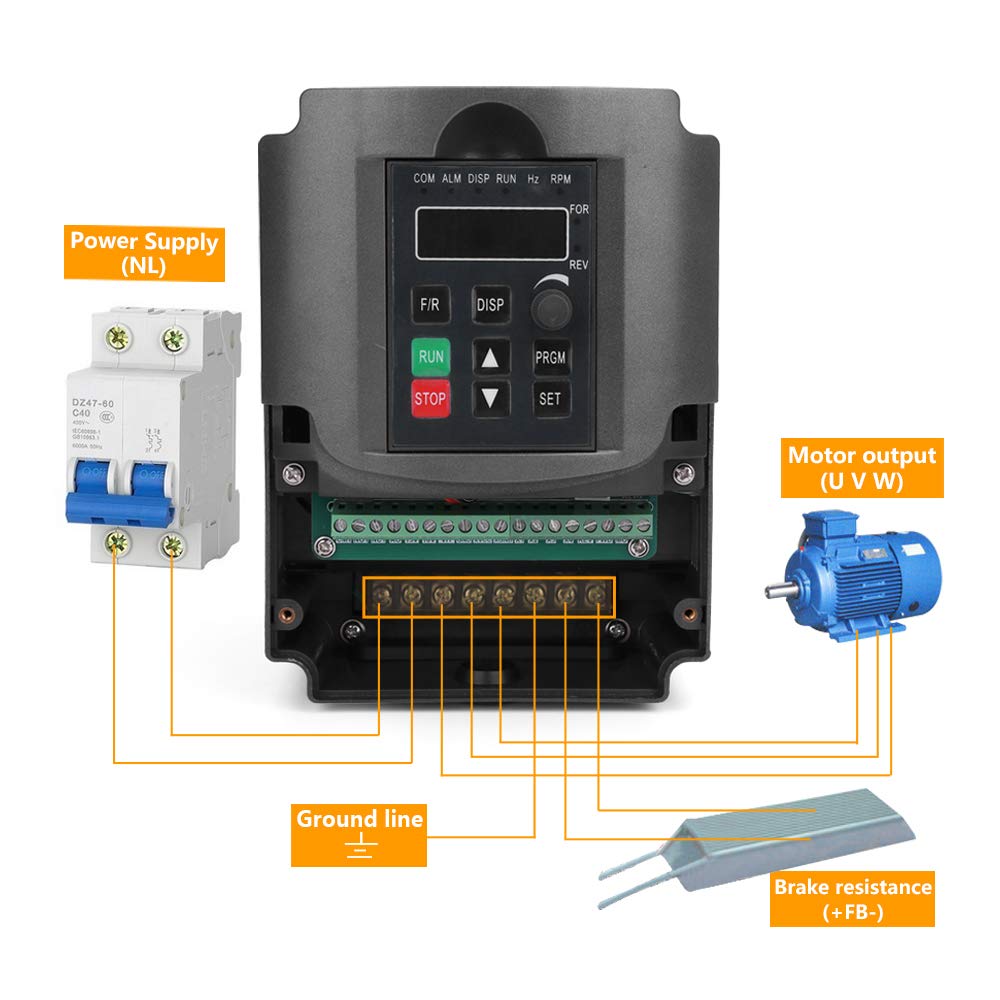

• This drive is very suitable for high-speed rotating motors,such as spindle motor, engraving machine CNC. Can work with 220V single phase input and 220V three phase input.you can just connected L1/L2 to any two of VFD input R/S/T.
• This VFD can be used for constant torque loads (such as hard starting: Air compressors, HVAC units) and variable torque loads (such as pumps, fans, etc). It can be used as a motor speed control and a phase converter.This item use Sine wave PWN(SPWM) for the control system.
• Wide application - Spindle motor.CNC router, CNC machine, milling machine, drilling machine, wingding machine, mixer, extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor, elevator, centrifuger and other speed control machines.
• Sales service - Please feel free to contact us if you have any questions. We will give you a satisfactory solution.

NOTE：the item is not fit for capacitance motor(single phase motor) and without braking function. Specification： modle:YL620-A power:1.5KW horsepower:3HP Input voltage：single-phase or three-phase 220V + -15% 50Hz / 60Hz Output voltage：220V three-phase Output frequency:0-50Hz / 0-400 Hz Input Frequency: 47-63Hz Output Current: 10A Feature： Control Mode: V/F, Sensorless Vector Control (SVC), Torque control Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current Speed Adjusting Range: 1:100 (SVC) Carrier Frequency: 1kHz - 15.0kHz Frequency reference source: keypad, analog input, HDI, serial communication, multi-stage speed, simple PLC and PID setting. The combination of multi-modes and the switch between diffrent modes can be realized PID Control Function Simple PLC, Multi-Steps Speed Control Function: 16 stages speed can be set Traverse Control Function Stop fuction when instantaneous power off Speed Trace Function: Smoothly start the running motor Automatic Voltage Regulation Function (AVR) Automatically keep the output voltage stable when input voltage flucuating Fault protections: Protect from over current, over voltage, under voltage, over temperature, phase failure, over load etc.
