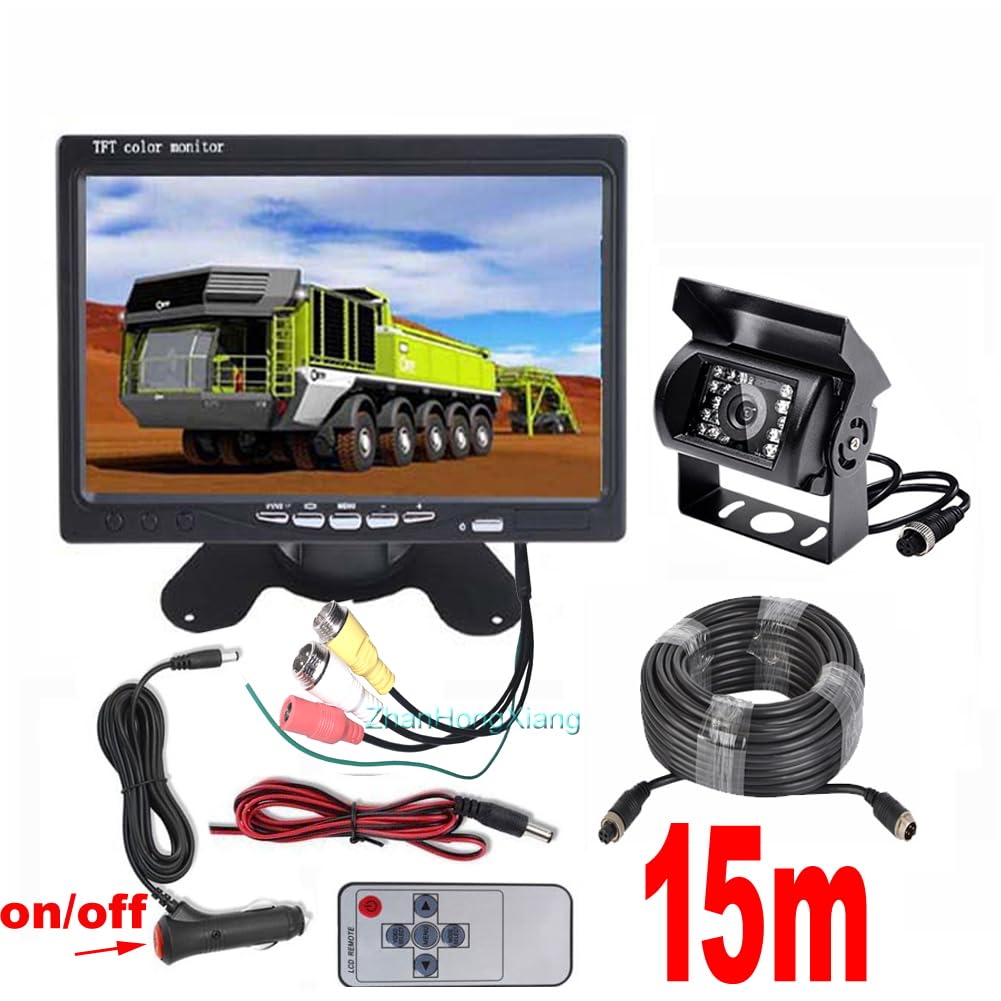

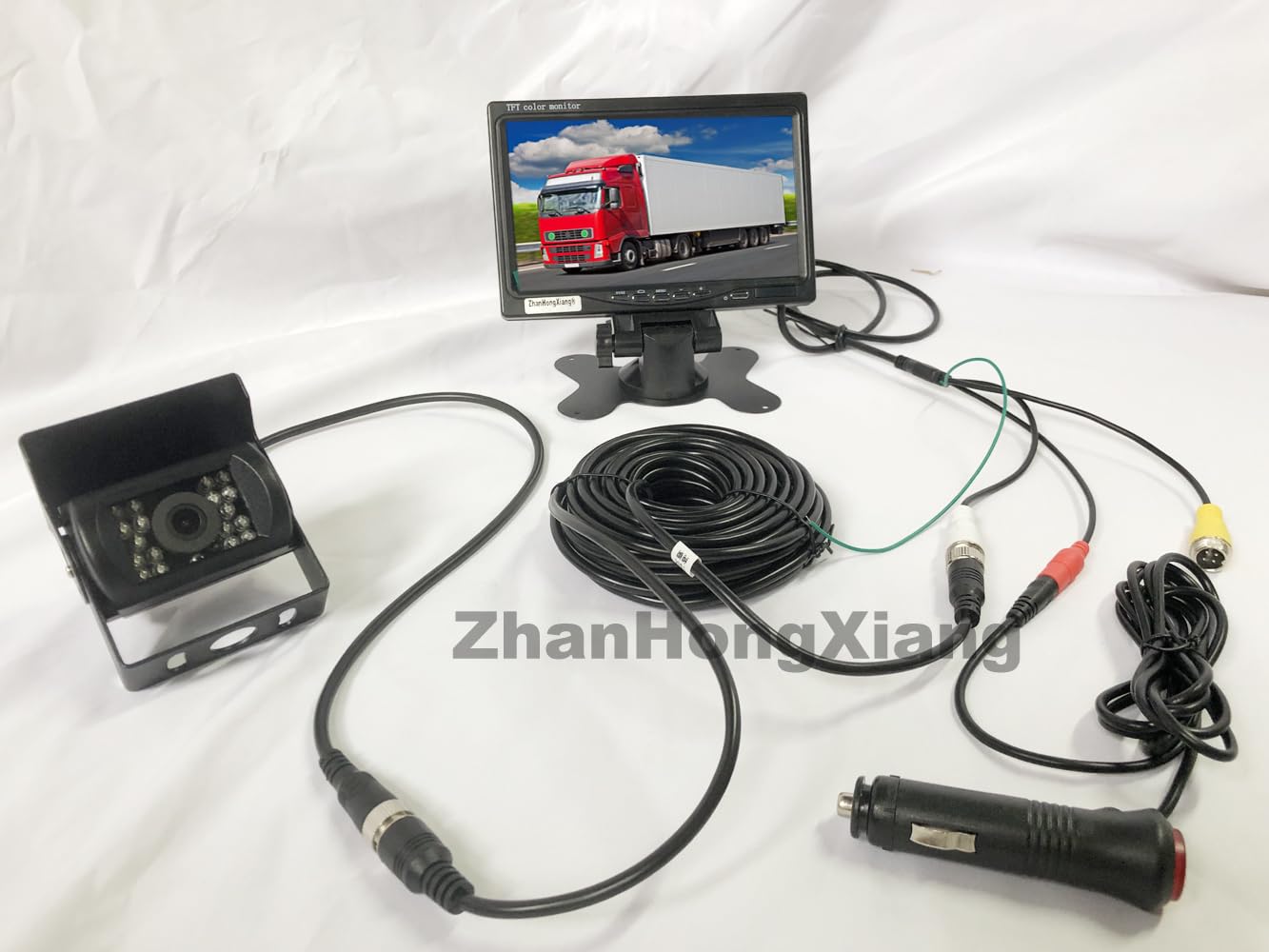

AHD 1080P Vehicle Reversing Camera 7" Monitor Kit,4 Pin 18LED IR Night Vision Rear View Mirror Camera System + 7 inch Car IPS Screen 12V-24V With 15m Cable For Bus Truck Trailer RV Motorhome

• 【AHD 1080P Hard Wired Version Reversing Camera Kit】AHD 7 inch car ips Monitor and AHD 1080P 18 IR LED Night Vision Reversing Rear View Mirror Camera
• 【Support 12V-24V Vehicle】 Long Bus Truck Trailer Tractor RV Van Motorhome Schoolbus Camper Lorry 5th wheel and All other heavy Duty,

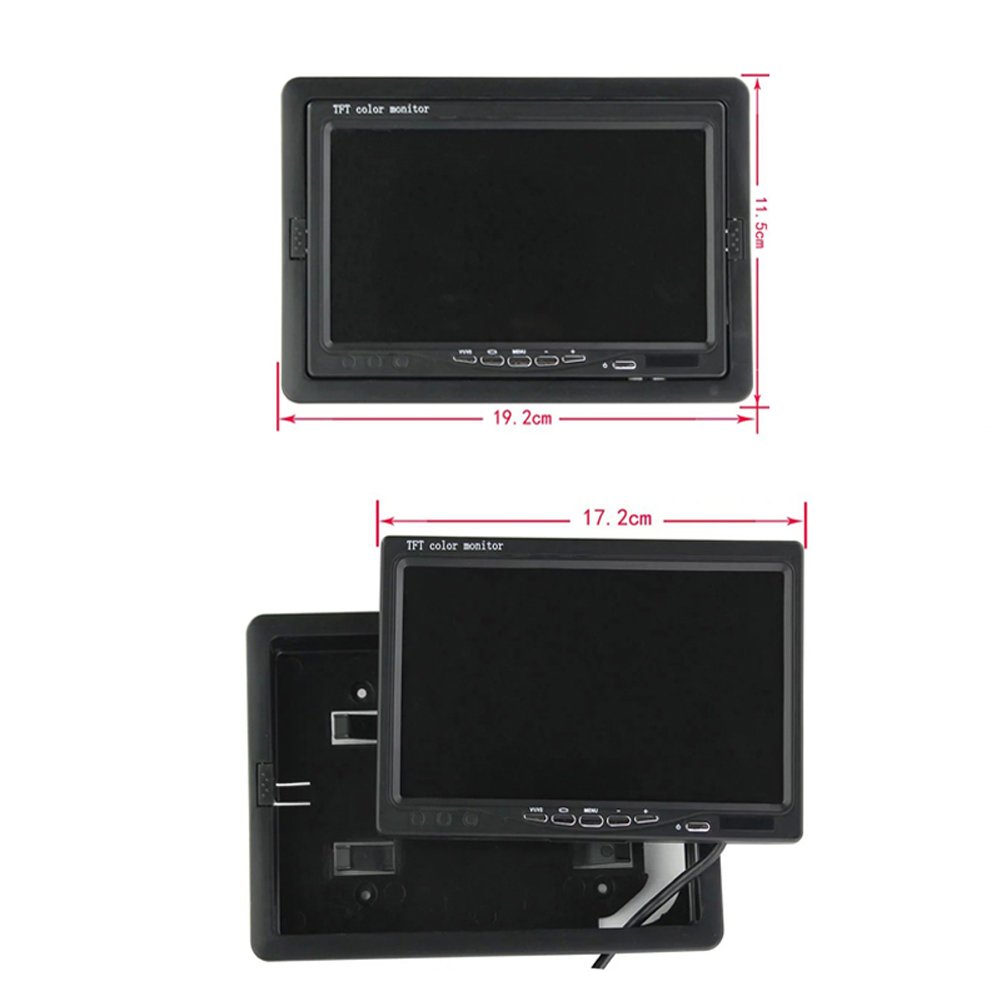

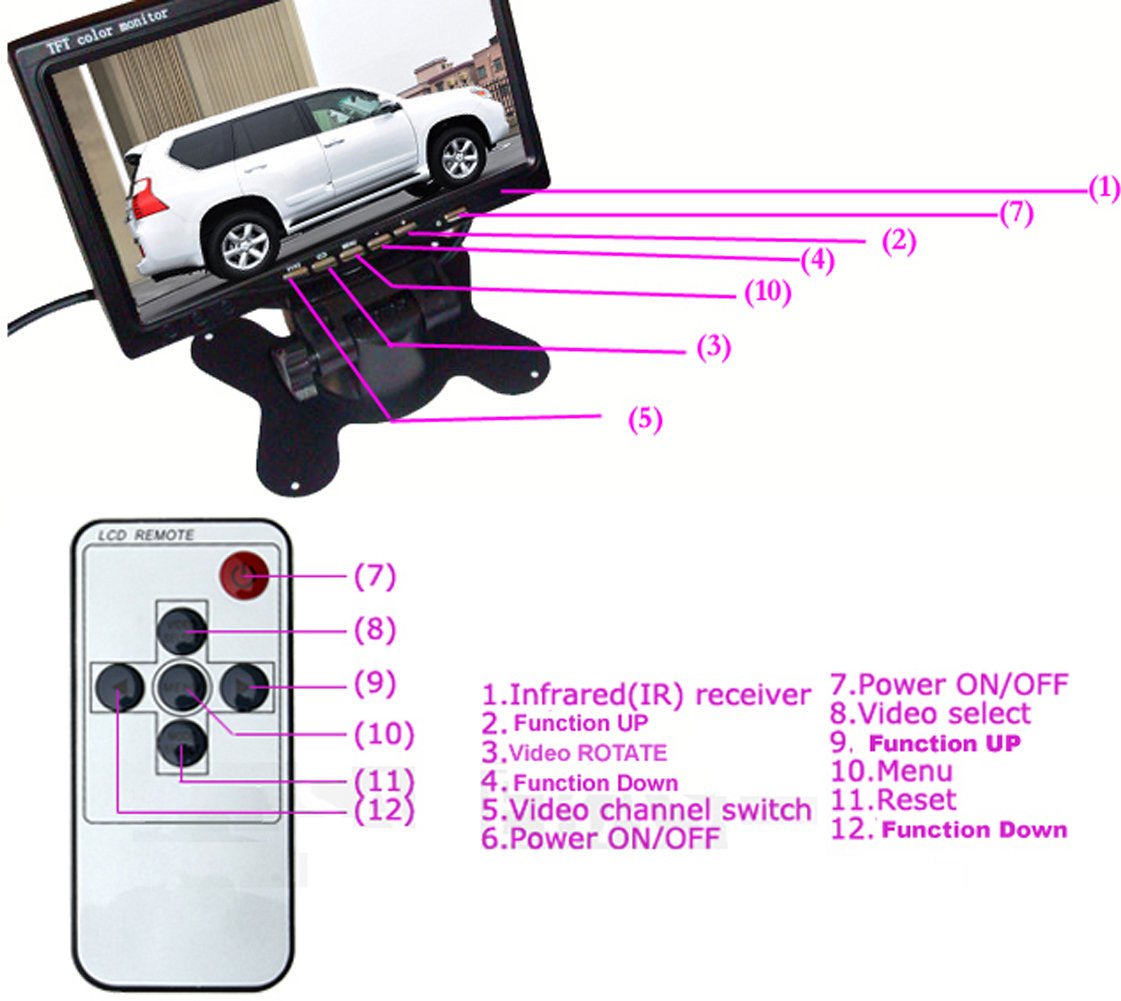

• 【7 inch AHD 1080P IPS Monitor】 high resolution image,full color display and low power consumption,adjustable brightness,contrast and color.2 channel video input,V1/V2 button switch,2 connect plug,V2 is remote by Blue wire for reversing use priority, Monitor will automatically switch for V2 when the reversing gear is selected (reversing trigger connected) Come with Butterfly bracket and Pillow Frame
• 【18 LED AHD 1080P Reversing camera】 IP 68 waterproof,build with Aluminum alloy casing, more sturdy and durable than others plastic casings,4 Pin Connector 18 LED infrared lights Night Vision clearly Mirror view at night (No Grid Lines) Rear View Camera (145°horizontal wide view angle ) 180°vertical adjustable angle avoid blind spots

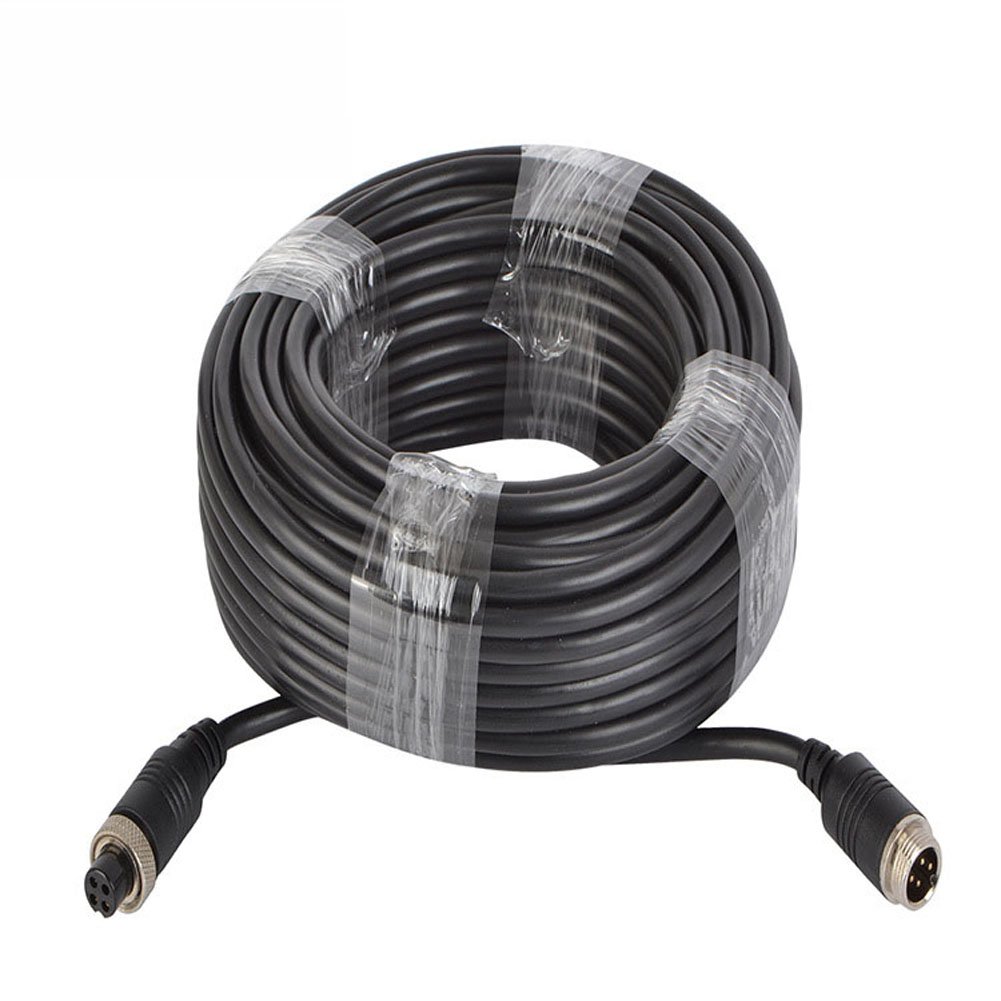

• 【15m/49ft 4-Pin Extension Aviation cable】 Hard wired version Camera system guarantees safe and clear and stable reversing image No worry about lost signal during driving

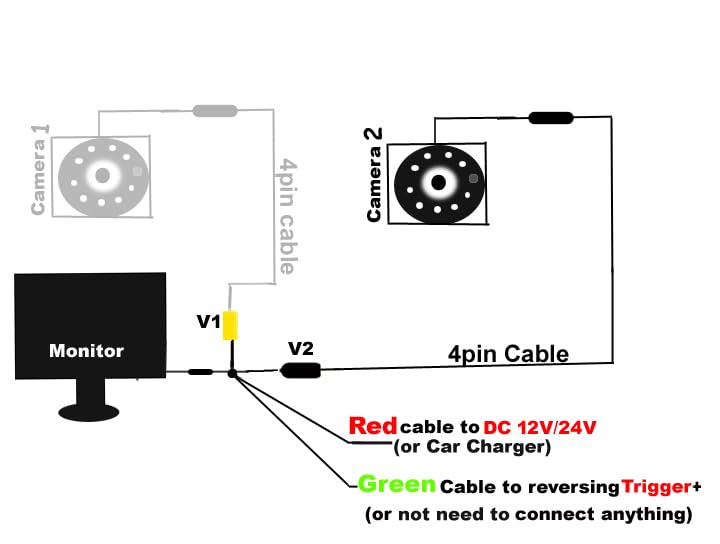

This is AHD 1080P 4pin Reversing camera Monitor system only need to connect the monitor power wire with car electronics system: Red wire to car Positive/Live, Black wire to GND, (or use the car charger get power directly ) Green/Blue wire to reversing gear Trigger+ (or No need to connect) Simple to install easy to use This rear view Camera monitor kit supports reversing used or permanently used AHD 7 inch Car IPS Monitor DC 12V-24V Display Size:7.0 Inch Resolution :1024*600 System :PAL/NTSC Auto Video signal format :AHD 1080P Power requirement :DC 12V-24V Consumption:6W Video:2 channel video input V1/V2 switch,(V2 for reversing parking reverse rear view priority) Net Weight :Approx. 743g AHD 1080P 18 IR LED Car Rear View Camera Image sensor: AHD 1080P mirror image without Grid Lines TV system: PAL Lens: 2.5mm (145°+ Wide View angle ) Number of pixels: 2.0 MP Camera (1920*1080) Horizontal Resolution: 1000+ TV Lines Video signal format: AHD 1080P Scan frequency: 50Hz-60Hz S/N Ratio: ≥48dB(AGC OFF) Minimum illumination: 0 LUX Backlight compensation: Auto White Balance: Auto Tracing Auto Gain Control: Automatic Night vision: Yes Video Output: 1.0Vp-p.1.5ω.4Pin Connector Synchronous System: International Synchronization work Temperature: -20°C~+60°C Power Requirement: DC 12V-24V Weight: Approx 300g Waterproof: IP 68
