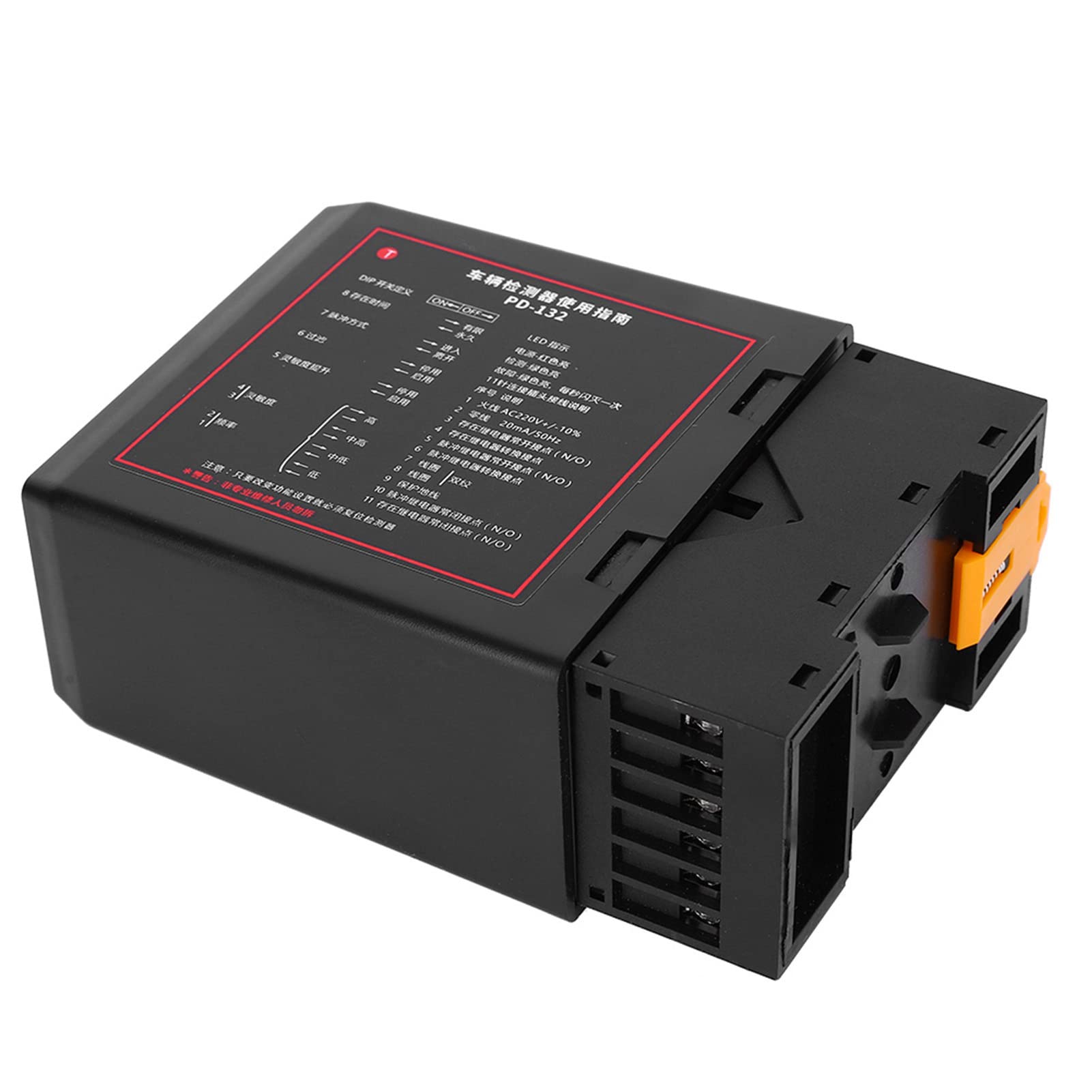

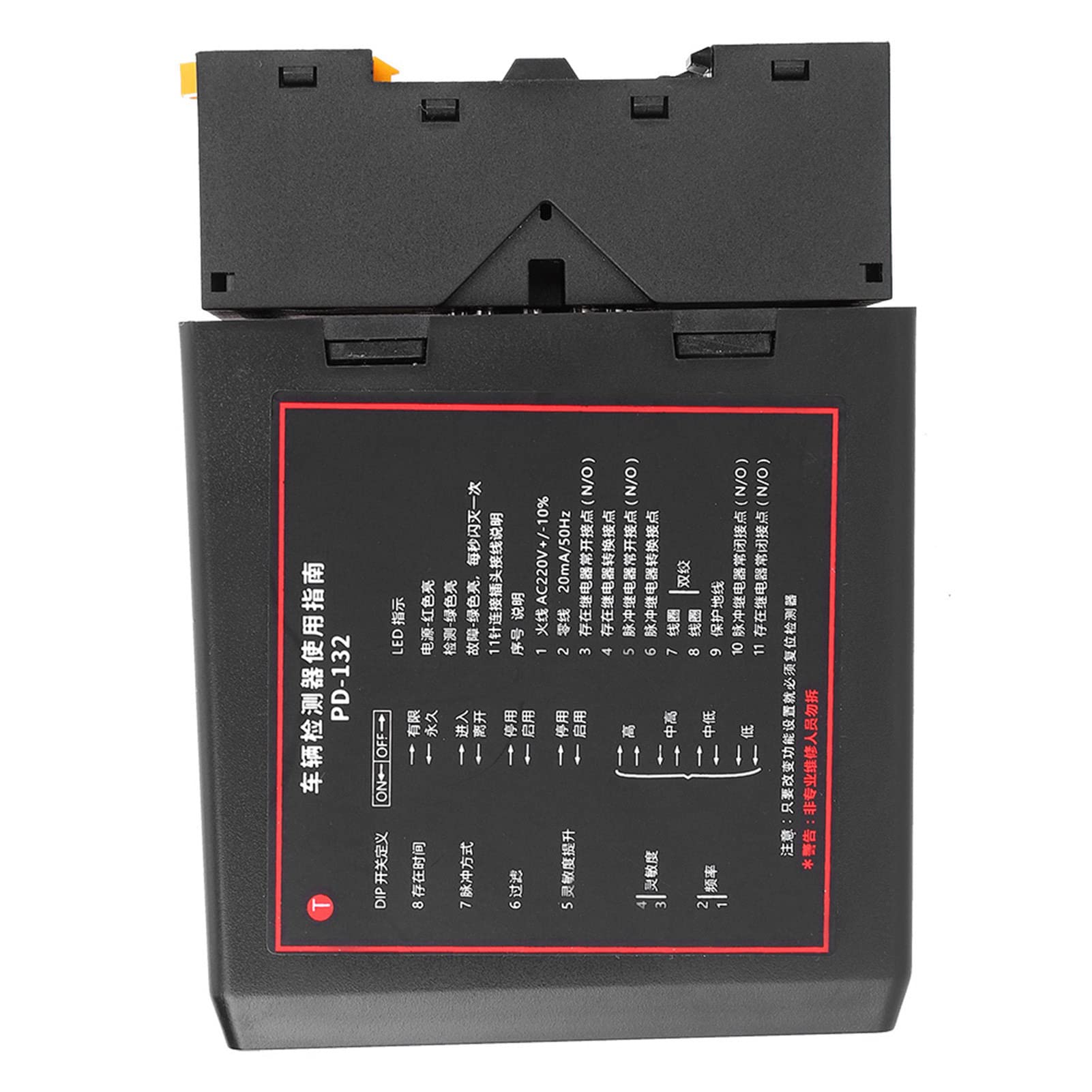

Hilitand PD132 Vehicle Loop Detector, Single Channel Inductive Detector, Vehicle Loop Detector Control for Car Parking Lot

• 【Selectable Pulse Time】The length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds.The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop.
• 【Sensitivity Boost】The undetected level can be set to maximum sensitivity which can prevent loss of detection of high-bed vehicles can meet your different needs.
• 【Reset Switch】 The reset switch enables the detector to be manually reset during commissioning and testing. This results in the detector re-tuning the sensing loop and becoming ready for vehicle detection.
• 【Filter Option】Can provide a delay between detection of the vehicle and switching of the output relay . This relay is normally used to prevent false detection of small or fast moving objects.
• 【Permanent Presence Option】This feature ensure detection of the vehicle will be maintained when the vehicle is parked over the loop for extended periods .

Features: The Vehicle Loop Detector is mainly used to detect the existence and passing of vehicles Selectable Pulse Time: This feature sets the length of time that the pulse relay will be energized for 1 Second or 0.5 Seconds Pulse Relay Selection: The Pulse Relay may be configured to energize on detection of a vehicle or when the vehicle leaves the loop Sensitivity Boost : This feature sets the undetected level to maximum sensitivity and is used to prevent loss of detection of high-bed vehicles Switch Selectable Sensibility: 4 sensitivity setting are available on the switches to allow flexibility in configuration Switch Selectable Frequency: 4 frequency settings are available to prevent cross-talk between adjacent loops Filter Option: This option is used to provide a delay between detection of the vehicle and switching of the output relay . This relay is normally used to prevent false detection of small or fast moving objects Package included: 1 x Vehicle Loop Detector 1 x manual
