Vehicle Reversing Cameras Monitor Kit 12V/24V,4 x AHD 1080P Car Front Side Rear View Mirror Reverse Camera + 7" inch Quad 4-Split LCD IPS Screen for Bus Truck Trailer Caravan Camper Motorhome

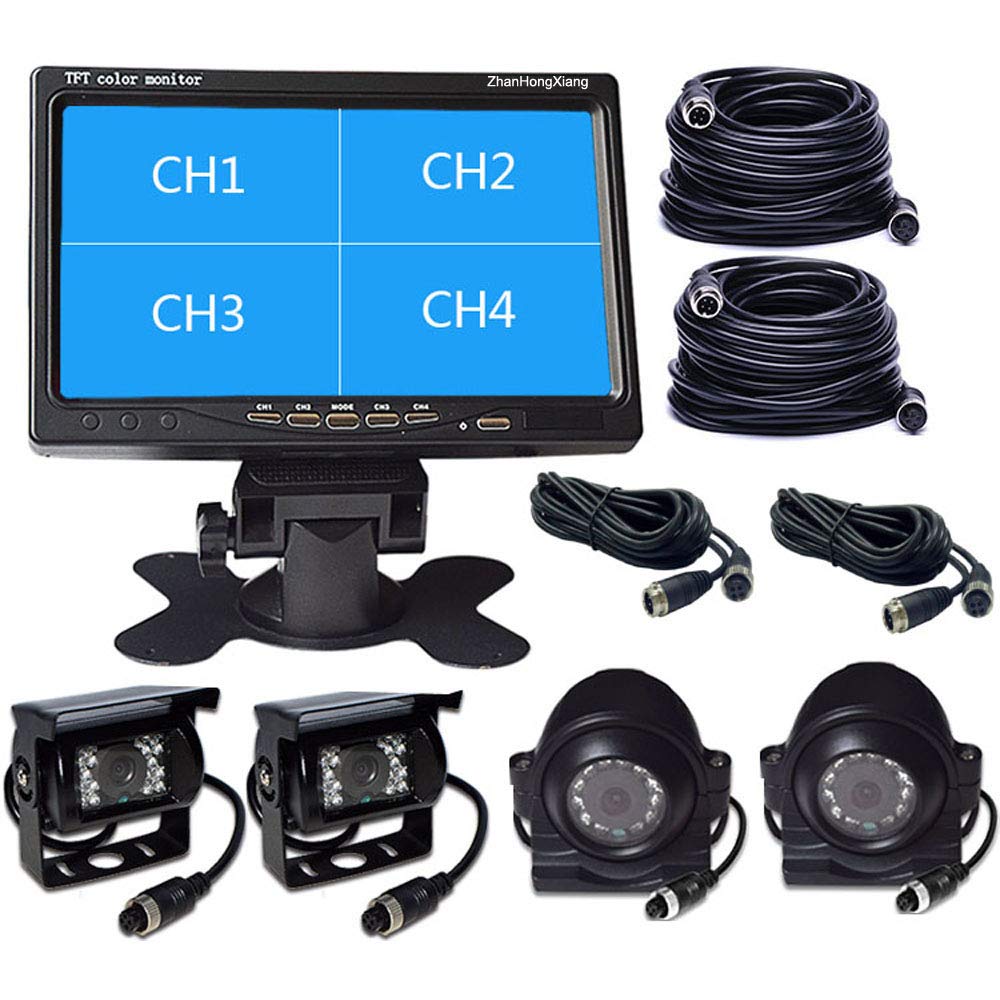

• 【HD 1080P 4 Reversing camera kit】HD 1080P Car Reverse Camera kit for Truck Parking System: 7" AHD Quad Split 4 CH Video IPS Screen Monitor + 4 x AHD 1080p Front Side View Rear View Reversing Mirror Camera + 4 Pin Aviation Connector Cable .Hard wired version ,guarantees safe ,clear and stable 360° blind spot view image.

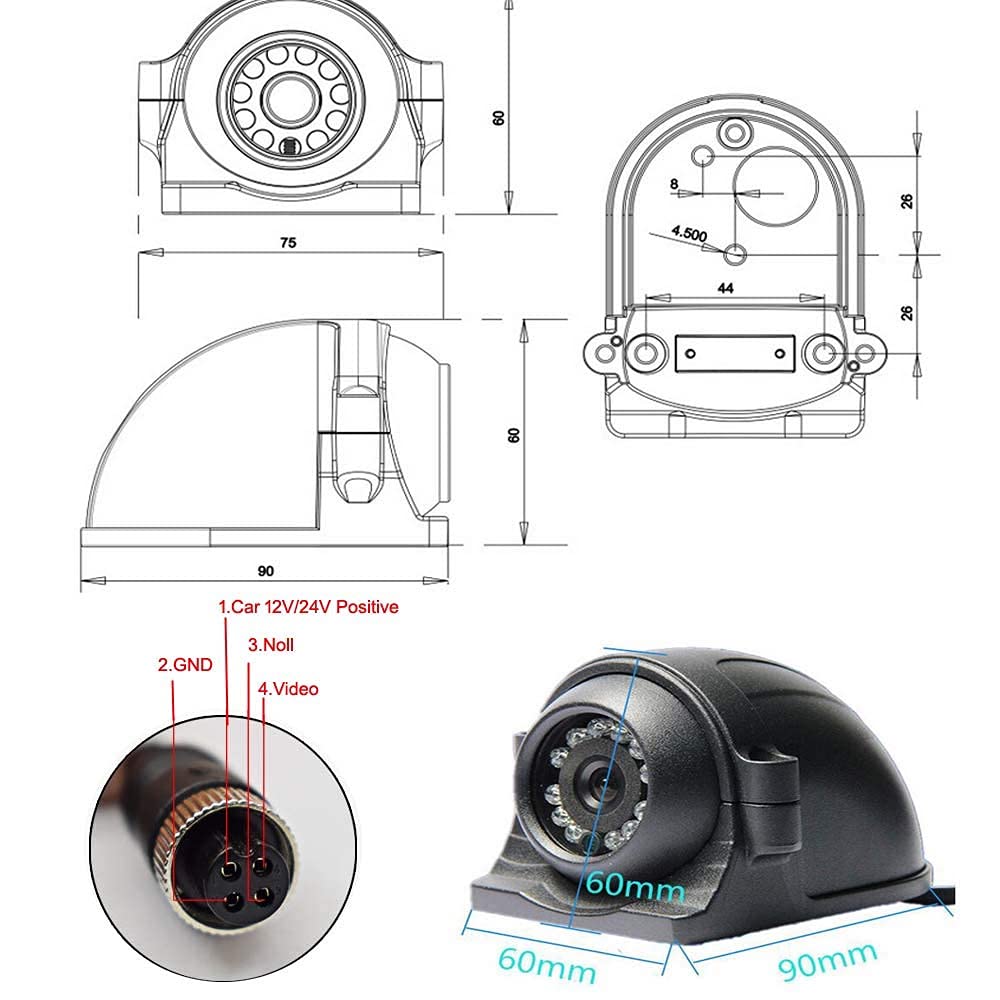

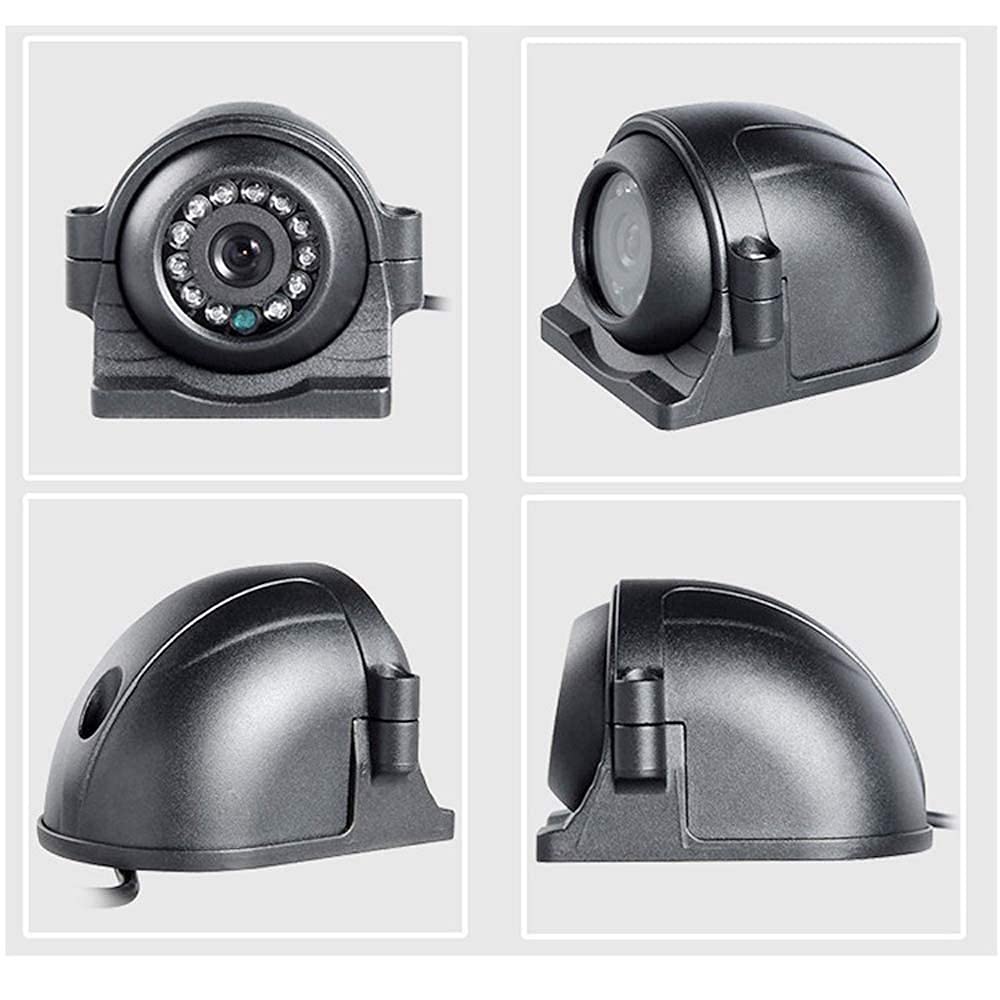

• 【AHD reversing camera】Come with 2x 18 LED IR Night Vision Car Color Reversing Rear view Camera (140°) and 2x 12 LED IR side view Camera with (110°)Wide view angle ,Build with AHD 2053 mirror image sensor,High Resolution 1920X1080 pixels,IP 69 Waterproof Much more clear and secures your driving safety no matter what the weather like

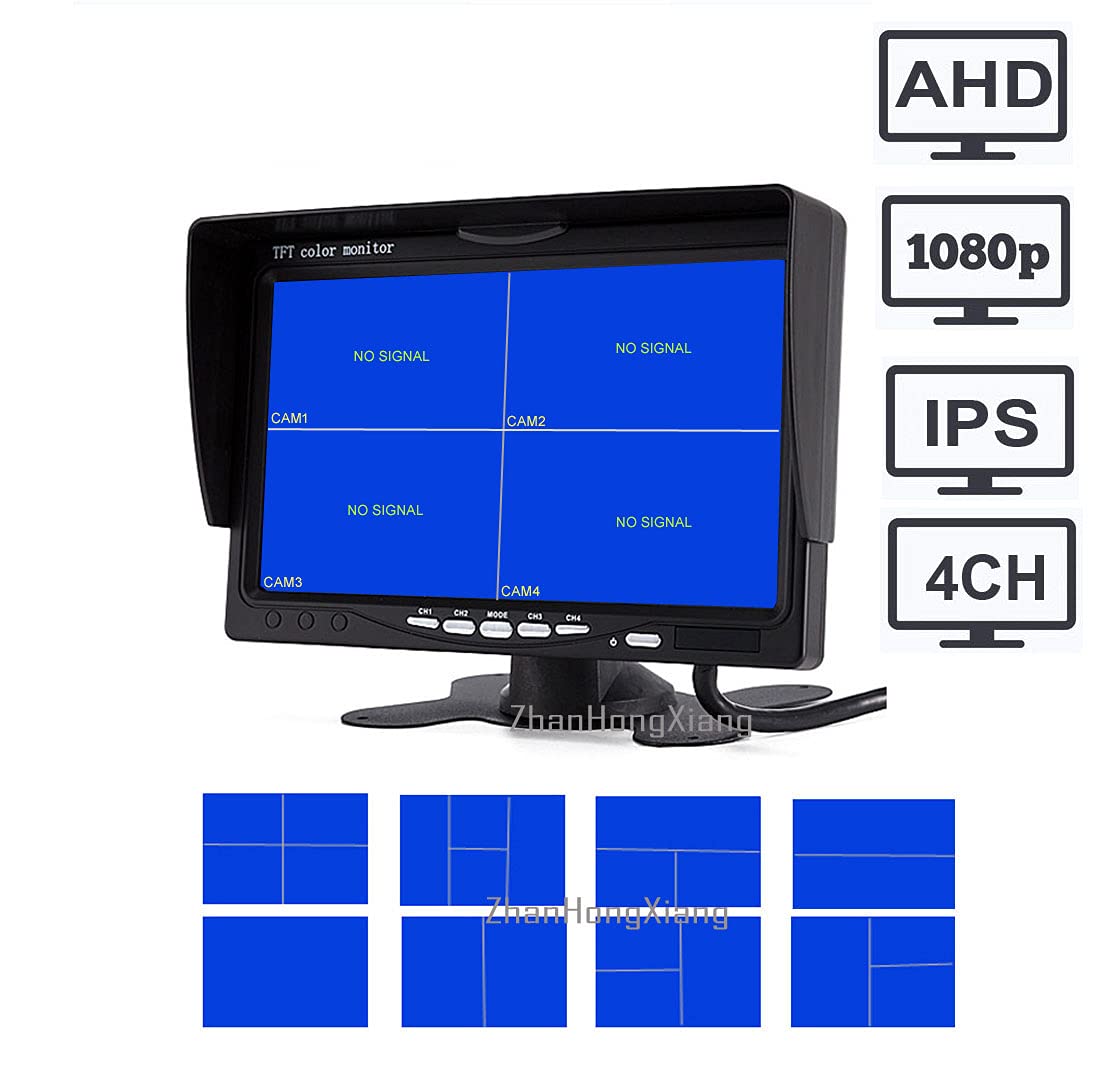

• 【7" Large Screen Monitor】7 Inch Large IPS Screen Monitor .It has the 4 CH video input quad Split functions. it can be set the full large images/2 images/3 images/4 images, each image adjustable for Mirror or none mirror at your enjoy, image can be rotate upside down also

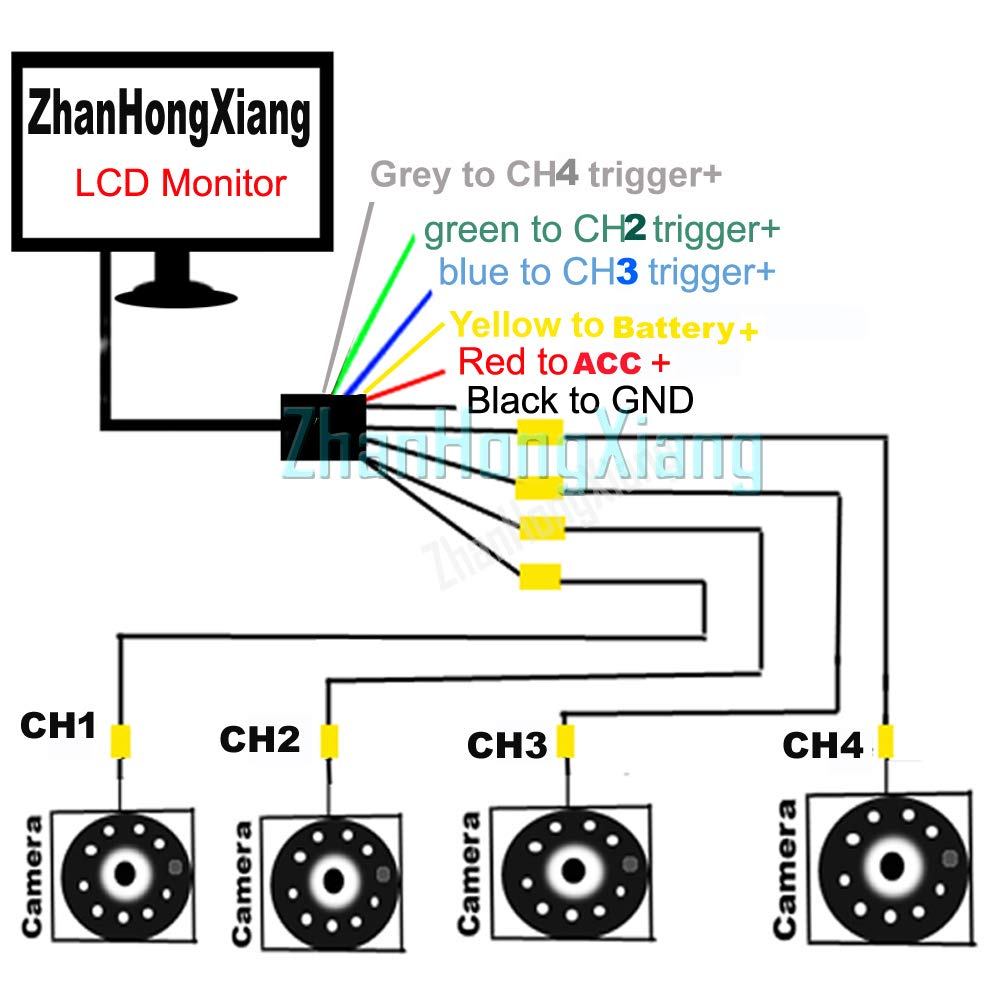

• 【Trigger Wire】There is 3x trigger wire to control 3 video input priority ,can be connect for reversing trigger+ ,turn left light+ ,turn right light+
• 【Support all 12v 24v vehicle】Come with 1x 20m/66ft ,1x 10m/33ft ,2x 5m/16ft 4pin Aviation Extension cable for Long Bus Truck Trailer RV Van Motorhome Schoolbus Camper Lorry Tractor Campervan Pickup and all other heavy Duty

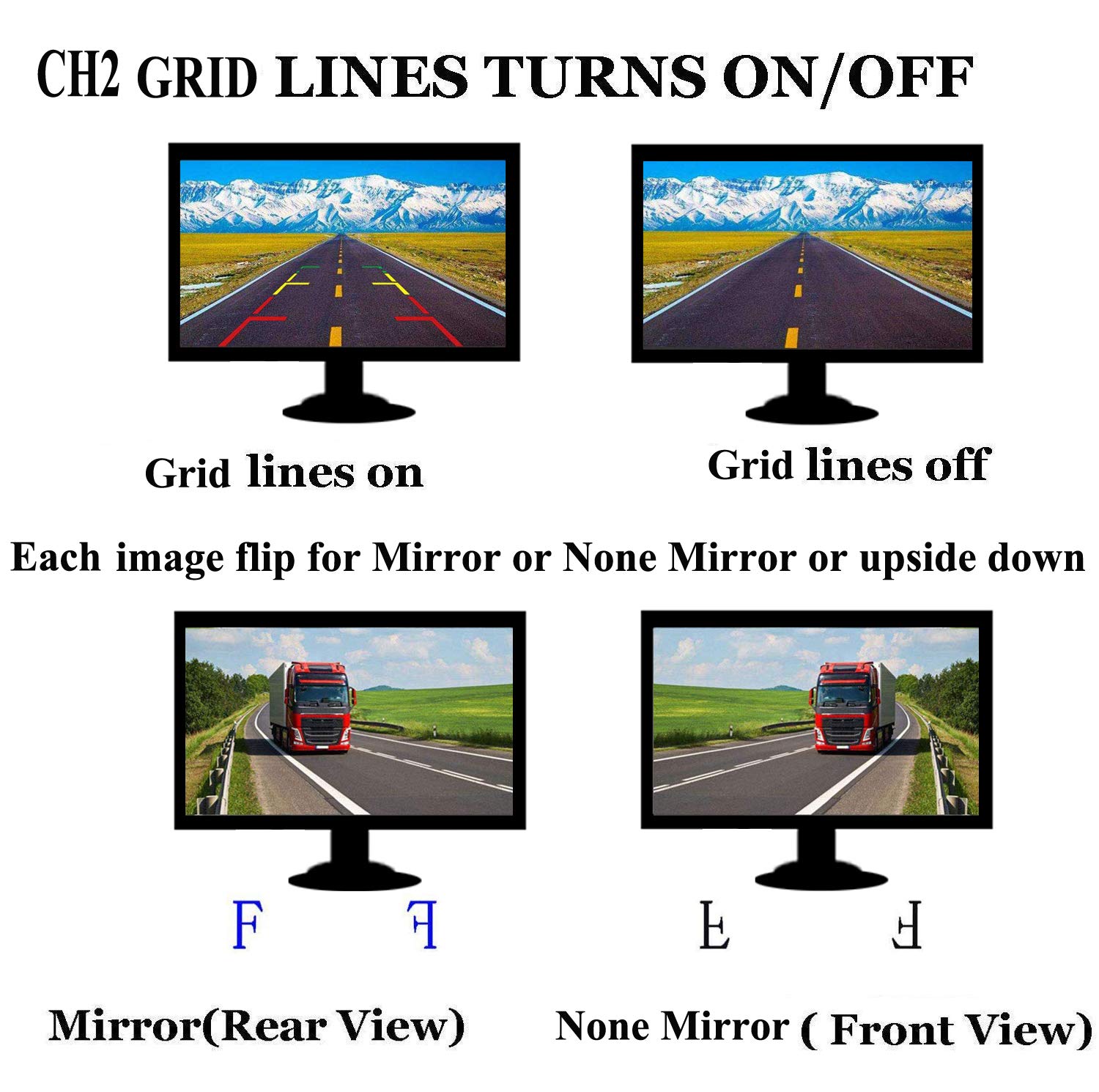

This is a AHD 1080P 7 Inch 4x Reversing Camera IPS Monitor Kit. It has the 4 CH video input with 4 Pin aviation Connector And it has the video quad split function. it can be set the Large video with CH1, CH2, CH3, CH4 or 2/3/4 split video Applicable to variety of Vehicles: car, truck, Pickup, Motorhome, Trailer, Bus, mini-van etc，Can help avoid incidents and accidents abrasion well Display Size:7 Inch AHD IPS Screen Support AHD 1080P Camera only Video:4 channels input ,Quad Split Screen Display Our Split monitor can display 4 video at same time Full images/2 images/3 images/4 images adjustable Video:4 channels input ,Quad Split Screen Display Power requirement :DC 12V-24V Consumption:8W Reverse Grid Lines Can be turn on or off with CH2 Image Can be adjust for mirror or none Mirror Image Support Flip with Upside Down Suitable for Front view/ rear view/side view So you can set each camera as front view or rear view camera system with the monitor at your enjoy 360°clearly View to avoid blind spot Net Weight: Approx. 1000g Lauguage: English,Chinese Resolution: 1024X600 pixels Automatic switching with trigger wire AHD 1080P Auto Front/Side/Rear View Camera AHD 1080P IR Auto Camera Support AHD Monitor only 100% Not Wash Out AHD 1080P Sensor Mirror image View angle:140°for 18 led cam,110°for 12 led cam Number of pixels:2.0 MP Camera(1920*1080P) Minimum illumination:0 LUX Night vision: 12/18 LED IR Video Output:4Pin Aviation Connector work Temperature:-20°C~+60°C Power Requirement: DC 12V-24V Waterproof :IP 69
