Vecys SMB Adapter DAB Antenne Adapter kit 3 types DAB Car Radio Adapter RF Coaxial DAB Auto Radio Kit for DAB DAB+ Radio FM/AM Antenna

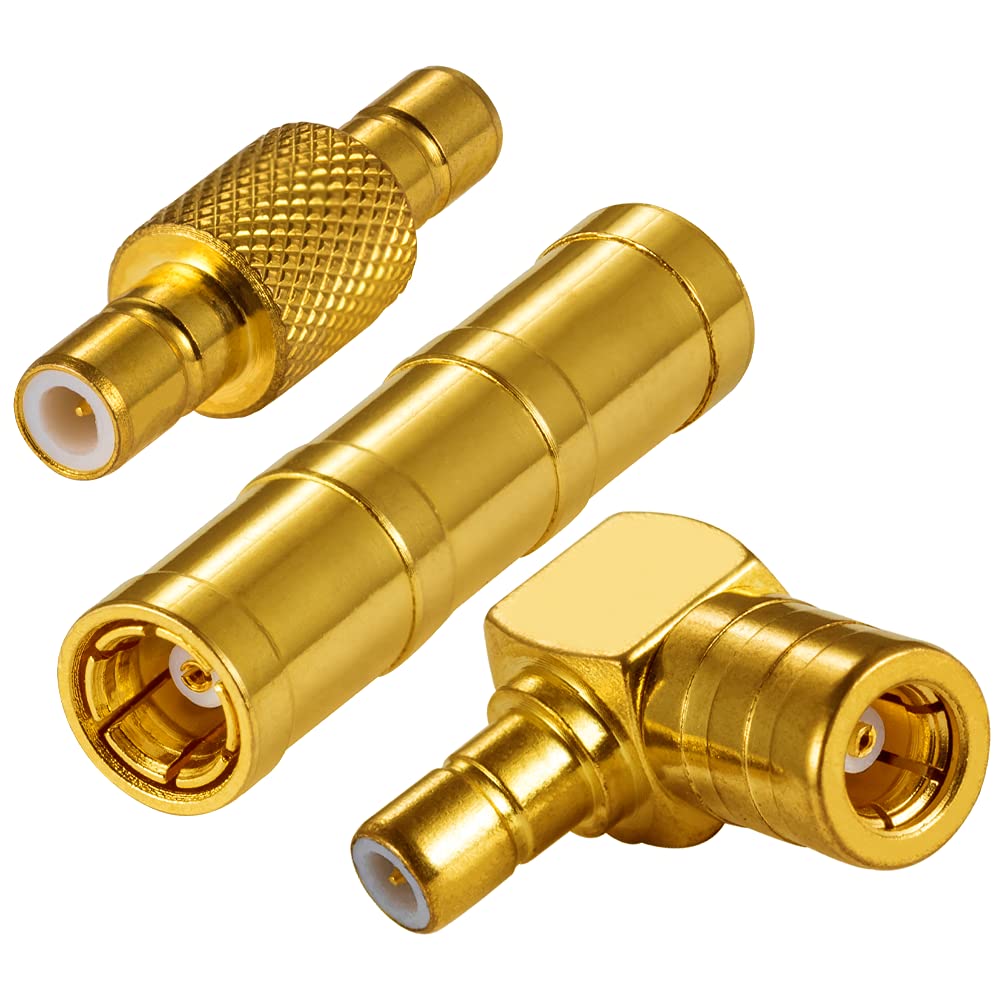

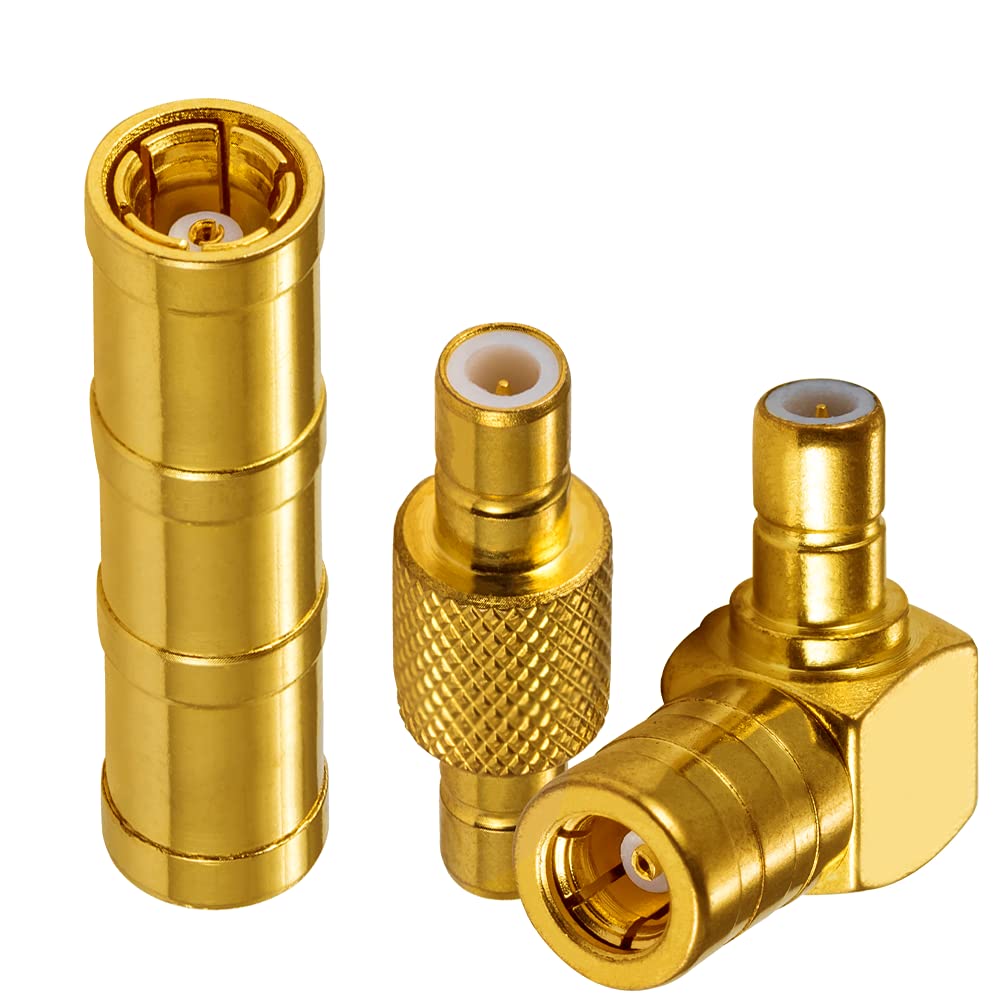

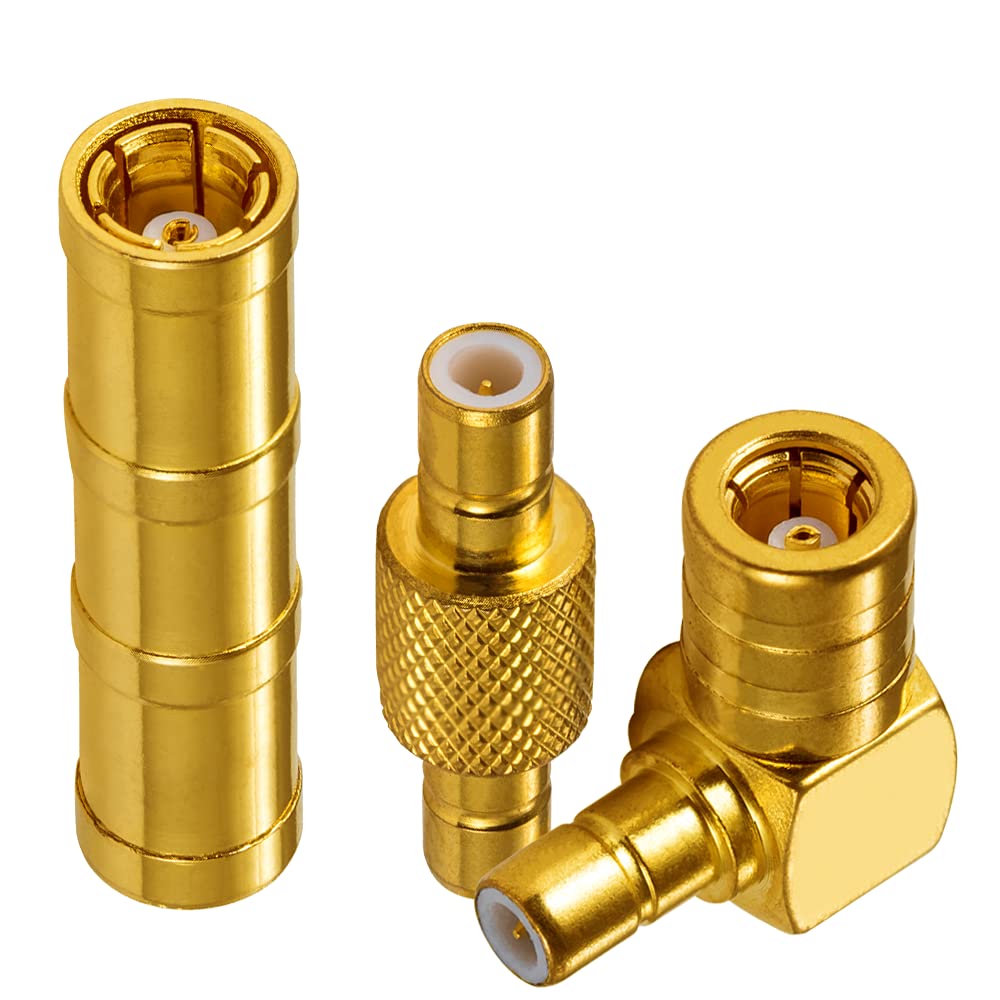

• Adapter type : SMB female to SMB female | SMB male to SMB male | SMB female to SMB male right angle
• Impedance: 50 ohm | Material: brass, gold-plated | Adapter connection: SMB-SMB
• Application for: DAB SMB antennas DAB FM/AM car radio antenna, coaxial cables, radio scanners, ham radio, networks wifi wlan lan wireless antenna, walkie talkie ,ham radio ,automotive, base station
• Compatible with: Car radio antenna vehicle radio DAB digital radio FM tuner
• Package: 3 pcs SMB Adapters

Product description: RF coaxial converter SMB Temperature range -65～+165°C (PE Cable -40～+85°C) Vibration MIL-STD-202, Method 213 Characteristic impedance 50Ω Frequency range DC～12.4GHz Working voltage 335V max (effective value) Withstand voltage 1000V rms (minimum sea level) Contact resistance Between inner conductors ≤ 3 mΩ Between outer conductor ≤ 2 mΩ Insulation resistance ≥ 5000MΩ Insertion loss≤0.15 dB/6GHz VSWR straight flexible cable≤1.10+0.002f Hard gold plated brass Pin brass hard gold plated Hard gold plated beryllium bronze Hard gold plated beryllium bronze with elastic contact Insulator PTFE Crimp sleeve copper alloy plated with nickel or gold
