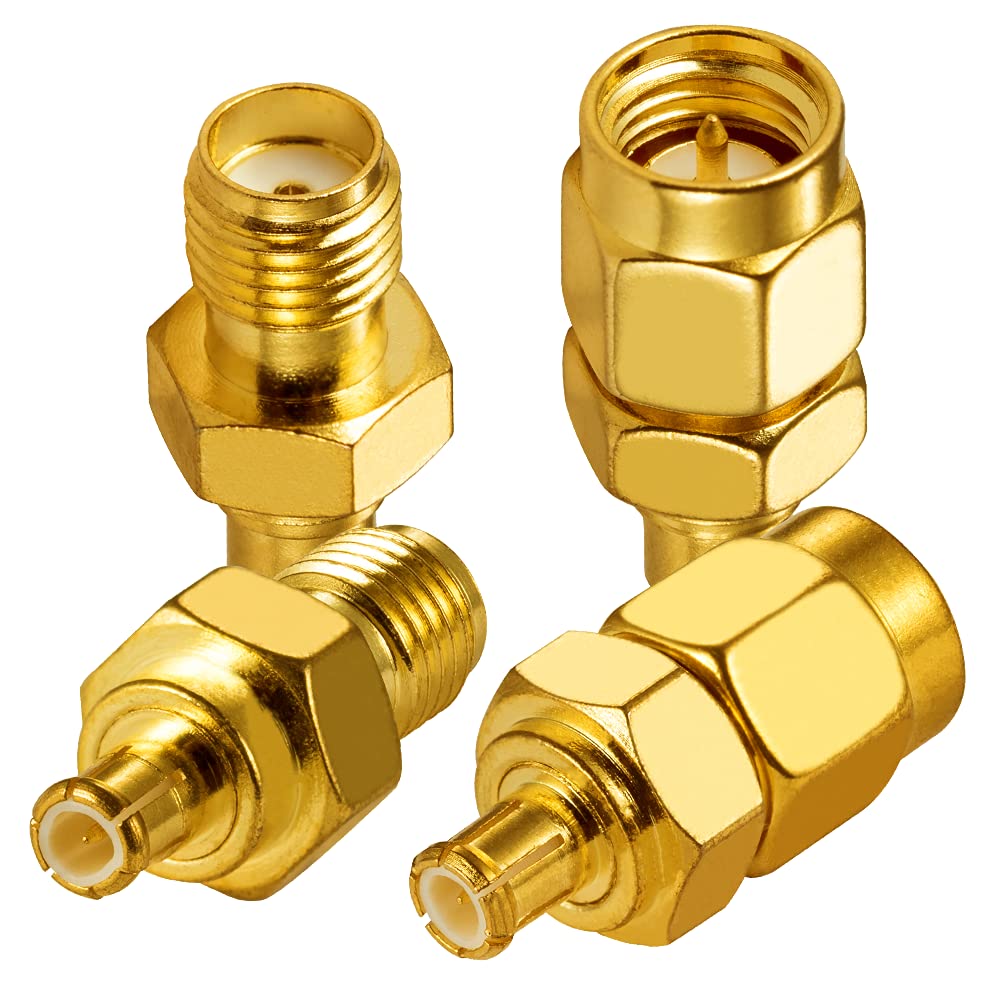

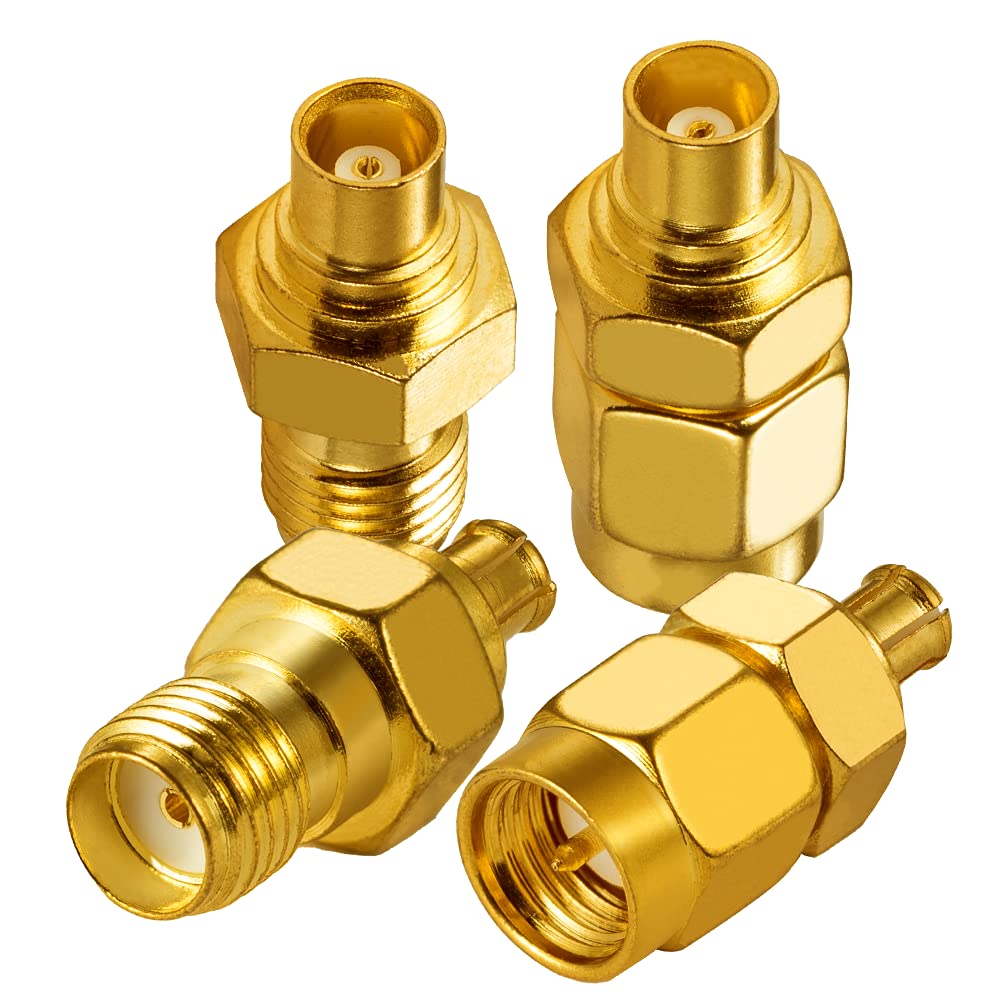

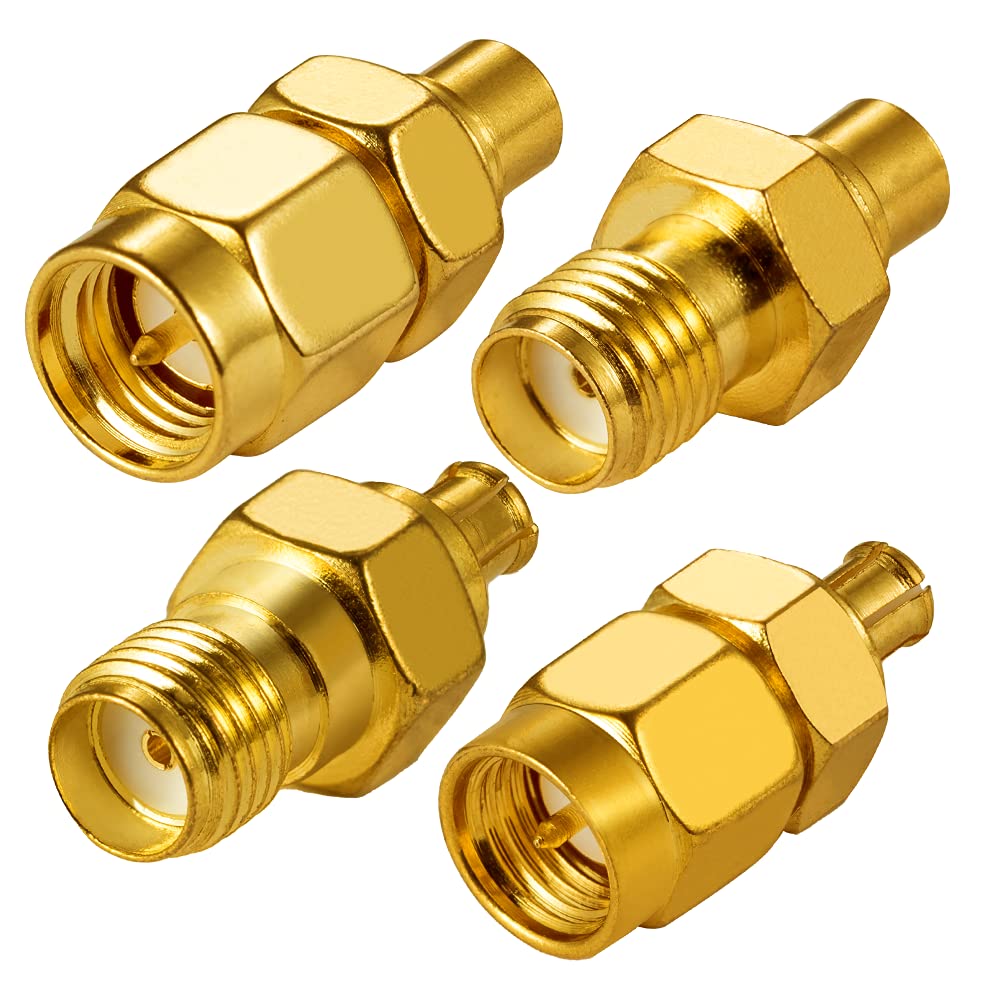

Vecys 4PCS SMA to MCX Adapter 4 Types Kit 50 Ohm SMA to MCX RF Coaxial Adapter for Antenna 4G LTE WiFi WLAN Wireless GPS System

• Product name: SMA to MCX 50 ohm RF coaxial adapter kit 4 types;
• Adapter type: Adapter 1: SMA male to MCX male adapter | Adapter 2: SMA male to MCX female adapter | Adapter 3: SMA female to MCX male adapter | Adapter 4: SMA female to MCX female adapter;
• Shell material: Brass | Inner conductor material: Brass gold plated | Body style: Straight;
• Parameters: Impedance: 50 ohm | Insulator: PTFE | VSWR: ≤1.2 | Frequency Range: 0~3GHZ | Withstand voltage: 1000V rms | Insulation resistance ≥ 5000 MΩ | Center contact resistance: ≤ 3 mΩ | Outer contact resistance: ≤ 2 mΩ | Temperature range: -45～125°C | Insertion loss ≤0.15 dB/6GHz | Working Voltage: ≤ 335V | Vibration MIL-STD-202, method 213 | Durability: ≥500 cycles;
• Package: 1 x SMA male to MCX male adapter, 1 x SMA male to MCX female adapter, 1 x SMA female to MCX male adapter, 1 x SMA female to MCX female adapter | Net: 17.7g.

Product description: RF Coaxial Converter SMA / MCX-, SMA Internal Thread-Needle Internal Thread to MCX Internal Thread Temperature range -65 °C + 165 °C (PE cable -40 °C + 85 °C) MIL-STD-202 Vibration Method 213 Characteristic impedance 50Ω Frequency range DC ~ 12.4 GHz Operating voltage 335V max (effective value) Withstands a voltage of 1000 V rms (minimum sea level) Contact resistance Between internal conductors ≤ 3 mΩ Between outer conductor ≤ 2 mΩ Insulation resistance ≥ 5000 MΩ Insertion loss ≤ 0.15 dB / 6 GHz Straight flex cable VSWR ≤ 1.10 + 0.002 f Hard gold-plated brass Hard Gold Plated Brass Brooch Hard Gold Plated Beryllium Bronze Hard Gold Plated Beryllium Bronze with Elastic Contact PTFE Insulator Crimp barrel copper alloy with nickel or gold plated
