Vecys DAB Radio Antenna Adapter SMA to SMB Adapter kit 4 type SMA Adapter SMB Adapter for DAB DAB+ Car Radio Antenna 4G LTE WIFI WLAN Wireless GPS System

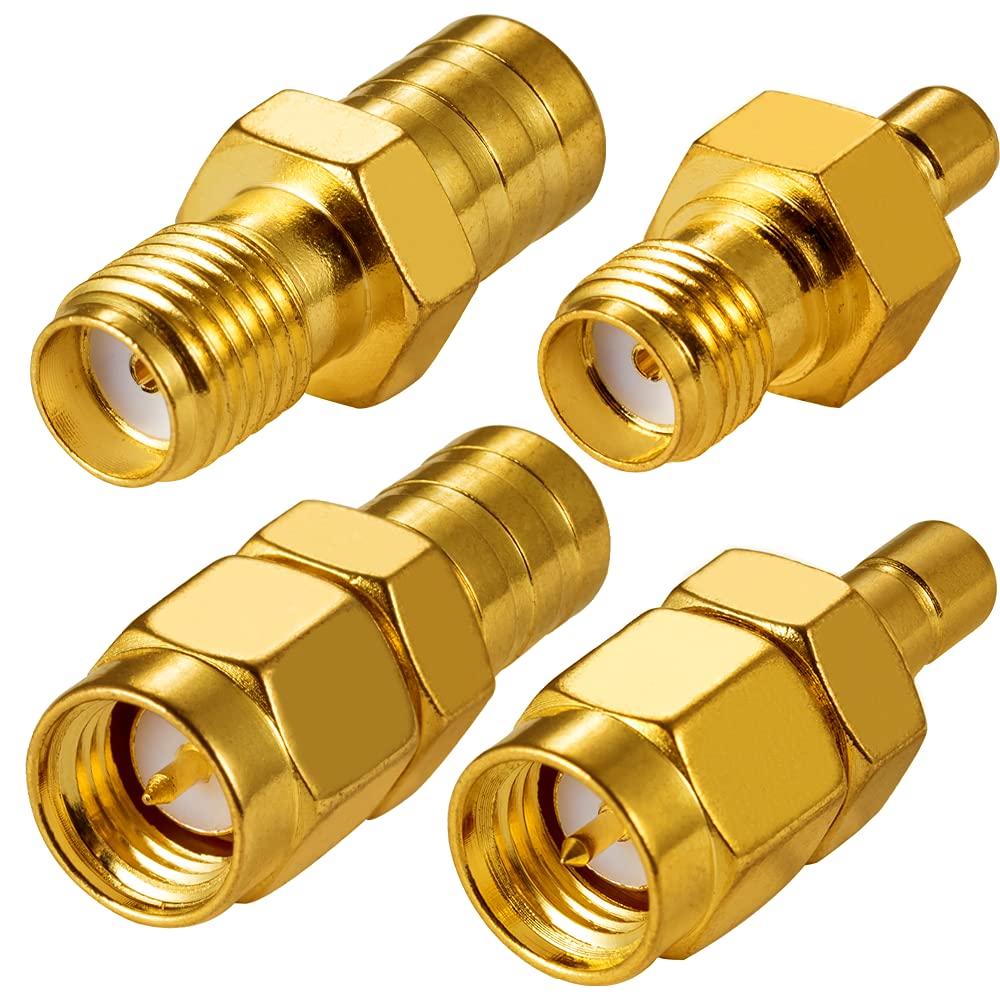

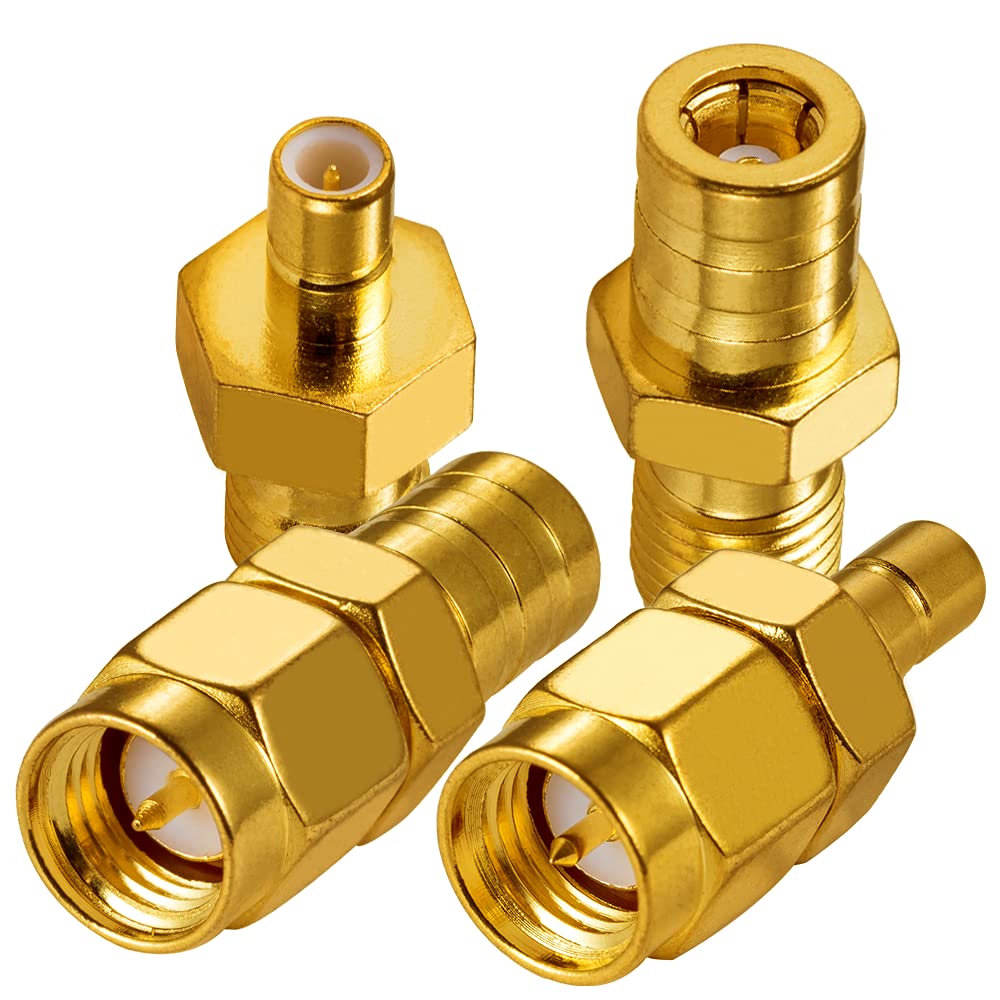

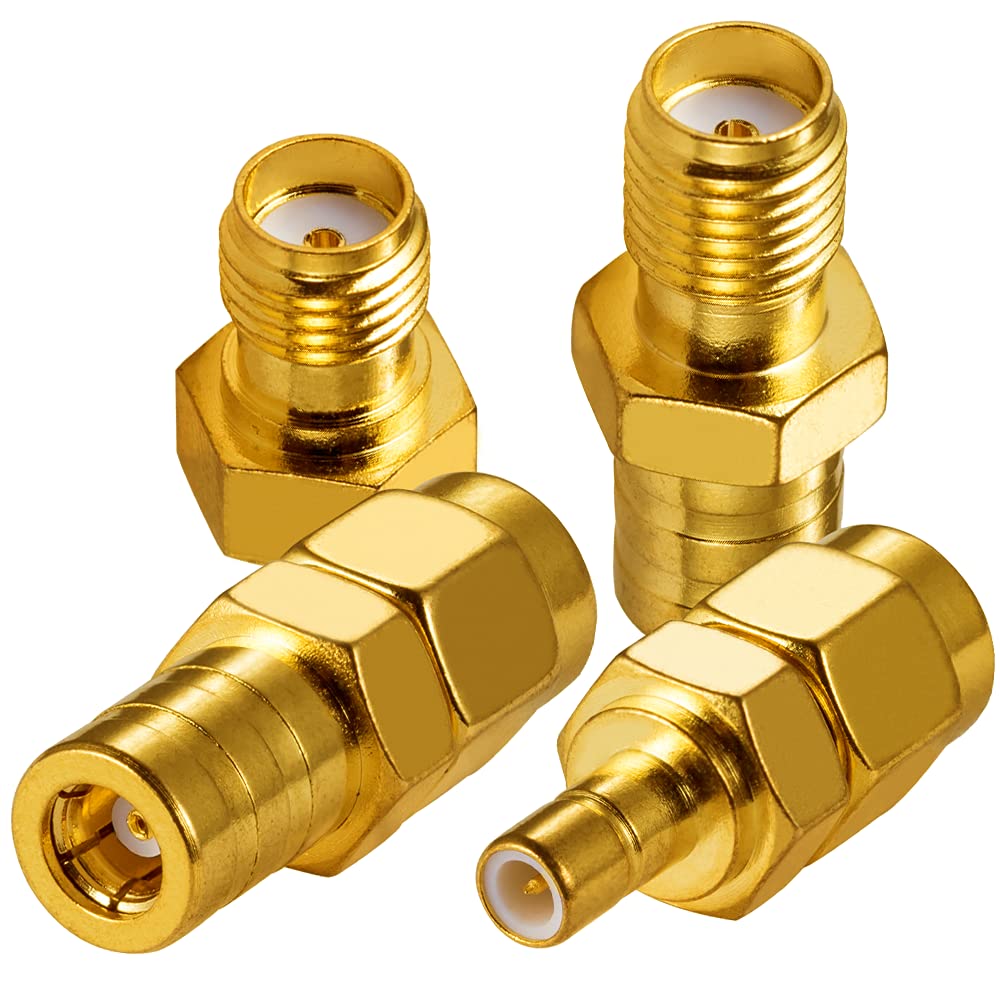

• Adapter type : SMA male to SMB male | SMA female to SMB female | SMA female to SMB male | SMA male to SMB female
• Impedance: 50 ohm | Material: brass, gold-plated | Adapter connection: SMA-SMB
• Application for: SMA SMB antennas DAB FM/AM car radio antenna, networks wifi wlan lan wireless antenna, walkie talkie ,ham radio ,automotive, base station
• Compatible with: Car radio antenna vehicle radio DAB digital radio FM
• Package: 4 pcs SMA -SMB Adapters

HF coaxial converter SMA / SMB-, SMA-internal thread-needle-internal thread to internal thread SMB temperature range -65 ° C + 165 ° C (PE cable -40 ° C + 85 ° C) vibration MIL- STD-202, Method 213 Characteristic impedance 50Ω Frequency range DC ～ 12.4 GHz Operating voltage 335V max (RMS value ) Maintain a voltage of 1000 V rms (minimum sea level) Contact resistance Between internal conductors ≤ 3 mΩ between outer conductors ≤ 2 mΩ insulation resistance ≥ 5000 MΩ insertion loss ≤ 0.15 dB / 6 GHz straight lines flexible VSWR cables ≤ 1.10 + 0.002 f Hard gold plated brass Hard gold plated brass pin Bronze hard gold plated beryllium Hard gold plated beryllium bronze with elastic contact PTFE insulation Nickel or gold plated copper alloy crimp sleeve
