VBESTLIFE H510 Motherboard, LGA 1200 for Intel H510 Motherboard (2xDDR4, M.2 Slot, SATA3.0, 1xPCIE 16X) Support DP, HDMI Ports, for DIY Computer

• PCB Material: The motherboards are made of PCB material, which is sturdy and durable, can be used with confidence
• Reliable and Practical: Desktop computer motherboard supports a variety of display outputs, using a RealtelALC independent 6 channel high fidelity audio, using 1xPCIE 16X graphics card interface
• H510 Motherboard: H510 motherboard is an for Intel 1200 pin processor optional and for Intel H510 high speed chipset embedded computer motherboard
• Supported Features: Motherboard supports 2 x DDR4 memory bank, single support up to 32GB, frequency optional 2133/2400/2800, support XMP memory overclocking
• Scope of Application: The hard disk is mostly used with M.2, which can be applied to the office, media playback, games, various terminal markets and other industries

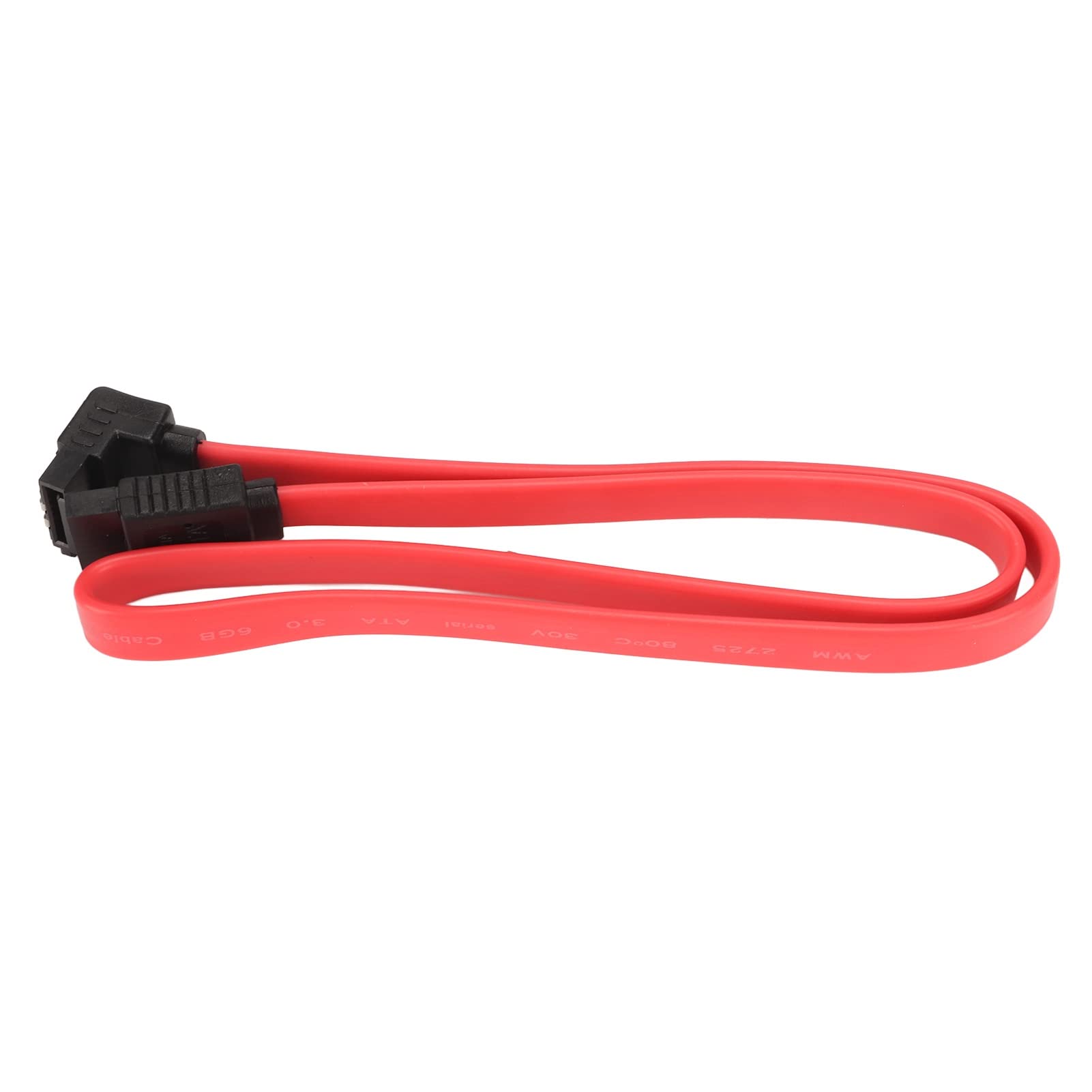

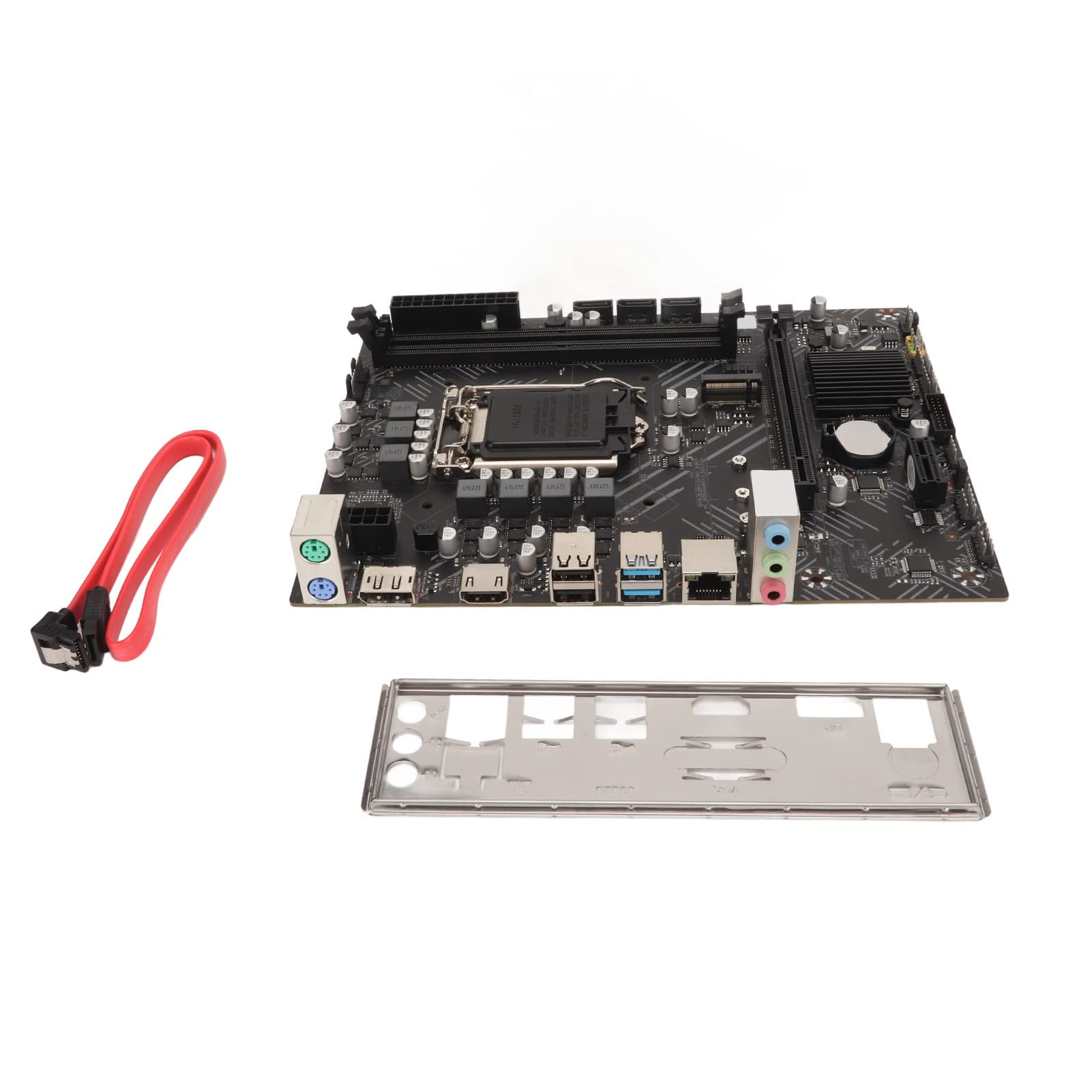

Spec: Item Type: Motherboard Material: PCB Memory: 2xDDR4 Memory, Frequency Optional 2133/2400/2800, Maximum Support 32GB Chipset: For Intel H510 Chipset Hard Disk: 3xSATA3.0 Interface, 1xM.2 interface Support SATA/NVME Mode (jumper switching) Built in Interfaces: 2xF USB2.0 Pins (expandable by 4xUSB2.0) 1xUSB3.0 pins can be extended 2xUSB3.0) 1xF AUDIO Audio Front Pins 1xJ SPK Buzzer Pin 1xJCMOS Initial BIOS Restore Pin 1xCPU FAN Processor Fan Pin 2xCSYSFAN Chassis Fan Pins Rear interface: USB Interface: 4xUSB2.0, 2xUSB3.2 Keyboard / Mouse: Support 1xPS / 2 Keyboard and Mouse Interface AUDIO: 1xF AUDIO Standard Audio 3 in 1 Audio Interface Expansion Bus: 1xCOM Pins 1xPCIE 16X Interface 1xPCIE 1X Interface Display Interface: 1xHigh Definition Multimedia Interface 1xDP 1xPCIE 16X Graphics Card Slot Network Card: Integrated Network Card Battery Type: Li Mn Battery Battery Model: CR2032L Battery Capacity: 140mAh(included) Working Temperature: -10℃-60℃ Working Humidity: 0-95% Relative Humidity, Non Condensing How to Use: Use after installation Package List: 1 x Motherboard 1 x Baffle 1 x User Manual 1 x SATA Cable Note: Shipped with built in battery
