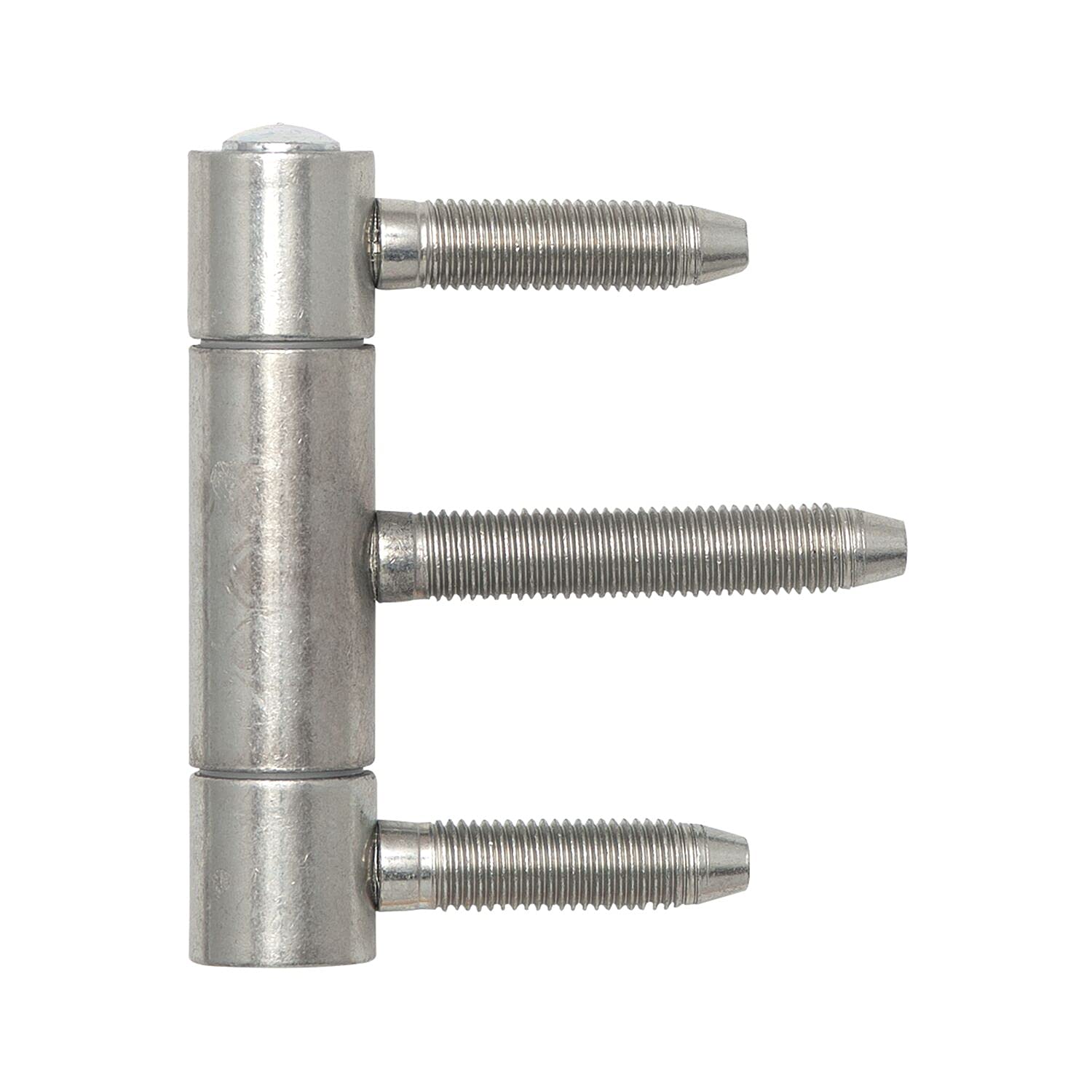

Vasalat, 3-Piece Diameter 20.86 mm Galvanised Door Hinge Silver

• The 3-piece drill hinge has a load capacity of 100 kg and is equipped with a safety catch (pin lock).

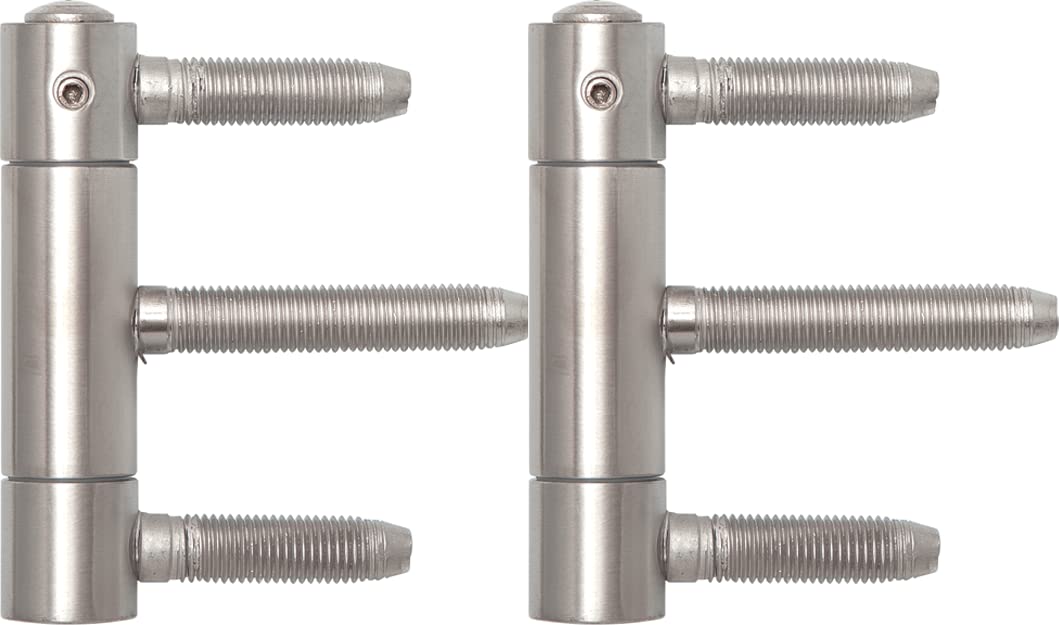

• Box contents: 2 pieces - door hinges for wooden doors - for rebated wooden doors on wooden poles
• Bolt thickness: frame 9.9 x 40 mm; wing 9.9 x 57 mm
• Simonswerk door hinge diameter 20 mm; strap height: 86 mm
• Bearing: with maintenance-free slide bearing; material: galvanised steel

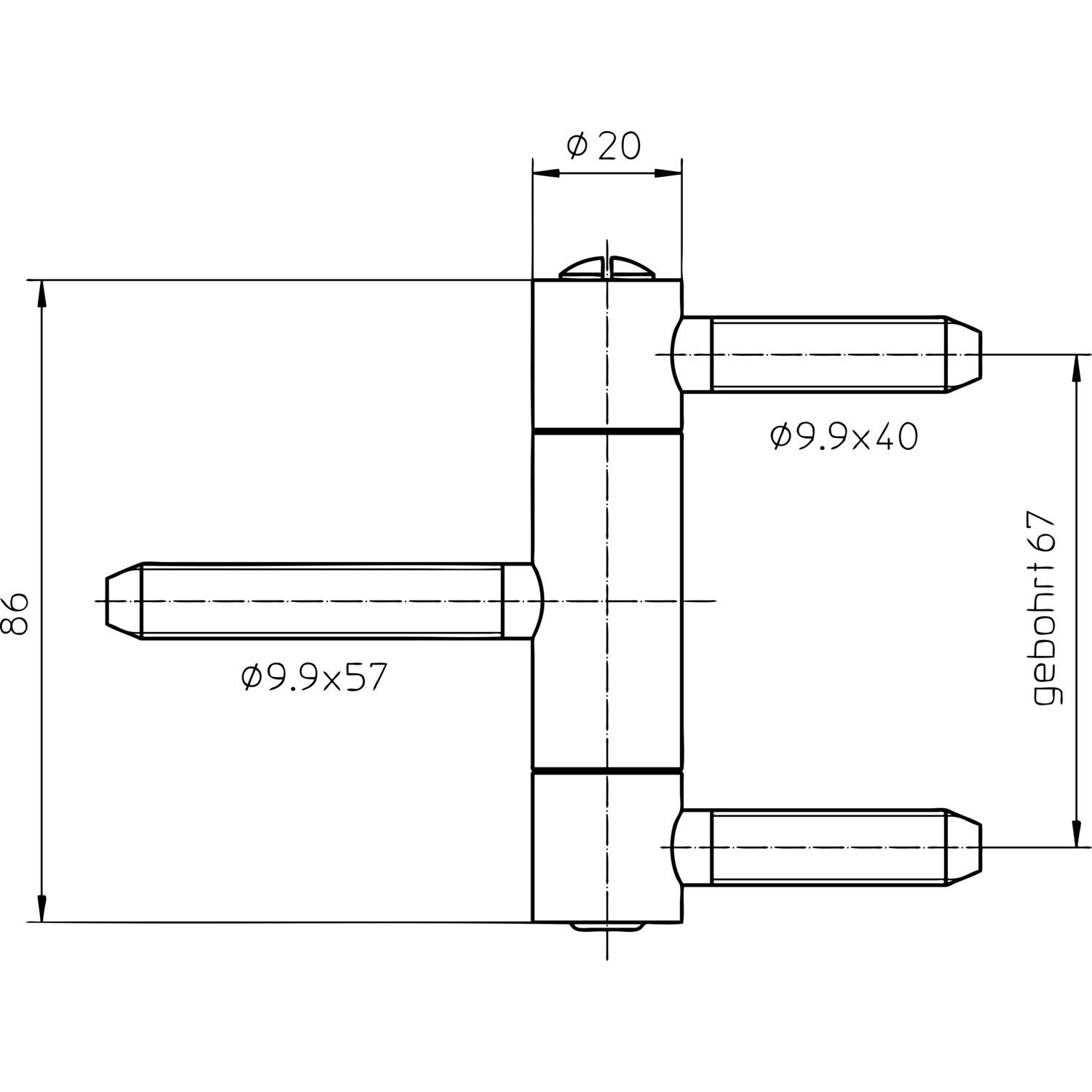

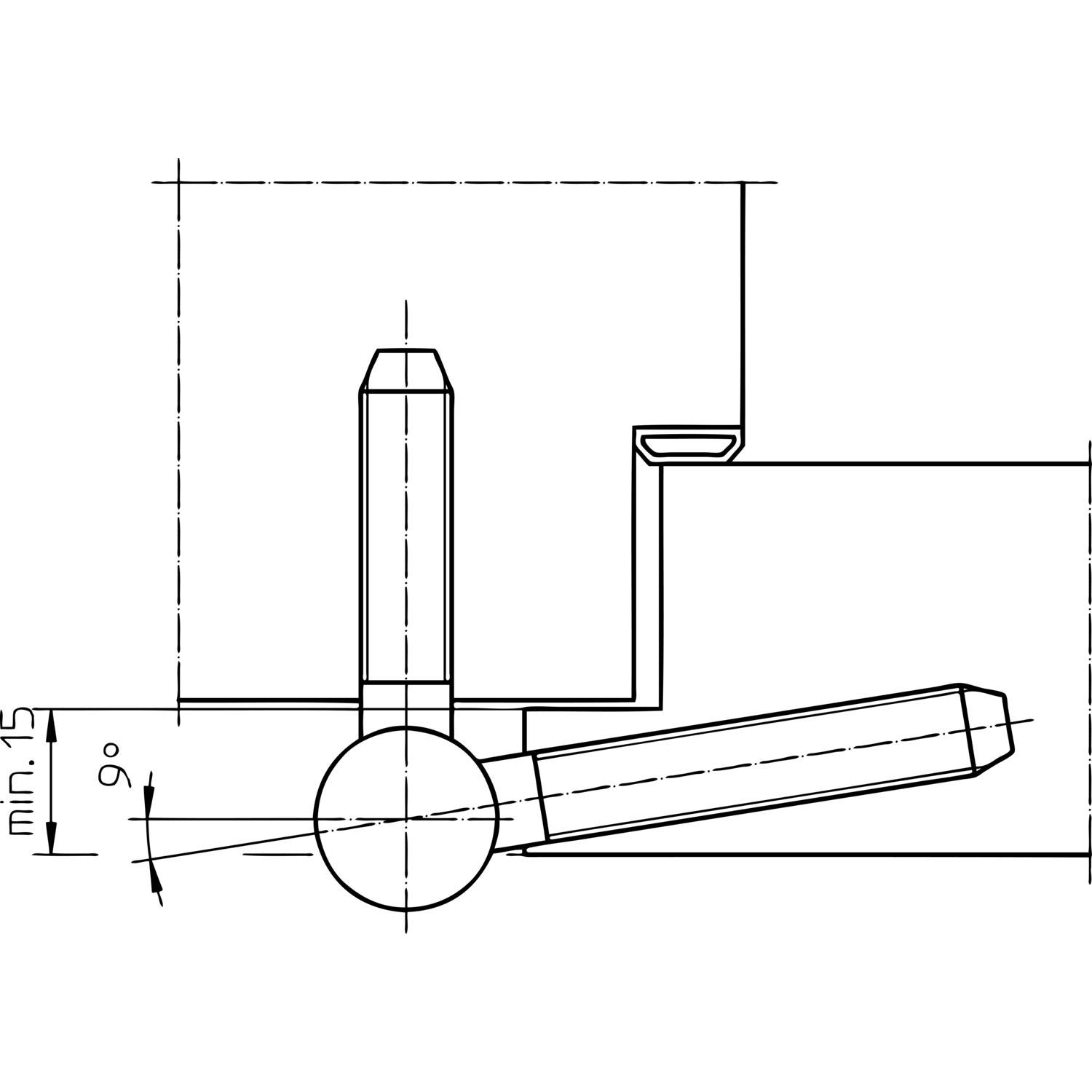

BAKA band C1-20 WF topzink MSTS with pin lock // 3-piece drilling tape for wooden front doors, with pin lock, with concealed, maintenance-free plain bearing technology. // The pin lock allows you to remove the pin and thus the hanging of the door leaf only when the door is open, this tape is particularly suitable for outward opening doors. Technical data: roller diameter: 20 mm; roll length: 86 mm; pin length: frame: 40 mm; wing: 57 mm; min. Throat thickness: 18 mm; pin diameter ra./wing: 9.9 mm; impact with: plastic drill gauge BAKA 20; series drill gauge BAKA wing 20; grid series drill gauge BAKA frame 20; drill diameter: 8.8 mm; Simonswerk type: 5 080656 080656 080 mm 1100 6; material: steel; surface: galvanised
