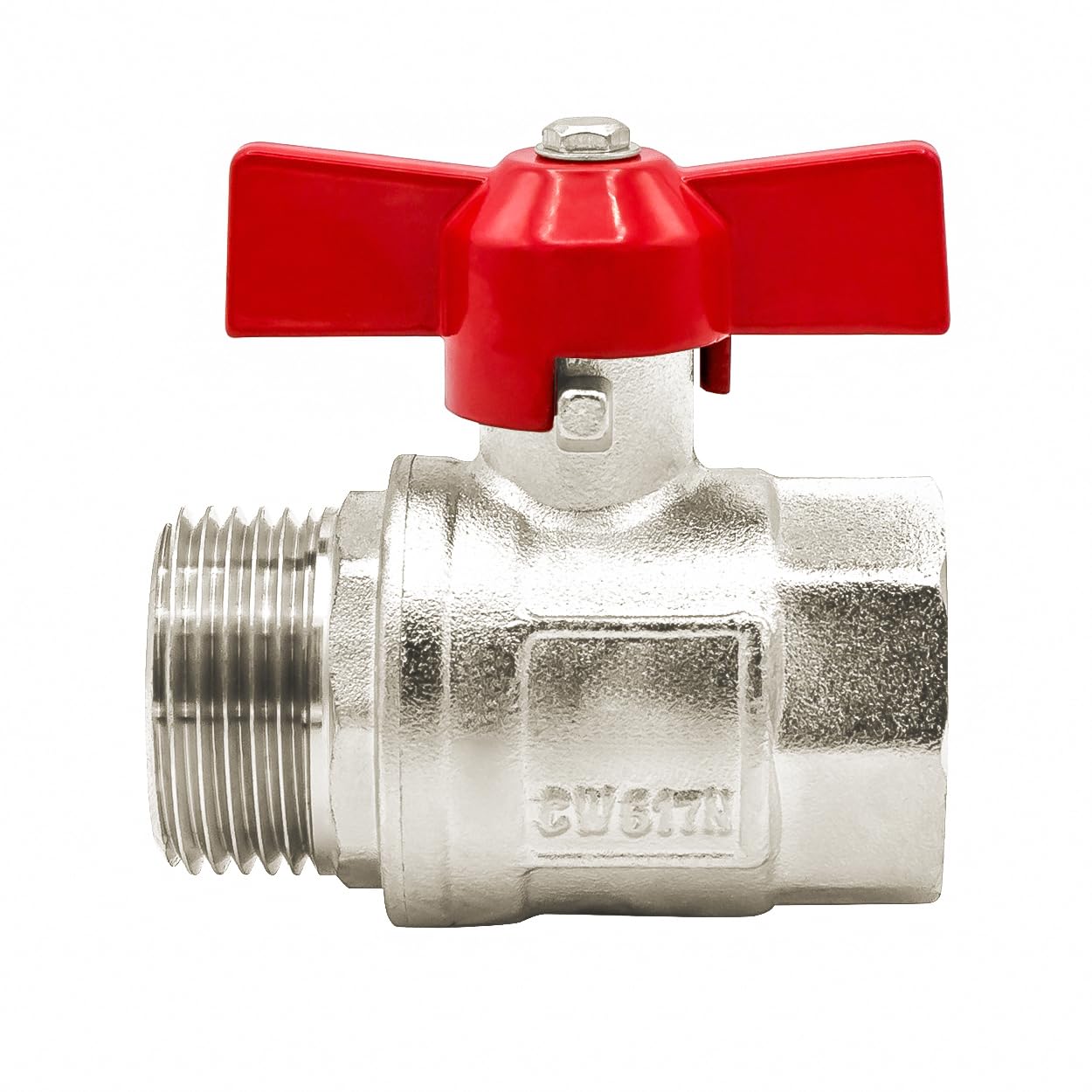

Variosan Ball Valve IG/AG, DN15, Brass, Full Through, Thumb Screw

• The ball valve with full bore has a wide range of applications, only is suitable for private and commercial heating and sanit applications. It can also be used for agricultural projects, landscaping, swimming and industry.

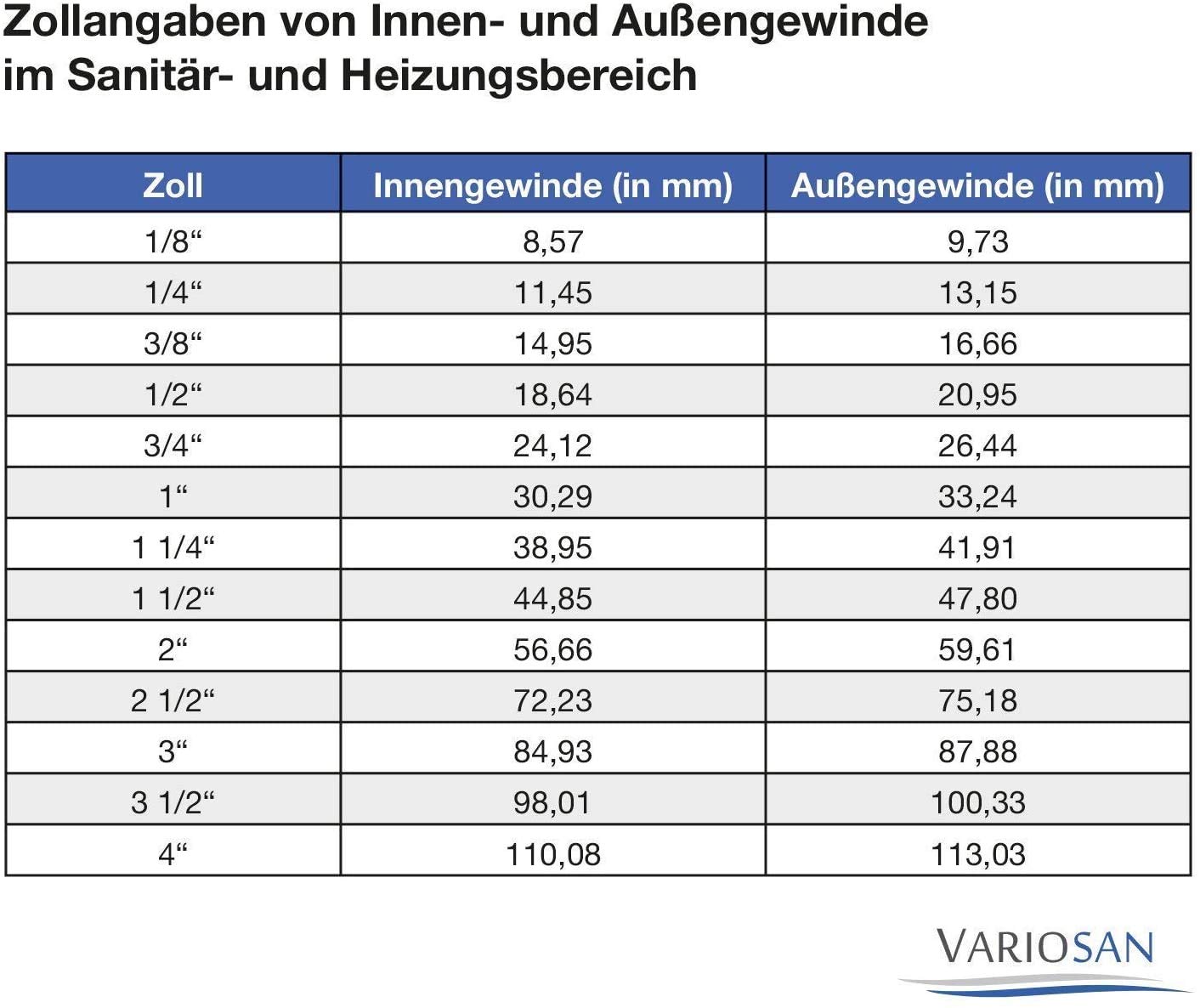

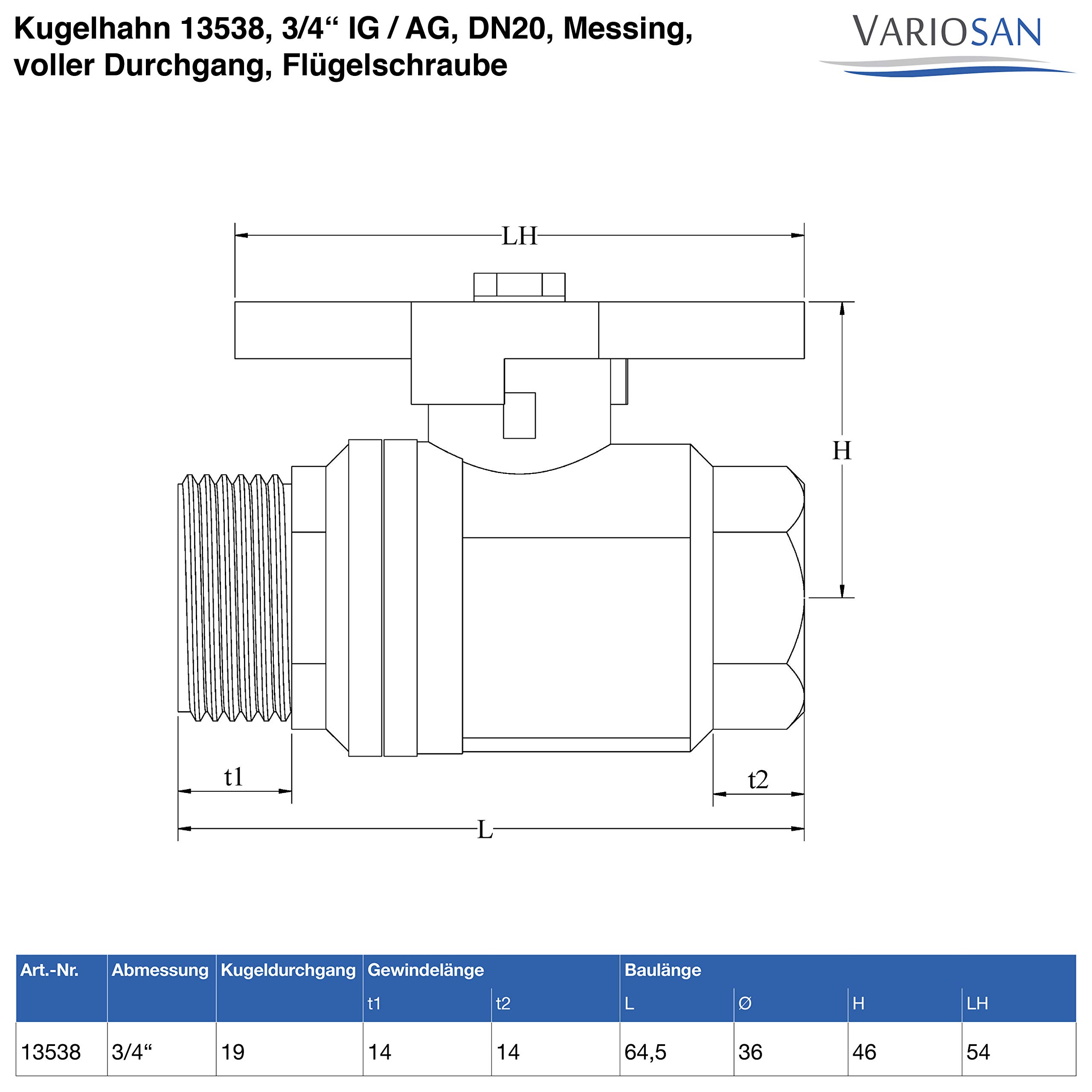

• Dimensions: 3/4 inch IG / AG (internal thread / external thread), DN20
• Material (ball valve): Nickel-plated br. Material (lever): Steel, red
• Features: 25 bar / PN25 (working pressure), 150 C (max. temperature)
• Tests: Material according to DIN DVGW 50930 6 (CW 617 N), thread cylindrical according to ISO 228 2, Ger cartridge test according to DIN EN ISO 3843

The ball valve with full flow has a wide range of applications, first is suitable for private and commercial heating and sanitary applications. It can also be used for agricultural projects, landscaping, swimming pools and industry.
