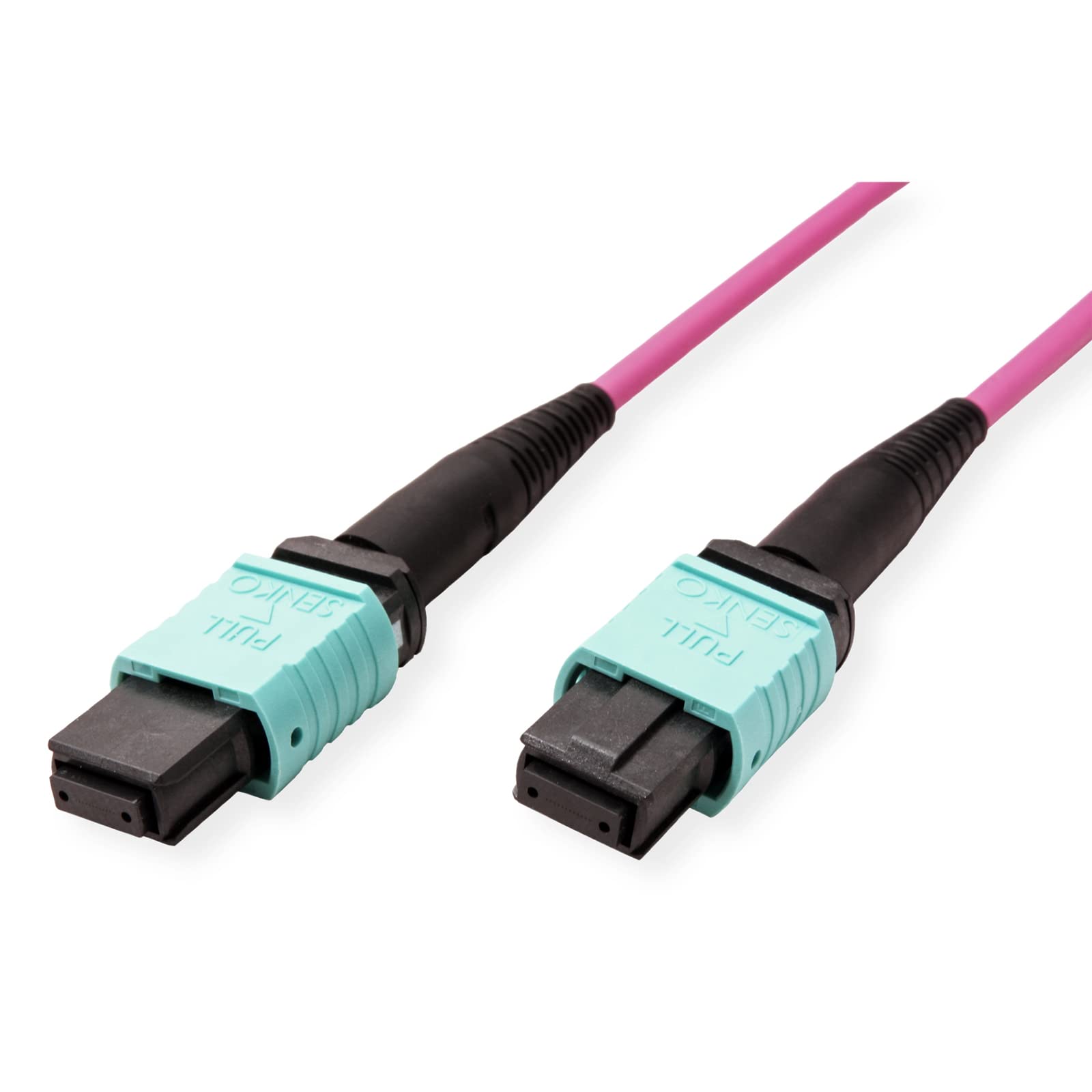

VALUE MPO Trunk Cable 50/125µm OM4 MPO/MPO 5 m Purple

• MPO (multi-fibre push-on) cabling system
• Supports all Ethernet fibre optic applications
• Modular solution with reusable modules and cables
• High-density wiring saves considerably space
• Cables are delivered pre-assembled

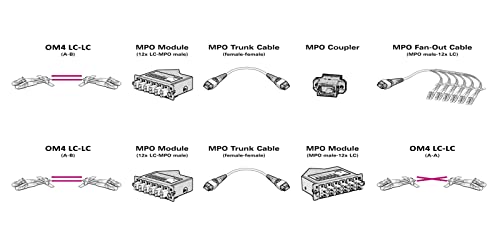

MPO (multi-fibre push-on) wiring system – these trunk cables are used as a permanent link connection between the MPO modules. The trunk cables have 12 fibres. They are locked on both sides with a 12 fibre MPO connector of the female version. The MPO (multi-fibre push-on) wiring system is an easy-to-use solution based on a high-density connector and 12-fibre fibre fibre optic cables. This system is widely used in data centres, but is also used between server rooms. It has been designed for reliable and fast handling and offers the advantages of a small footprint and maximum scalability. The pre-assembled MPO cables can be fanned to other connector types, commonly to LC connectors, to connect to standard fibre optic products or services. This is done via modules or via so-called Fan Out Cable • Supports all fibre optic applications in the Ethernet sector. • Modular solution with reusable modules and cables. • High-density wiring saves considerably space and thus offers improved airflow compared to traditional cable bundles. • Cables are pre-assembled and thus delivered in assured quality. Essential facts about MPO MPO connections usually bring 12 fibres together in a single plug. A connection must be firm and the fibre ends must be neatly strung together. These requirements are essential to achieve the desired transmission parameters. Therefore, there are MPO connectors in a "male" version (with pins) or in a "female" version (without pins). The pins ensure that the front sides of the connectors meet in the correct position and thus the fibre ends are precisely brought together. There are different methods of allocation of the 12 fibre ends. Our trunk cables are manufactured according to the method A (pin 1 to pin 1). Notes: All cables offered are halogen-free (LS0H). The plugs are low-loss connectors with particularly low insertion loss.
