uxcell LM603049/LM603011 Tapered Roller Bearing Cone and Cup Set 1.7812" Bore 3.0625" O.D. 0.7812" Width

• Model: LM603049/LM603011 (Bore: 45.242mm / 1.7812", Outer Diameter: 77.788mm / 3.0625", Width: 19.842mm / 0.7812")
• Single row tapered roller bearings must be used either with a second bearing or as a matched pair
• Components are separable and interchangeable that easy for maintenance
• Features low friction and low noise that provide operational reliability
• Static Load Rating of 77.9kN and Dynamic Load Rating of 76.3kN

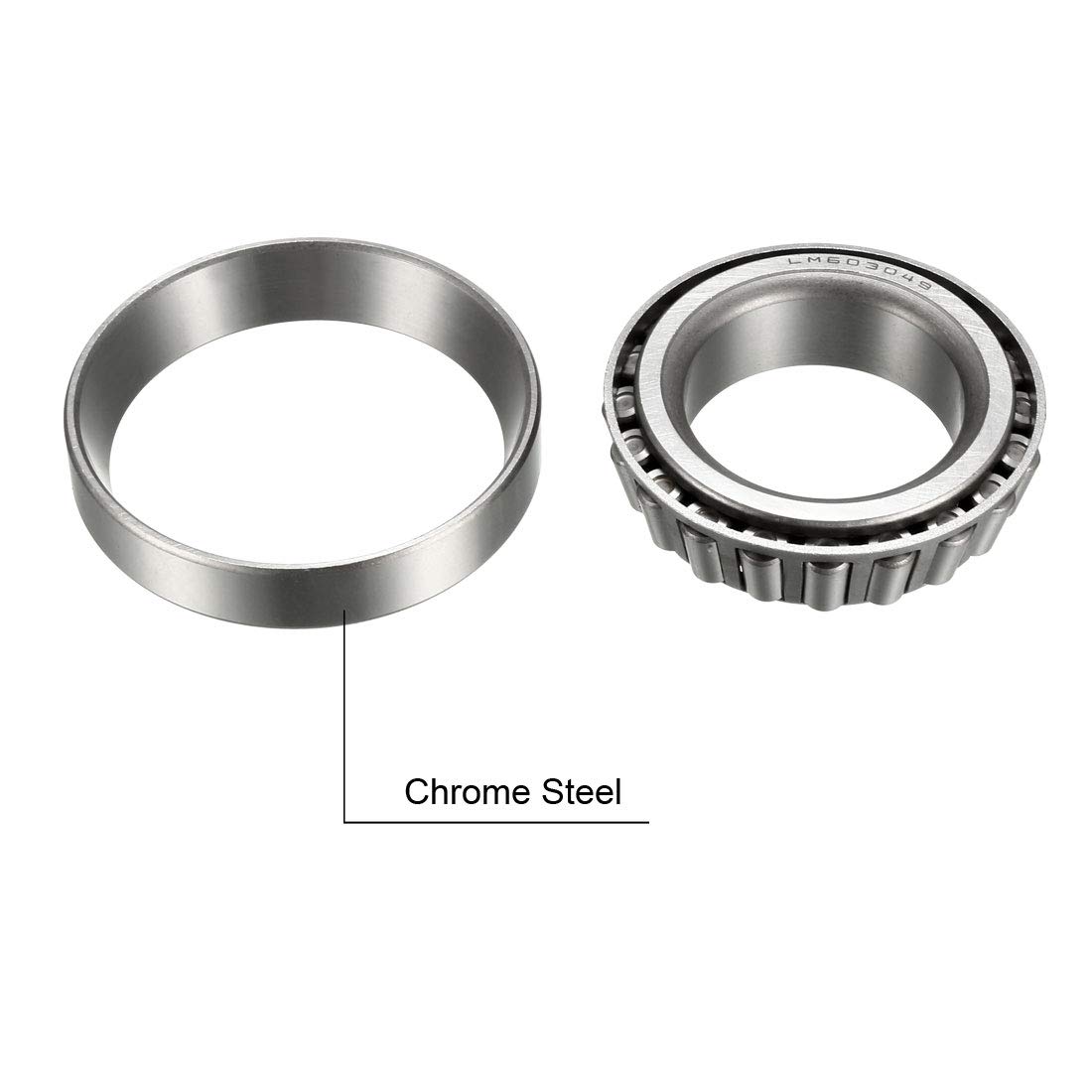

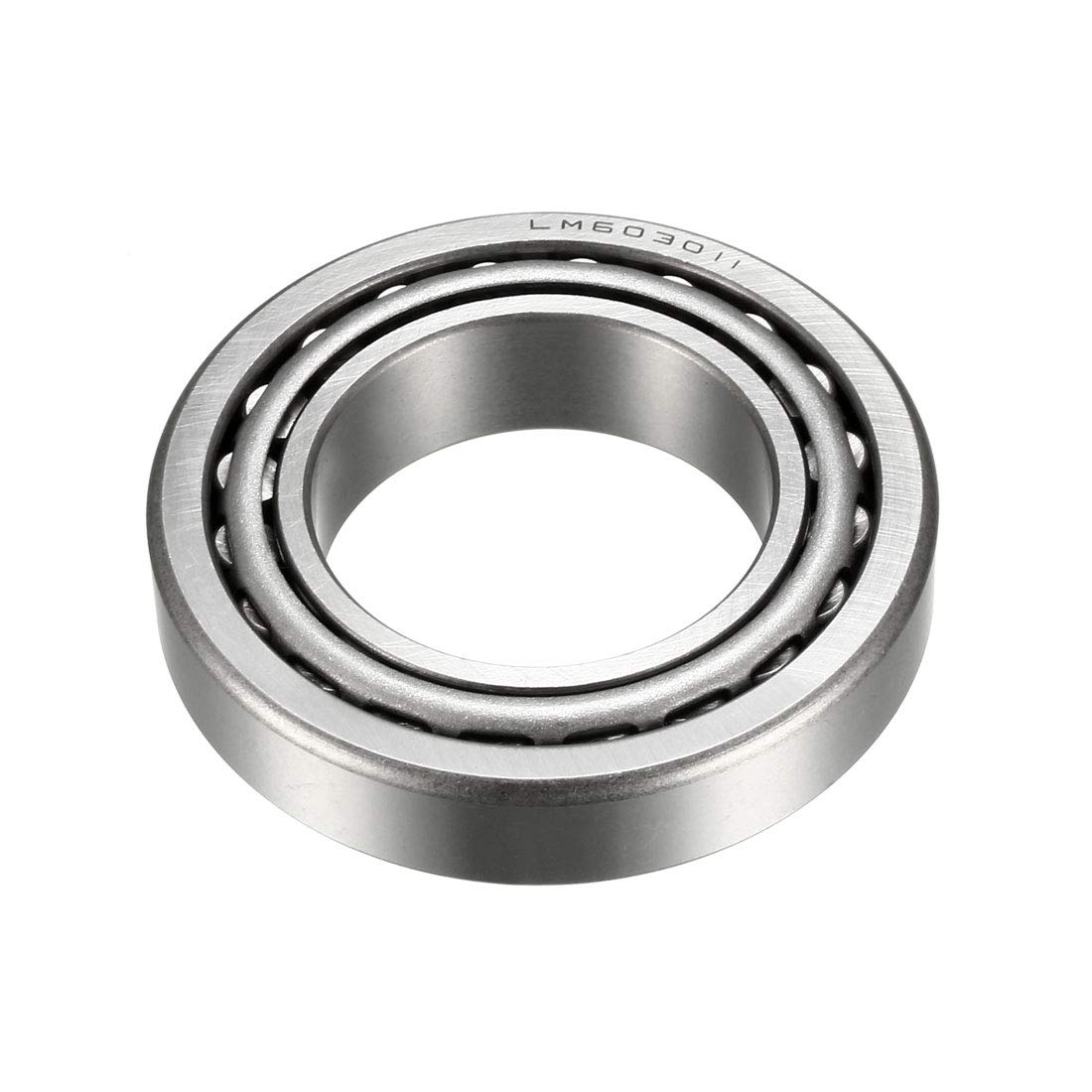

Description: Single Row Tapered Roller Bearings are designed to accommodate combined loads. These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller. The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines. This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems. Specification: Cone Model: LM603049 Cup Model: LM603011 Material: Chrome Steel Bore Diameter: 45.242mm / 1.7812" Outside Diameter: 77.788mm / 3.0625" Total Thickness (T): 19.842mm / 0.7812" Dynamic Load Rating (Cr): 76300N Static Load Rating (Cor): 77900N
