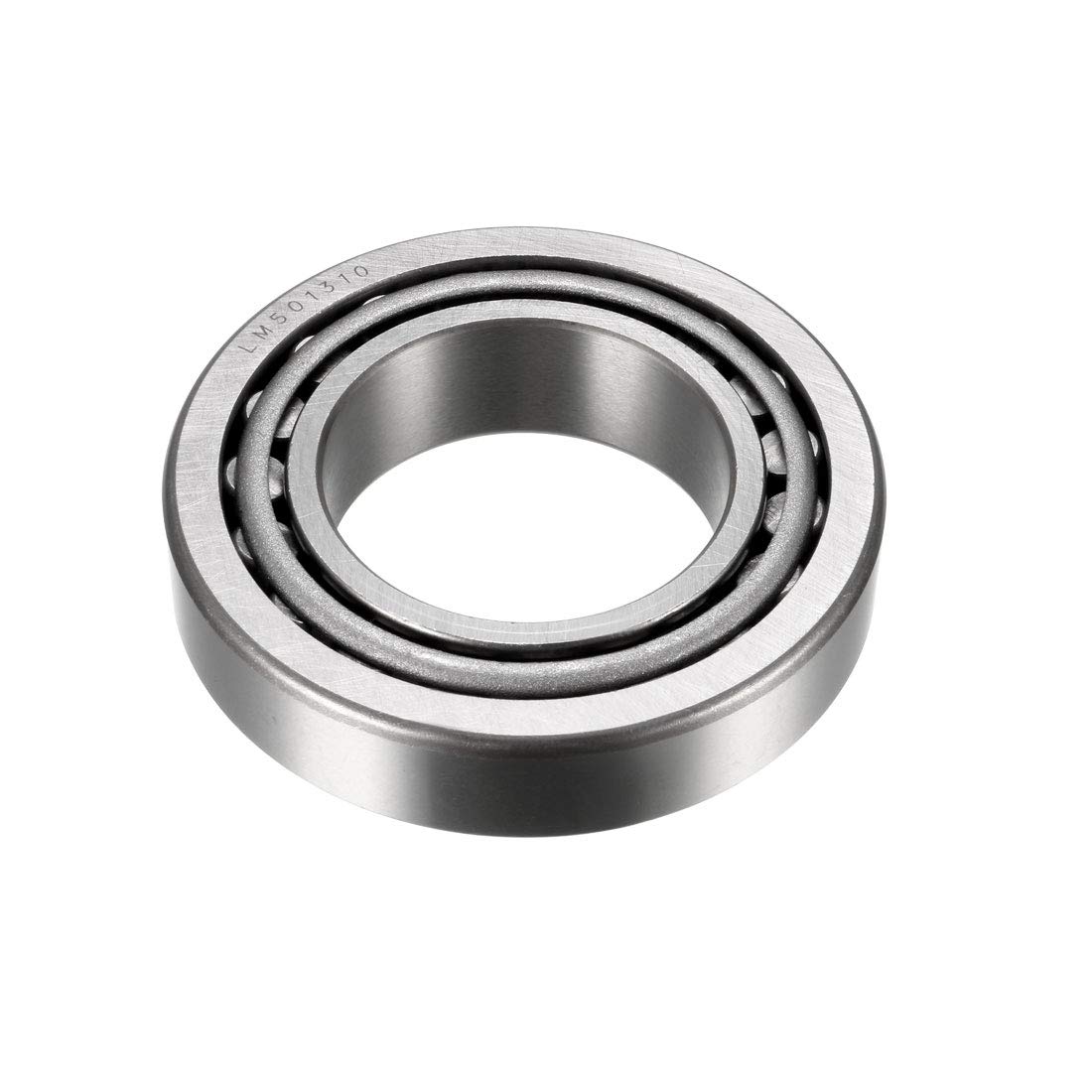

uxcell LM501349/LM501310 Tapered Roller Bearing Cone and Cup Set 1.625" Bore 2.891" O.D. 0.77" Width

• Model: LM501349/LM501310 (Bore: 41.275mm / 1.625", Outer Diameter: 73.431mm / 2.891", Width: 19.558mm / 0.77")
• Single row tapered roller bearings must be used either with a second bearing or as a matched pair
• Components are separable and interchangeable that easy for maintenance
• Features low friction and low noise that provide operational reliability
• Static Load Rating of 74.2kN and Dynamic Load Rating of 74.8kN

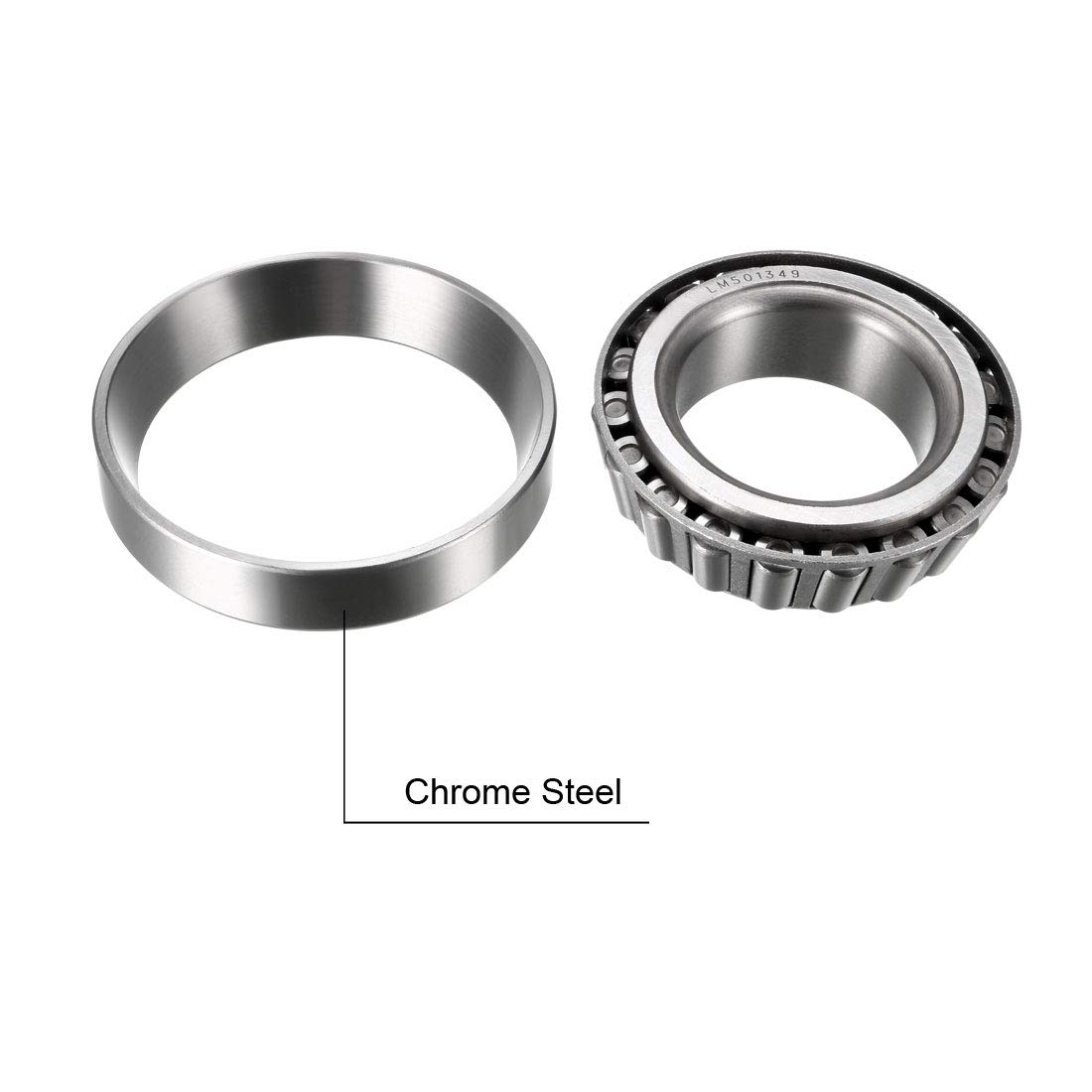

Description: Single Row Tapered Roller Bearings are designed to accommodate combined loads. These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller. The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines. This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems. Specification: Cone Model: LM501349 Cup Model: LM501310 Material: Chrome Steel Bore Diameter: 41.275mm / 1.625" Outside Diameter: 73.431mm / 2.891" Total Thickness: 19.558mm / 0.77" Dynamic Load Rating (Cr): 74800N Static Load Rating (Cor): 74200N
