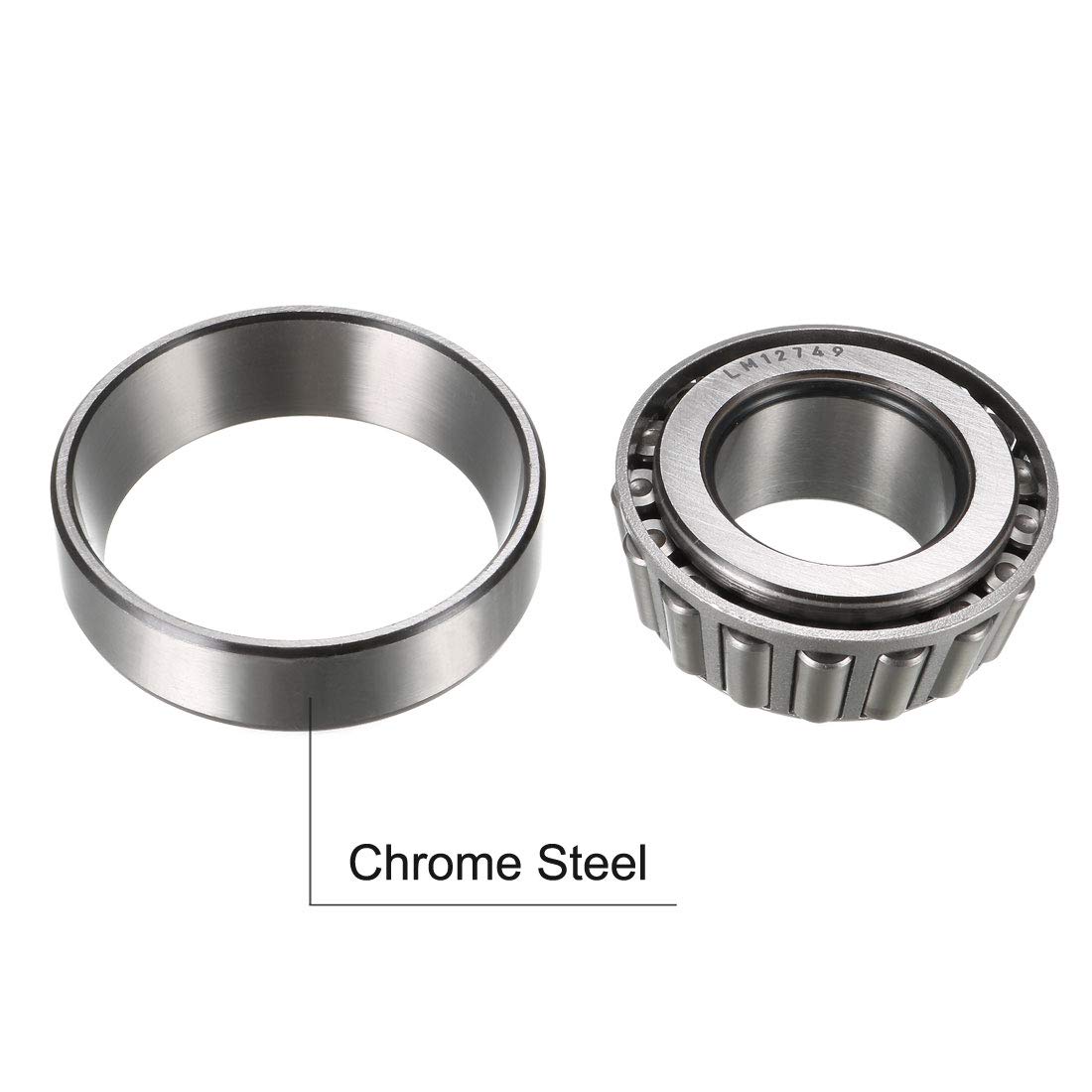

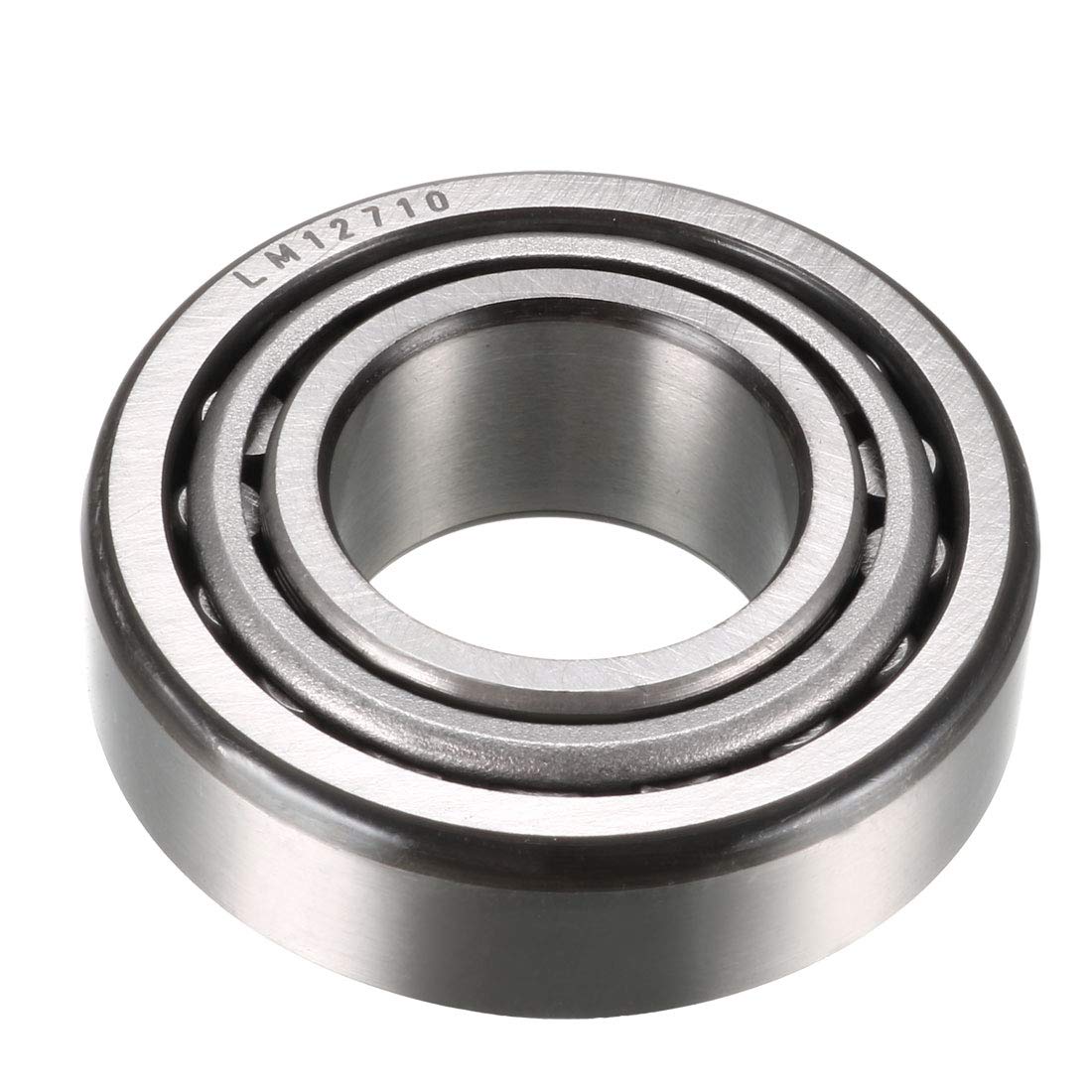

uxcell LM12749/LM12710 Tapered Roller Bearing Cone and Cup Set 0.8656" Bore 1.781" O.D. 0.61" Width

• Model: LM12749/LM12710 (Bore: 21.986mm / 0.8656", Outer Diameter: 45.237mm / 1.781", Width: 15.494mm / 0.61")
• Single row tapered roller bearings must be used either with a second bearing or as a matched pair
• Components are separable and interchangeable that easy for maintenance
• Features low friction and low noise that provide operational reliability
• Static Load Rating of 35.3kN and Dynamic Load Rating of 38.6kN

Description: Single Row Tapered Roller Bearings are designed to accommodate combined loads. These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and axial loads evenly across the roller. The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup). The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines. This single tapered roller bearing is for use in high-load, moderate-speed applications that include automotive axle systems and conveyor systems. Specification: Cone Model: LM12749 Cup Model: LM12710 Material: Chrome Steel Bore Diameter: 21.986mm / 0.8656" Outside Diameter: 45.237mm / 1.781" Total Thickness: 15.494mm / 0.61" Dynamic Load Rating (Cr): 38600N Static Load Rating (Cor): 35300N
