uxcell 3204-2RS Angular Contact Ball Bearing 20x47x20.6mm Sealed Bearings 5204-2RS
About this item

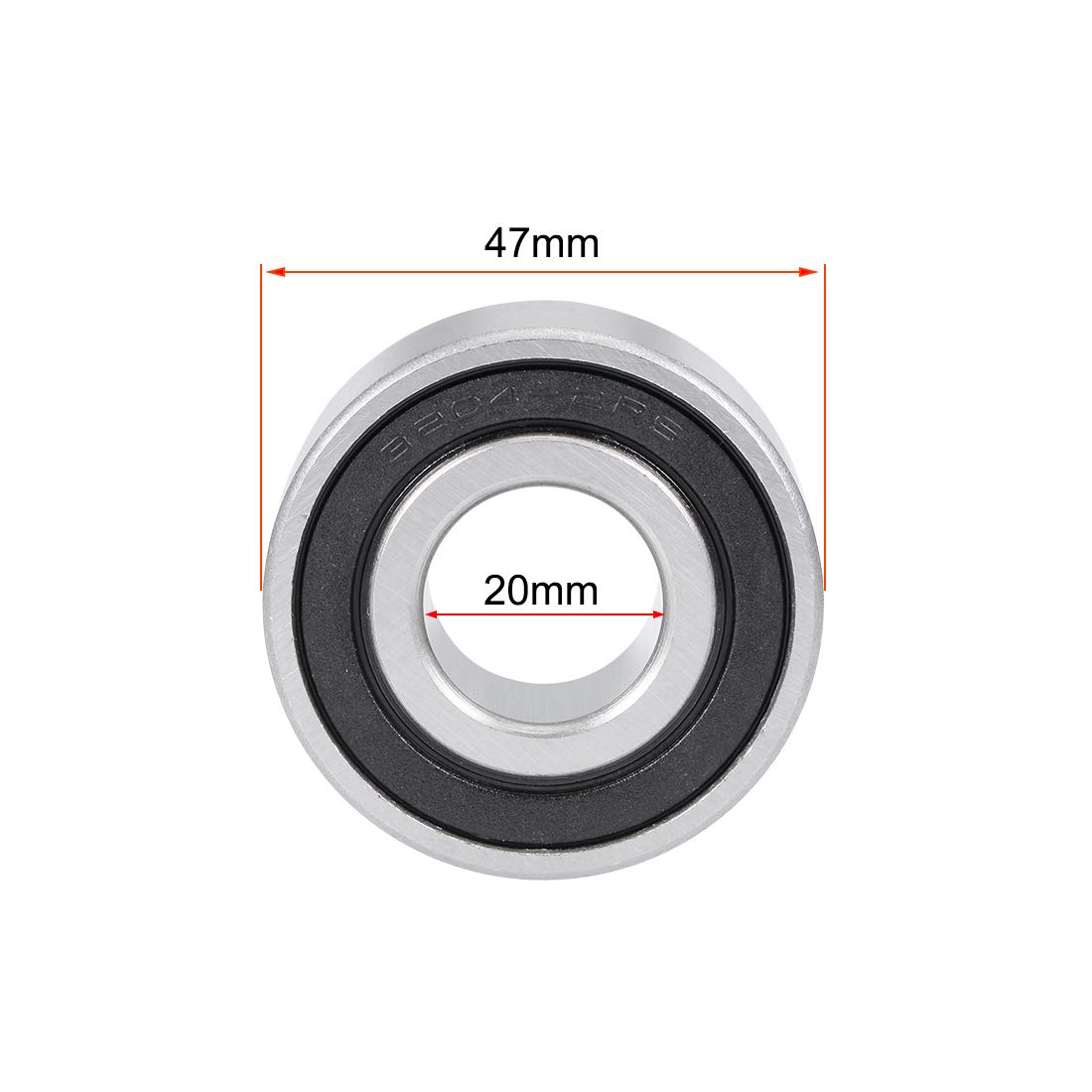

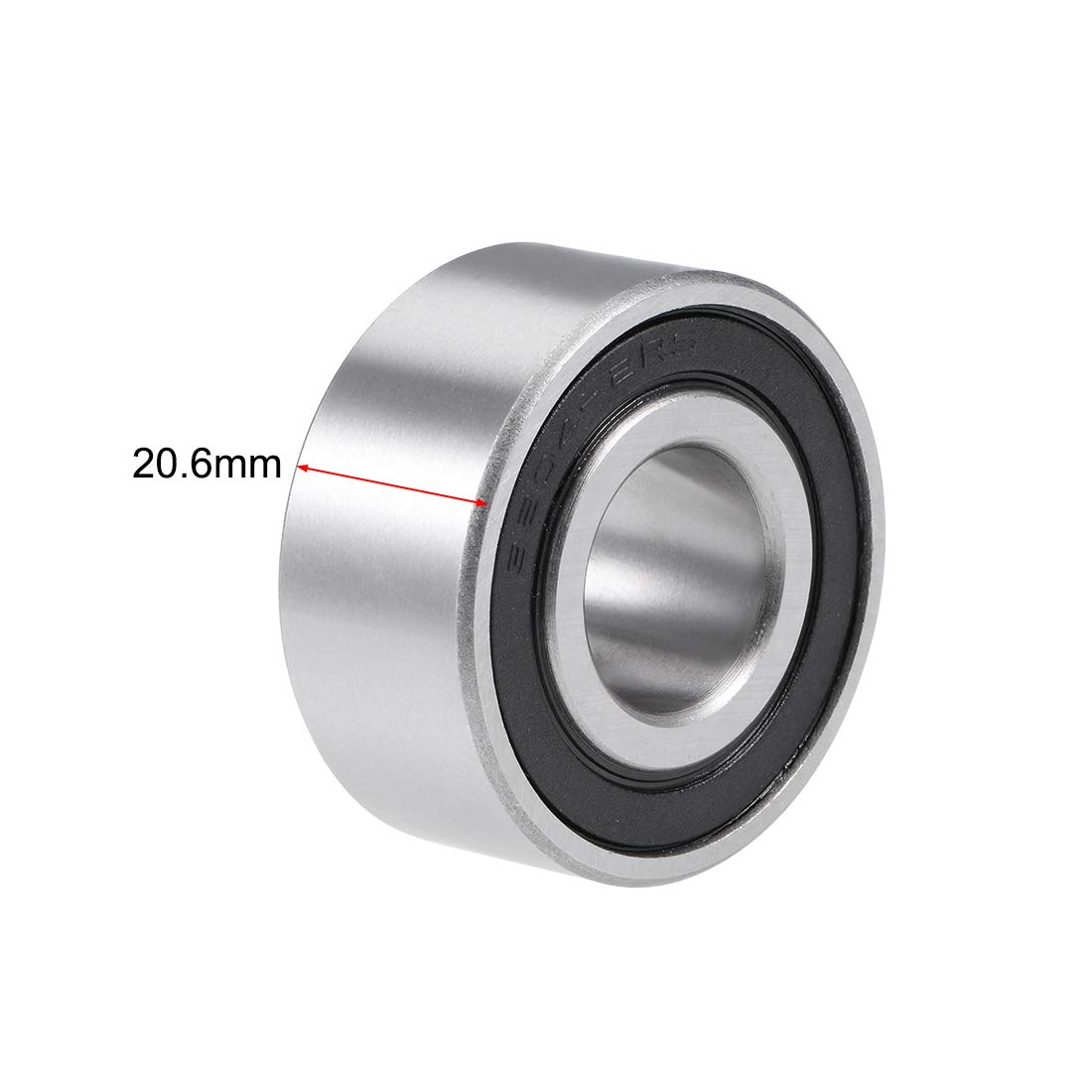

- 3204-2RS (I.D.=20mm, O.D.=47mm, Thickness=20.6mm)

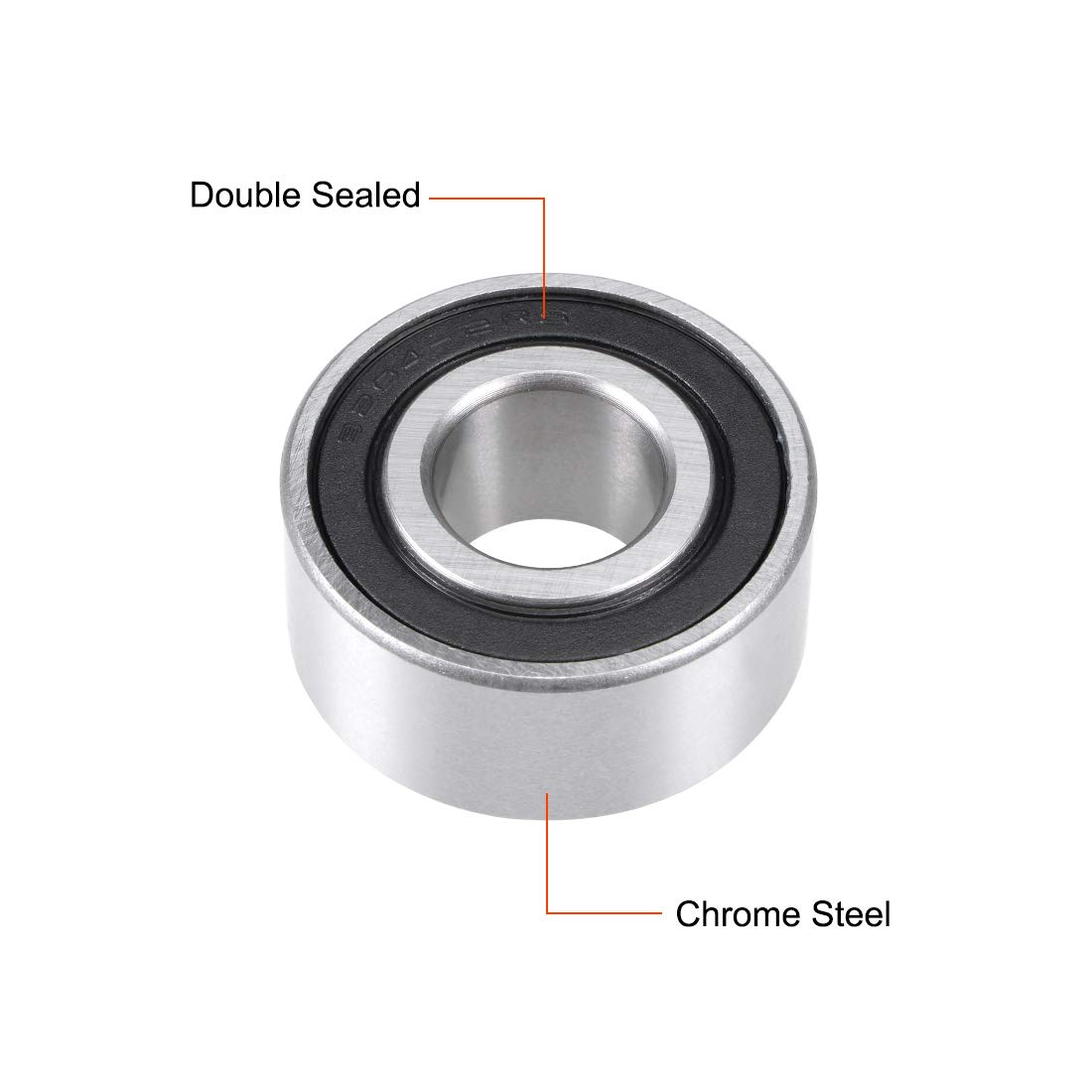

- 3204rs bearings are sealed on BOTH SIDES to keep lubricant in
- Chromium Steel long-life bearings, smooth and low noise
- ABEC Tolerance 1 (P0), Z1 Noise Level for most general use
- Static load rating of 17200 newtons and dynamic load rating of 15000 newtons
Product description
Description: Double-row, pre-lubricated, normal accuracy. Angular Contact Ball Bearings are designed to accommodate combined loads. They accommodate radial as well as loads and tilting moments in either direction. The load carrying capacity of angular contact ball bearings increases as the contact angle increases. With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance. Chromium Steel (GCr15) made with heat treating, provides high and uniform hardness, good wear resistance. Suitable for use in commercial and industrial applications including pumps and compressors, gearboxes, and printing machines, among others. Specification: Model: 3204-2RS (5204-2RS) Seal Type: Double Sealed Inner Race/Outer Race Material: Chrome Steel (GCr15) Cage Material: Stamping Steel Inner Diameter (d): 20mm Outer Diameter (D): 47mm Thickness (B): 20.6mm Dynamic Load Rating (Cr): 17.2kN Static Load Rating (Cor): 15.0kN Accuracy Class: P0 (ABEC-1) Noise Level: Z1 Number of Pack: 1 Pcs
Product details
