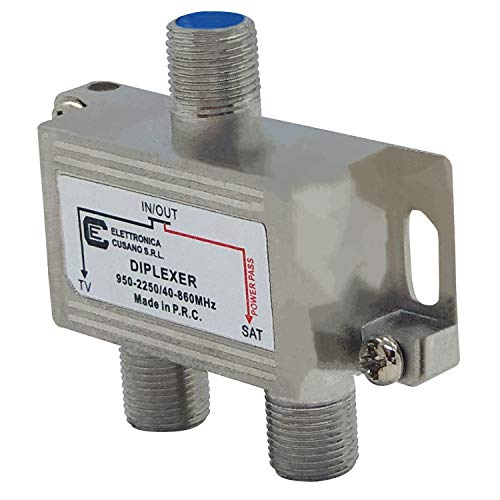

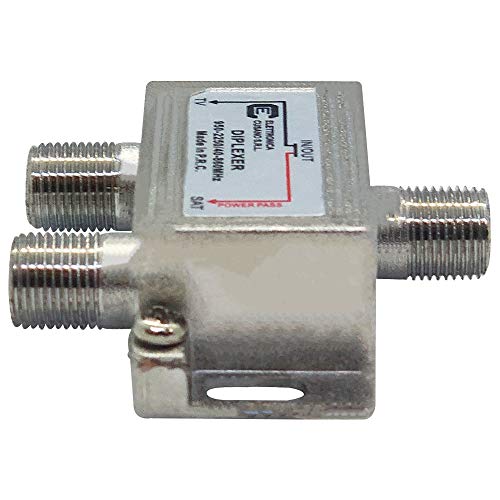

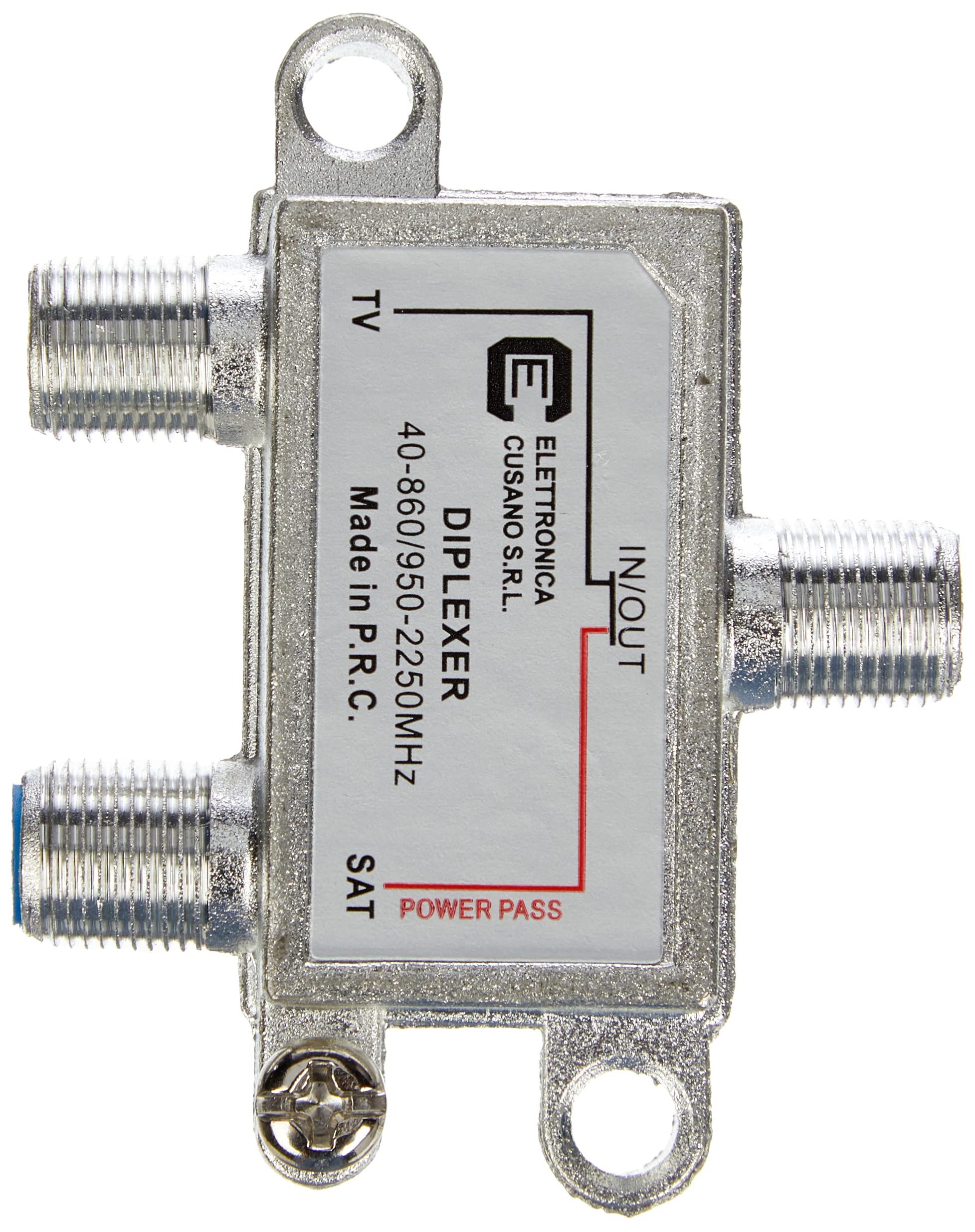

UV40 - Displexer/Mixer/Demhos Terrestre and Satellite

• Demifax TV Sat Mixer Tap with Metal Housing and EFFE Connections
• 1 input - 2 outputs
• Frequencies: Earth (5 – 862 MHz) – Satellite (950 – 2400 MHz)
• Passage C.C. (continuous current) only satellite side
• Input and output impedance: 75Ω

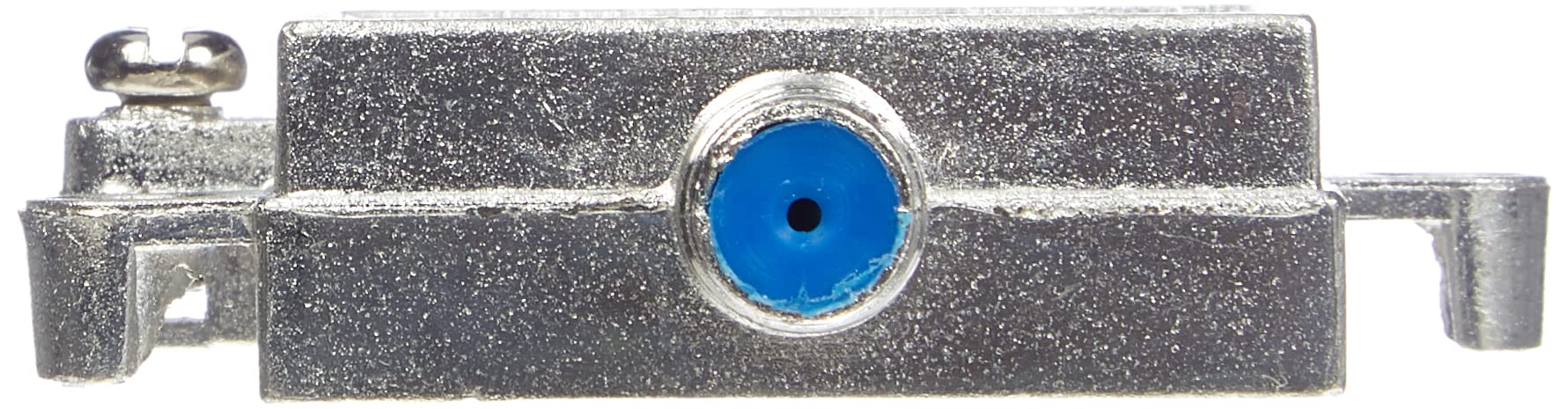

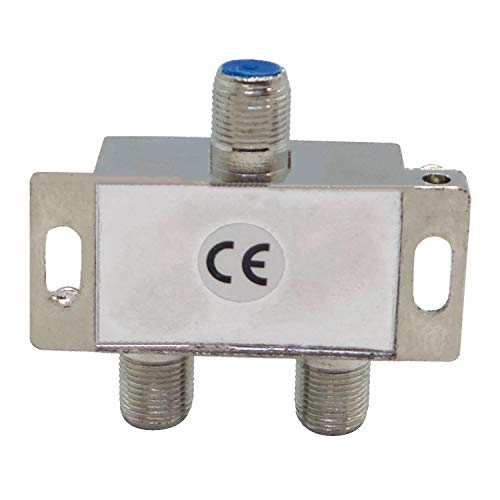

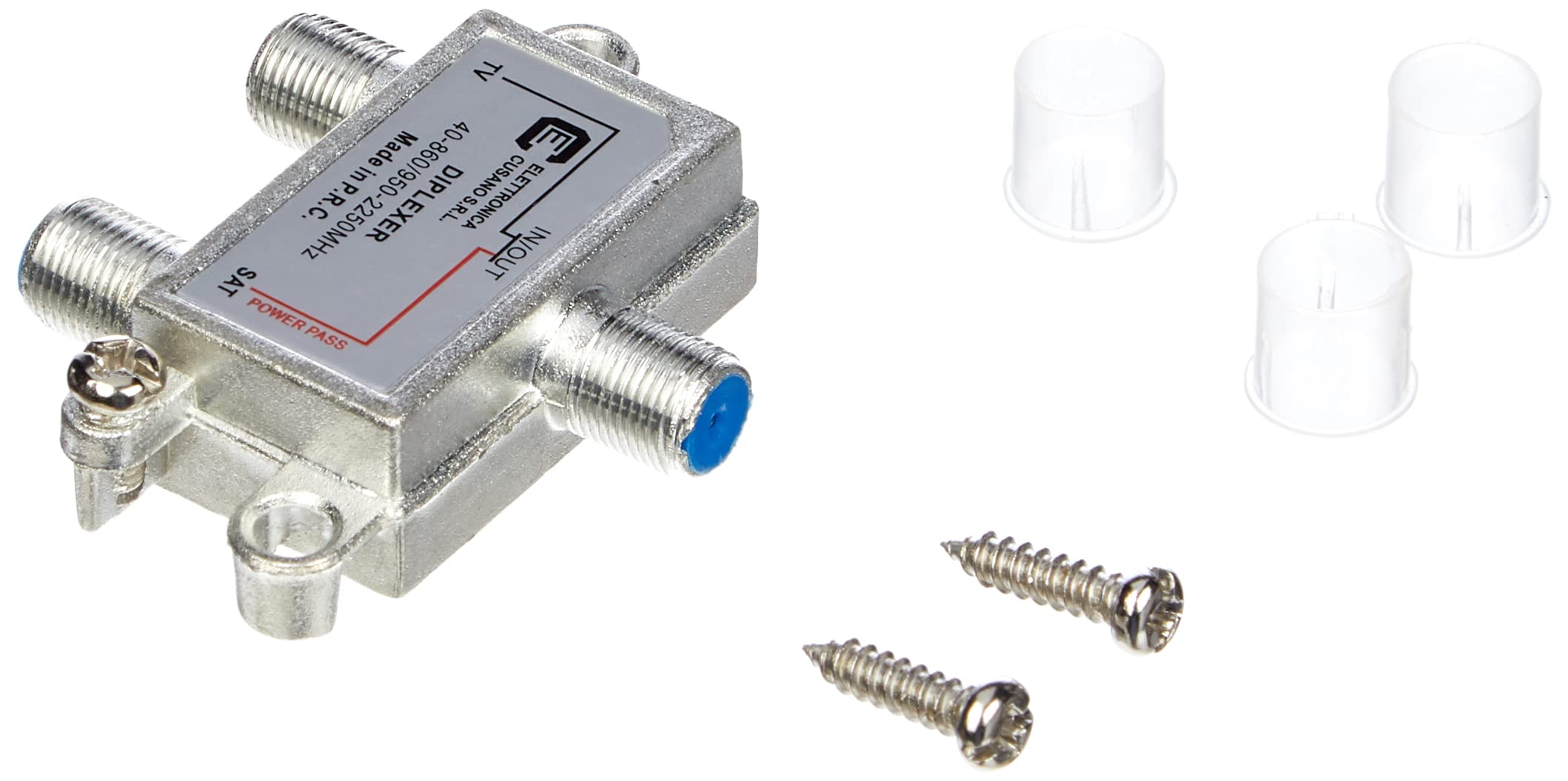

The UV40 is an indoor single-lever mixer made from a cast metal housing with screw connections of the type EFFE for use in the frequency range of 5 to 2400 MHz. This special mixture has been designed for the manufacture of TV/satellite reception systems as it allows the signals from the satellite dish to the digital terrestrial television centre. Can be used as a mixer tap (inputs are outputs) and in this case you can disconnect the DTT signals from SATA. Allows the transition of sound and voltage only for the satellite parts. You can attach the divider inside the junction box with 2 already attached eyelets in its metal housing with the help of 2 small screws.
