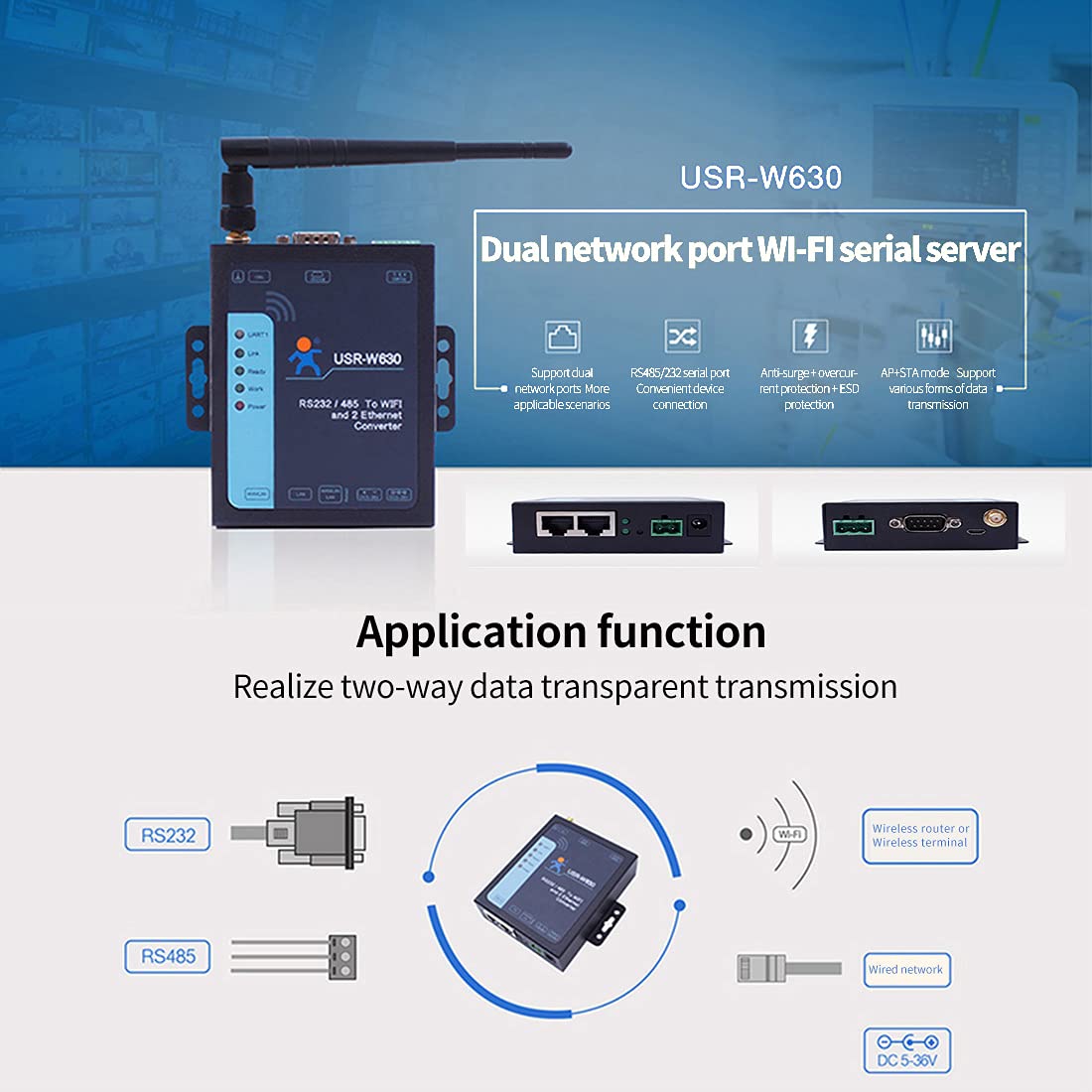

USR-W630 Industrial Serial to WiFi and Ethernet Converter. Supports 2 Ethernet Ports, Modbus RTU-DC Adapter and Terminal Power Supply 5-36V

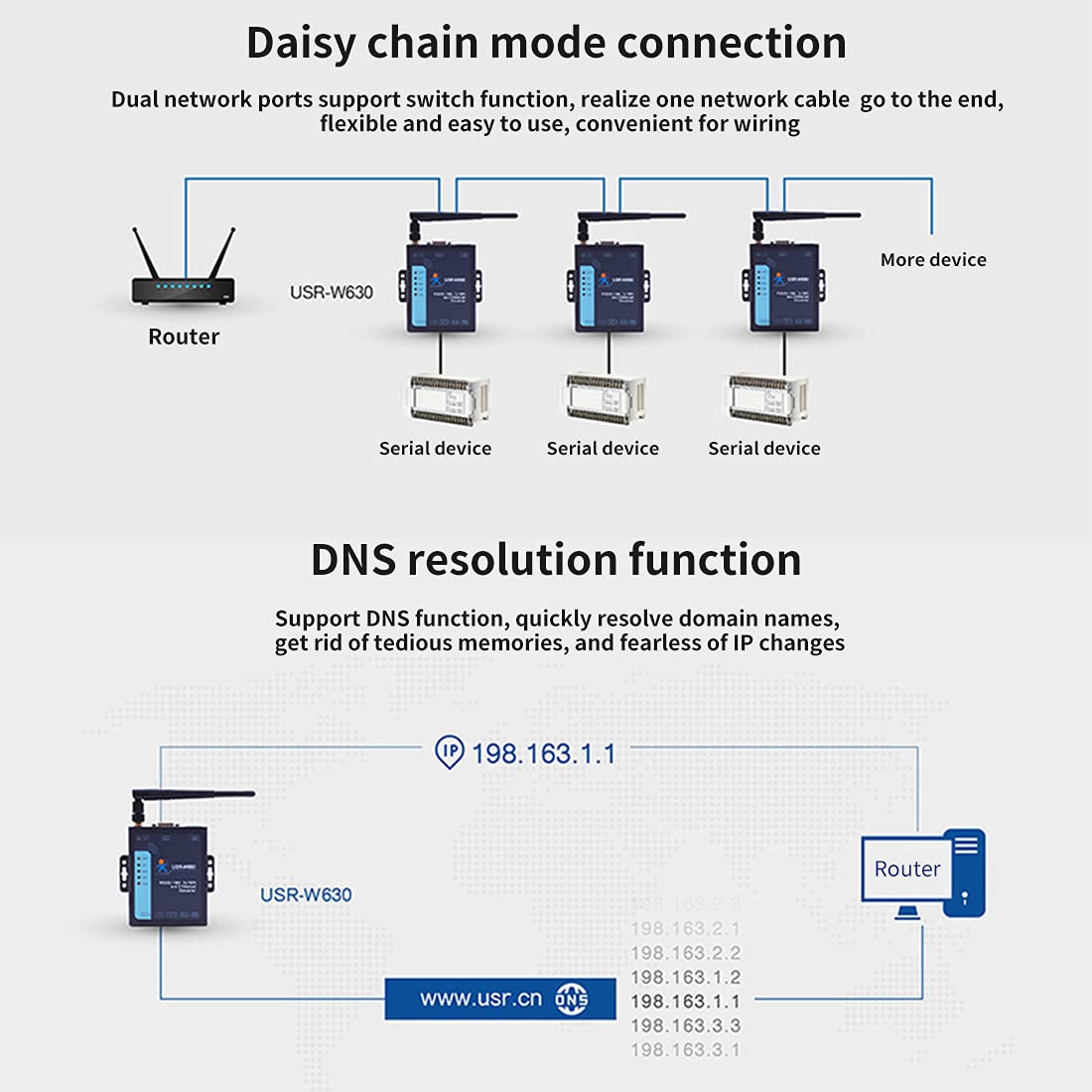

• Two Ethernet Ports: 1x WAN, 1x LAN/WAN Two Ethernet ports (WAN and LAN) can be operated simultaneously

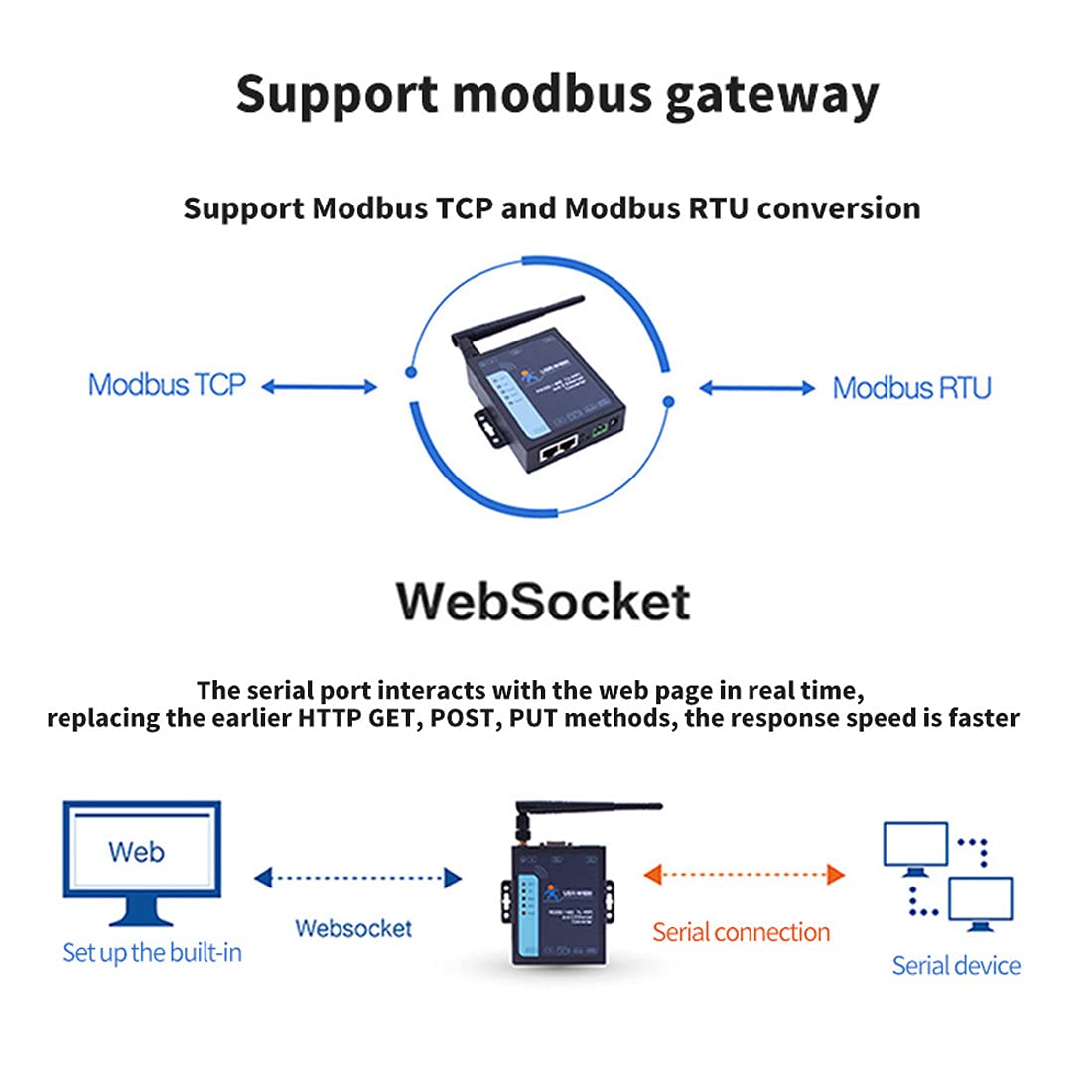

• Modbus Gateway: Modbus TCP to Modbus RTU in two directions; Modbus Poling

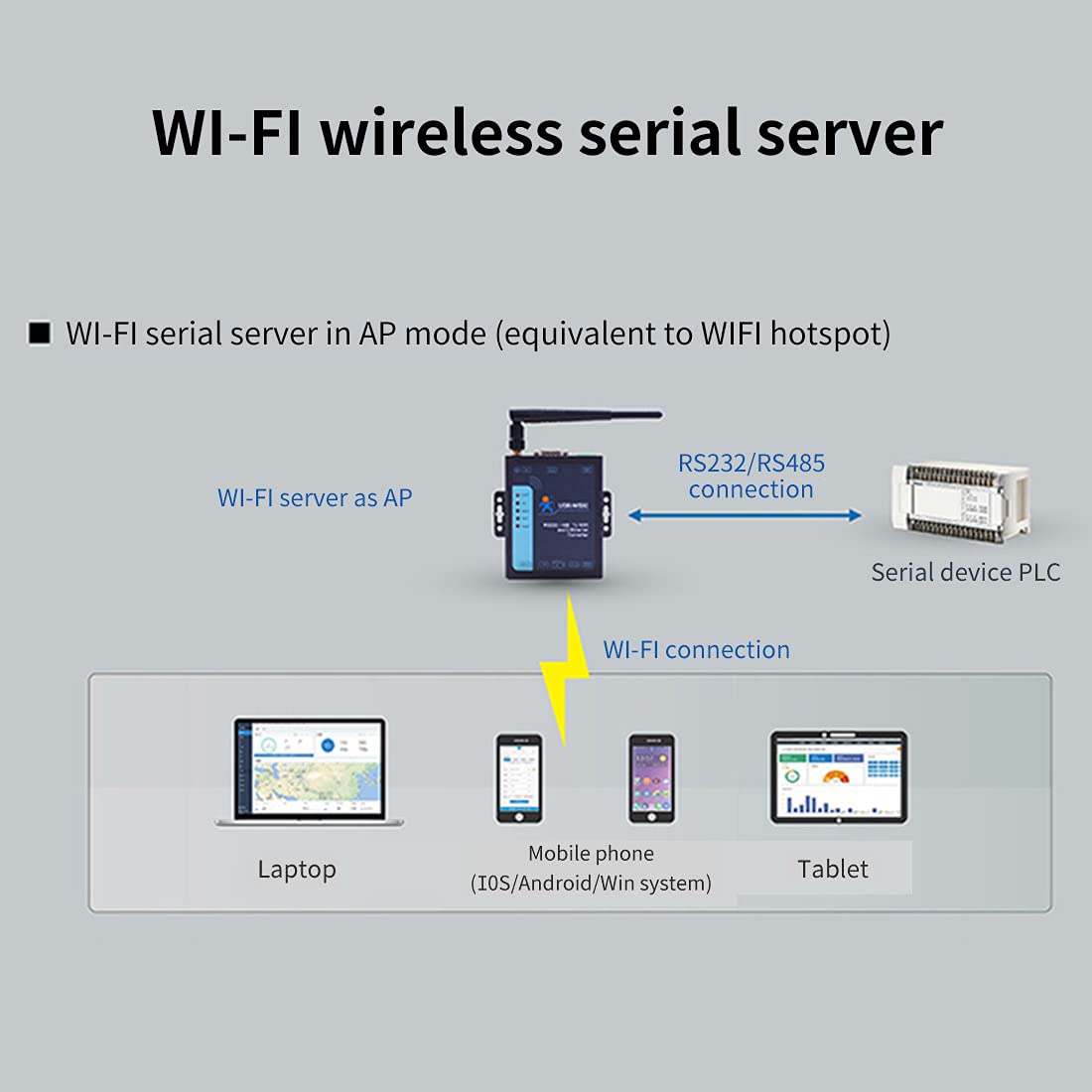

• 2 Ethernet ports serial to WiFi and Ethernet converter Usr-W630, which can realise bi-directional transparent transmission between Rs232 / Rs485 and Wifi, Wifi and Ethernet, serial and Ethernet
• Supports web server, setup software, serial/network-AT command to configure the module; WIFI standard: 2.4GHz 802.11b/g/n
• Working mode: TCP server / TCP client / UDP server / UDP client / HTTP client mode

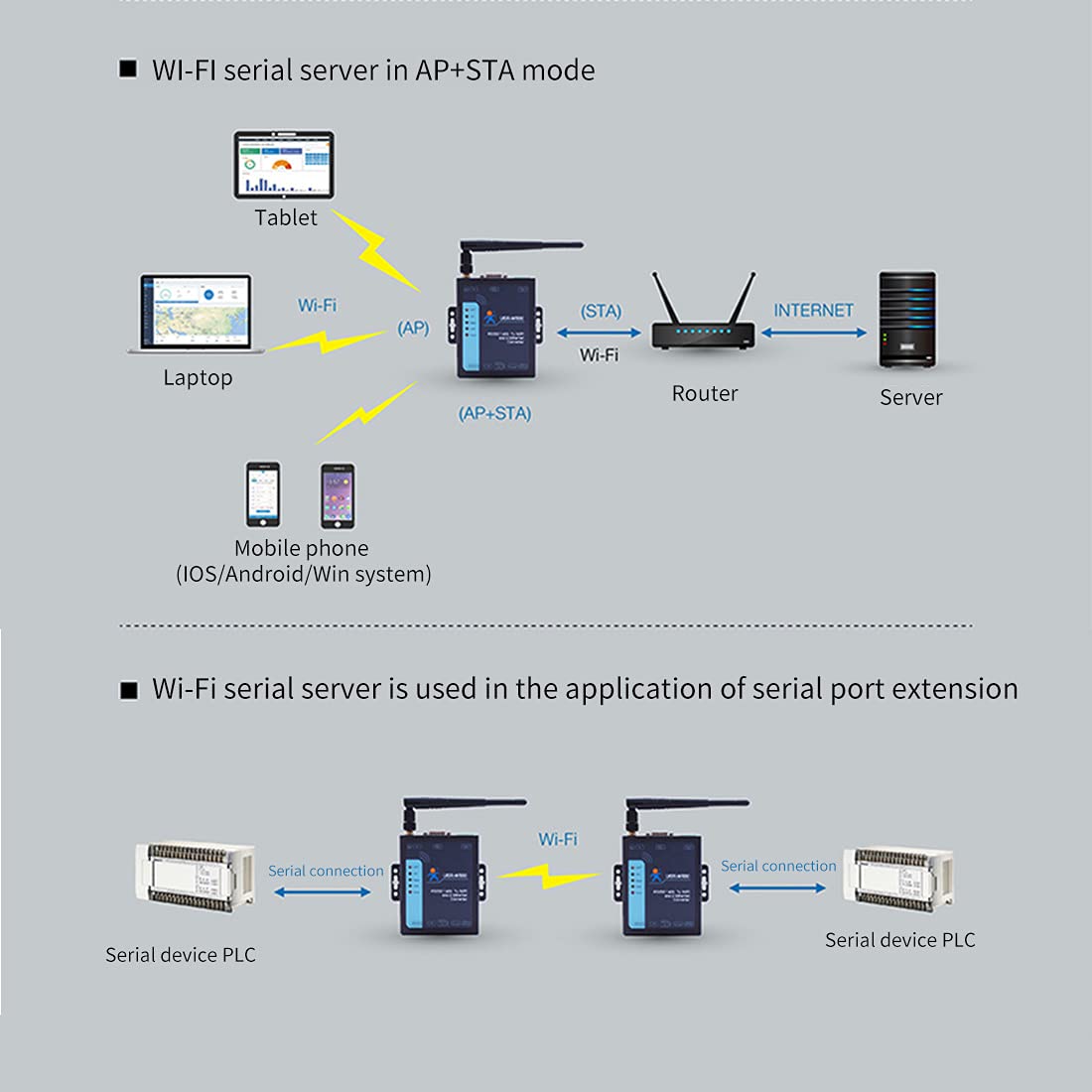

Product description: Features: 1. Two Ethernet Ports, Wan / Lan Port 3. Supports Modbus Rtu to Tcp, Modbus Polling. 4. Hardware Watchdog to Kee Working Stable 5. DC adapter and terminal power supply 5-36 V. 6. Serial to WiFi or WiFi to Ethernet 7. 2 Ethernet ports serial to Wifi and Ethernet converter Usr-W630, which can realize bidirectional transparent transmission between Rs232/Rs485 and Wifi, WiFi and Ethernet, serial and Ethernet. Characters Two Ethernet ports: 1x WAN, 1x LAN/WAN Two Ethernet ports (WAN and LAN) can be worked simultaneously. Modbus gateway: Modbus TCP to Modbus RTU in bi-directional; Modbus polling electrostatic protection. Hardware WatchDog, 24 hours stable operation. Timeout reset function, timing reset function. Supports identity packet function. Supports heartbeat packet function. Websocket function. Supports web server, setup software, serial/network AT command to configure module. Hardware reload. WiFi standard: 2.4GHz 802.11b/g/n Work mode: TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode. Supports AP, STA, AP+STA. Supports usrlink. EFT: Passed EFT test If the circuit currently has a high current (e.g. flash, power switch, etc.), can be sure that the device hardware is not damaged. Power supply: 2KV, Ethernet interface 232 485: 2KV
