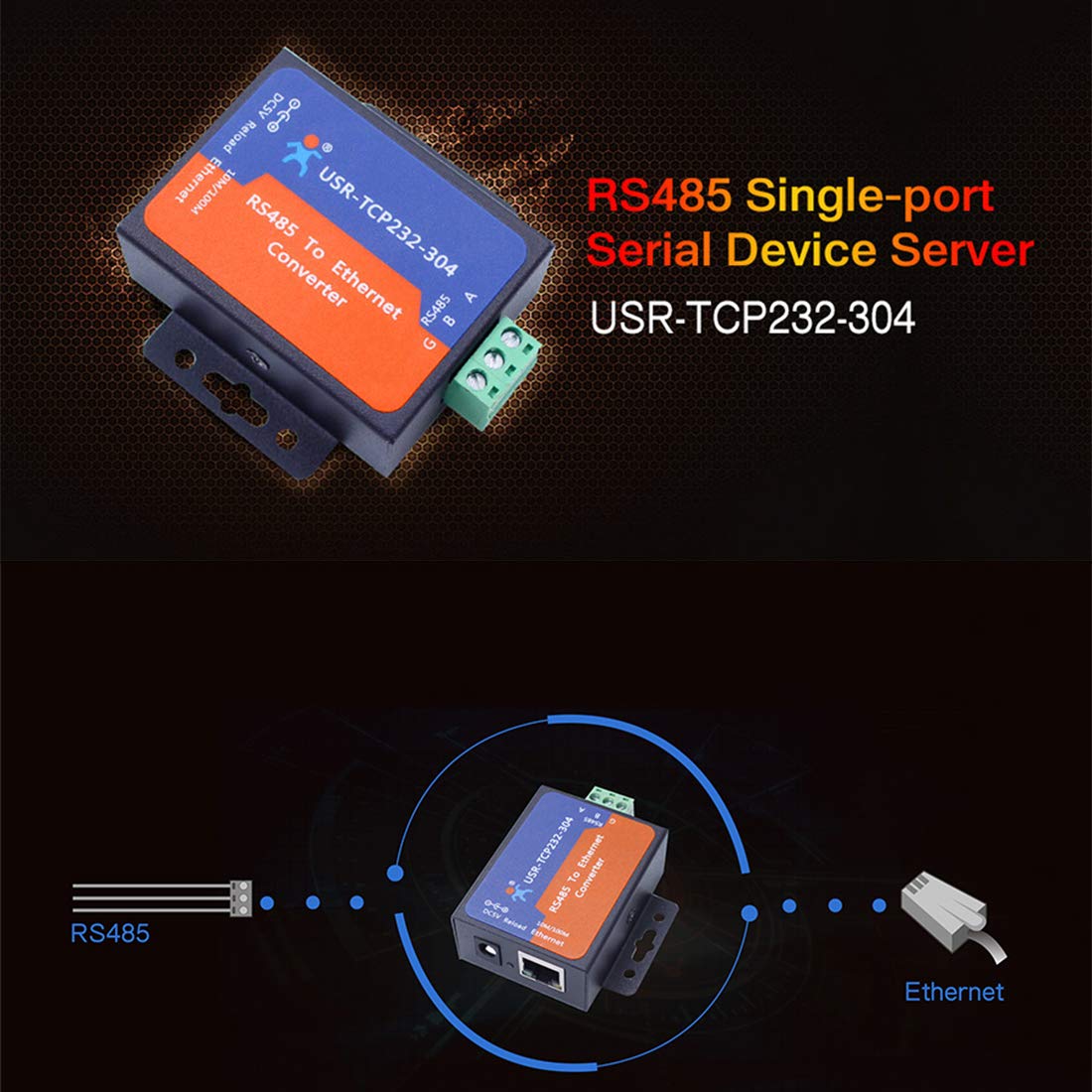

USR-TCP232-304 Serial RS485 to TCP/IP Ethernet Server Converter Module with Built-in Webpage DHCP/DNS Supported

• 1-port RS485 to Ethernet converters USR-TCP232-304 can transmit data transparently between TCP/IP and RS485, are widespread required in industrial automation. Simple configuration and easy to use.
• Network Protocol:IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
• Network Protocol:IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
• BufferSend: 6K bytes, receive: 4K bytes

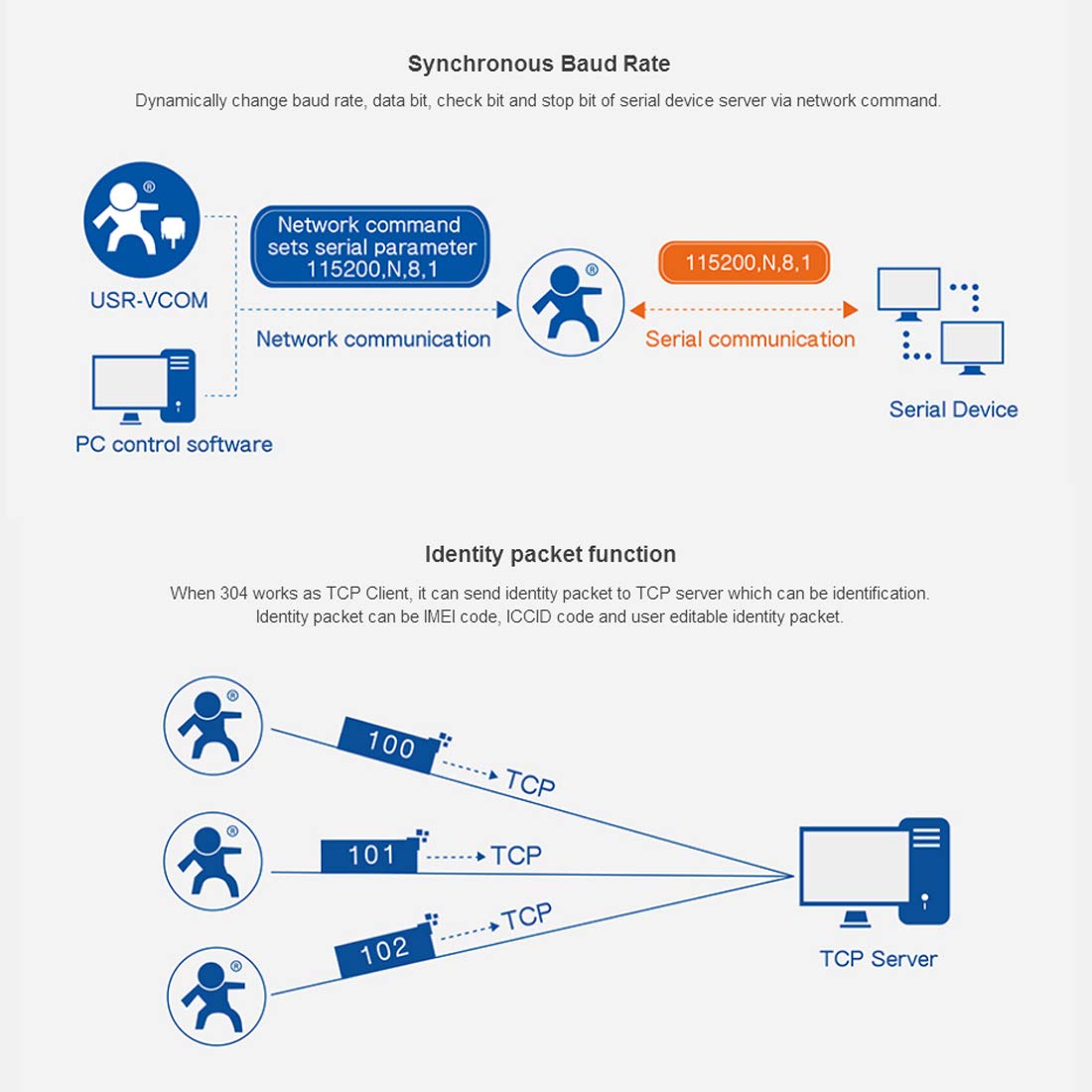

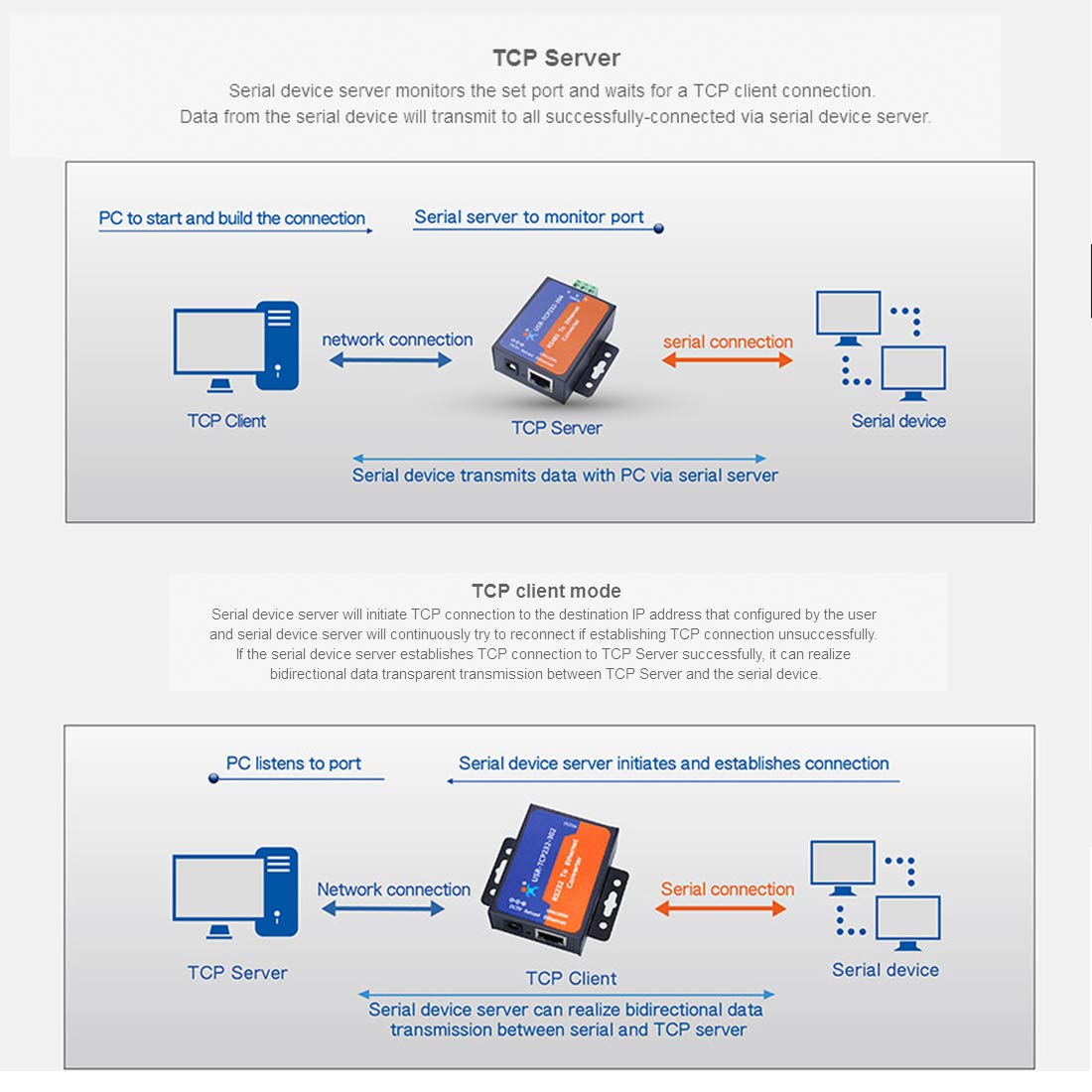

• Support TCP server/client, UDP server/client, virtual COM

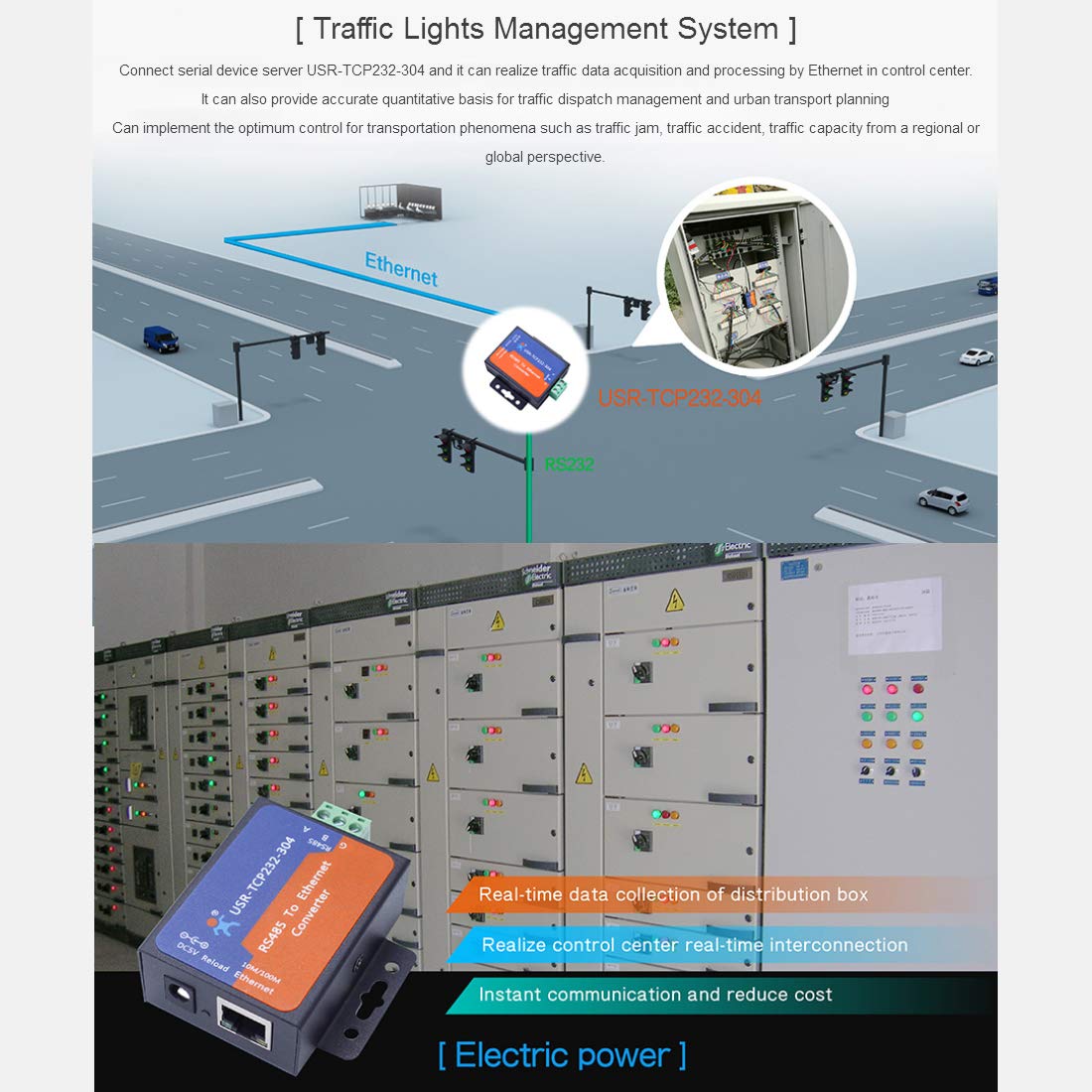

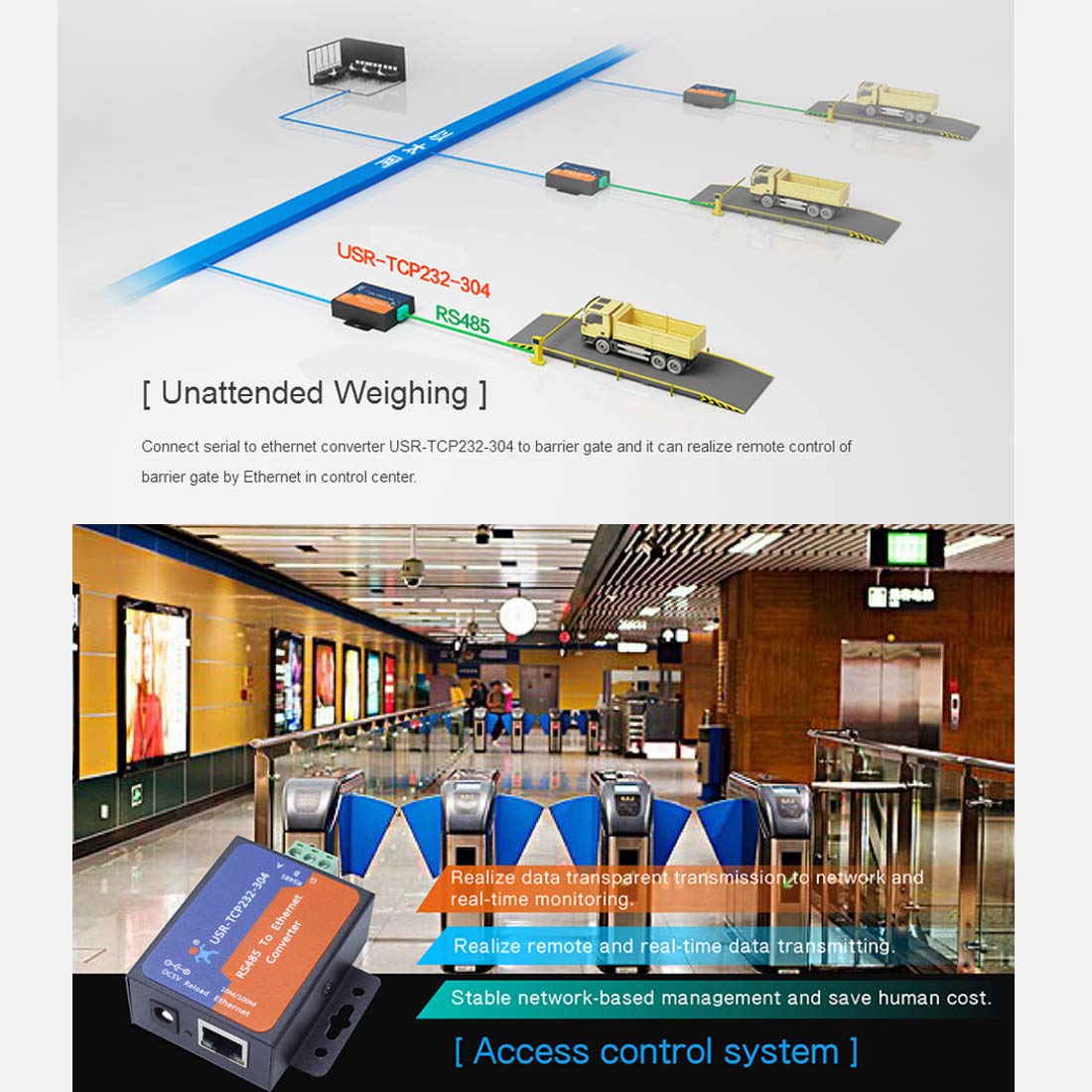

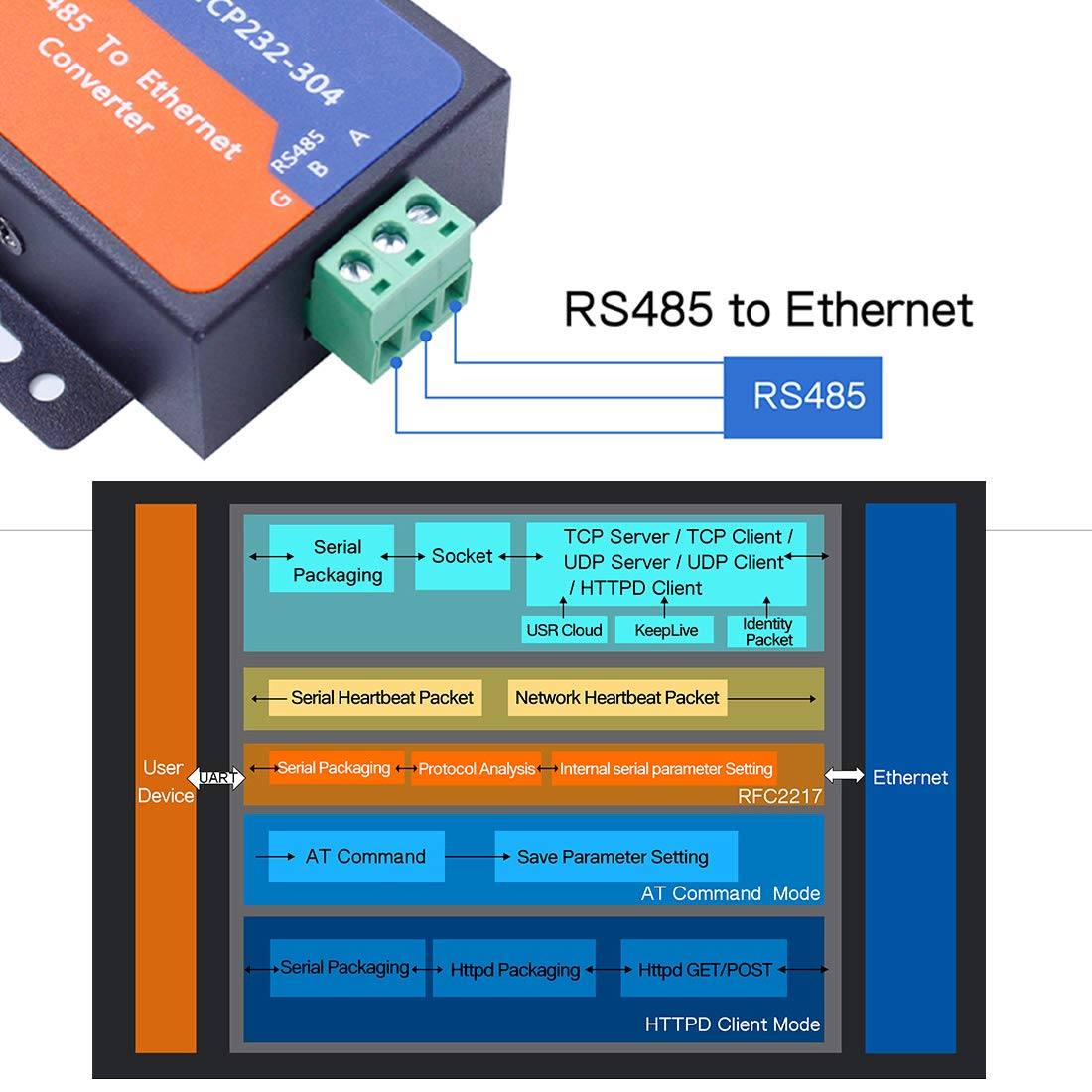

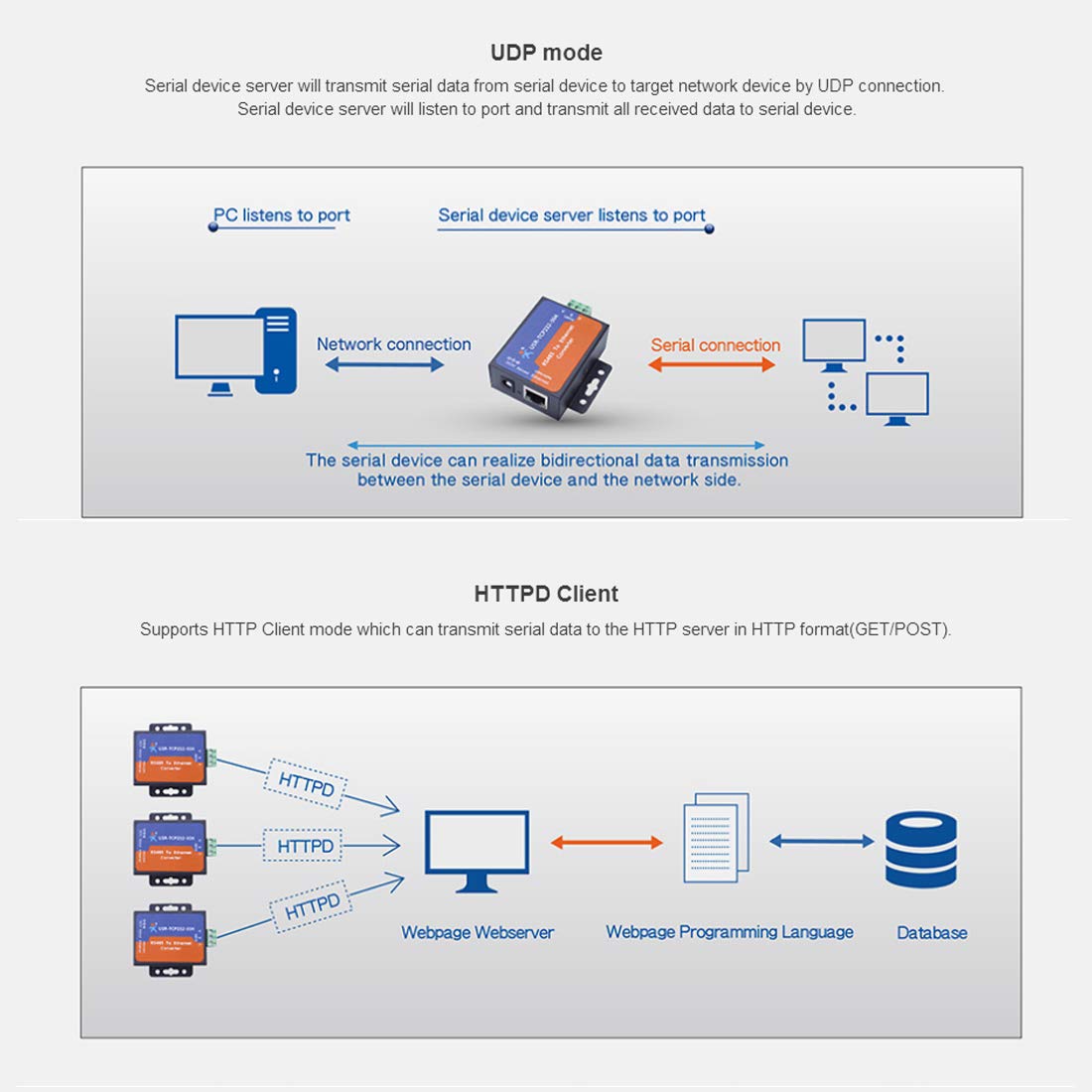

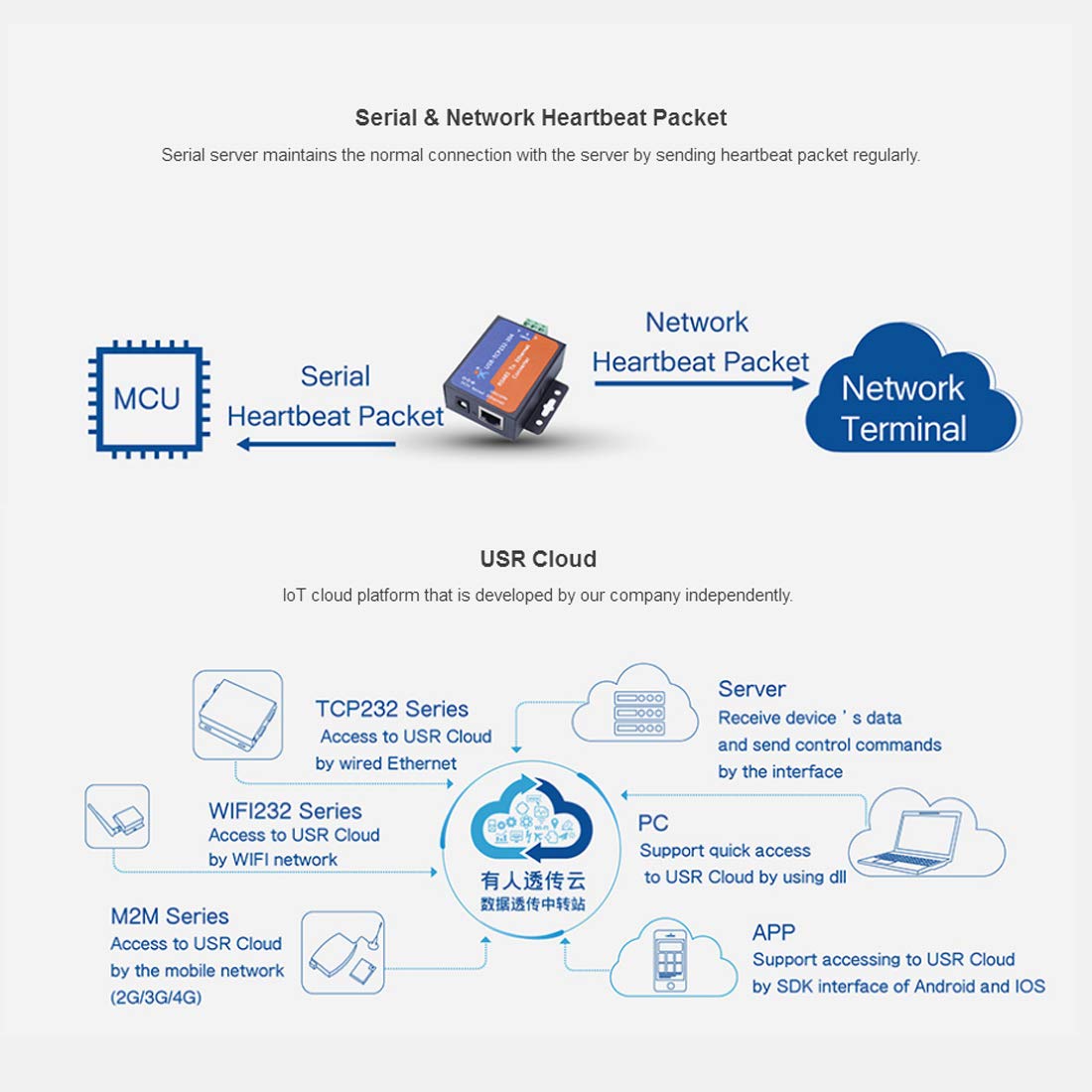

Detail Detail Features of RS485 Ethernet Server Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol Support DNS function Set parameters through webpage Upgrade firmware via network Auto-MDI/MDIX, RJ45 port with 10/100Mbps Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space Work mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client Support virtual serial port and provide corresponding software USR-VCOM Heartbeat package mechanism to ensure connection is reliable, put an end to dead link User-defined registration package mechanism, check connection status and use as custom packet header Under TCP Server mode, Client number ranges from 1 to 16; default number is 4 The global unique MAC address bought from IEEE, user can define MAC address Restore factory default Across the gateway, switches, routers Can work in LAN, also can work in the Internet (external network) Provide PC TCP/IP socket programming example such as VB,C++,Delphi,Android and IOS Support customization Application Field of RS485 Ethernet Server Industrial data transmission, industrial automation security and protection monitoring, public security Smart home, power control, environmental monitoring, intelligent agriculture Door check on work attendance system, POS system, rice selling system Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
