USR-TCP232-302 Tiny Size Serial RS232 to Ethernet TCP IP Server Module Ethernet Converter Support DHCP/DNS

• New model [USR-TCP232-302] RS232 to Ethernet converter is upgraded version of old one [USR-TCP232-200]
• Serial RS232 To Ethernet Server, Used For Data Transparent Transmission.
• USR-TCP232-302 Is Internally Integrated With TCP/IP Protocol. User Can Apply It To Device Networking Communication.

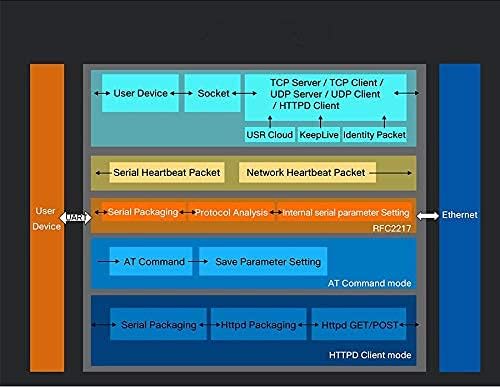

• Work Mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client
• Can Work In LAN, Also Can Work In The Internet (External Network)

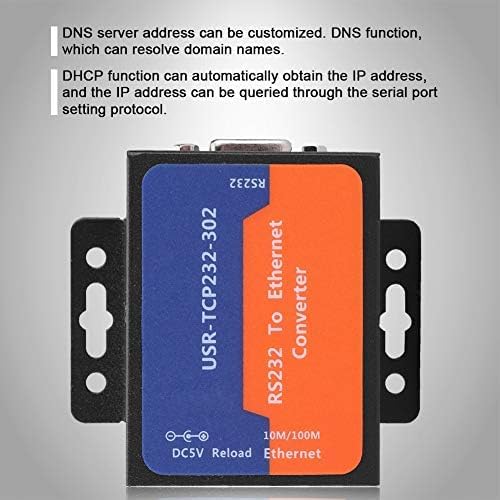

New model [USR-TCP232-302] RS232 to Ethernet converter is upgraded version of old one [USR-TCP232-200] This Is a Serial RS232 To Ethernet Server, Used For Data Transparent Transmission. USR-TCP232-302 Is a Low-Cost Serial Device Server,Whose Function Is To Realize Bidirectional Transparent Transmission Between RS232 And Ethernet. Features Of RS232 Ethernet Server Support DHCP, Automatically Obtain An IP Address And Query IP Address Through Serial Setting Protocol Support DNS Function Set Parameters Through Webpage Upgrade Firmware Via Network Auto-MDI/MDIX, RJ45 Port With 10/100Mbps Serial Port Baud Rate From 600 Bps To 230.4 Kbps, Check Bit Of None, Odd, Even, Mark And Space Work Mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client Support Virtual Serial Port And Provide Corresponding Software USR-VCOM Heartbeat Package Mechanism To Ensure Connection Is Reliable, Put An End To Dead Link User-Defined Registration Package Mechanism, Check Connection Status And Use As Custom Packet Header Under TCP Server Mode, Client Number Ranges From 1 To 16; Default Number Is 4 The Global Unique MAC Address Bought From IEEE, User Can Define MAC Address Restore Factory Default Across The Gateway, Switches, Routers Can Work In LAN, Also Can Work In The Internet (External Network) Provide PC TCP/IP Socket Programming Example Such As VB,C++,Delphi,Android And IOS Support Customization Application Field Of RS232 Ethernet Server Industrial Data Transmission, Industrial Automation Security And Protection Monitoring, Public Security Smart Home, Power Control, Environmental Monitoring, Intelligent Agriculture Door Check On Work Attendance System,?POS System, Rice Selling System Building Automation System, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring
