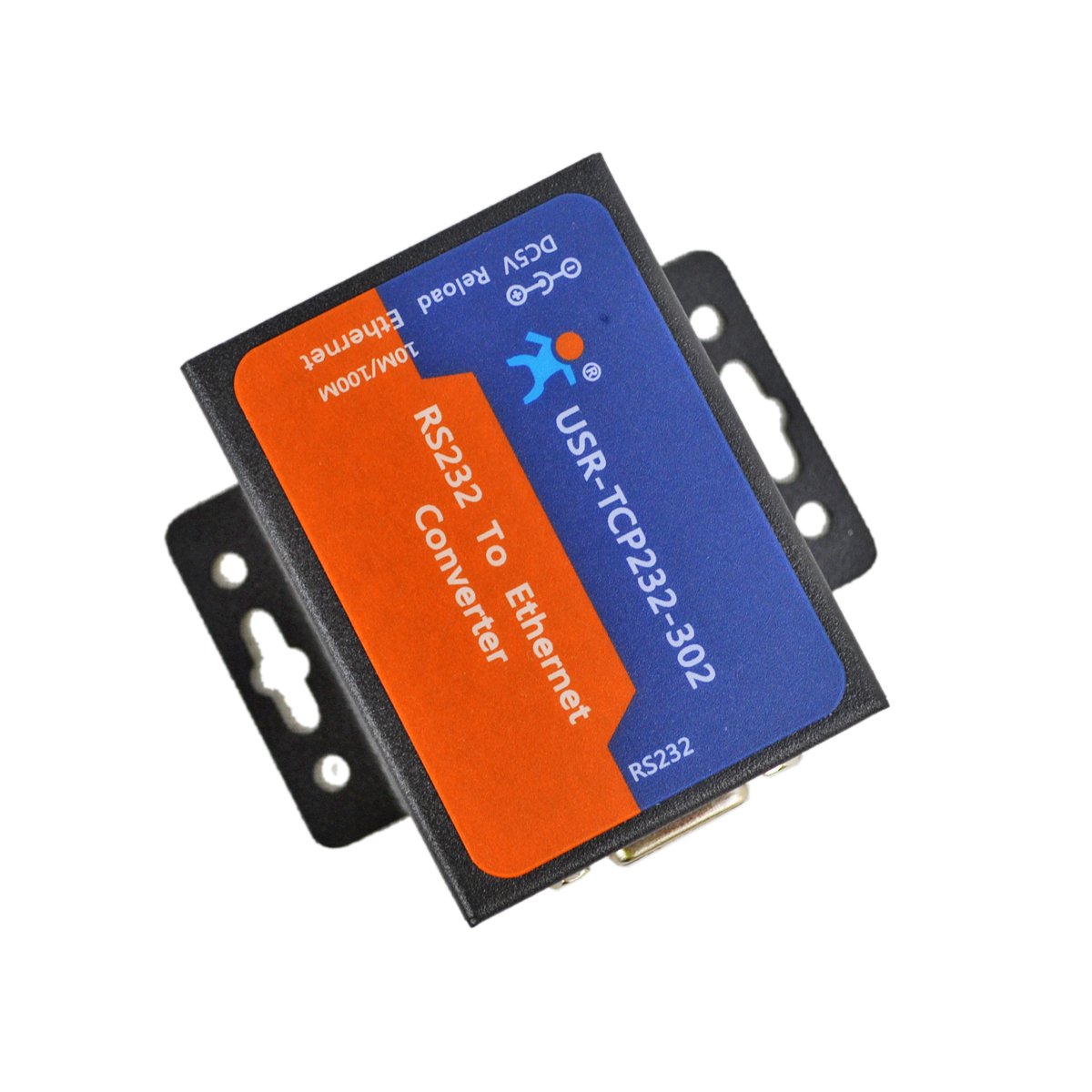

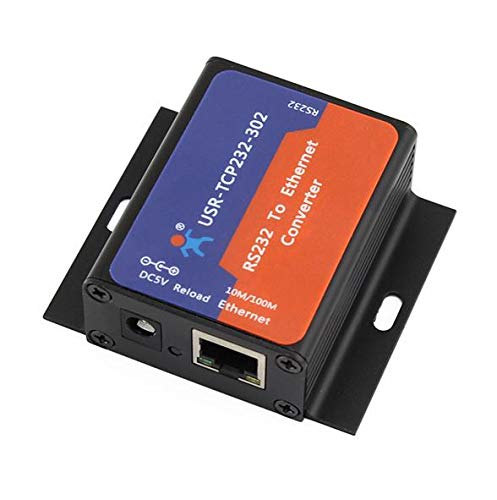

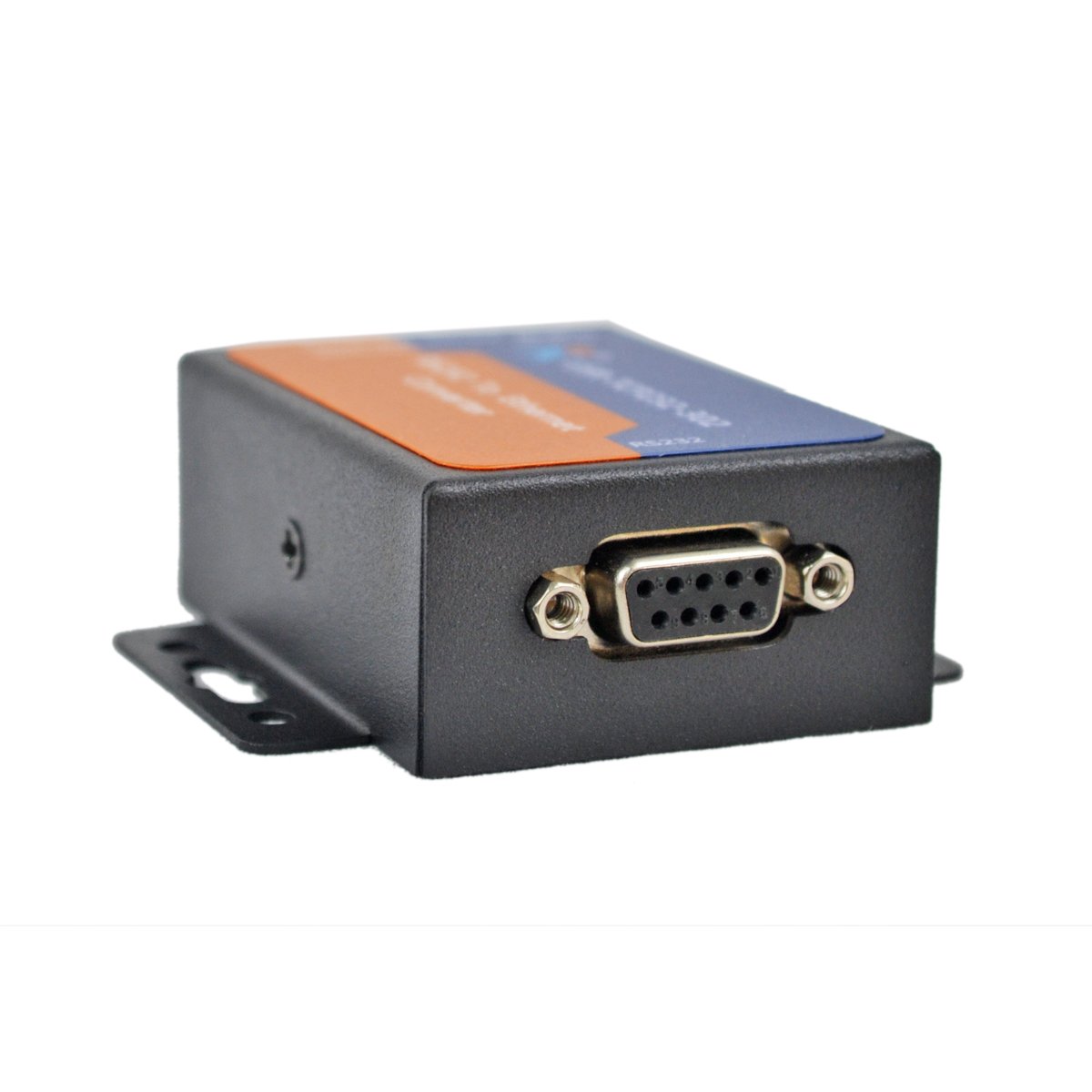

USR-TCP232-302 RS232 Serial to RJ45 Ethernet Adapter IP Converter/Device Server (UK Version)

• Usr-Tcp232-302 RS232 to RJ45 Ethernet Ip Converter: Based On ARM, is a Low-Cost Serial Device Server, Whose Function is to Realize Bidirectional Transparent Transmission Between RS232 and Ethernet. Usr-Tcp232-302 is Internally Integrated with TCP / IP Protocol. User Can Apply it to Device Networking Communication.
• Serial Port Baud Rate From 600 Bps to 230.4 Kbps, Auto-Mdi / Mdix, RJ45 Port with 10 / 100Mbps. Work Mode: Tcp Server, Tcp Client, Udp Client, Udp Server, Httpd Client. Support Dhcp / Dns.
• Upgrade Firmware Via Network, Set Parameters Through Webpage, Support Virtual Serial Port and Provide Corresponding Software Usr-Vcom.
• Under Tcp Server Mode, Client Number Ranges From 1 to 16; Default Number is 4. Provide Pc Tcp / Ip Socket Programming Example Such as Vb, C++, Delphi, Android and IOS.
• Package Content: 1 x RS232 to RJ45 Ethernet Converter, 1 x 5V 1A Power Supply.

Features: - Support Dhcp, Automatically Obtain an Ip Address and Query Ip Address Through Serial Setting Protocol - Support Dns Function - Set Parameters Through Webpage - Upgrade Firmware Via Network - Auto-Mdi / Mdix, Rj45 Port with 10 / 100Mbps - Serial Port Baud Rate From 600 Bps to 230. 4 Kbps, Check Bit of None, Odd, Even, Mark and Space - Work Mode: Tcp Server, Tcp Client, Udp Client, Udp Server, Httpd Client - Support Virtual Serial Port and Provide Corresponding Software Usr-Vcom - Heartbeat Package Mechanism to Ensure Connection is Reliable, Put an End to Dead Link - User-Defined Registration Package Mechanism, Check Connection Status and Use as Custom Packet Header - Under Tcp Server Mode, Client Number Ranges From 1 to 16; Default Number is 4 - The Global Unique Mac Address Bought From Ieee, User Can Define Mac Address - Restore Factory Default - Across The Gateway, Switches, Routers - Can Work in Lan, Also Can Work in The Internet (External Network) - Provide Pc Tcp / Ip Socket Programming Example Such as Vb, C++, Delphi, Android and Ios - Support Customization Application Field of Rs232 Ethernet Server: - Industrial Data Transmission, Industrial Automation - Security and Protection Monitoring, Public Security - Smart Home, Power Control, Environmental Monitoring, Intelligent Agriculture - Door Check On Work Attendance System, Pos System, Rice Selling System - Building Automation System, Power Monitoring, Self-Service Banking System, Telecom Machine Room Monitoring Package Content: 1 x RS232 to RJ45 Ethernet Converter
