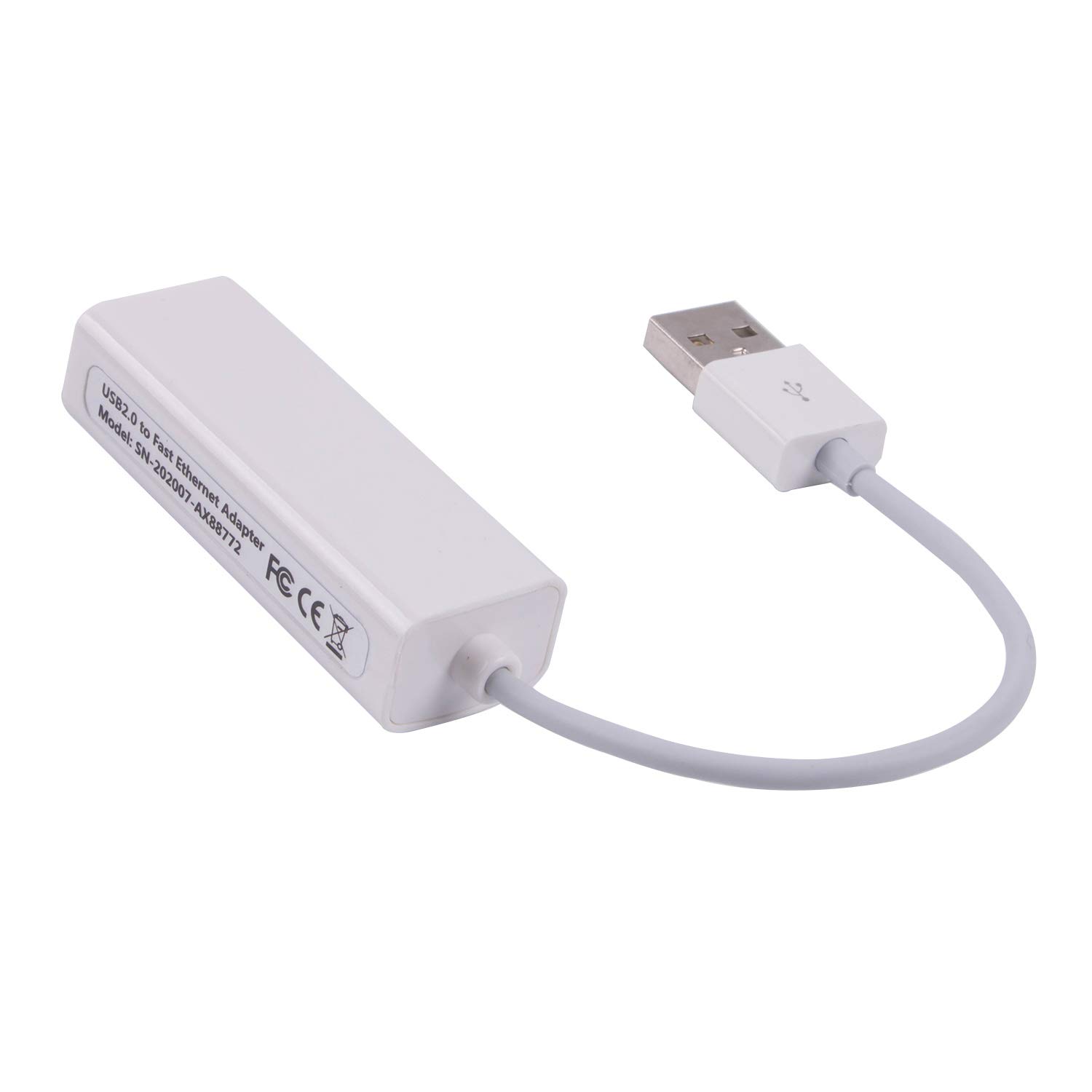

USB2.0 to LAN Adapter Cable for Mikrotik x86 MK808B Plus ASIX 88772 driver AX88772C AX88772B Support Win7

• ASIX 88772 driver AX88772C AX88772B usb2.0 to LAN adapter cable for mikrotik x86 MK808B Plus Need to install driver,High Performance Non-PCI Interface Configurable 8/16-bit SRAM-like host interface (US Patent Approval), easily interfaces with most common embedded,Supports PPPoE/IPv4 IP/TCP/UDP/ICMP/ IGMP checksum offload to relieve CPU loading Supports burst-mode access, minimizing CPU overhead Fast Ethernet MAC/PHY IEEE 802.3 10Base-T/100Base-TX compatible,Supports full-duplex operation with IE
• 20cm usb to ethernet adapter ASIX AX88772C AX88772B usb2.0 to LAN adapter cable,The AX88782 have integrated a voltage regulator and provide support for programmable I/O voltage options of 3.3V/2.5V/1.8V to enable a highly optimized system design. As semiconductor designs migrate to advanced process geometries like 90nm, 65nm, 45nm and beyond, many of today's higher performance ASICs, SoCs and FPGAs require lower I/O voltages.

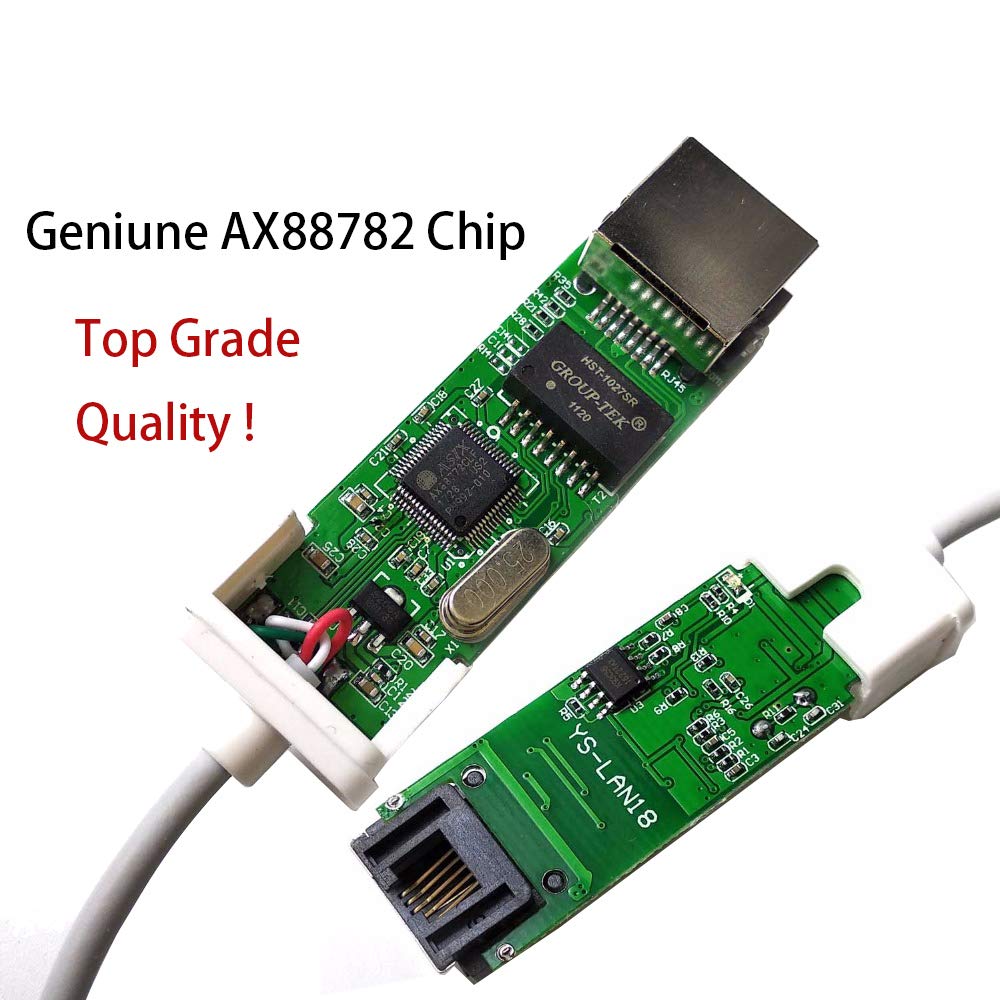

• AX88782 -- Non-PCI 8/16-bit 2-Port 10/100M Fast Ethernet Controller,The AX88782 combine the benefits of high integration and small form factor making them ideal single-chip solutions for designing high performance, QoS-aware and cost effective 2-port Ethernet functions for embedded system applications such as VoIP phone/ATA adapters, surveillance IP cameras, next-generation IP-STB/IPTV, industrial controller/network sensors, port redundancy/port monitoring and Single Board Computers (SBC)
• The AX88782 is a single-chip 2-port 10/100M Ethernet Switch controllers featuring a 3-port switching fabric with QoS priority management, three 10/100M MACs, two 10/100M PHYs, and 8/16-bit Non-PCI host interface. The AX88782 supports checksum offload engine and burst-mode access making it easy to provide a high performance 2-port Ethernet connectivity solution for any embedded MCU. The built-in switching fabric in the AX88782 supports non-blocking wire-speed forwarding and offers an advanced swi
• The AX88782 have integrated a voltage regulator and provide support for programmable I/O voltage options of 3.3V/2.5V/1.8V to enable a highly optimized system design. As semiconductor designs migrate to advanced process geometries like 90nm, 65nm, 45nm and beyond, many of today's higher performance ASICs, SoCs and FPGAs require lower I/O voltages.

Switching Fabric Performs non-blocking wire-speed forwarding and filtering Embeds 32KB SRAM for packet buffering Supports broadcast storm filtering Supports per queue and per port ingress and egress programmable rate limit control Integrates two-way Address-Lookup engine and table for 1K MAC addresses Supports Routing Table/IGMP/VLAN Table access through CPU read/write operation Supports 802.1D Spanning Tree Protocol and 802.1w Rapid Spanning Tree Protocol QoS Supports Quality-of-Service for port-based, 802.1p VLAN and IPv4 TOS/IPv6 COS packets with four priority queues Supports RFC2475 DiffServ-based VLAN Supports up to 3 VLAN groups for port-based VLAN and 16 VLAN entries for 802.1Q tag-based VLAN function Supports Double tagging 802.1Q-in-802.1Q function for WAN access Security Supports ingress port security mode, incoming packets with unknown source MAC address could be dropped Supports eight Security MAC Registrations Supports 802.1X port-based Authorization Multicast Supports GMRP/GVRP/GARP packet snooping Supports IPv4 IGMP and IPv6 ICMP/MLD (Multicast Listener Discovery) Snooping Supports up to 1K Multicast Group (shared with L2 MAC table) Supports eight IGMP Multicast IP address snooping Monitoring Supports RMON group 1,2,3,9 counter (RFC1213) Supports Ethernet-like MIB counter (RFC 1643) Supports Bridge MIB counter (RFC 1493) Egress/Ingress Port Mirroring Sniffer functions Source/Destination Port DA/SA VLAN ID Ethernet Packet Type IPv4/IPv6 Protocol IPv4/IPv6 TCP/UDP Port Number Supports EEPROM Interfaces Single 3.3V power supply with options for 1.8V, 2.5V and 3.3V I/O voltage support Integrates an on-chip voltage regulator requiring only a single power supply of 3.3V Integrates an on-chip oscillator and PLL requiring only a 25MHz crystal to operate Integrates on-chip power-on reset circuit 80-pin E-PAD LQFP RoHS compliant package Operating temperature range: 0°C to +70°C
