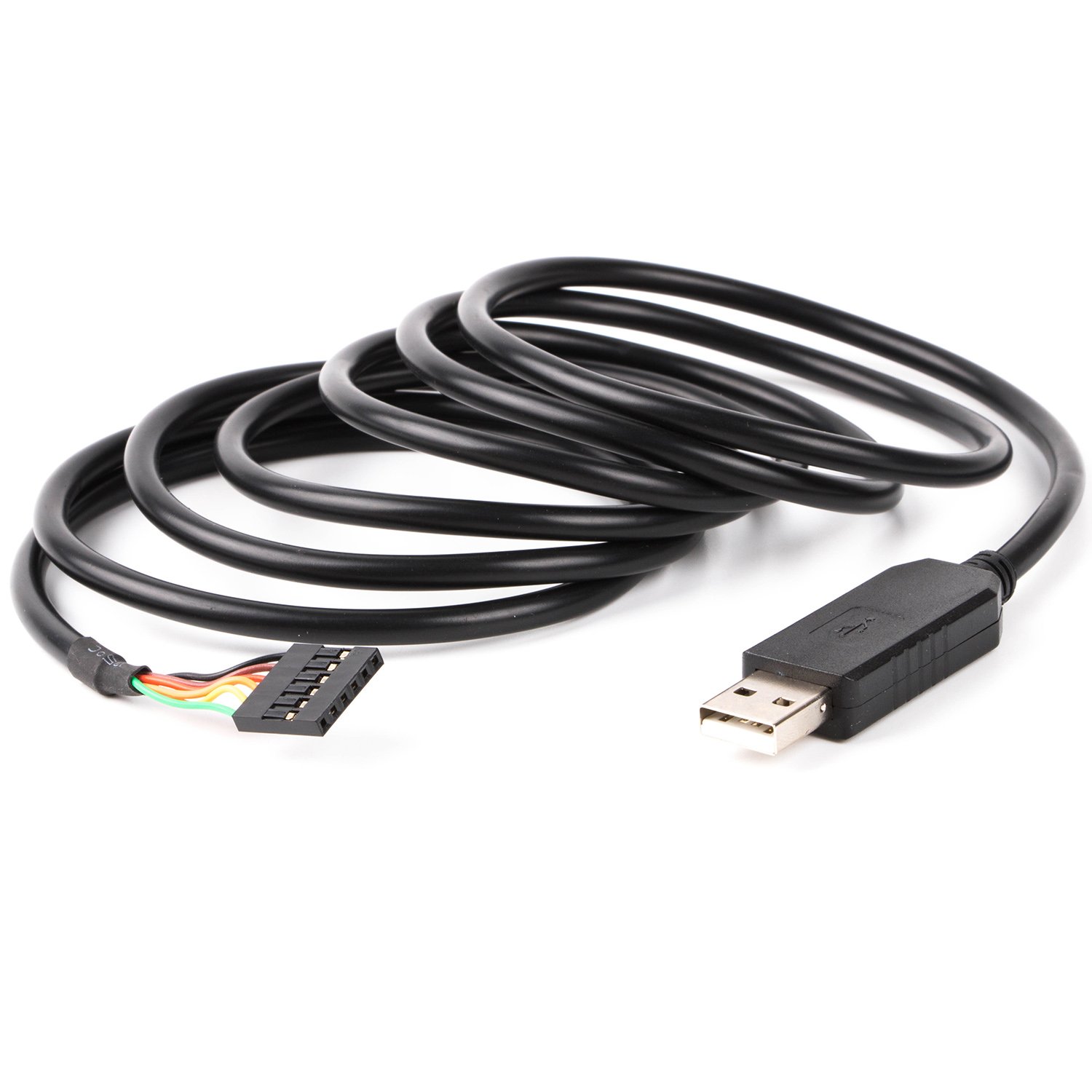

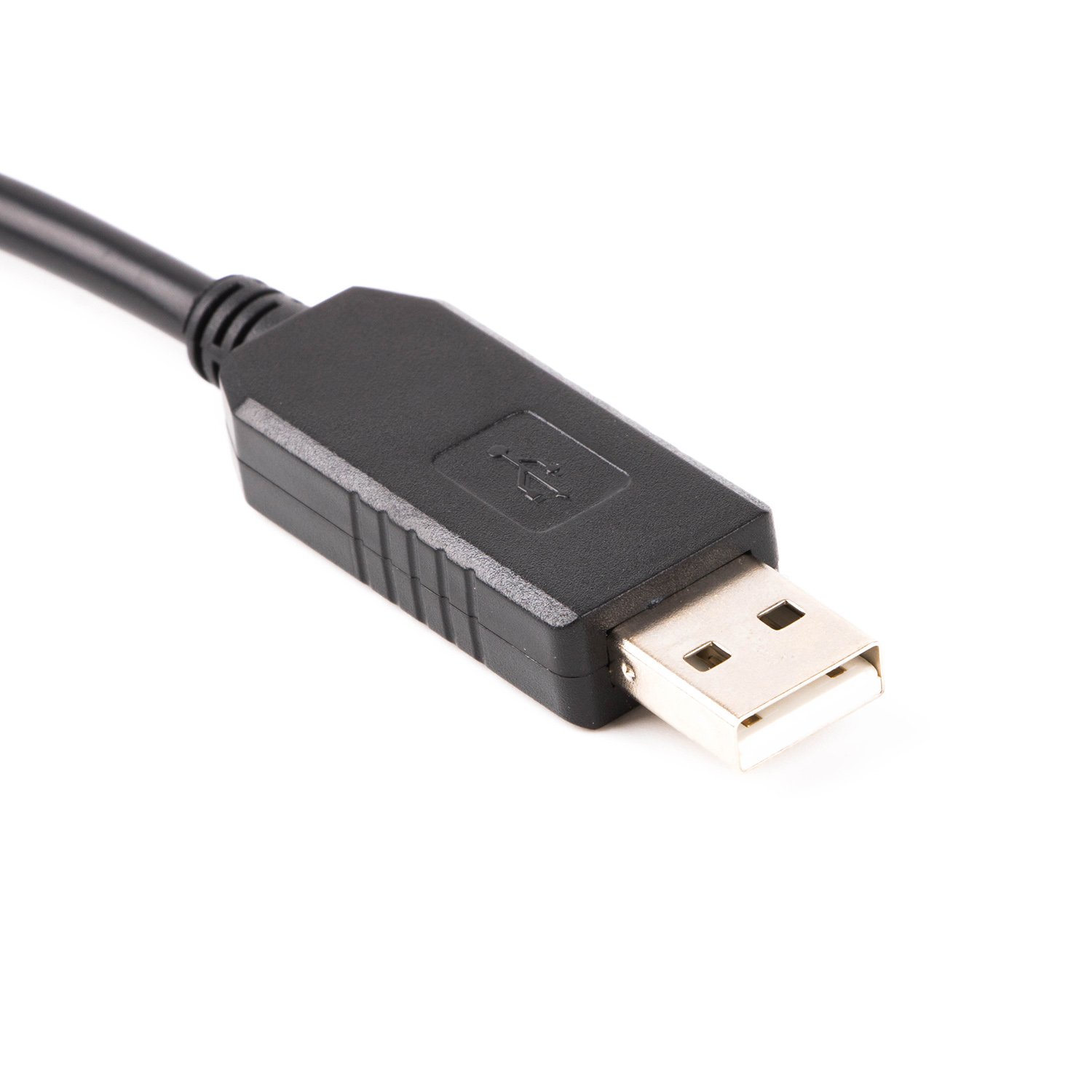

usangreen usb uart cable for galileo board usb console cable programming cable ttl-232r-5v 6ft ftdi chipset

• FTDI FT232RL chip, TTL-232R_RPi cable The lenght is 6FT
• UART TTL 5v level signals Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.

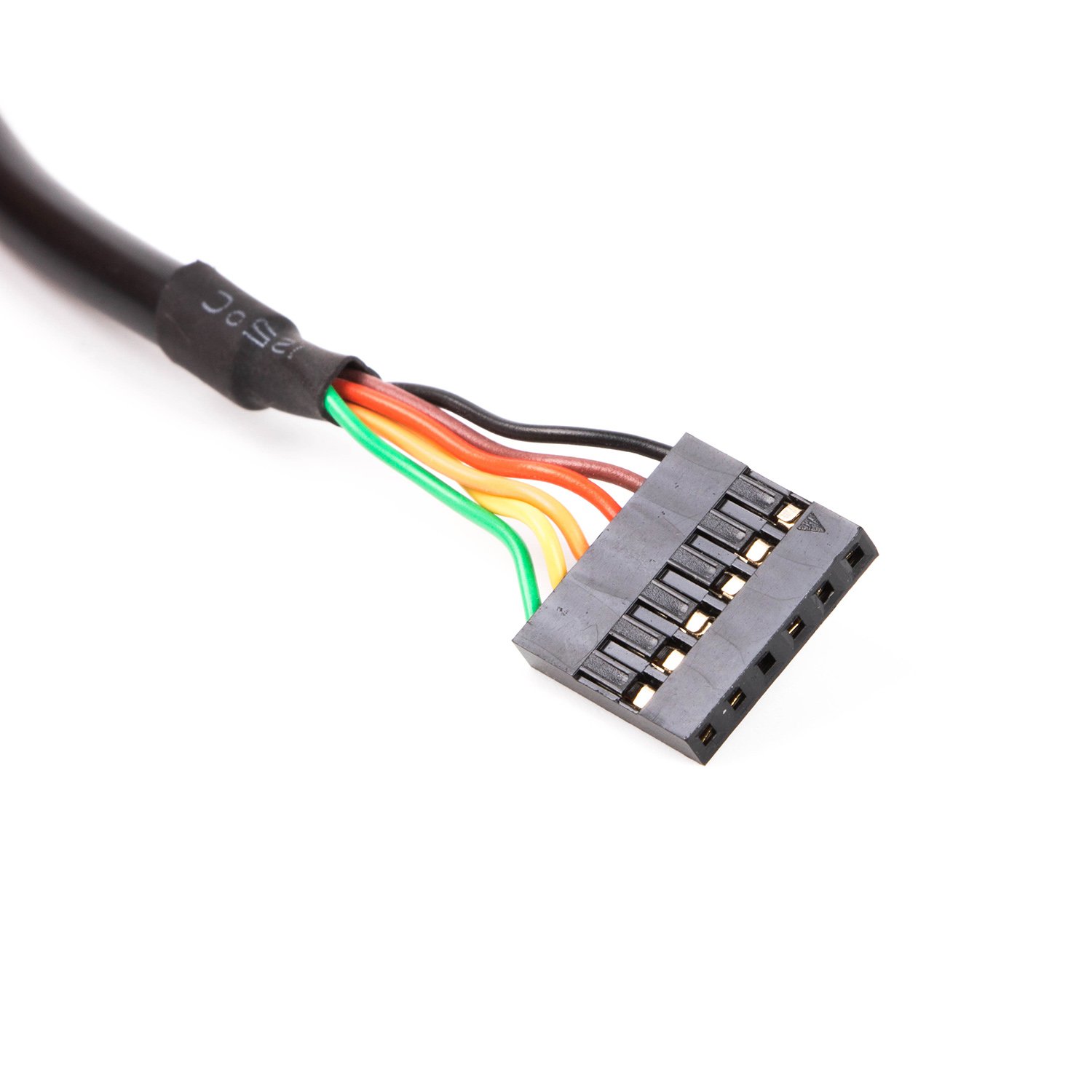

• USB UART to DU PH 0.1"(2.54mm) 1*6p female housing Standard pinout: GND (Blk/1), CTS (Brown/2), VCC(red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6) Driver Download: www.ftdichip.com
• Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS Support FTDI VCP driver and D2XX driver
• 26AWG*6C+AL, 1.8m, OD=4.5mm, black , any question, please contact us freely

ftdi ft232rl usb ttl 5v program cable, compatible with ftdi ttl-232r-5v Support Mac, Android, Win 8.1, Win 10, etc FT232RL USB to UART cable with +5V TTL level UART signals to 6 pin SIL, 0.1" pitch female cable, 6ft TTL-232R_RPi USB UART +5v level signals converter cable. S upport Android(APK files driver download available from www.ftdichip.com), support Win 8, Win 10, Mac Support FT_prog programable Pinout: VCC/TX/RX/CTS/RTS/GND USB UART to 0.1"(2.54mm) 1*6p female housing 28AWG*6C+AL, 6ft, black PE bag for each cable, 100% test. The standard pinout is GND (Blk/1), CTS (Brown/2), VCC (red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6) Drivers are available which allow FTDI devices to work with the following operating systems: Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE.NET (Version 4.2 and greater) Android Windows RT Package: 1 X 5V UART FTDI TTL 6PIN CABLE
