usangreen USB TTL 3.3v Serial UART Converter Cable Galileo Gen2 Board Galileo Gen2 Boards/BeagleBone Black/Minnowboard Max Program Cable ttl-232r-3v3

• The standard pinout is GND (Blk/1), CTS (Brown/2), VCC(red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6)
• USB TTL +3.3V levels (signals only, VCC= +5V) Serial cable is a range of USB to TTL serial UART converter cables featuring FTDI's FT232RL USB to serial UART interface IC device which handles all the USB signalling and protocols
• Provides a fast, simple way to connect devices with a TTL level serial interface to USB. Support EEPROM, Vendor ID re-write and Mprog3.5; Support FTDI VCP driver and D2XX driver . driver download:www.ftdichip.com

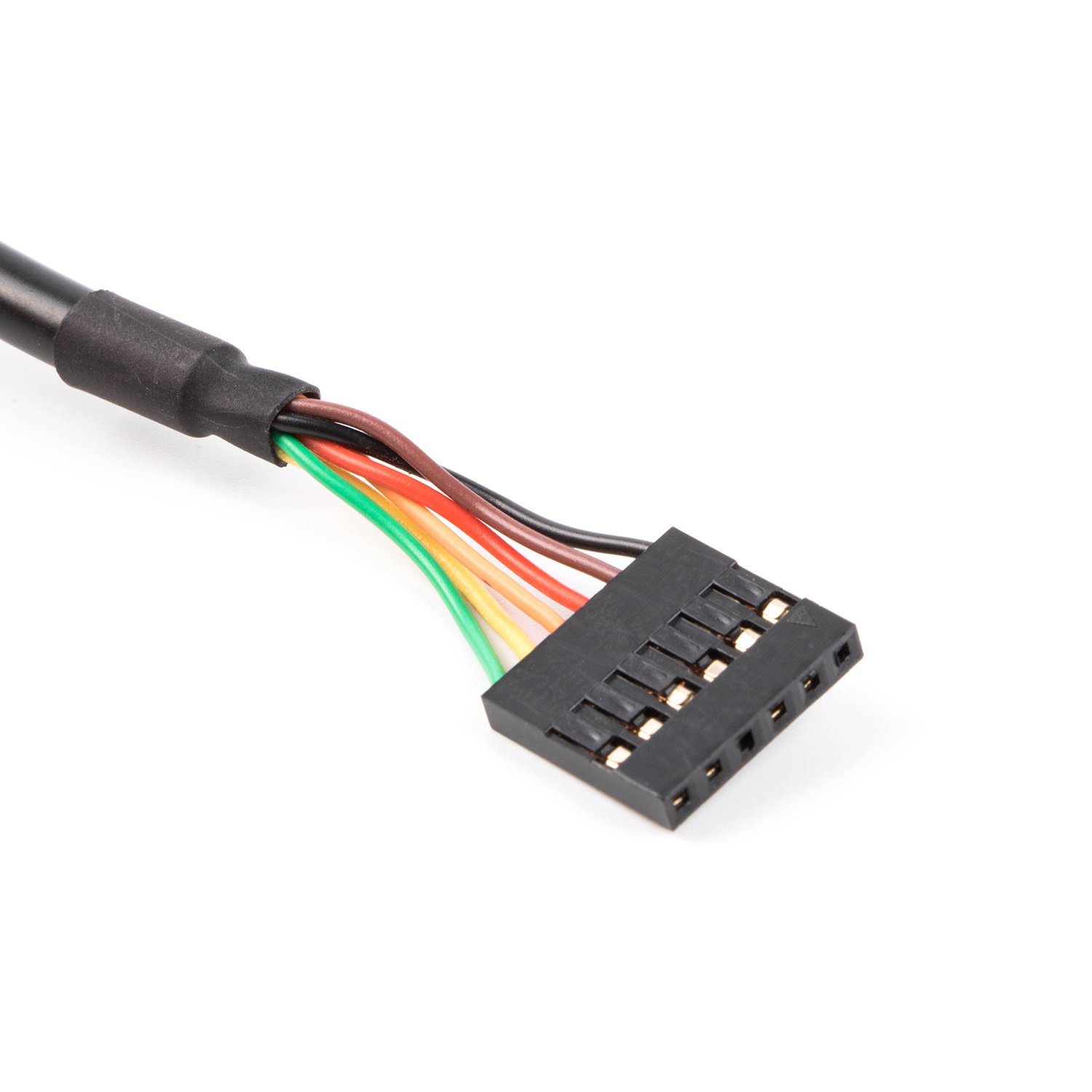

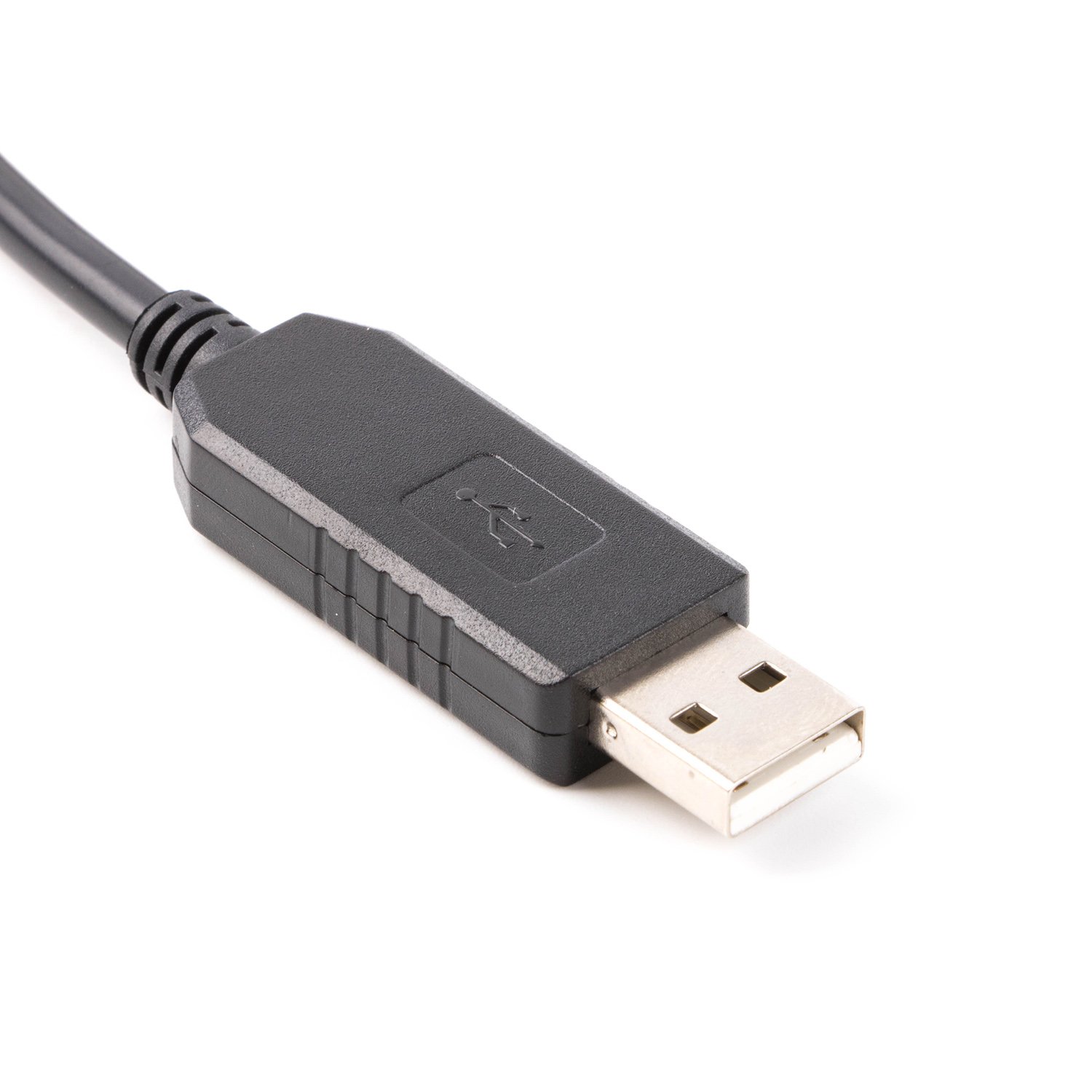

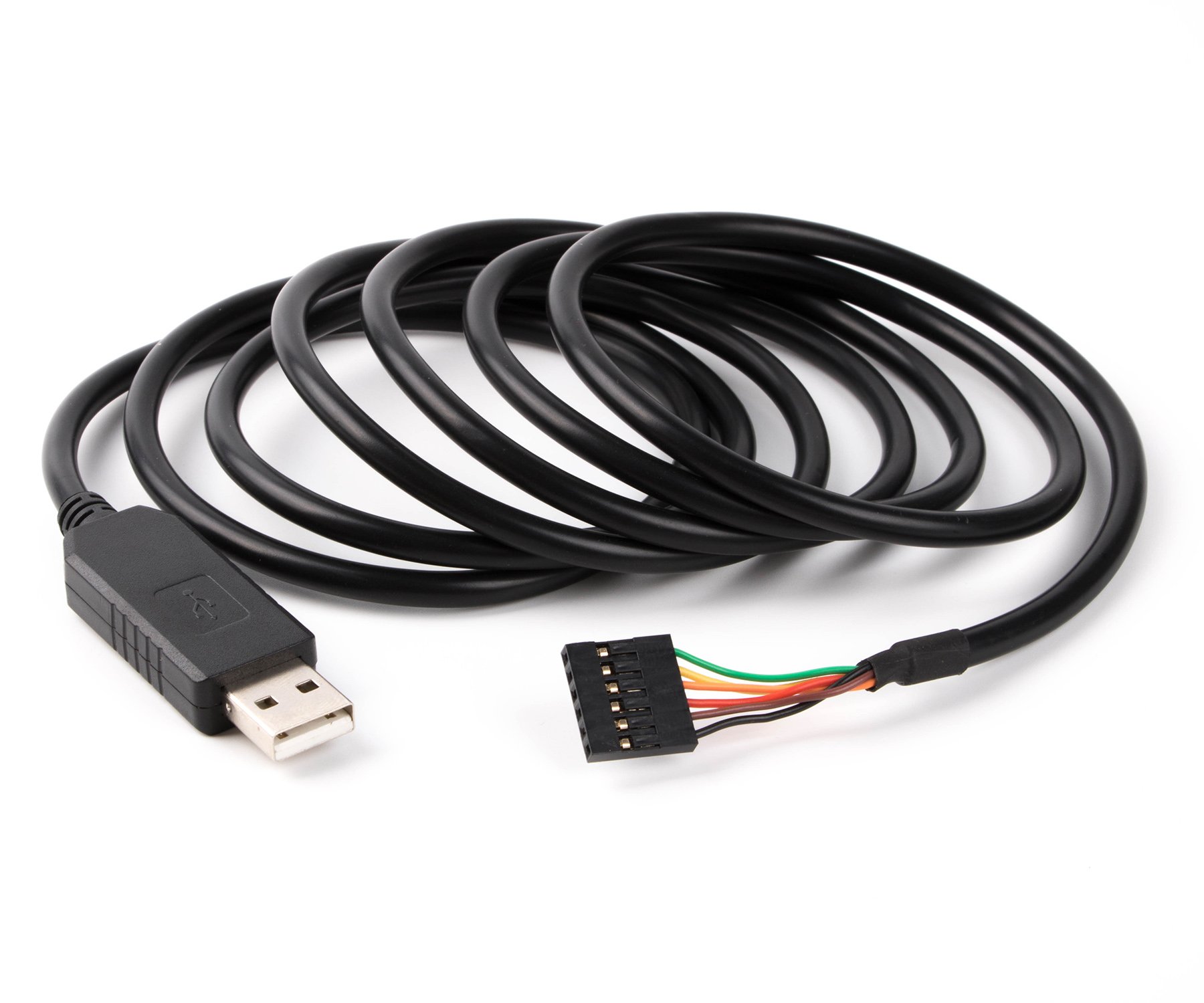

• Operating system Compatibility: Windows 10/8/7, Windows Vista, Windows XP, Windows 98, Windows ME, Linux and Mac OS. Please check for details in 'Product description' by scrolling down this page The USB side of the cable is USB powered and USB 2.0 full speed compatible, while the other end is a 6 way, 0.1", Single-In-Line (SIL) pitch gold plated connector. The length of the cable is 6ft(1.8m)

Galileo Gen2 Boards Console Serial Cable ttl-232r-3v3 galileo gen2 board program cable FT232RL USB TTL 3.3v adapter cable FTDI Cable: USB to Serial , TTL 3.3v Level USB UART TTL level cable FTDI FT232RL chip, TTL-232R_RPi kable Compatible with FTDI TTL-232R-3V3 UART TTL 3.3v level signals Compatible with TTL-232R-3V3 Support VCC/TX/RX/CTS/RTS/GND OS Compatibility Windows 8 / 8.1 (32/64bit), 10 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+) Windows Server 2012, 2008 R2, 2003 Mac OS 10.x (Tested up to 10.9) Linux 2.4.x / 2.6.x Support EEPROM, support Vendor ID re-write,support Mprog3.5 Support FTDI VCP driver and D2XX driver USB UART to 0.1"(2.54mm) 1*6p female housing Standard pinout: GND (Blk/1), CTS (Brown/2), VCC(red/3), TXD (orange/4), RXD (yellow/5),RTS (Green/6) 26AWG*6C+AL, 1.8m, OD=4.5mm, black ABS black shell type, PE bag for each cable, 100% test Drivers are available which allow FTDI devices to work with the following operating systems: Windows 8.1 Windows 8.1 x64 Windows 8 Windows 8 x64 Windows Server2012 Windows Server 2008 R2 Windows 7 Windows 7 x64 Windows Server 2008 Windows Server 2008 x64 Windows Vista Windows Vista x64 Windows Server 2003 Windows Server 2003 x64 Windows XP Windows XP x64 Windows ME Windows 98 Linux Mac OS X Mac OS 9 Mac OS 8 Windows CE.NET (Version 4.2 and greater) Android Windows RT Package: 1 X 3.3V UART FTDI TTL 6PIN CABLE
