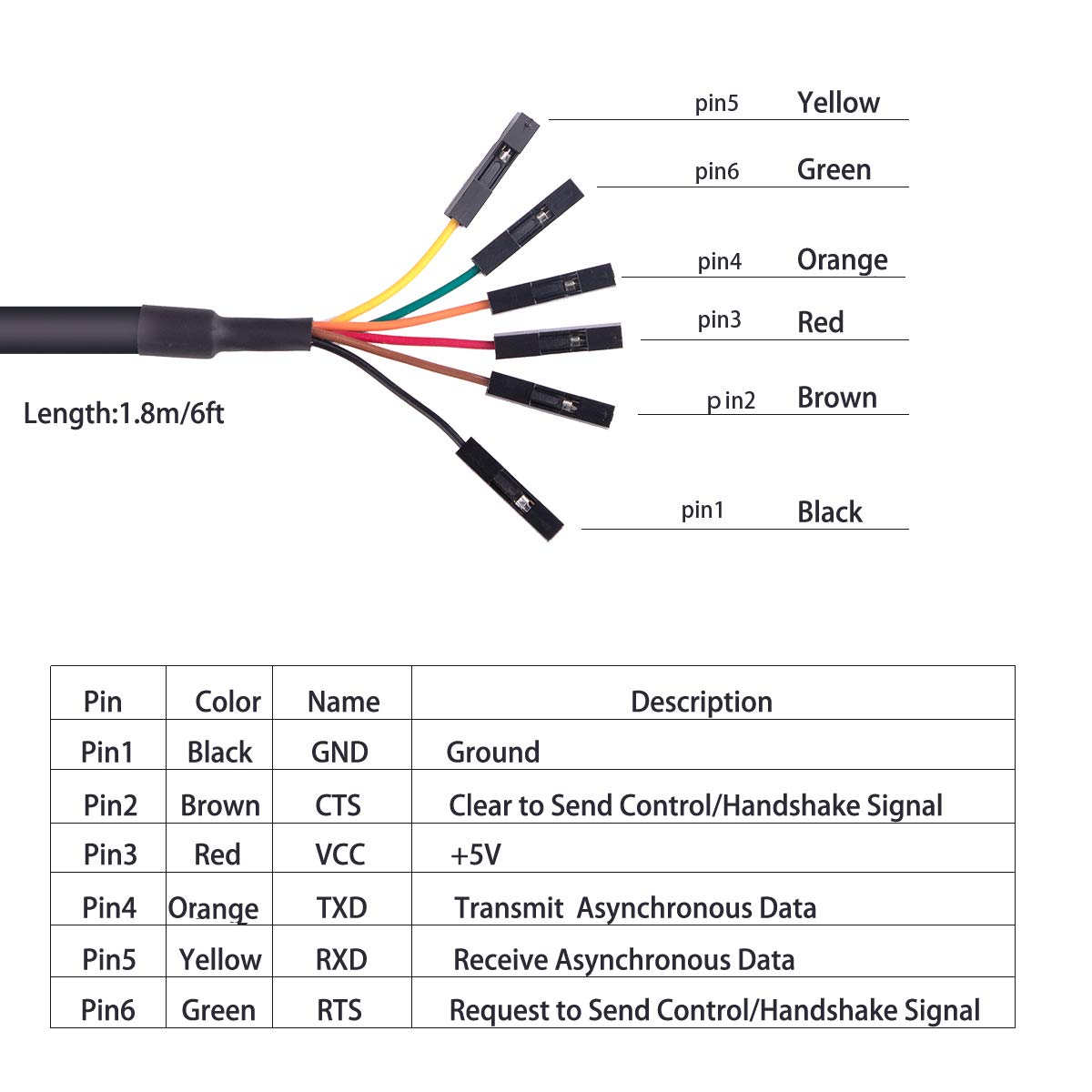

Green-utech USB to TTL 5v 6 Pin 1'' Terminal Block Female Socket Header UART Serial Cable FT232RL Chip for Windows,Linux and Mac OS (5V, 6Pin 2.54mm Single Header)

• USB to TTL 5v UART Serial Cable Connect Directly to a Microcontroller UART or I/O Pins.
• The FT232RL has a low 15mA operating supply current and a very low USB suspend current of approximately 70μA. (Note that during suspend mode, the current drawn by application should not exceed 2.5mA to remain USB compliant)
• The TTL cables are capable of operating over an extended temperature range of -40º to +85º C thus allowing them to be used in automotive or industrial applications.

1.Typical Applications · USB to Serial TTL Level Converter · Upgrading Legacy Peripherals to USB · Interface Microcontroller UART or I/O to USB · Interface FPGA / PLD to USB · Interface to FT232RL VDRIVE2 or VMUSIC2 modules. · Replace MAX232 type level shifters allowing for direct connection of products to PC via USB · USB Instrumentation PC interface · USB Industrial Control 2. Driver Support · Windows 10 32,64-bit · Windows 8/8.1 32,64-bit · Windows 7 32,64-bit · Windows Vista and Vista 64-bit · Windows XP and XP 64-bit · Windows 98, 98SE, ME, 2000, Server 2003, XP, Server 2008 and server 2012 R2 · Windows XP Embedded · Windows CE 4.2, 5.0 and 6.0 · Mac OS 8/9, OS-X · Linux 2.4 and greater
