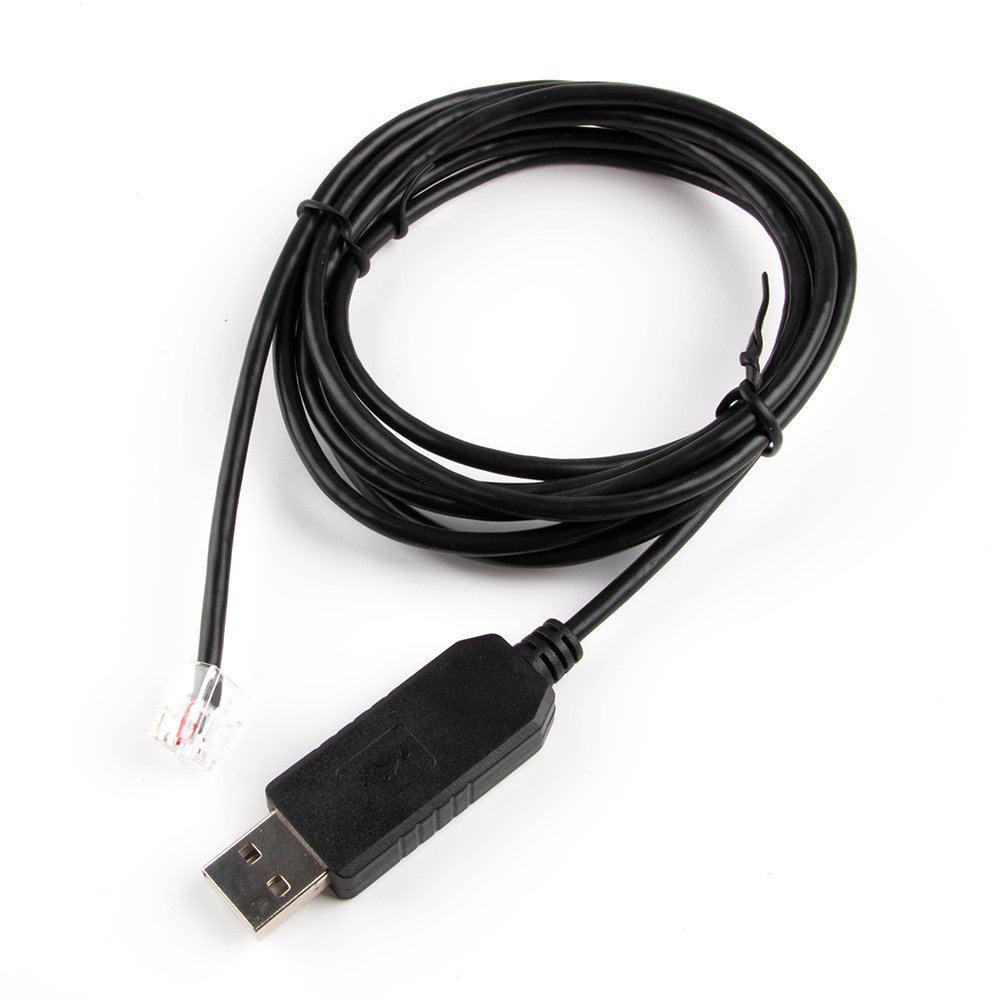

usangreen USB Kaifa Dutch Smart Meter DSMR P1 FTDI ft232r USB TTL 5v to RJ11 6p6c Cable (For ISKRA ME 382 EN MT3)

• For Kaifa Smart Meter 5V TTL cable with FTDI chipset
• Length:6ft, Chipset: FT232RL , driverdown: www.ftdichip.com
• As your required , please select your required one .
• Support Android, Support Win 8, Win 7, XP, 2000, Linix, Mac OS Support EEPROM, support Vendor ID re-write,support Mprog3.5 Support FTDI VCP driver and D2XX driver
• For Kaifa Smart Meter Application Usage

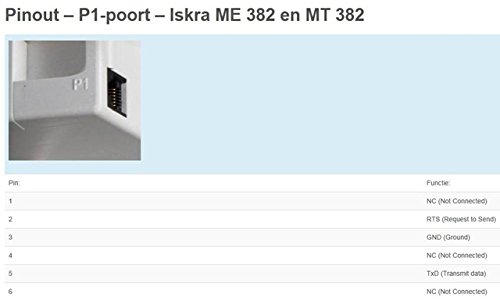

ftdi ft232r usb ttl 5v to rj11 6p6c for dutch kaifa smart meter dsmr p1 Please be kind to read the following information before you buying this cable, this cable is specially for the dutch kaifa smart meter communication with Domoticz on Raspberry. for ISKRA AM550 please select the AM550 type, it is need to add one 10K resistor. Works with Kaifa KWH smart meter. Readouts Energy +T1/+T2/-T1/-T2 and Gas connected to Synology Nas with Domoticz For Kaifa MA105A, please selection the MA105 type, it donot need pull up resistors. Pinout – P1-poort – Kamstrup 162, 382 en 351 1 RTS (Request to Send) 2 GND (Ground) 3 NC (Not Connected) 4 TxD (Transmit data) Read data from the Landis E350 smart meter(add 2K pull up resistor)
