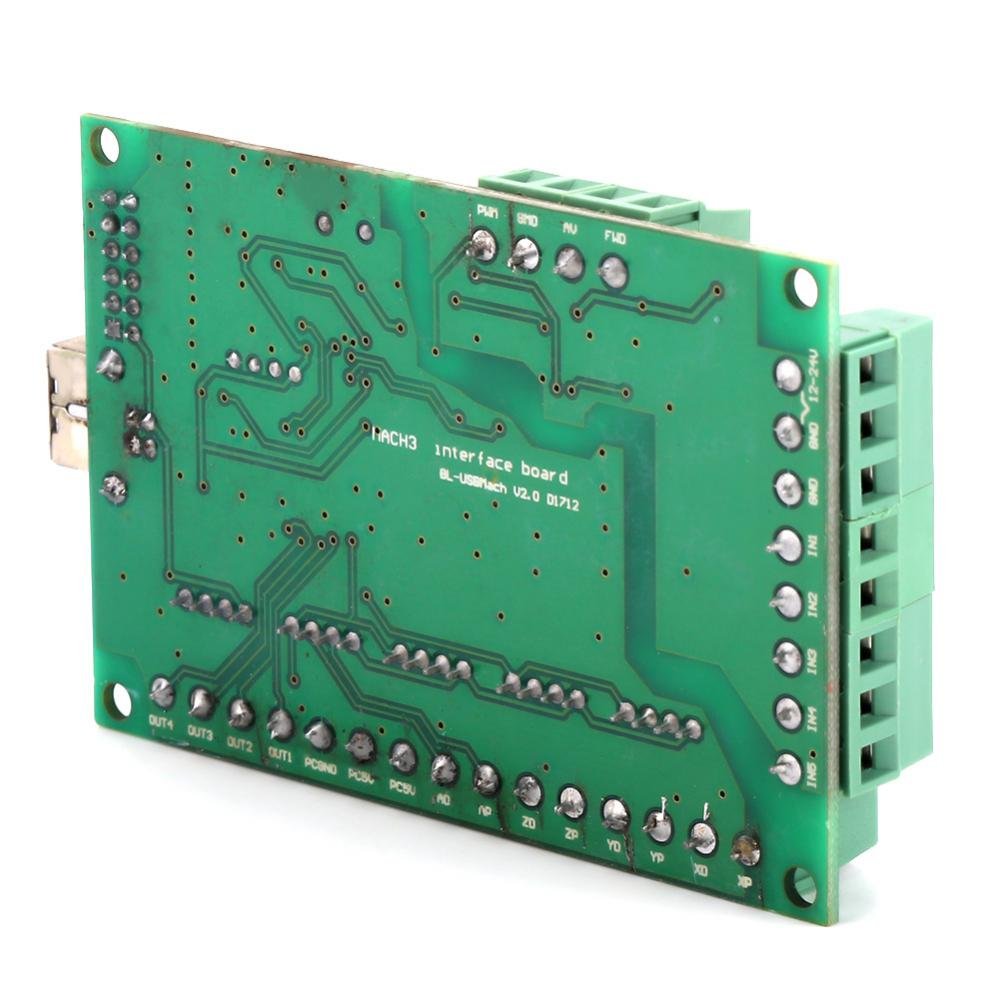

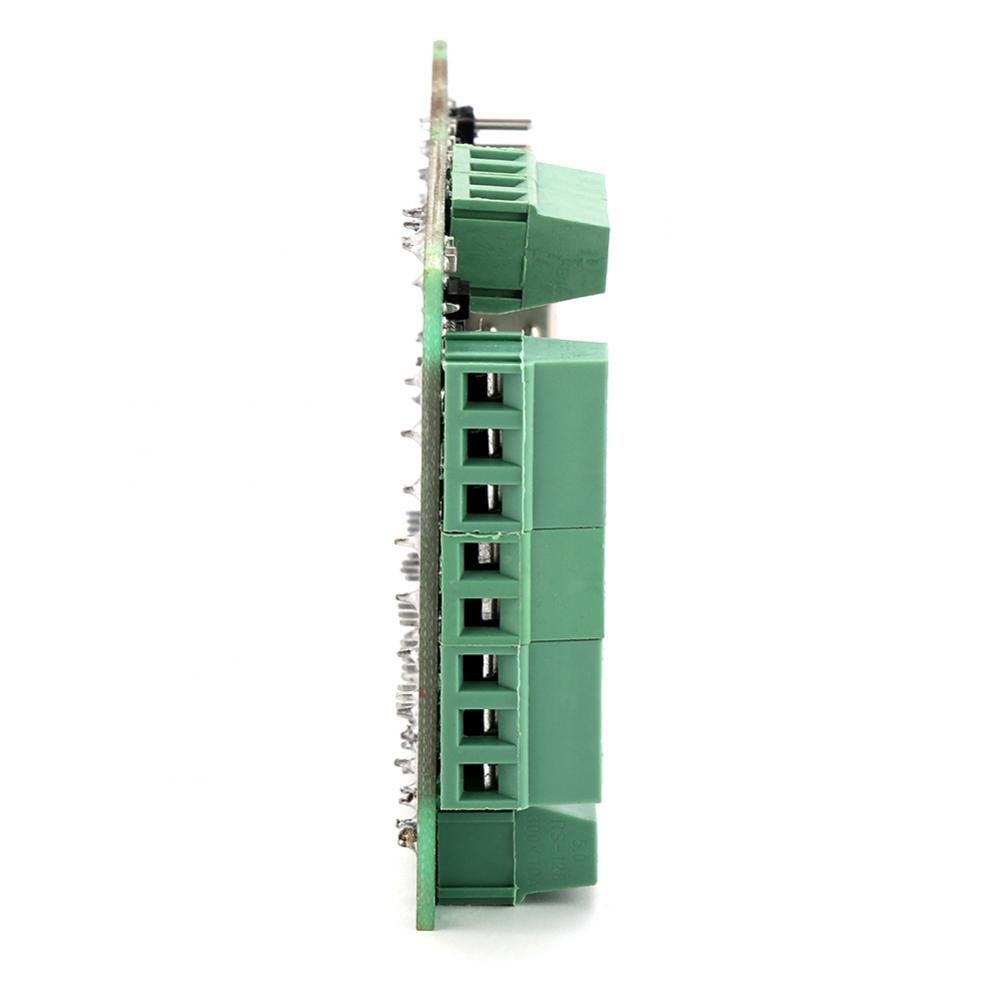

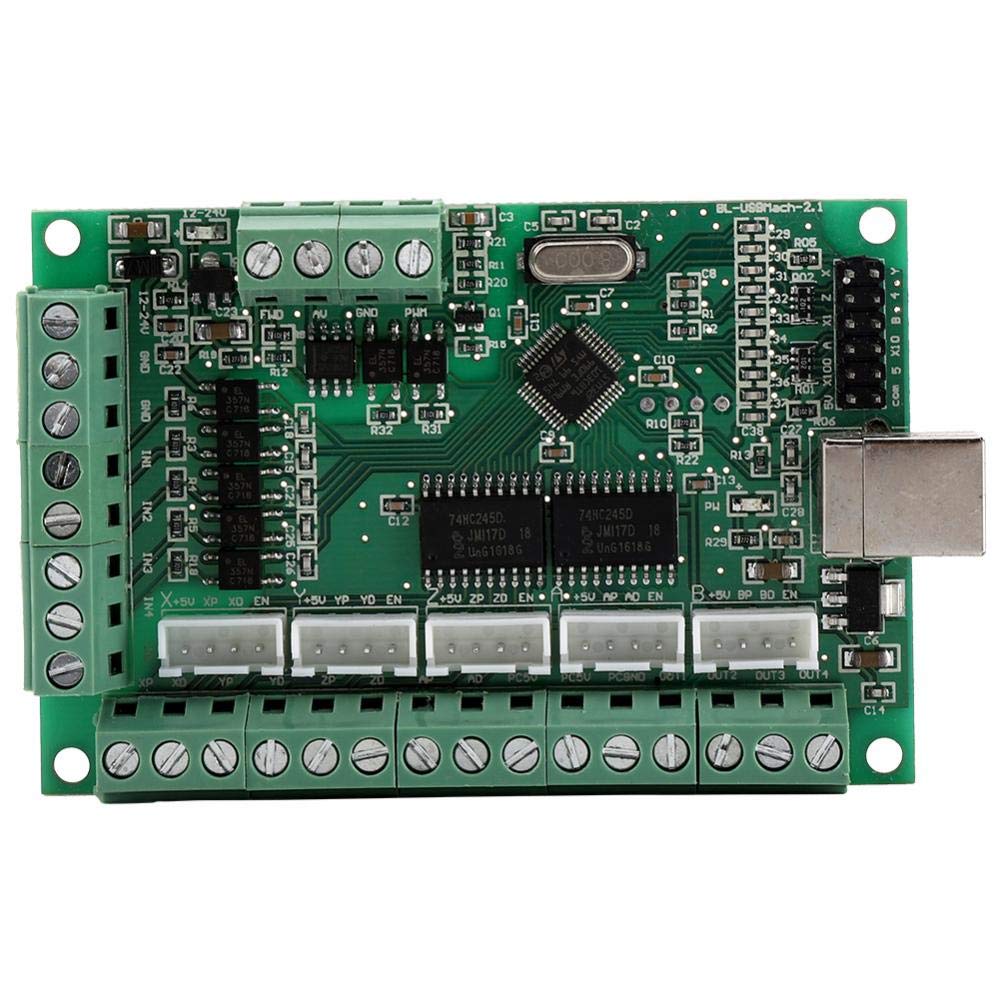

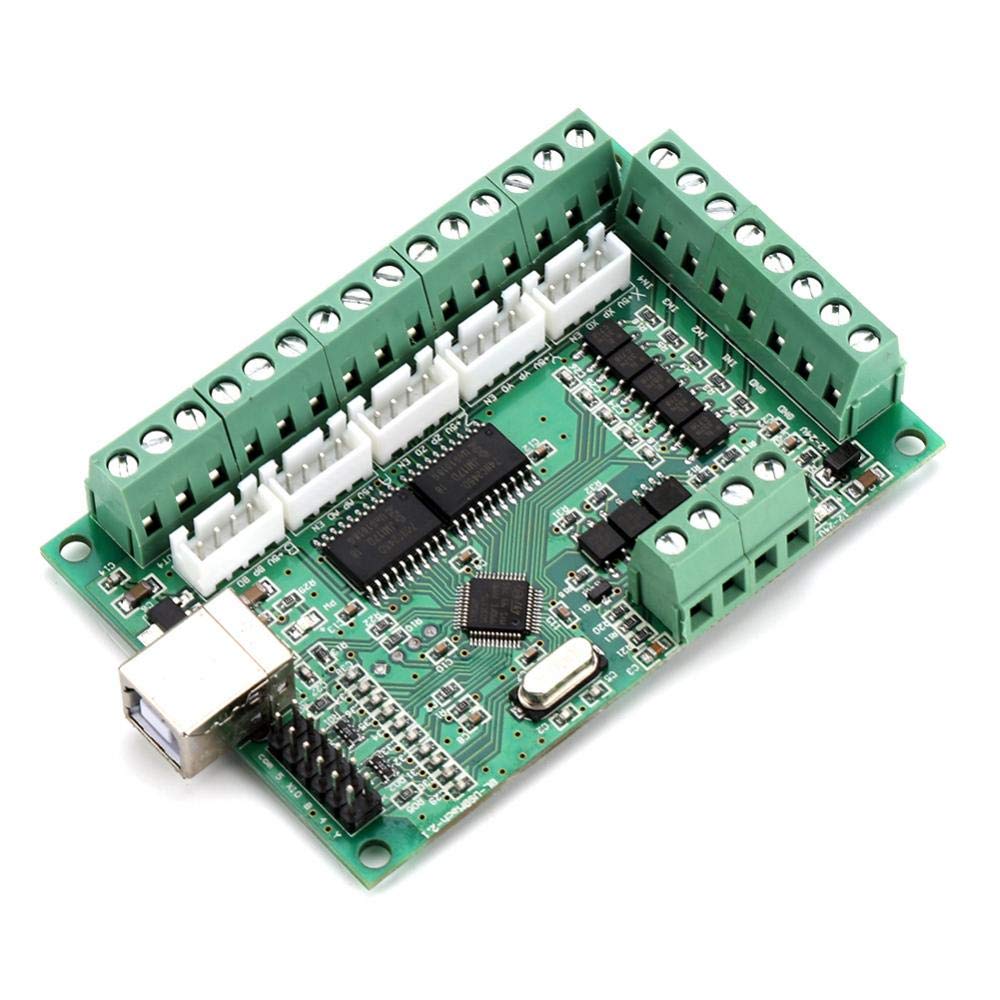

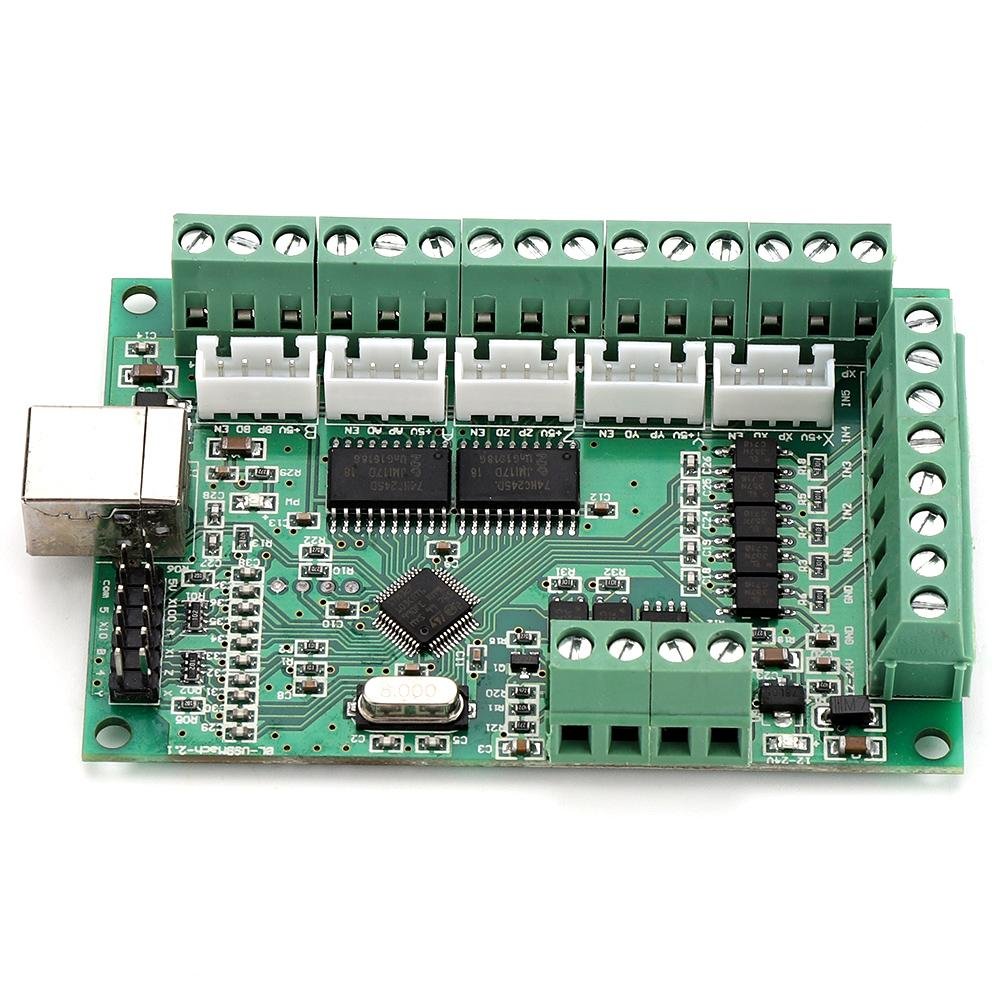

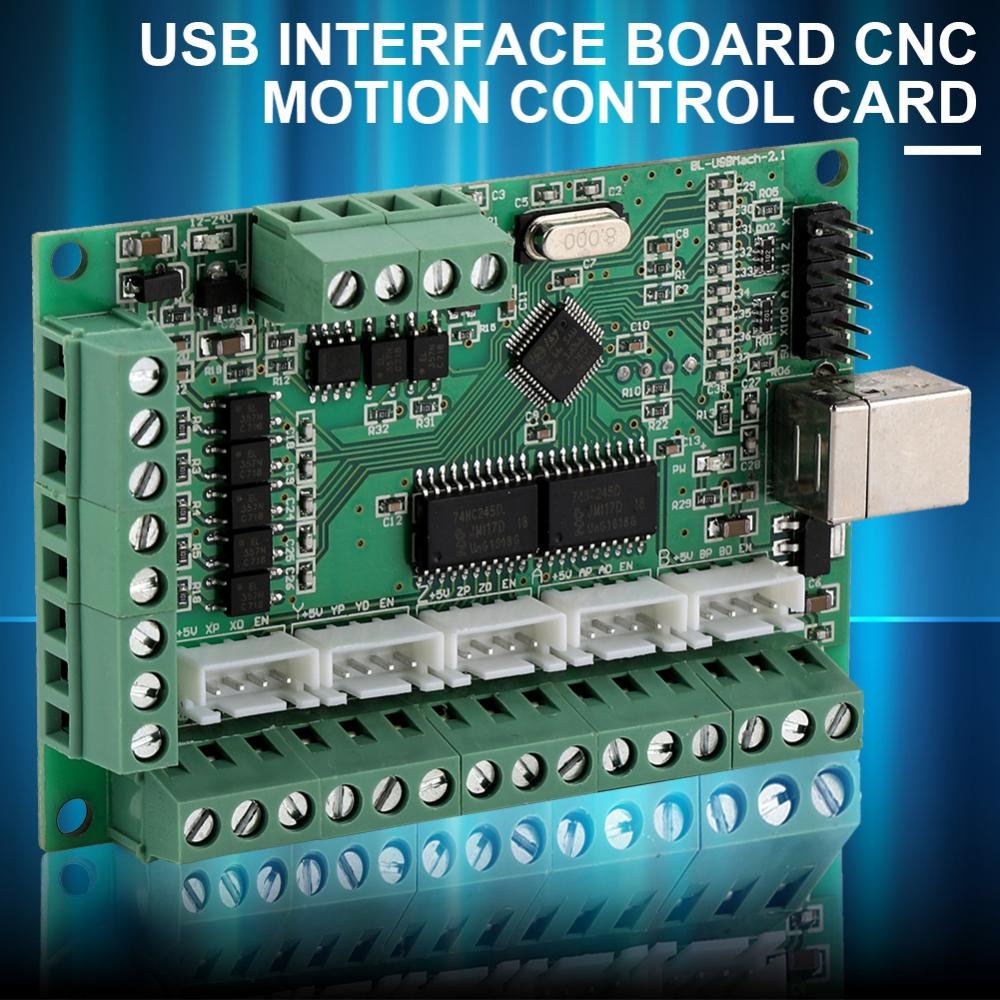

USB Interface Controller Board, CNC MACH3 Motion Controller Card Program Module Board for Engraving Milling Machine Anti-interference/Anti-reverse

• 【Benefit】 The frequency converter interface (AVI +, AVI-) is disconnected from the computer and the main control circuit, which helps to strengthen the anti-jamming capabilities.
• 【Use】 Support for different versions of MACH3 software, support for the latest version. Support for Windows XP, WIN7, WIN8, WIN10, support for 64-bit systems, support for laptops, support for tablets.
• 【Function】 The external voltage input wide, 12-24V and the anti-return function. All input signals isolated by the luminous lotus are accessible by emergency stop, knife, limit, return to zero, etc. to ensure the security of the computer.
• 【Features】 Throughout the 0-10v isolated analog voltage output of the optocoupler, you can control the input voltage of the 0-10v analog voltage converter to control the spindle speed.
• 【Service】 If you have any questions, do not hesitate to contact us immediately, we will answer you as soon as possible.

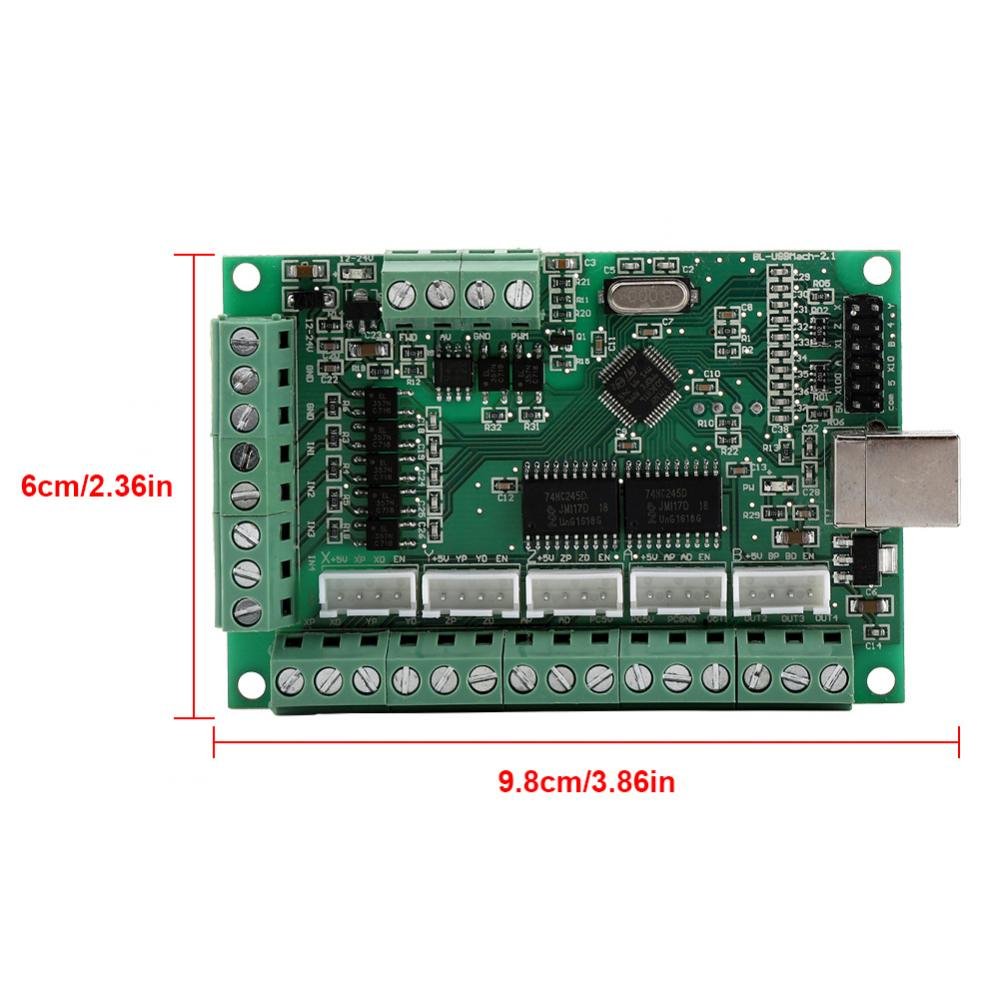

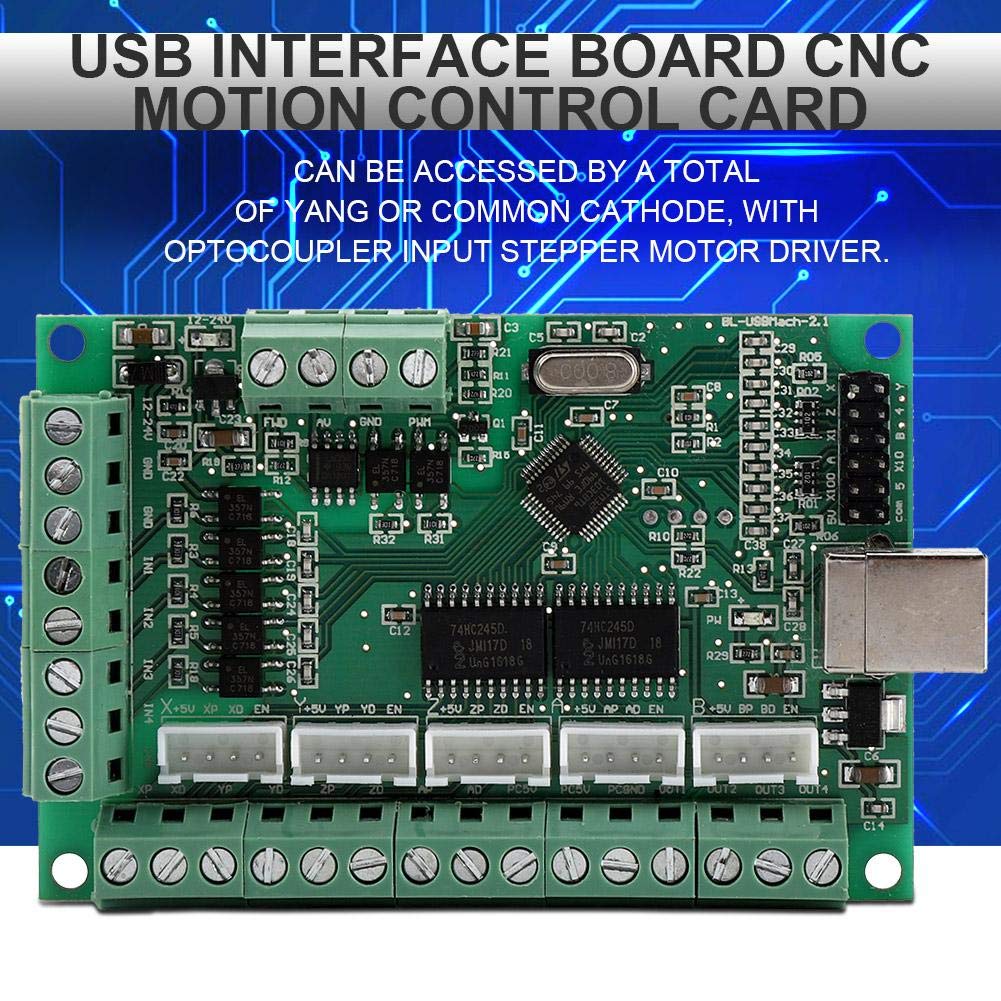

Product features: The frequency converter interface (AVI +, AVI-) is disconnected from the computer and the main control circuit, strong anti-jamming capability Support for different versions of MACH3 software, support for the latest version. Support for Windows XP, WIN7, WIN8, WIN10, support for 64-bit systems, support for laptops, support for tablets. The external wide voltage input, 12-24V and anti-reverse function. All input signals isolated by the light lotus can be accessed by emergency stop, knife, limit, back to zero, etc. to ensure computer security. All the way through the optocoupler isolated 0-10v analog voltage output, you can control the input voltage of 0-10v analog voltage converter to control the spindle speed To supply PWM output (5V level), can be controlled by the PWM spindle control. Provide 4 output port (5V level), can be connected with the relay module optocoupler, water control, spray and so on. Can be accessed by a total of Yang or common cathode, the input level of 5v, with optocoupler input stepper motor driver. Providing an electronic hand wheel interface. Specifications: Type: USB interface panel Support: for MACH3 software Size: 9.8 x 6 inches / 3.96 x 2.36 inches Weight: 145g Package contents: 1 x interface card 1 x USB cable 1 x CD
