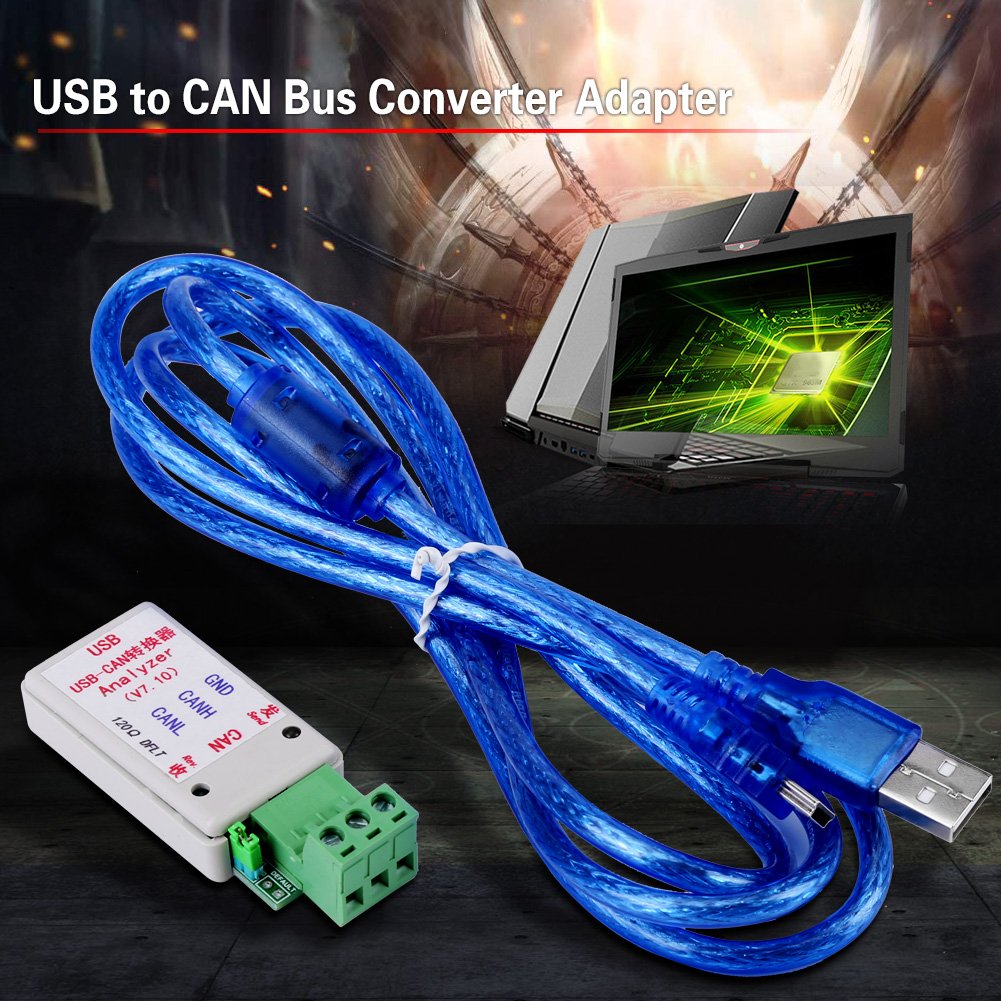

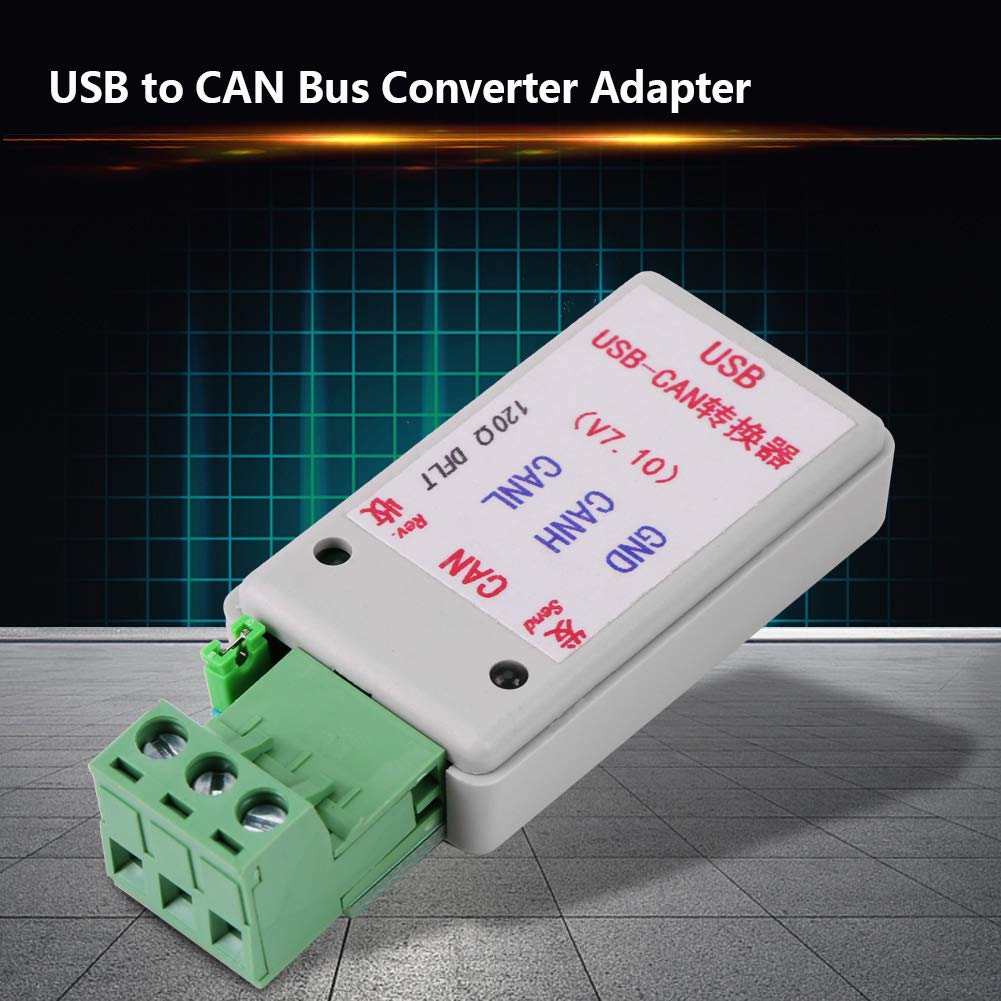

Garosa USB-CAN Bus Converter Interface Adapter with Cable Intelligent CAN Module Compatible with XP/7/8 - High-Speed USB to CAN Bus Analysis Tool for Vehicle Diagnostics

• HARDWARE: Inside the hardware, TVS protection is added; With 120 ohm match resistance. Included data cable with magnetic ring shielding.
• SOFTWARE BASIC FUNCTION: Sending data can be sent in single frame or multiple frames, can be sent manually, can be sent on a regular basis, and can be sent in a loop, which is more convenient for debugging.
• SOFTWARE ENHANCEMENT FUNCTION: The receiving data can also be automatically answered. When we want to receive the received ID, we can automatically reply the data that is set to send ID; You can manually view the CAN bus state.
• SOFTWARE BASIC FUNCTION: Communication support CAN2.0A (standard frame) and CAN2.0B (extended frame)- CAN communication baud rate range (5K~1M), CAN baud rate can be customized; CAN Send and receive data display with time show, the receive data can be displayed sequentially or refreshed.
• SOFTWARE ADVANCED FUNCTION: The configuration is automatically saved and can be used directly next time; Secondary development is very simple, just processing a single receive and send command; Enhanced transparent transport function; The software interface can be switched in English and Chinese.

More Software Enhancement Function: You can directly set the desired ID, not by setting the filter ID or masking ID, and directly entering the ID you want to receive, can be configured directly. There are four working modes to choose from (normal mode is mainly used for direct communication with CAN devices.The loopback mode CAN be used for the self-test of the converter,In this mode, the converter will automatically send and receive, the data can be also sent to CAN bus. Silent mode CAN be used to monitor CAN bus data without affecting CAN bus communication, loopback silent mode is usually used for thermal test CAN converter Send and receive data can be saved as TXT text format or Excel format. The baud rate of the virtual COM port can also be modified, and the default communication baud rate is over 1M, so don't worry about conversion efficiency. Specification: Type: USB - CAN7 Applicable scope: all kinds of CAN bus transmission equipment Support system: XP and above systems, supportWiN7/WIN8 32-bit / 64-bit ) Adapter size: 7 x 2.7 x 1.6cm/2.76 x1.06 x 0.63inch Cable: 1.49m/63inch Weight: 82g Package Included: 1 x USB to CAN Bus Converter 1 x USB Cable Note: The latest upgrade of this converter is V7.0, the default V7.0 converter, the previous version of the converter has a default communication rate of 1.2288M, and V7.0 is upgraded to 2M, which can change the baud rate to 1.2288M and communicate with the previous version of the software.
