HD 1080P Car Rear Reversing Camera 9" DVR Monitor Kit, 8 IR LED AHD Truck Reverse Rear view Camera + 9 inch 2-Split IPS Screen with 4 Pin 5m/15m Long Cable for 12V-24V Bus Trailer Camper Motohome

• 【1080P Hard Wired Version Reversing Camera Kit】9 inch IPS Screen DVR Monitor + AHD 8 LED Night Vision IR Reverse rear camera with 4 Pin aviation connector cable.Hard wired version Camera system with stable signals and clear mirror image guarantees safe
• 【9 inch DVR Monitor】4Pin 4Pin 9inch IPS DVR monitor 1080P, full color display and Great Loop Record functions.Image can be rotated Upside down or mirror/ none mirror viewing with 2 channel video input
• 【AHD Reverse rear camera】IP69 Waterproof Rear Reverse mirror Camera with 4 Pin Connector,8 LED IR Night Vision clearly view at night,100% Not Wash Out AHD Mirror image Rear View Camera, and 2.3mm lens (150°wide view angle )
• 【Support 12v-24v Vehicle】Come with 5m/16ft and 15m/49ft 4-Pin Aviation Extension cable for 12V/24V Long Bus Truck Trailer RV Bus Van Motorhome Schoolbus Pickup Camper Lorry 5th wheel and all other heavy duty parking assistance system
• 【reversing priority Trigger wire】Monitor will automatically switch for CH2 when the reversing gear is selected(Monitor green/blue cable need to connect for reversing trigger+)

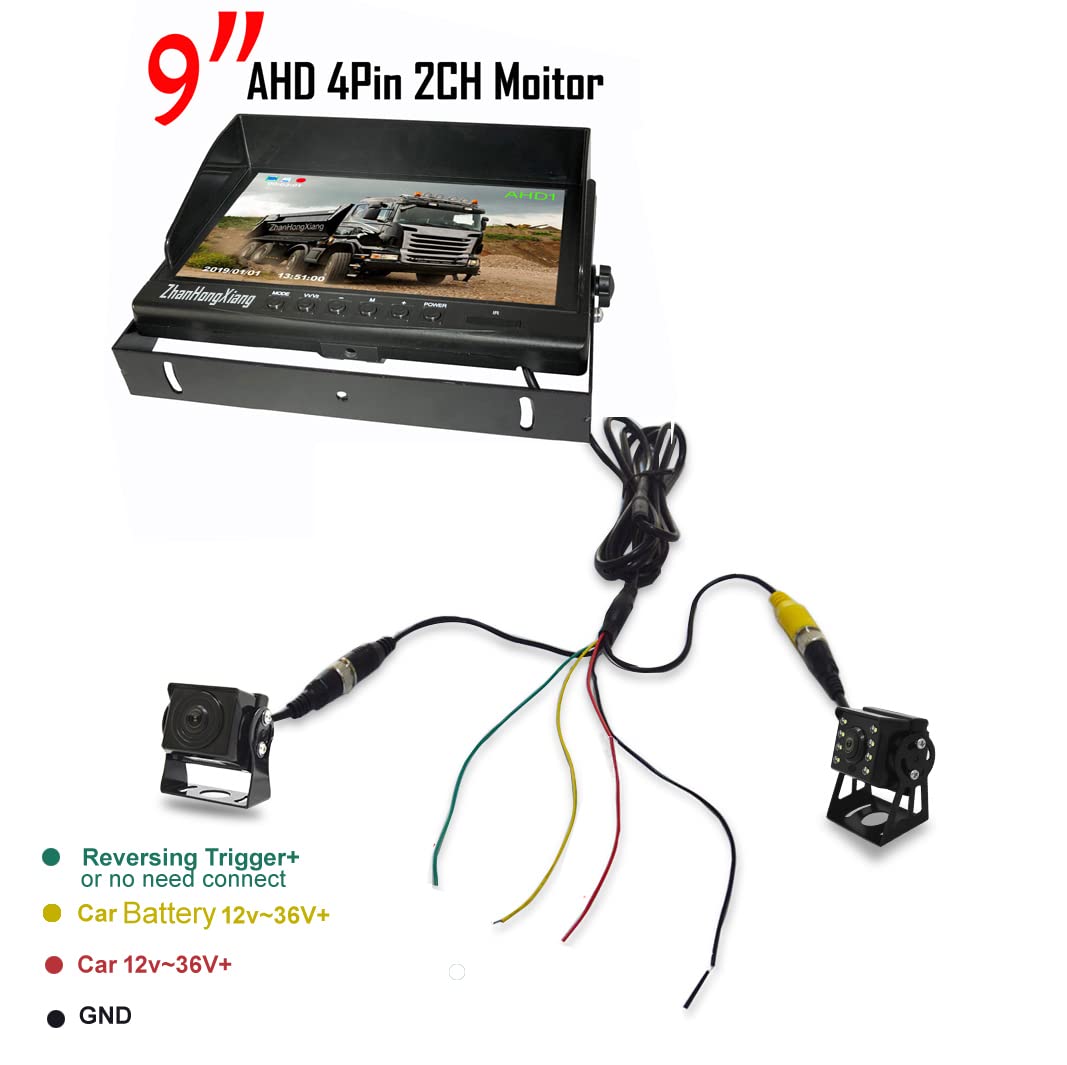

This is New Update Model ISP AHD 1080P 9 inch 2-Split DVR Monitor System AHD Reverse Rear View Camera The Monitor has two video input and split functions Can add the second AHD 1080P Car Rear Camera to display 2 video at same time Easy Simple install Only need to connect the monitor wire with car electronics system: Red wire to car key on ACC+ Yellow wire to battery+ Black wire to GND, Green wire to reversing Trigger+ Support reversing used or permanently used 9 inch IPS AHD Monitor with dvr Recorder Monitor dimensions: 230*155mm Resolution: 1024*600 Pixels System:PAL&NTSC auto-switching Power: DC 12V-24V Consumption:5W Video: 2 way video input High Resolution with Split functions can display (single large video)or(2-split video) Build in Great Loop Record functions, Supports Record 2 Channels Camera at the same time Max support up to 128GB (80M/S above) Image Can be Flip With Mirror or None Mirror (Front View/Rear View) Net Weight: Approx. 1000g Lauguage:English,Chinese AHD 8 LED IR Car Rear View Camera 100% Not Wash Out AHD 1080P Mirror image Sensor no Grid Lines TV system:PAL/NTSC Lens:2.3mm(150 Wide View angle ) Number of pixels:2 Megapixel Camera(1920*1080P) Minimum illumination:0 LUX Backlight compensation:Auto White Balance:Auto Tracing Auto Gain Control:Automatic Night vision:8 LED IR Video Output:4Pin aviation Connector work Temperature:-20°C~+60°C Power Requirement:DC 12V-24V Weight: Approx 200g Waterproof:IP 69K
